Description

Features

Mystic Light RGB LED

Personalize your PC with 16.8 million colors / 29 effects, controlled in one click!

Lightning USB 20G

Built-in USB 3.2 Gen 2×2 port, offers the 20Gbps
transmission speed, 4X faster than USB 3.2 Gen 1.

2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager delivers better network experience.

WIFI 6

The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Audio Boost 4

Isolated audio with a high quality audio processor for the most immersive audio experience.

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.

DDR4 Boost

Advanced technology to deliver pure data signals for the best gaming performance and stability.

M.2 SHIELD FROZR

Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.



Product Specifications

SOCKET 1200
CPU (MAX SUPPORT) i9
CHIPSET Intel? Z490 Chipset
DDR MEMORY 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL DUAL
DIMM SLOTS 4
MAX MEMORY (GB) 128
PCI-E X16 3
PCI-E X1 2
SATAIII 6
M.2 SLOT 2
RAID 0/1/5/10
LAN 1x Realtek? RTL8125B 2.5G LAN
USB 3.2 PORTS (FRONT) 1(Gen 2, Type C), 2(Gen 1, Type A)

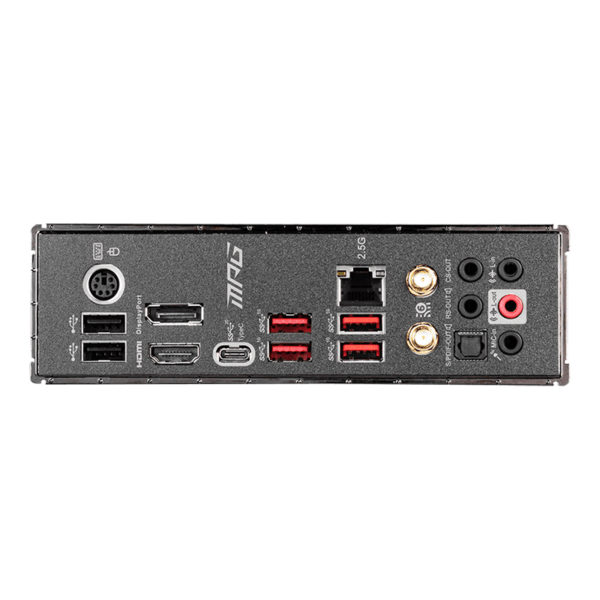

USB 3.2 PORTS (REAR) 1(Gen 2×2, Type C), 4(Gen 2, Type A)
USB 2.0 PORTS (FRONT) 4
USB 2.0 PORTS (REAR) 2
AUDIO PORTS (REAR) 5+ Optical S/PDIF (Realtek? ALC1220 Codec)
DISPLAY PORT 1
HDMI 1
DIRECTX 12
FORM FACTOR ATX
SLI Y
CROSSFIRE Y
OPERATING SYSTEM Support for Windows? 10 64-bit
