Description

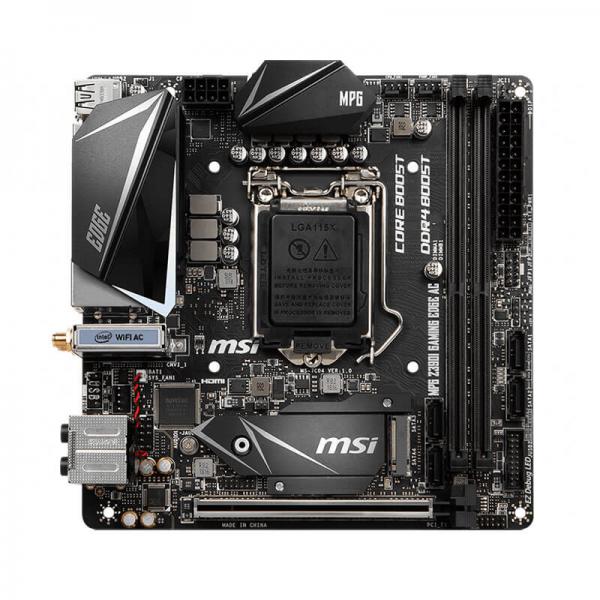

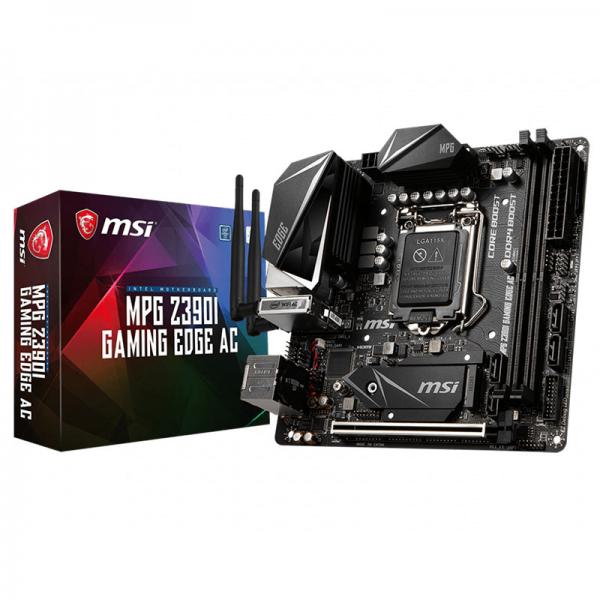

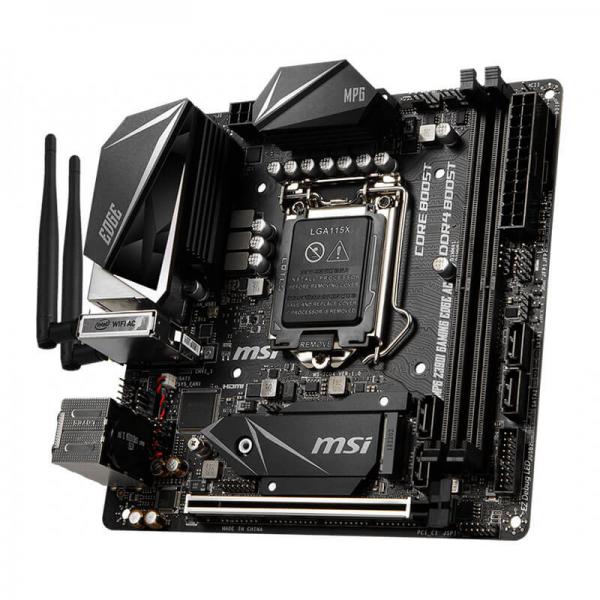

MPG Z390I Gaming Edge AC Motherboard

Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Core Boost, DDR4 BoostTwin Turbo M.2, Turbo USB 3.1 Gen2 connector.

  • Supports 9th?/ 8th?Gen Intel??Core? / Pentium??Gold / Celeron??processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
  • Set Core Power Free:?Core Boost, 8 pin CPU power connector, Game?Boost, DDR4 Boost
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Dragon Center:?A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE ?with user friendly user interface.
Motherboard
PROCESSOR Supports 9th?/ 8th?Gen Intel??Core? / Pentium??Gold / Celeron??processors for LGA 1151 socket
CHIPSET Intel??Z390 Chipset
MEMORY
  • 2 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4800(OC)/ 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel??Extreme Memory Profile (XMP)
SLOTS
  • 1 x PCIe 3.0 x16 slots
ONBOARD GRAPHICS
  • 1 x DisplayPort, supports a maximum resolution of 4096×2304@60Hz
  • 1 x HDMI? port, supports a maximum resolution of 4096×2160@24Hz

*No Display support when using the Processor model with suffix ?F?

WIFI & BLUETOOTH

Intel??Wireless-AC 9462 card

  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433?Mbps
  • Supports Bluetooth??2.1, 2.1+EDR, 3.0, 4.0, 5
STORAGE

Intel??Z390 Chipset

  • 4 x SATA 6Gb/s ports1
  • 2 x M.2 slot (Key M)1
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2260/ 2280?storage devices
    • M2_2 supports up to PCIe 3.0 x4, 2260/ 2280 storage devices
    • Intel??Optane? Memory Ready2
  1. The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot.
  2. Before using Intel??Optane? memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel??Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB

Intel??Z390 Chipset

  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.1 connector)
  • 4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
AUDIO

Realtek??ALC892 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Realtek??8111H Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x M.2 slots
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x 4-pin RGB LED connector
  • 1 x Clear CMOS jumper
  • 1 x TPM module connector

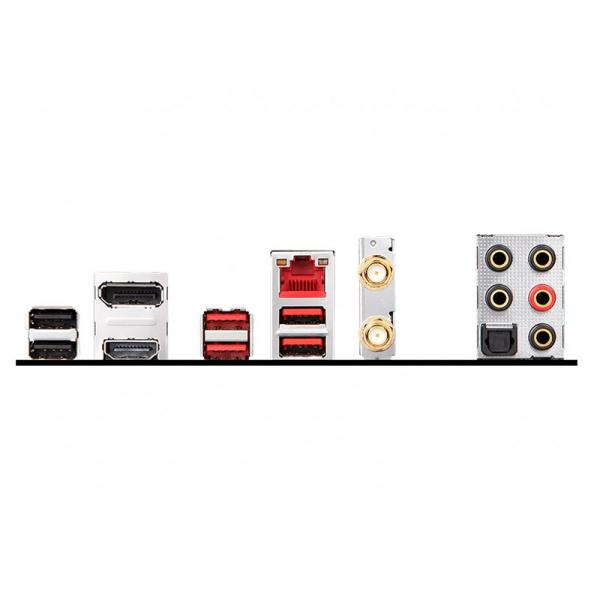

BACK PANEL PORTS
  1. DisplayPort
  2. LAN
  3. HD Audio Connectors
  4. USB 2.0
  5. HDMI
  6. USB 3.1 Gen1
  7. USB 3.1 Gen2
  8. Wireless / Bluetooth
  9. Optical S/PDIF out
DIMENSIONS
  • 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
  • Mini-ITX Form Factor
MOUNTING 4 mounting holes
OPERATING SYSTEM Support for Windows??10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
