17,959.00

Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Extended Heatsink Design, Core boost, Twin Turbo M.2, Front USB 3.1 Gen2 connector and Mystic Light

  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
  • Set Core Power Free: Extended Heatsink Design, Core Boost, 8 4 pin CPU power connector, Game Boost, DDR4 Boost
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE  with user friendly user interface.

Out of stock

Categories: ,

Description

PRODUCT SPECIFICATIONS

PROCESSOR

  • Supports Intel® Core™ 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

CHIPSET

  • Intel® Z390 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

SLOTS

  • 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
  • 3 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×[email protected]
  • 1 x DisplayPort port 1.2, supports a maximum resolution of [email protected]
  • *No Display support when using the Processor model with suffix “F”

MULTI-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology

STORAGE

  • Intel® Z390 Chipset
  • 6 x SATA 6Gb/s ports1
  • 2 x M.2 slot (Key M)1
  • Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  • Intel® Optane™ Memory Ready2
  • M.2 slots and SATA ports share the bandwidth.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

  • Intel® Z390 Chipset
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices

USB

  • Intel® Z390 Chipset
  • 3x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)
  • 6x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

  • Realtek® ALC1220P Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1 x Intel® I219-V Gigabit LAN controller

WIFI & BLUETOOTH

  • Intel® Wireless-AC 9462 card
  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps
  • Supports Bluetooth® 2.1, 2.1 EDR, 3.0,4.0, 5

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen2 Type-C port
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 5 x 4-pin system fan connectors
  • 1 x Serial port connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Thunderbolt Add-on Card Connector
  • 1 x Chassis Intrusion connector
  • 1 x TPM module connector
  • 2 x 4-pin RGB LED connectors
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 3-pin CORSAIR LED connector

BACK PANEL PORTS

  • PS/2 Combo Port
  • LAN
  • Wireless / Bluetooth
  • HD Audio Connectors
  • USB 2.0
  • DisplayPort
  • HDMI
  • USB 3.1 Gen2 Type-A C
  • USB 3.1 Gen1
  • Optical S/PDIF out

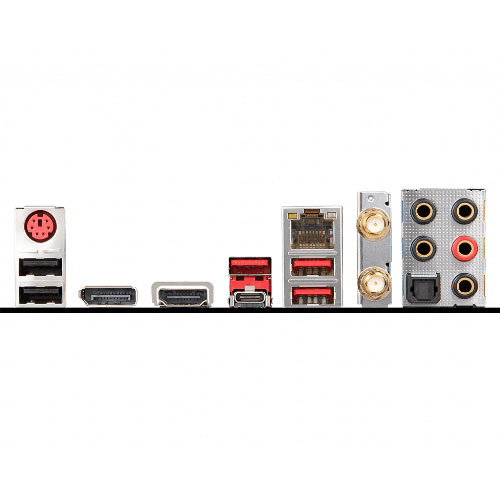

  • MSI MPG Z390 GAMING EDGE AC back panel ports

DIMENSIONS

  • 9.6 in. x 12 in. (24.3 cm x 30.4 cm)
  • ATX Form Factor

MOUNTING

  • 9 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit
