43,900.00

  • Supports 1st and 2nd Gen AMD® RYZEN THREADRIPPER Series Processors
  • Support 8 DIMMs, Quad Channel DDR4 3600 (OC)
  • Maximum Power: 19 phases digital power with heat-pipe heatsink design
  • Maximum Temperature Control: Full fan control with 10 PWM fan headers and 3 dedicated thermal sensors
  • Maximum Storage: 7 x Turbo M.2 with M.2 XPANDER-AERO and AMD StoreMI technology
  • Maximum Data Transfer: Dual Gigabit LAN with Dual-band Wireless-AC and bandwidth management
  • M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster
  • Core Boost: With premium layout and full digital power design to support more cores and provide better performance
  • Dual 8 Pin Power Supply: By providing dual 8 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance
  • MYSTIC LIGHT: 16.8 milliom colors / 17 effects controlled in one click. MYSTIC LIGHT EXTENSION support both RGB and RAINBOW LED strip
  • Lightning Fast Transfer Experience: 3x TURBO M.2 with Shield FROZR, AMD Turbo USB 3.1
  • Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality
  • DDR4 Boost with Steel Armor: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost
  • MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 3-Way NVIDIA SLI™ & 3-Way AMD Crossfire™
  • WHQL certified for Windows 10
Categories: ,

Description

PRODUCT SPECIFICATIONS

PROCESSOR

  • Supports 1st and 2nd Gen AMD® RYZEN™ THREADRIPPER™ Series Processors for SocketTR4

CHIPSET

  • AMD® X399 Chipset

MEMORY

  • 8 x DDR4 memory slots, support up to 128GB
  • Supports DDR4 3600 (OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 3066(OC)/ 2933(OC)/ 2800(OC)/ 2667(OC)/ 2400/ 2133 MHz
  • Quad channel memory architecture
  • Supports ECC UDIMM memory

SLOTS

  • 2x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
  • 2x PCIe 3.0 x8 slots (PCIE_3, PCIE_5)
  • 1x PCIE 2.0 x1 Slot

MULTI-GPU

  • Supports 3-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology

STORAGE

  • AMD® X399 Chipset
  • 8 x SATA 6Gb/s ports
  • AMD® CPU
  • 3 x M.2 ports (Key M)
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
  • M2_1, M2_3 slots support 2242/ 2260 /2280 storage devices
  • M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices

RAID

  • AMD® X399 Chipset
    Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

  • ASMedia® ASM3142 Chipset
  • 1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port available through the internal USB connector
  • AMD® X399 Chipset
  • 1x USB 3.1 Gen1 (SuperSpeed USB) Type-A port on the back panel
  • 1x USB 3.1 Gen1 (SuperSpeed USB) Type-C port on the back panel
  • 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
  • 4x USB 2.0 (High-speed USB) ports available through the internal USB connectors
  • AMD® CPU
  • 8x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

  • Realtek® ALC1220 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 2 x Intel® I211AT Gigabit LAN controllers

WIFI & BLUETOOTH

  • Intel® Wireless-AC 9260 card
  • Supports Wi-Fi 802.11 ac, 2×2, Dual Band, (2.4GHz, 5GHz) up to 1.73 Gbps speed.
  • Supports Bluetooth® 5

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connector
  • 1x flat 4-pin ATX 12V power connector
  • 8x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 1x USB 3.1 Gen2 Type-C port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 5x 4-pin system fan connectors
  • 3x 4-pin extend fan connectors
  • 2x Front panel connectors
  • 1x Front panel audio connector
  • 2x 5050 RGB LED strip 12V connector (JRGB1~2)
  • 1x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
  • 1x CORSAIR connector (JCORSAIR1)
  • 1x TPM module connector
  • 3x 2-pin Thermal Sensors connectors

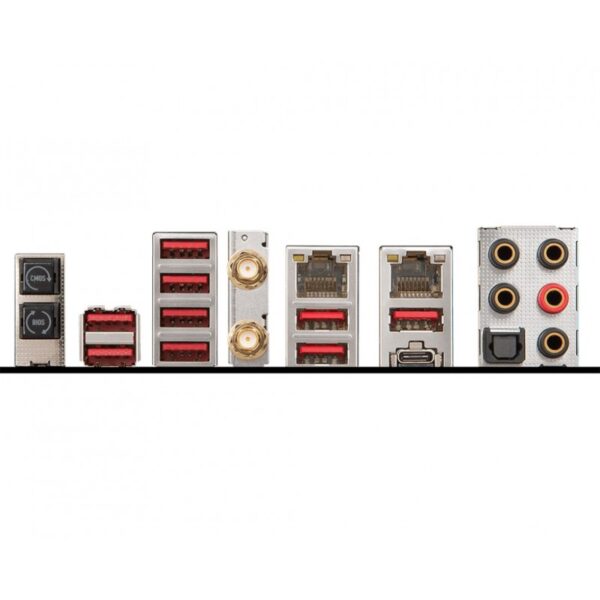

BACK PANEL PORTS

  • Clear CMOS Button
  • USB 3.1 Gen1 Ports
  • USB 3.1 Gen1 Ports
  • Intel® WiFi/ Bluetooth Module
  • Dual Intel® LAN Ports
  • HD Audio Connectors
  • BIOS FLASHBACK
  • USB 3.1 Gen1 Ports
  • AMD Turbo USB 3.1 Gen 1 Type A C
  • Optical S/PDIF-Out
  • MSI meg x399 creation back panel ports

DIMENSIONS

  • 12 in. x 10.7 in. (30.4 cm x 27.2 cm)
  • E-ATX Form Factor

MOUNTING

  • 9 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit
