Msi Mag Z790 Tomahawk Wifi Lga1700 Atx Motherboard (MAG Z790 TOMAHAWK WIFI)

34,900.00

Inclusive of all taxes

Model No : MAG-Z790-TOMAHAWK-WIFI
Buy Now

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

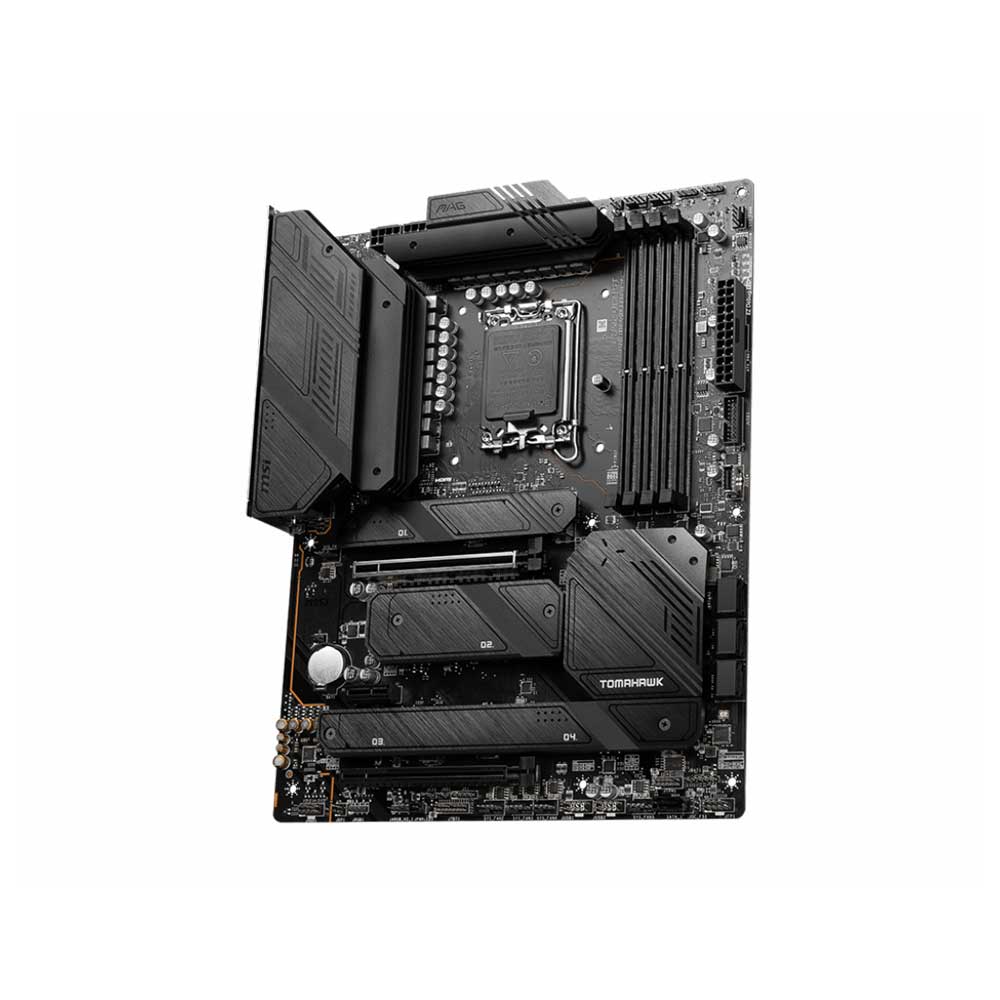

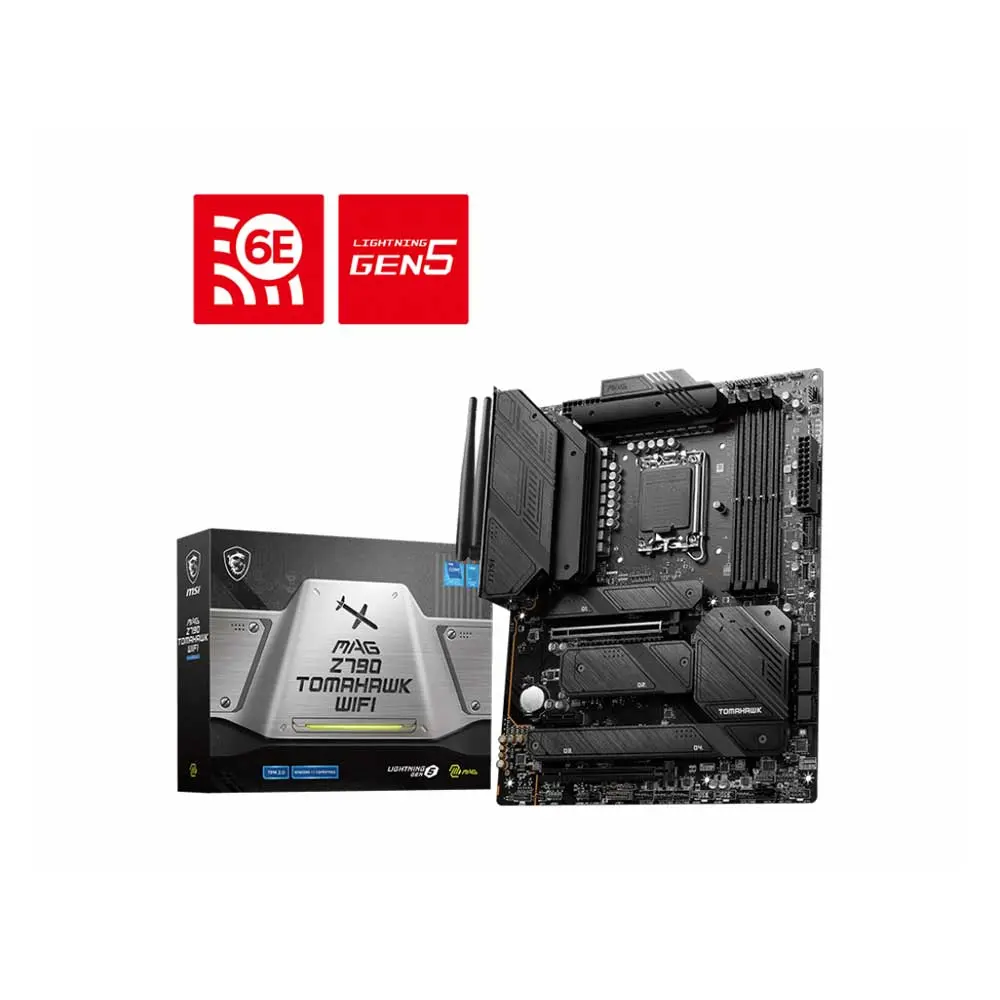

Msi Mag Z790 Tomahawk Wifi Lga1700 Atx Motherboard (MAG Z790 TOMAHAWK WIFI)

  • Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Chipset INTEL Z790
CPU Support Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Memory 4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
Expansion Slots 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
7x SATA 6G port
Raid Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Intel® 2.5Gbps LAN
Wireless / Bluetooth Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2**, FIPS, FISMA
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED Feature 4x EZ Debug LED

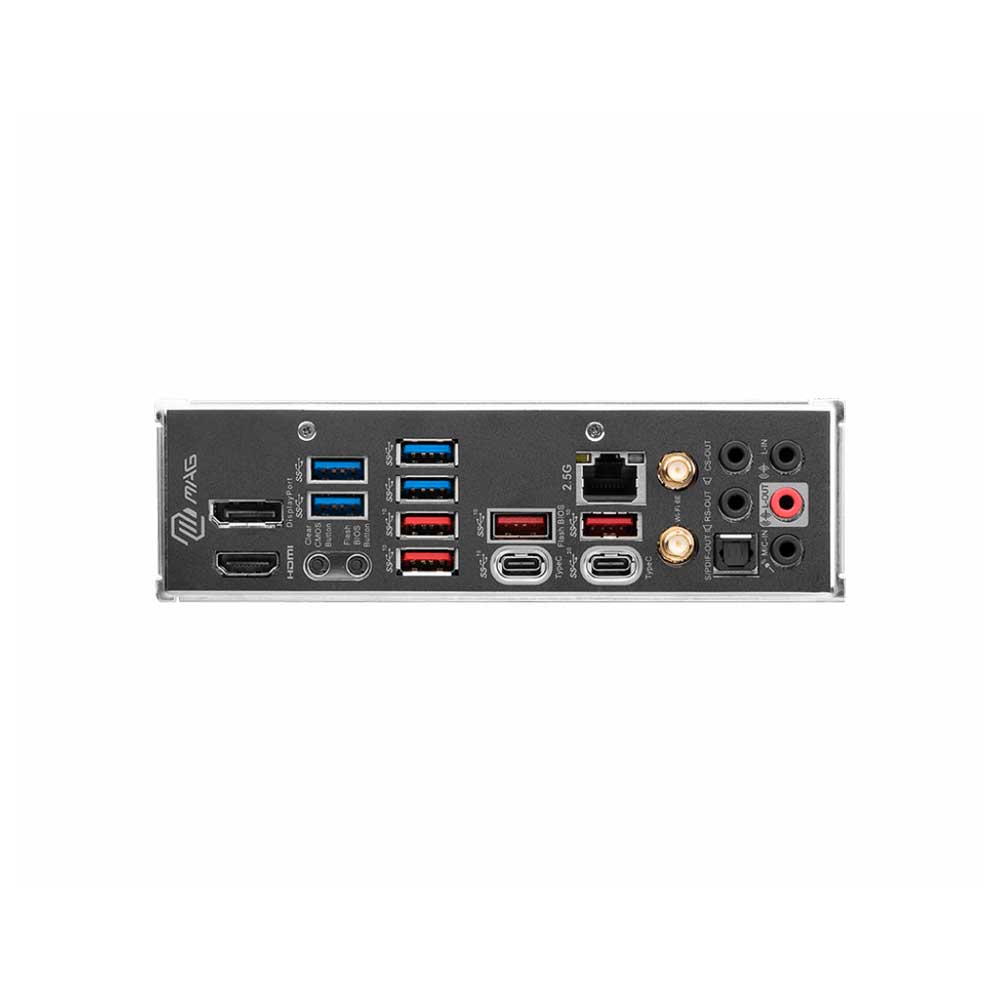

Back Panel Ports
  1. DisplayPort 1.4
  2. USB 3.2 Gen 1 5Gbps Type-A
  3. USB 3.2 Gen 2 10Gbps Type-A
  4. 2.5G LAN Port,
  5. HD Audio Connectors
  6. HDMI™ 2.1 Port
  7. Clear CMOS Button
  8. Flash BIOS Button
  9. USB 3.2 Gen 2 10Gbps Type-C
  10. USB 3.2 Gen 2×2 20Gbps Type-C
  11. Wi-Fi / Bluetooth Antenna
  12. Optical S/PDIF OUT
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension ATX
243.84mmx304.8mm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
