Msi Mag B560M Mortar Lga1200 Matx Motherboard (MAG-B560M-MORTAR)
share this product

Msi Mag B560M Mortar Lga1200 Matx Motherboard (MAG-B560M-MORTAR)

Model No : MAG-B560M-MORTAR

₹10,880.00

Inclusive of all taxes

Tags :

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Out of stock

  • **Usually delivered within 3-4 Business days*

Description

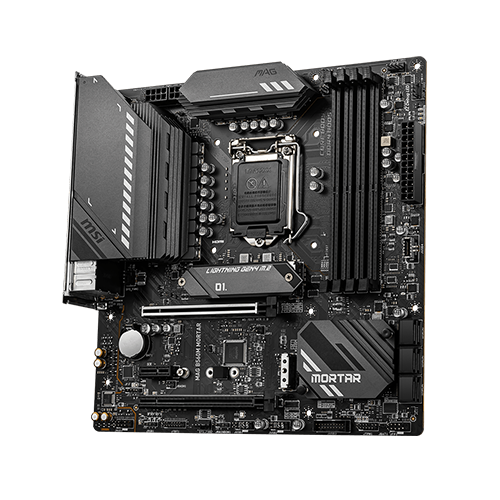

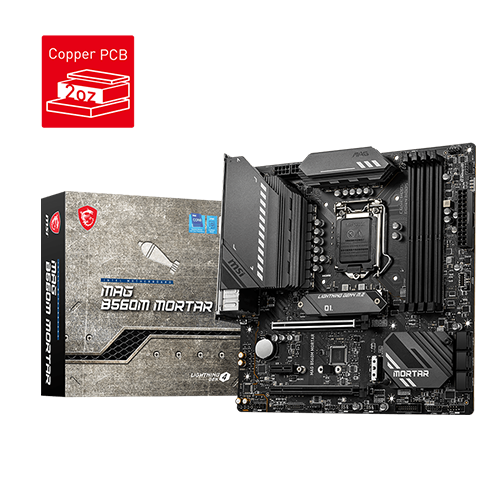

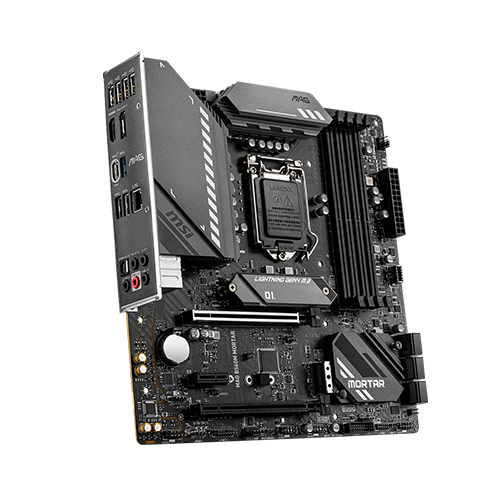

Msi Mag B560M Mortar Lga1200 Matx Motherboard (MAG-B560M-MORTAR)

Features

MAG B560M MORTAR

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5066(OC) MHz
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
  • Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire Technology™

Specifications

PROCESSOR Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1200
CHIPSET Intel® B560 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 128GB
    • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
    • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5066+ MHz
      • 1DPC 2R Max speed up to 4600+ MHz
      • 2DPC 1R Max speed up to 4266+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT
  • 2x PCIe x16 slots
    1. Support up to PCIe 4.0 for 11th Gen Intel® CPU
    2. Support up to PCIe 3.0 for 10th Gen Intel® CPU
    1. Support up to PCIe 3.0
    1. Support x16/ x4
    2. PCI_E1 (from CPU)
    3. PCI_E3 (From B560 chipset)
  • 1x PCIe 3.0 x1 slot
    1. PCI_E2 (From B560 chipset)
    1. PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.
ONBOARD GRAPHICS
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
    1. Available only on processors featuring integrated graphics
    2. Graphics specifications may vary depending on the CPU installed.
MULTI-GPU Supports 2-way AMD® CrossFire™ Technology
STORAGE
  • 6x SATA 6Gb/s ports (from B560 chipset)
  • 2x M.2 slots (Key M)
    • M2_1 slot
      1. Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
      2. Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)
      3. Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (From B560 chipset)
      1. Supports up to PCIe 3.0×4
      2. Supports 2242/ 2260/ 2280 storage devices
      3. Intel® Optane™ Memory Ready
    • Supports Intel® Smart Response Technology for Intel Core™ processors
USB Intel® B560 Chipset

  • 1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel)
  • 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
  • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector
  • 4x USB 2.0 ports on the back panel

USB Hubs ASM1074

  • 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Hub-GL850G

  • 4x USB 2.0 ports are available through the internal USB 2.0 connectors
AUDIO Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Tuning Controller Connector
  • 1x TBT connector (Supports RTD3)
LED FEATURE
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED

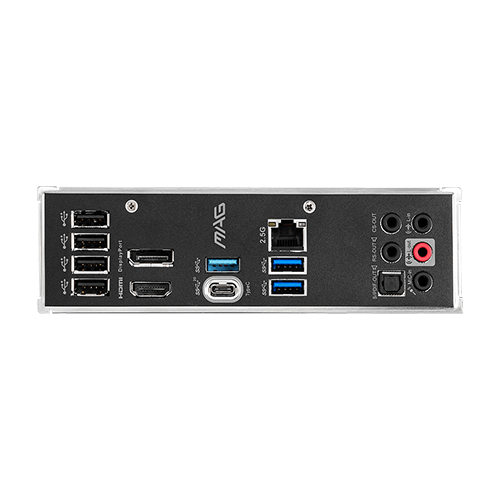

BACK PANEL PORTS
  • USB 2.0
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps Type-A
  • 2.5G LAN Port
  • Wi-Fi / Bluetooth Antenna
  • HD Audio Connectors
  • HDMI
  • USB 3.2 Gen 2×2 20Gbps Type-C
  • USB 3.2 Gen 1 5Gbps Type-A
  • Optical S/PDIF OUT
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
