Description

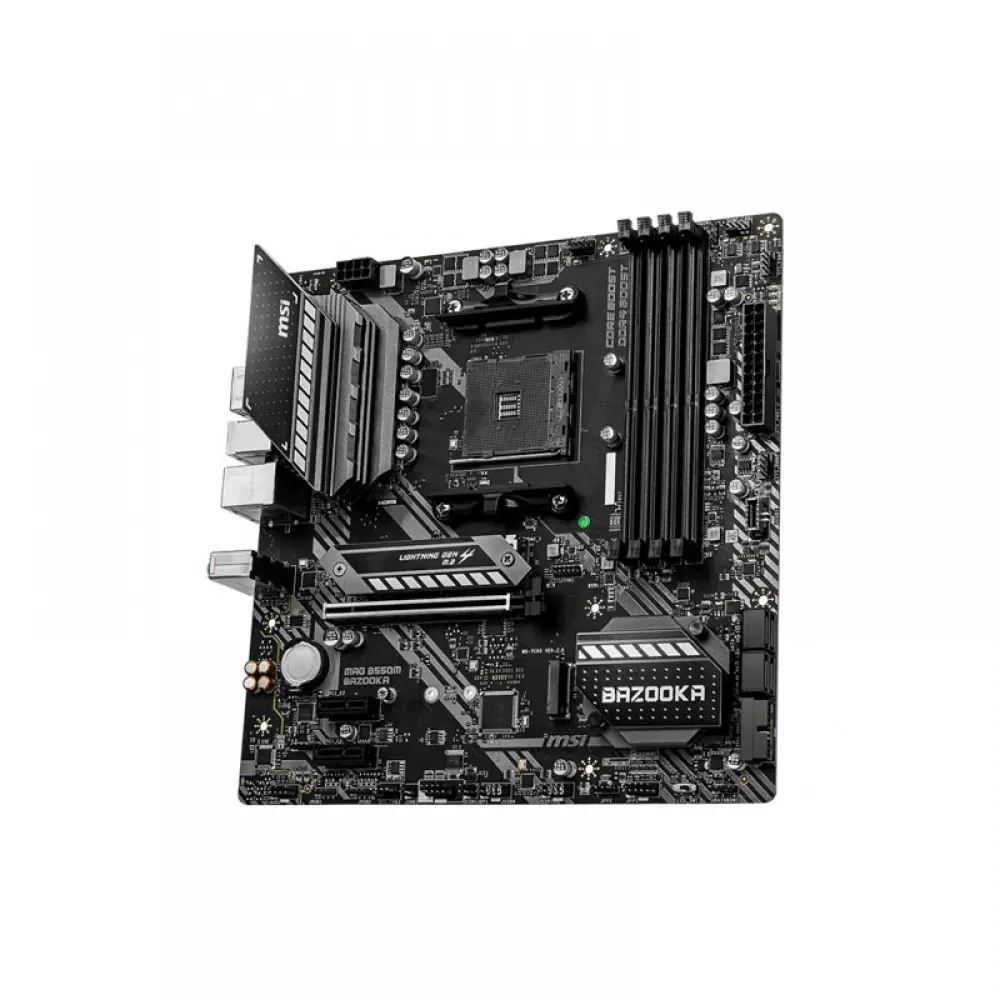

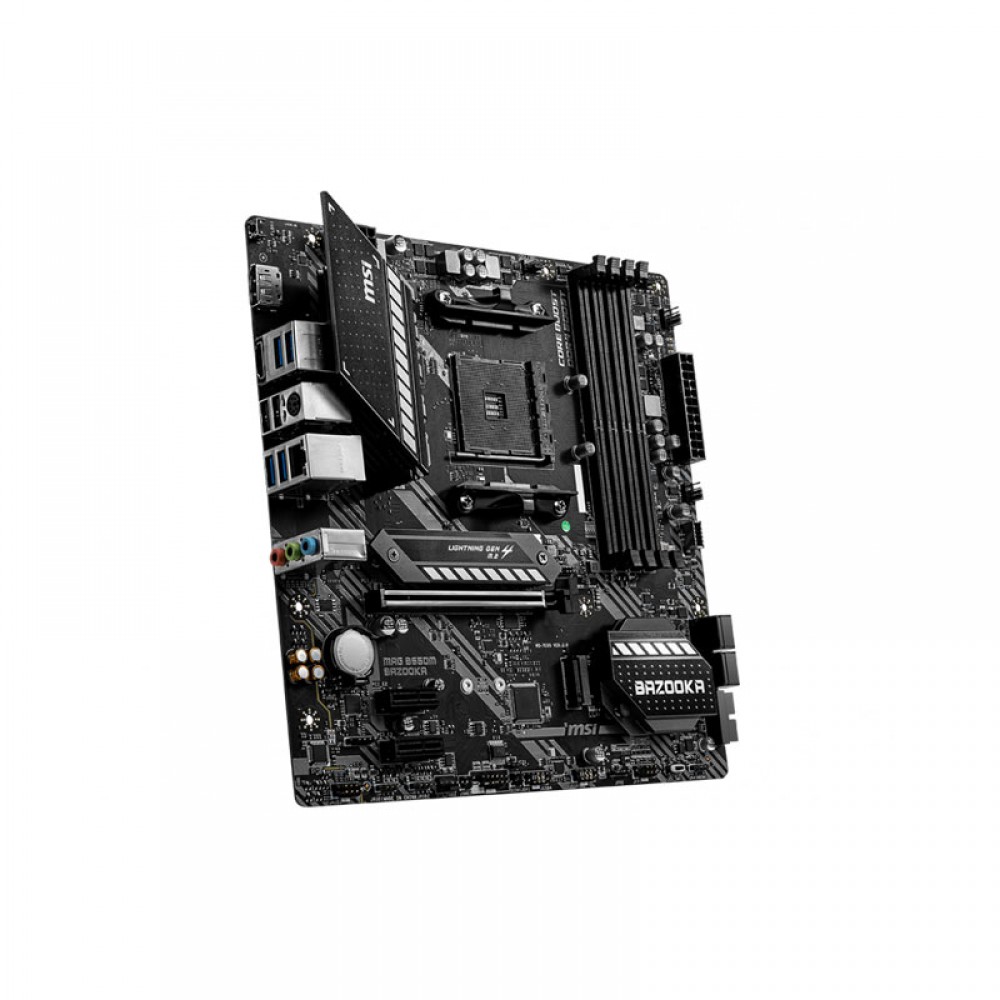

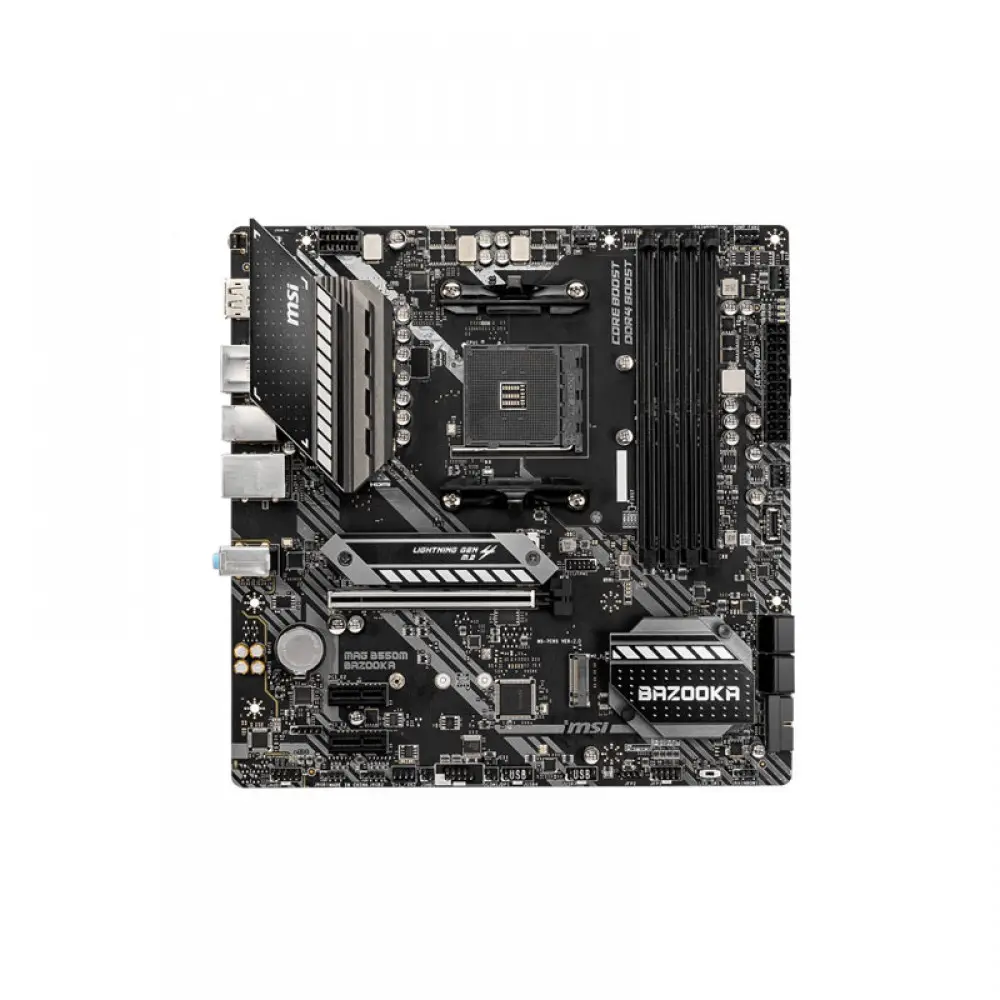

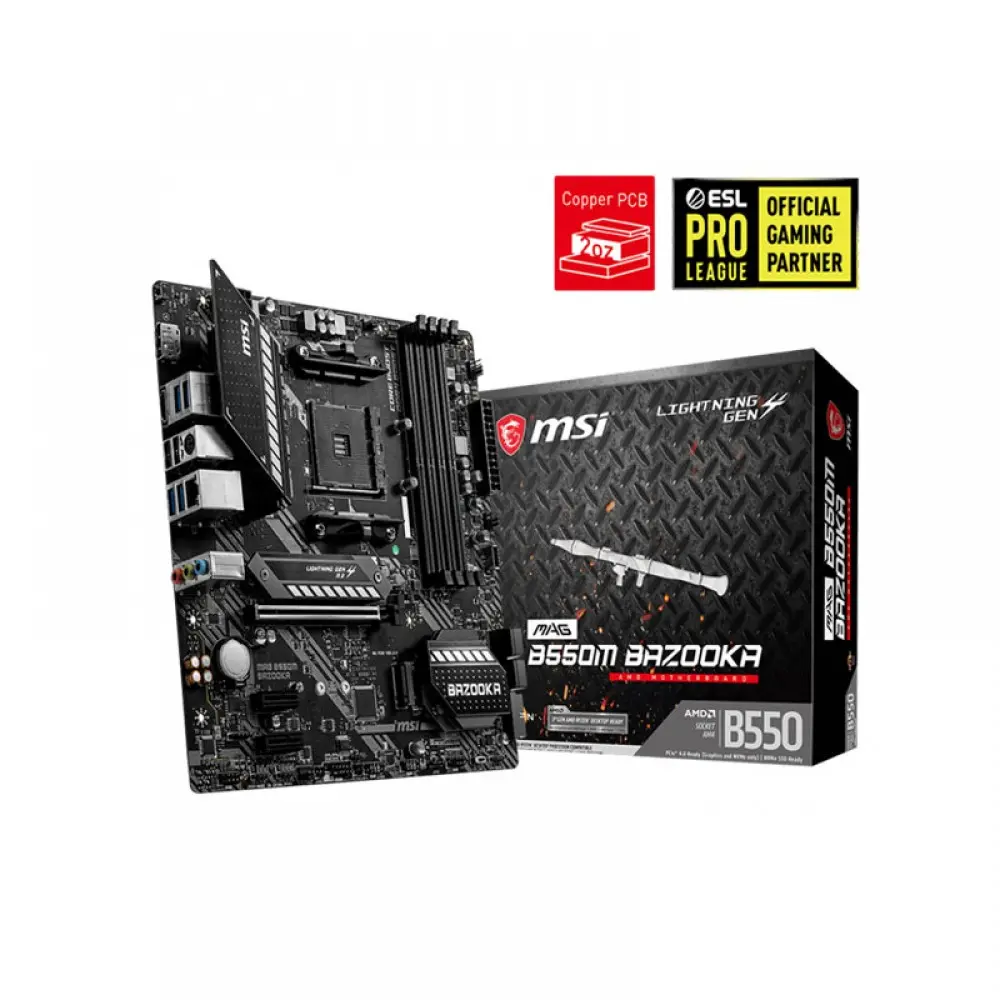

MSI MAG B550M BAZOOKA MOTHERBOARD (MAG B550M BAZOOKA)

  • Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4400+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Gigabit LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Enhanced Power Design: 4+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.



Specification
CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset AMD B550 Chipset
Memory 4x DDR4 memory slots, support up to 128GB 1

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHZ

1DPC 2R max speed 3733 MHZ

2DPC 1R max speed 3866 MHZ

2DPC 2R max speed 3466 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Expansion Slots 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1

2x PCIe 3.0 x1 slots

The supported specification depends on installed processor.

Onboard Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1 2

1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz 1

Maximum shared memory of 16 GB

Available for the processor with integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Storage AMD B550 Chipset

4x SATA 6Gb/s ports

2x M.2 slots (Key M)

M2_1 slot (from AMD processor)

Supports PCIe 4.0/ 3.0 x4 1

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0×4

Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.

RAID AMD B550 Chipset

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports (4 Type-A ports on the back panel)

Audio Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN 1x Realtek® RTL8111HN 1Gbps LAN controller
Internal Connectors 1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

4x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

3x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Serial port connector

1x Chassis Intrusion connector

2x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

1xTPM module connector

1x Clear CMOS jumper

Back Panel Ports USB 3.2 Gen 1 5Gbps Type A

PS/2 Combo Port

Gigabit LAN Port

Flash BIOS Button

DisplayPort

HDMI

USB 2.0 port

USB 3.2 Gen 1 5Gbps Type A

HD Audio Connectors

I/O Controller NUVOTON NCT6687-R Controller Chip
Dimensions Micro-ATX Form Factor

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
