MSI MAG B460 TORPEDO INTEL LGA 1200 MOTHERBOARD

11,400.00

Inclusive of all taxes

1 in stock

Model :

MAG-B460-TORPEDO

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

MSI MAG B460 TORPEDO INTEL LGA 1200 MOTHERBOARD

Features

MAG B460 TORPEDO

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933MHz (Max.)
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Latest Network Solution: Onboard 2.5G LAN deliver the best online experience without lag
  • Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • USB Front Type-C: Allows gamers to connect with the latest USB devices with reversible design, easy to access
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™

Specifications

CPU Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset Intel® B460 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
  • Intel® Core i7/i9
    • Supports up to DDR4 2933 MHz
  • Intel® Core i5 (Below)
    • Supports up to DDR4 2666 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode
  • 1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode 1
  • 2x PCIe 3.0 x1 slots (From PCH)
  1. PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096×2160 @30Hz
  • 1x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz
Storage Intel® B460 Chipset

  • 6x SATA 6Gb/s ports 1
  • 2x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
    • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices 2
    • Intel® Optane™ Memory Ready (M2_2 only)3
    • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
  2. PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.
  3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID Intel® B460 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB Intel® B460 Chipset

  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector)
  • 1x USB 3.2 Gen 1 5Gbps port (1 Type-C internal connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Audio Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x RTD3 connector
  • 1x TBT connector1
  1. Thunderbolt card need support RTD3

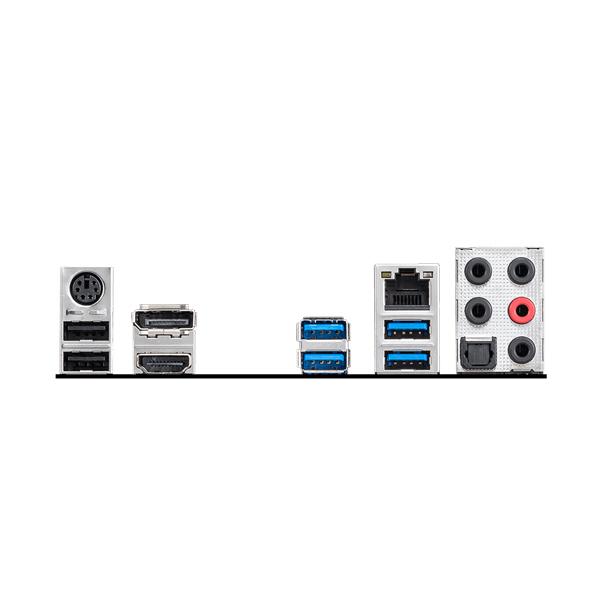

Back panel ports
  1. Keyboard / Mouse
  2. DisplayPort
  3. 2.5G LAN Port
  4. HD Audio Connectors
  5. USB 2.0
  6. HDMI
  7. USB 3.2 Gen 1 5Gbps Type-A
  8. USB 3.2 Gen 1 5Gbps Type-A
  9. Optical S/PDIF OUT
LED Features
  • 1x EZ LED Control switch
  • 4x EZ Debug LED
I/O Controller NUVOTON NCT6687 Controller Chip
Hardware Monitor
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU/System fan speed control
Form Factor
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
BIOS Features
  • 1x 128 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
