Description

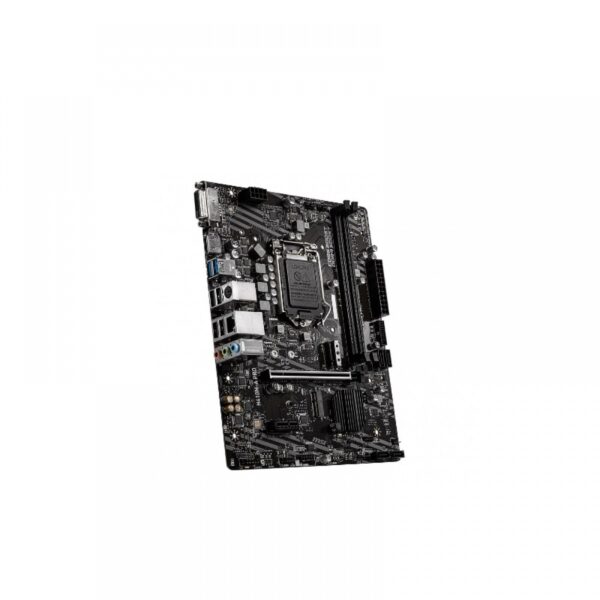

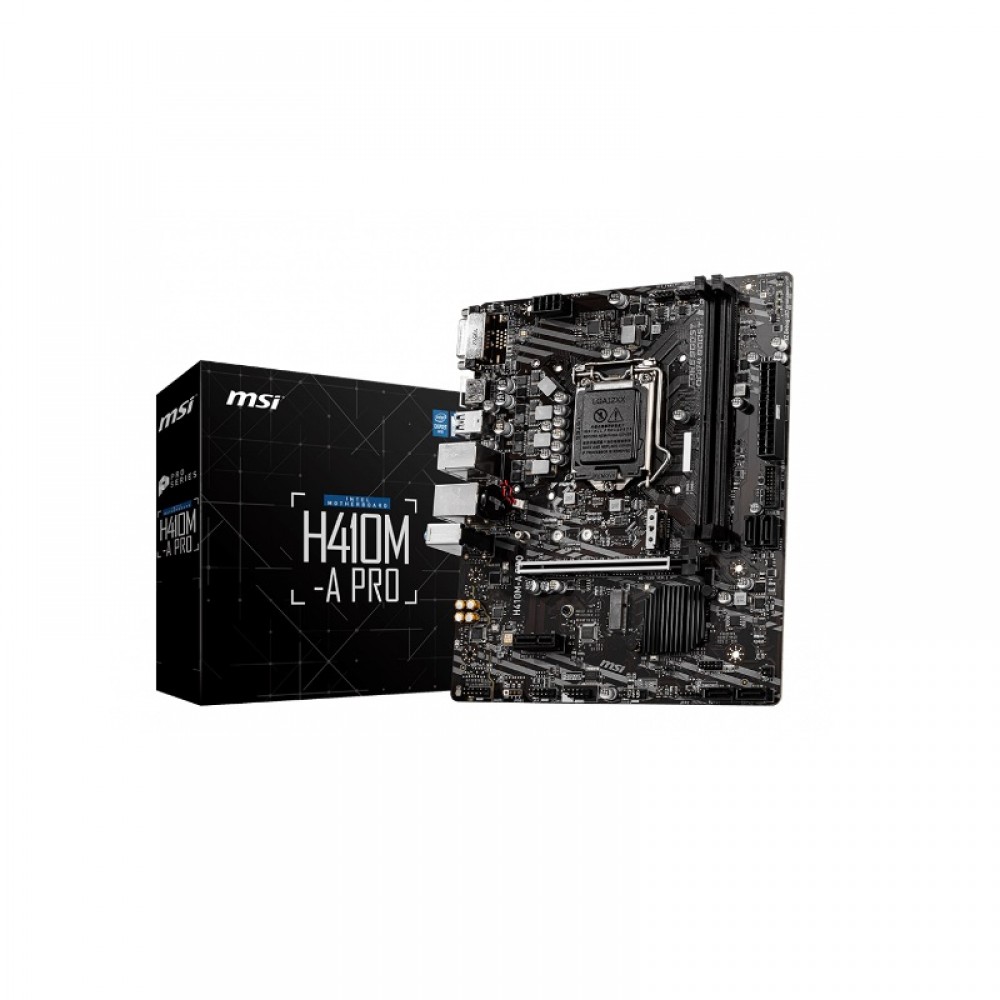

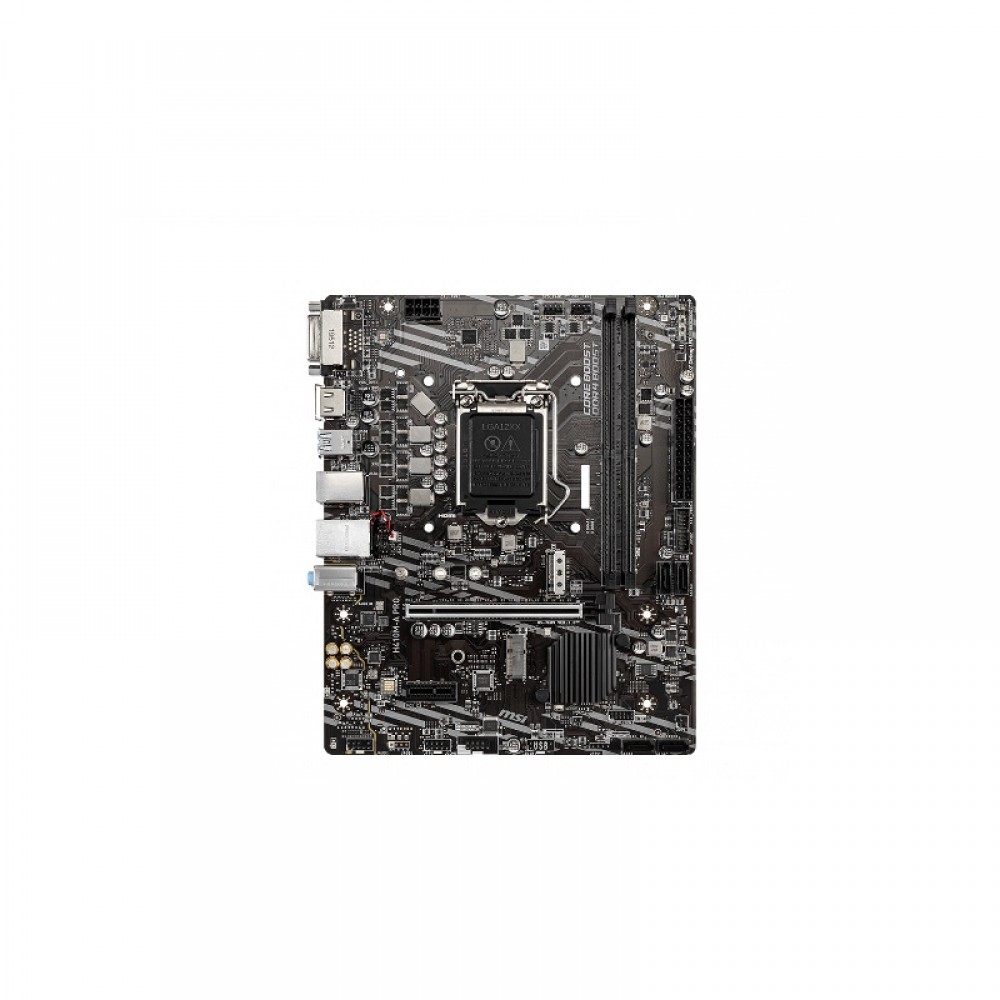

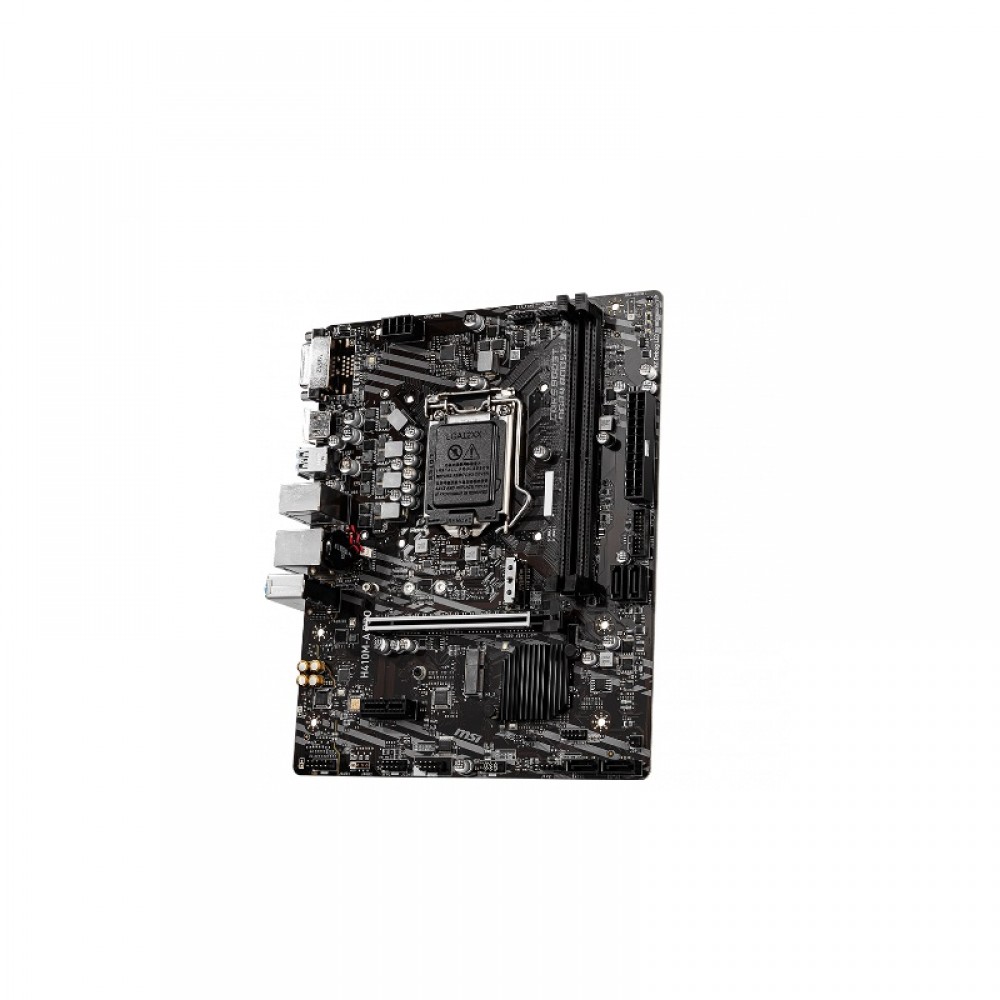

MSI H410M-A PRO LGA 1200 MICRO ATX MOTHERBOARD

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Specification
Model H410M-A PRO
PROCESSOR Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2

Please go to www.intel.com for more compatibility information.

Onboard graphics output are disabled when using F SKU processors.

See supported processors

CHIPSET Intel® H410 Chipset
MEMORY 2x DDR4 memory slots, support up to 64GB1

Intel® Core™ i7/ i9

Supports up to DDR4 2933 MHz

Intel® Core™ i5 and below

Supports up to DDR4 2666 MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT 1x PCIe 3.0 x16 slot (From CPU)

1x PCIe 3.0 x1 slot (From PCH)

1x M.2 slot with E key for WiFi module only

ONBOARD GRAPHICS 1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz

1x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz

Maximum shared memory is 1GB

STORAGE Intel® H410 Chipset

4x SATA 6Gb/s ports

1x M.2 slot (Key M)

M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

USB Intel® H410 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)

6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

AUDIO Realtek® ALC892/ALC897 Codec

7.1-Channel High Definition Audio

LAN 1x Intel® I219V Gigabit LAN controller
INTERNAL CONNECTORS 1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x USB 2.0 connector (supports additional 2 USB 2.0 ports)

1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x Front panel connectors

1x Serial port connector

1x TPM module connector

1x Chassis Intrusion connector

1x Clear CMOS jumper

4x EZ Debug LED

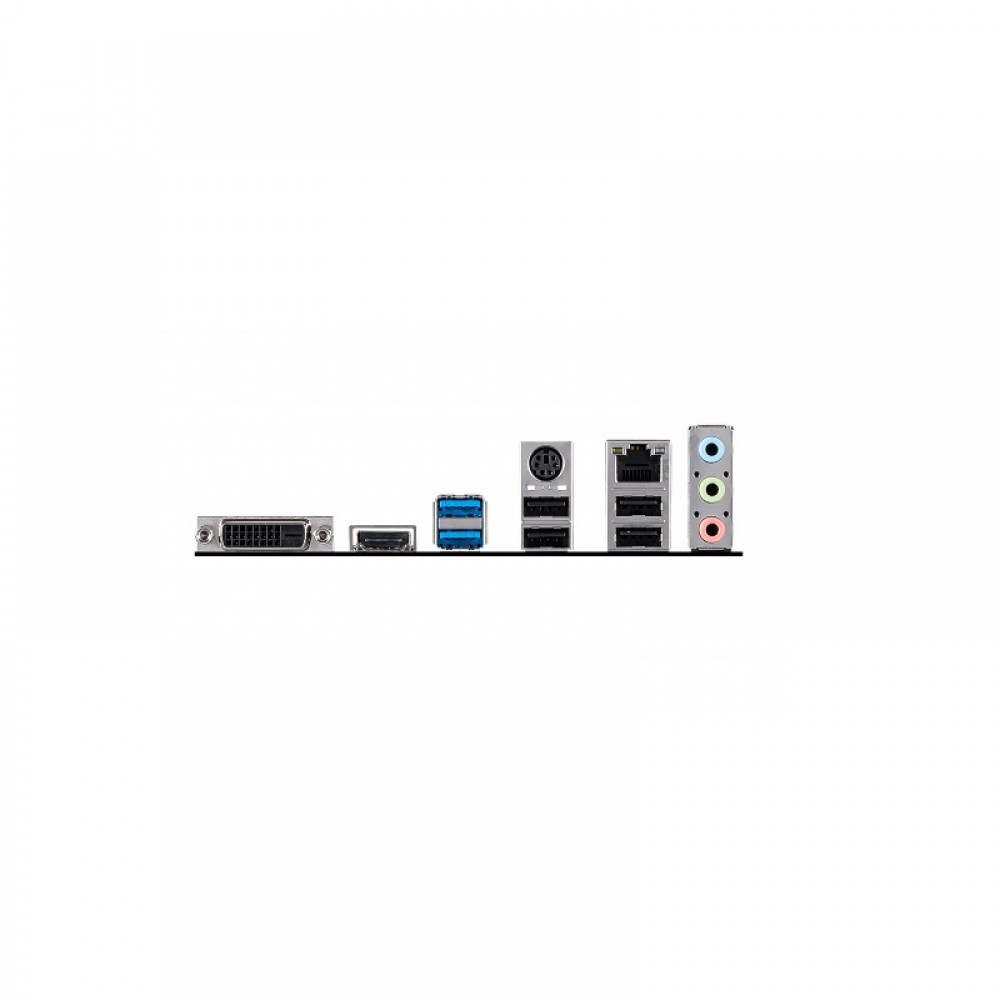

BACK PANEL PORTS Keyboard / Mouse

LAN

DVI-D

HDMI

USB 3.2 Gen 1 5Gbps Type-A

USB 2.0

USB 2.0

Audio Connectors

DIMENSIONS Mirco-ATX Form Factor

9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

MOUNTING 6 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
