Description

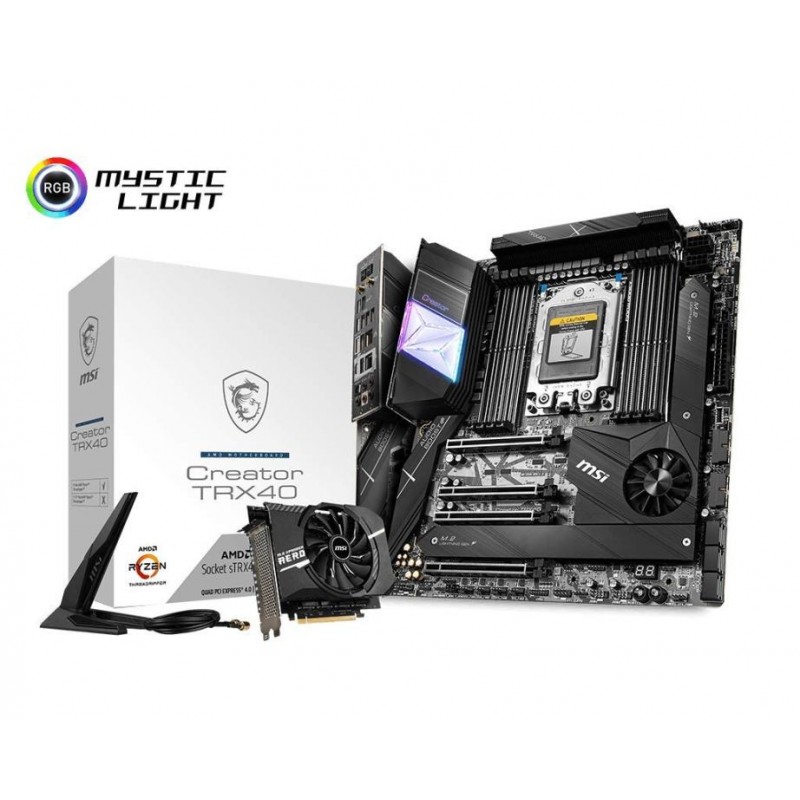

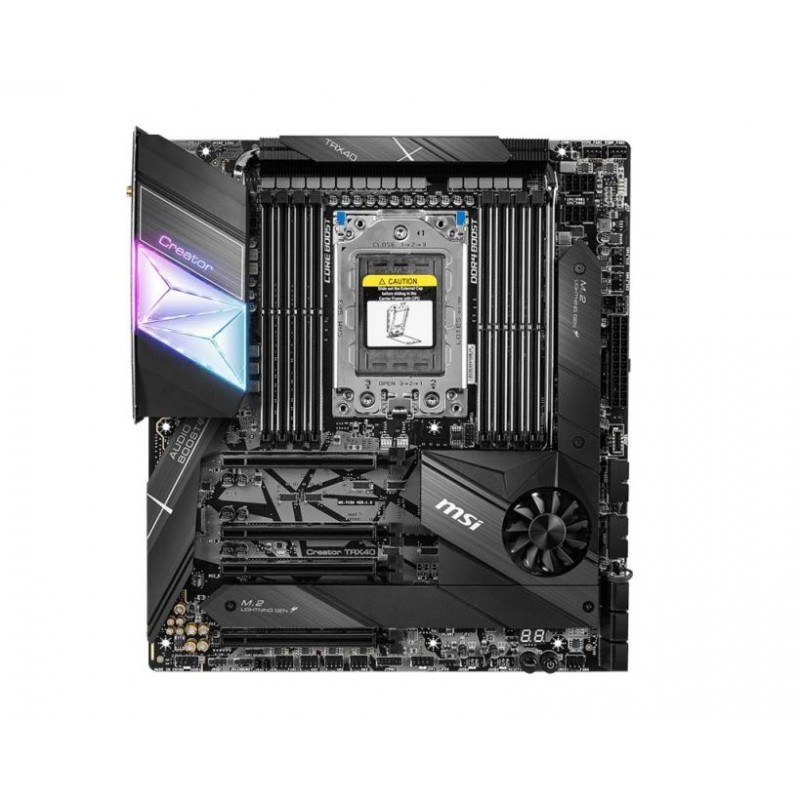

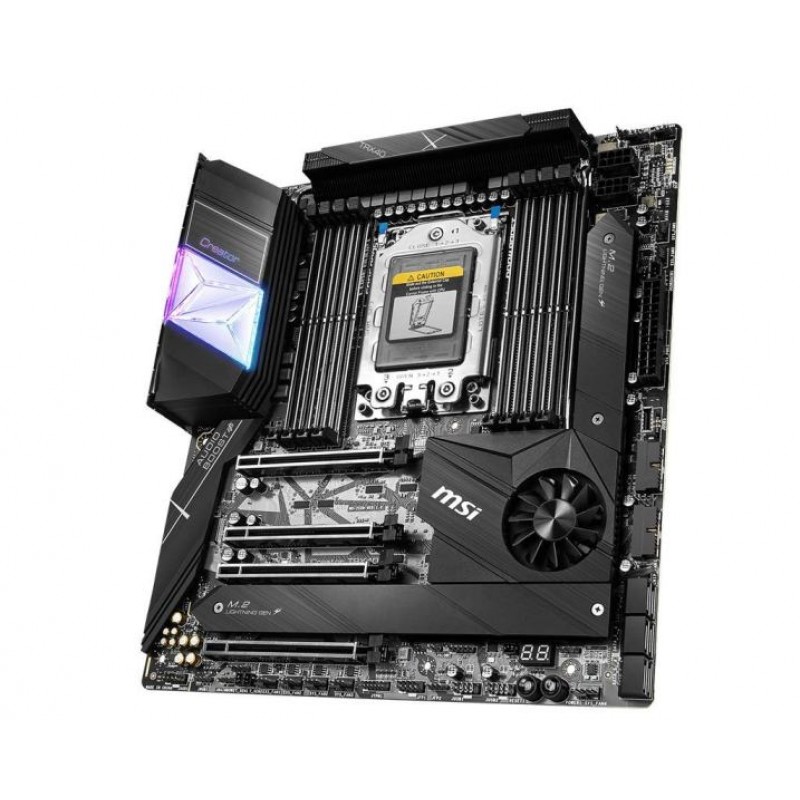

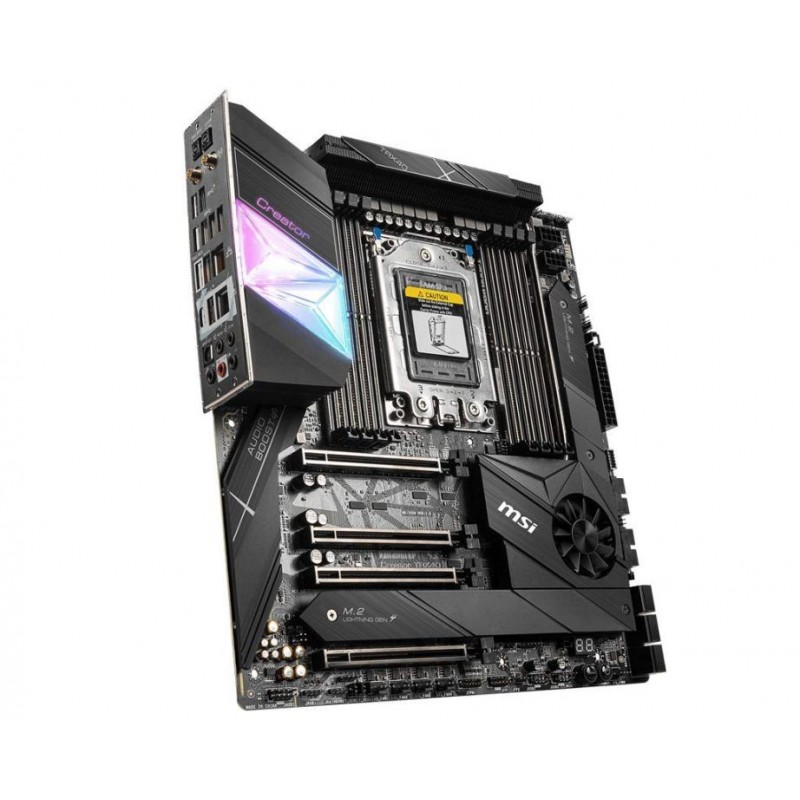

MSI CREATOR TRX40 MOTHERBOARD (Creator TRX40)

Unique look and feel inspired by the craft of crystal for all Creators. Features the latest PCIe gen4 slots and M.2 connectors, USB3.2 Gen2x2, 10G LAN and Wi-Fi 6, Frozr Heatsink Design, Triple Lightning Gen4 M.2 with double-sided M.2 Shield Frozr, Core Boost, Audio Boost 4 with Nahimic, M.2 Xpander-Aero Gen4 card, Mystic Light.

  • Supports 3rd Gen AMD® RyzenTM ThreadripperTM Desktop Processors for Socket sTRX4
  • Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4666(OC)
  • More Powerful than Enough: dedicate 16 phases 70A digital power to CPU, with All Aluminum Design
  • More Efficency for Data Transfer: 10G LAN + Intel® Gigabit LAN with Intel® WIFI 6 and bandwidth management
  • More Compatibility for Storage: 7 x Lightning Gen4 M.2 with M.2 XPANDER-AERO GEN4
  • More Flexibility for Temperature Control: Full fan control with 9 PWM fan headers and 3 dedicated thermal sensor
  • Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with double-sided M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
  • Set Core Power Free: Extended Heatsink and Heat-pipe Design, stacked fin array, Core Boost, Digital PWM IC, dual 8 pin CPU power connectors, DDR4 Boost
  • Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for creators and prosumers.
  • Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, Rainbow and Corsair LED strip
  • Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel Armor PCI-E slots. Supports up to 3-Way NVIDIA SLI™ & 3-Way AMD Crossfire™
Motherboard
CPU 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors

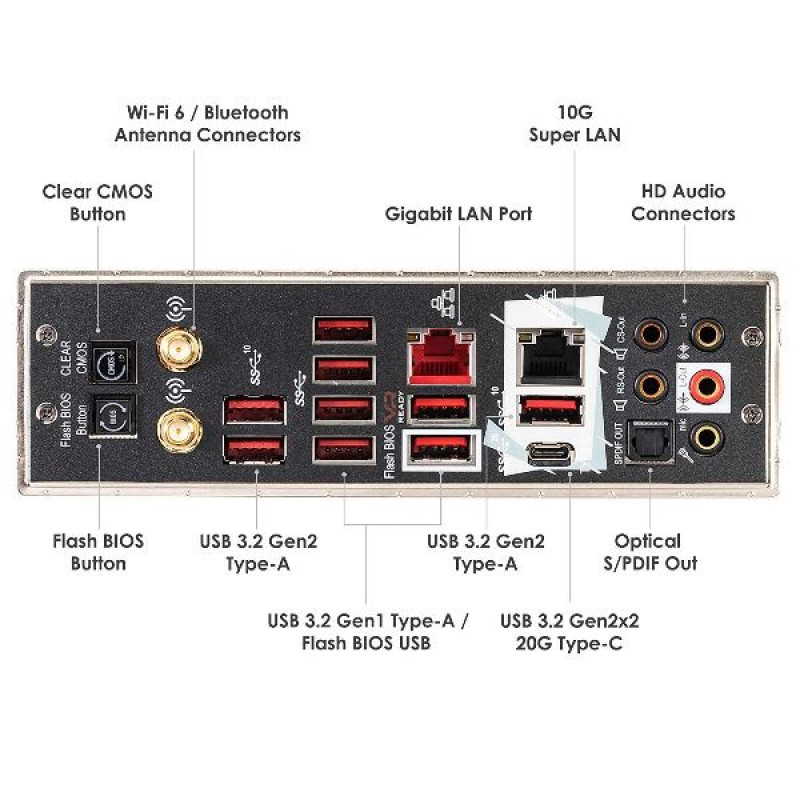

Back Panel I/O Ports Clear CMOS Button Wireless / Bluetooth Gigabit LAN 10G LAN Audio Connectors Flash BIOS Button USB 3.2 Gen2 Type-A USB 3.2 Gen1 Type-A USB 3.2 Gen2 Type-A USB 3.2 Gen2x2 20G Type-C USB 3.2 Gen1 Type-A
Chipset AMD® TRX40 Chipset
Internal I/O Connectors 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin pump fan connector (supports up to 2A) 4x 4-pin system fan connectors 3x 4-pin extend fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 3x 2-pin Thermal Sensors connectors 1x 4-pin 5050 RGB LED connector 2x 3-pin ARGB LED connectors 1x 3-pin CORSAIR LED connector 1x LED demo connector 1x JBLK_U pin header 1x JBLK_D pin header 1x OC retry pin header 1x OC force enter pin header 1x Slow mode booting jumper Provides additional power to PCIe x16 slots
Memory 8x DDR4 memory slots, support up to 256G 1 Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz 1DPC 1R max speed 4666 MHz 1DPC 2R max speed 4000 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz Quad channel memory architecture 2 Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory Please refer www.msi.com for more information on compatible memory.Please refer the DIMM Slots section for more details.
Slots 4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
Wireless Intel® Wi-Fi 6 AX200 The Wireless module is pre-install in the M2_4 (Key-E) slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz- 5GHz (160MHz) up to 2.4Gbps Supports Bluetooth® 5 Only support windows 10 64-bit
Multi-GPU Support Supports 3-Way NVIDIA® SLI™ Technology Supports 3-Way AMDA® CrossFire™ Technology
Storage AMD® TRX40 Chipset 6x SATA 6Gb/s ports 1x M.2 slot (M2_3, Key M) Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor 2x M.2 slots (M2_1 & M2_2, Key M) M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
RAID AMD® TRX40 Chipset Supports RAID 0, RAID 1 and RAID 10
USB AMD® TRX40 Chipset 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector) 8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors) 4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor 4x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel ASMedia® ASM3242 Chipset 1x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel
LAN 1x Intel® I211AT Gigabit LAN controller 1x Aquantia® AQC107 10-Gigabit LAN controller
Audio 1x Realtek® ALC1220 Codec 7.1-Channel High Definition Audio 1x Realtek® ALC4050H Codec Supports front & rear panel Mic-in Supports S/PDIF output
Form Factor E-ATX Form Factor 12 in. x 10.9 in. (30.4 cm x 27.7 cm)
Warranty** 3 YEARS
**Note Price, feature and specifications are subject to change without notice.
