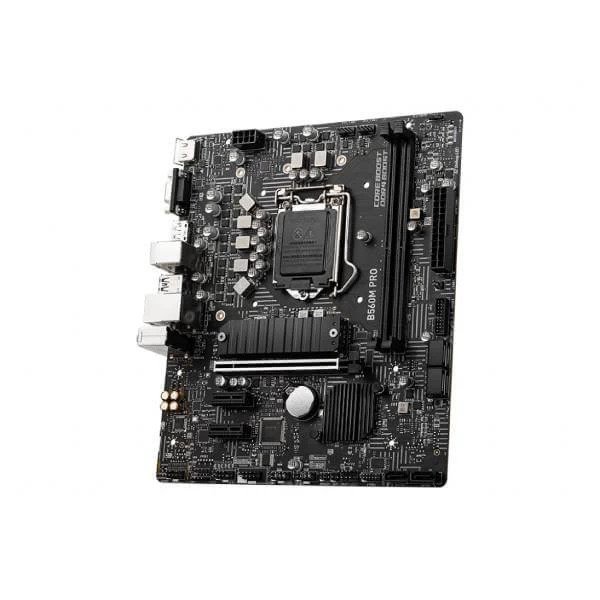

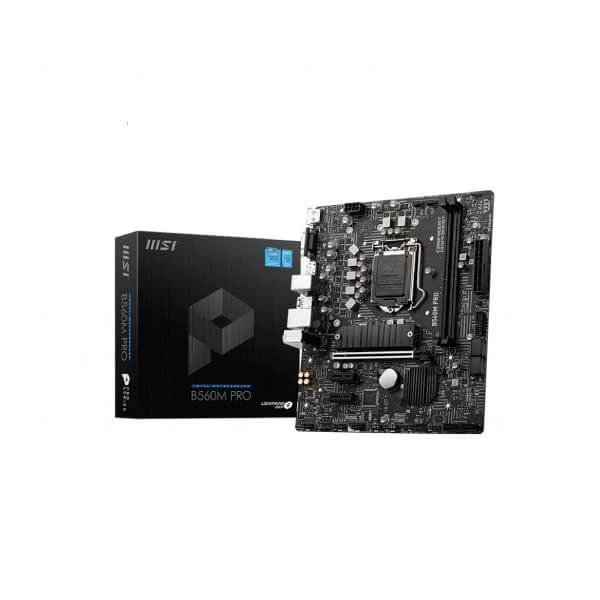

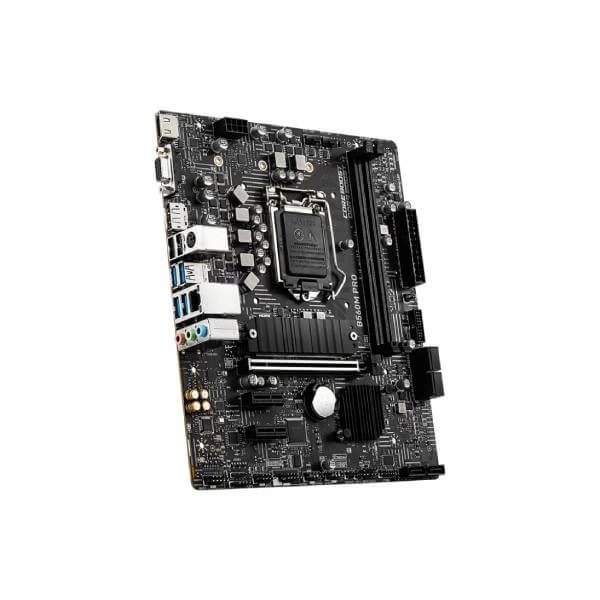

MSI B560M PRO INTEL LGA1200 MATX MOTHERBOARD

10,100.00

Inclusive of all taxes

Model :

B560M-PRO

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

MSI B560M PRO INTEL LGA1200 MATX MOTHERBOARD

Features

B560M PRO

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5200(OC) MHz
  • Core Boost :  With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost :  Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience :  PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost :  Reward your ears with studio grade sound quality
  • Steel Armor :  Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications

CPU Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1200

CHIPSET Intel® B560 chipset
MEMORY
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5200 MHz
    • 1DPC 2R Max speed up to 4700+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT
  • 1x PCIe x16 slot (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 2x PCIe 3.0 x1 slots (From B560 chpiset)
ONBOARD GRAPHICS
  • 1x VGA port, supports a maximum resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
AUDIO Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN 1x Realtek® 8125B 2.5Gbps LAN controller
STORAGE
  • 6x SATA 6Gb/s ports (From B560 chipset)
  • 1x M.2 slot (Key M)
    • Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
    • Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)
    • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Smart Response Technology for Intel Core™ processorsIntel® Optane™ Memory Ready. Before using Intel®® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB Intel® B560 Chipset

  • 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors)
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector)
FORM FACTOR
  • mATX Form Factor
  • 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm)
BIOS FEATURES
  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SMBIOS 3.0
  • Multi-language
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x M.2 slot (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Tuning Controller Connector
LED FEATURE
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 4x EZ Debug LED

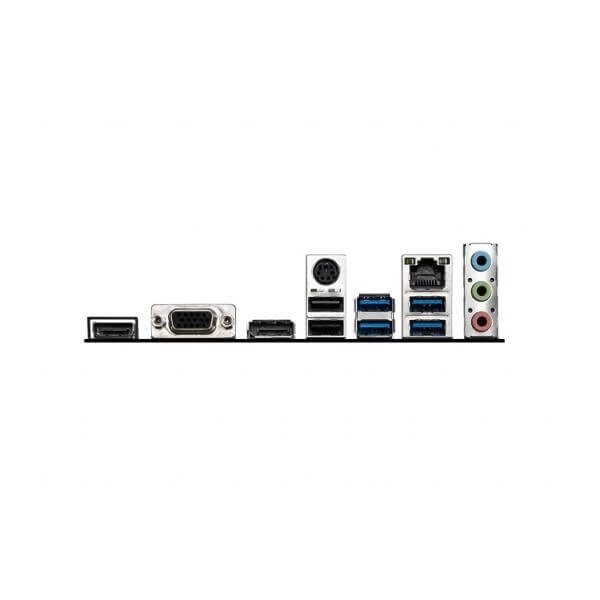

BACK PANEL CONNECTORS
  1. HDMI
  2. VGA
  3. DisplayPort
  4. Keyboard / Mouse
  5. LAN port
  6. Audio connector
  7. USB 2.0
  8. USB 3.2 Gen 1 5Gbps Type-A
  9. USB 3.2 Gen 1 5Gbps Type-A
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
