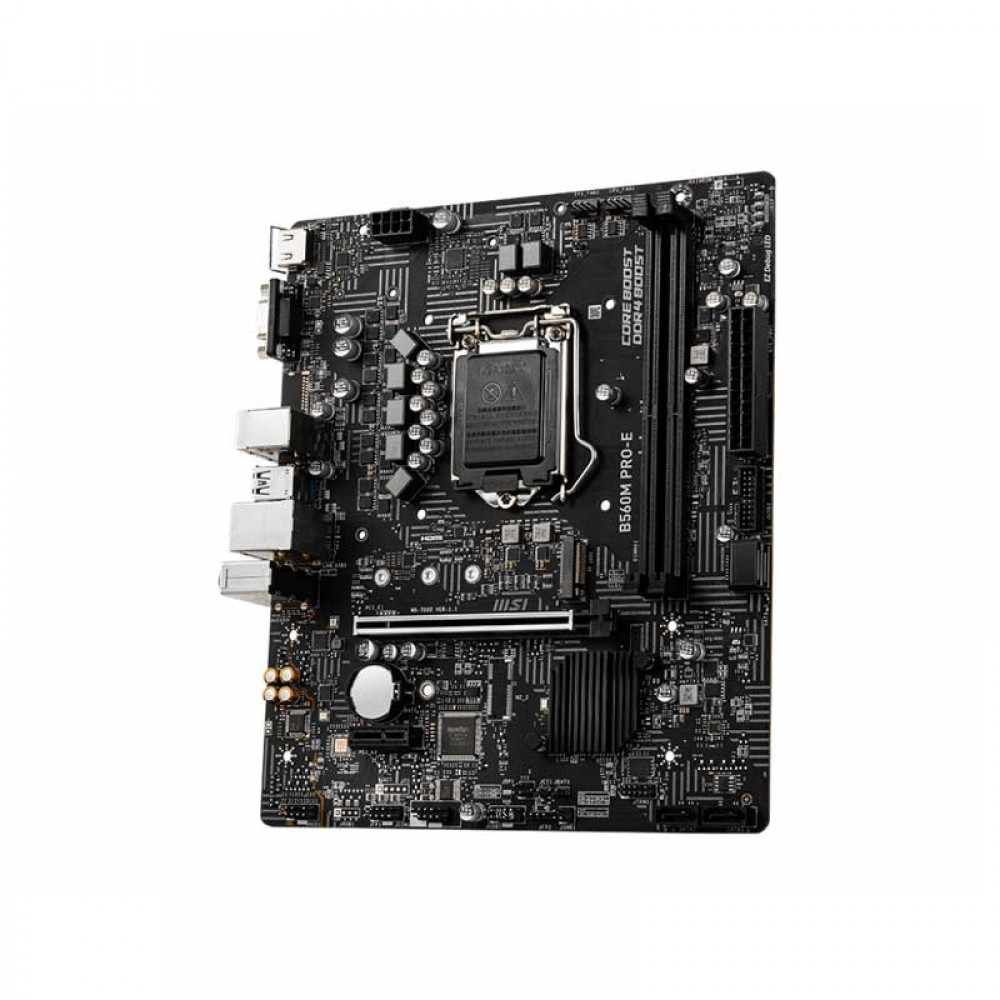

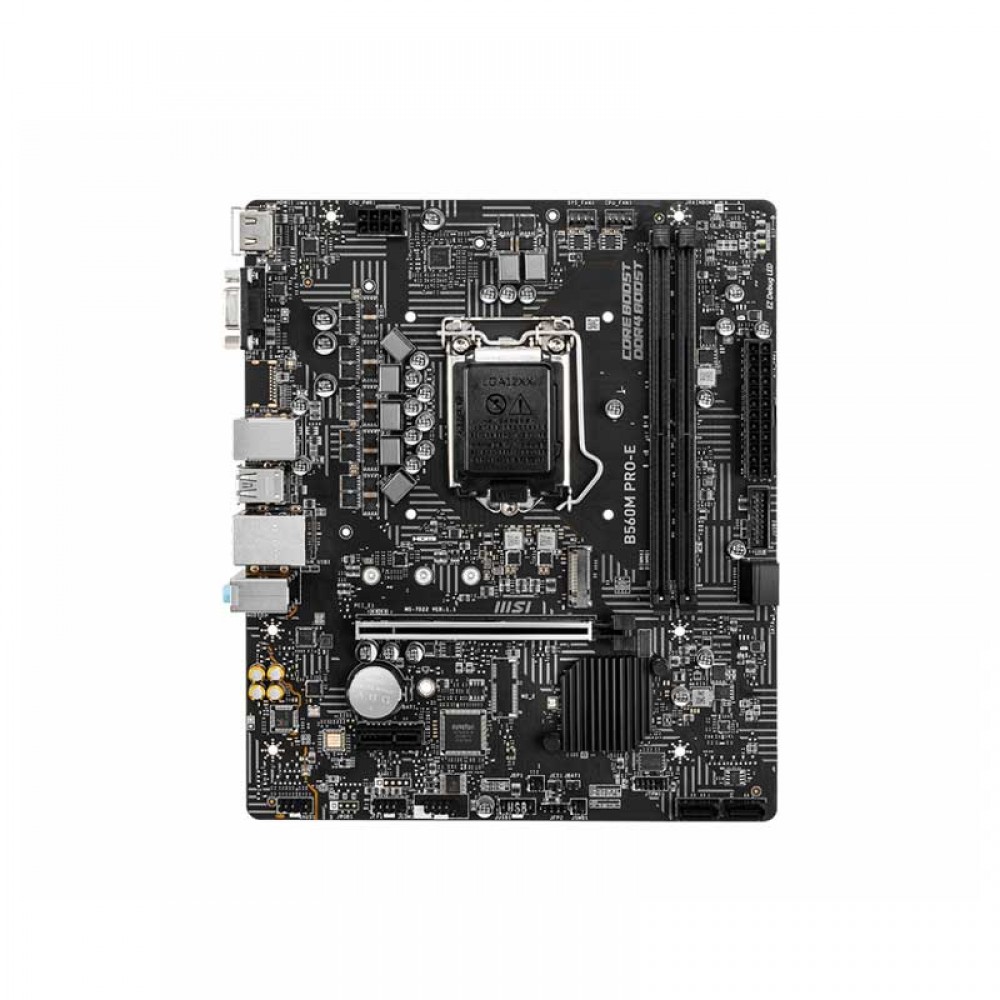

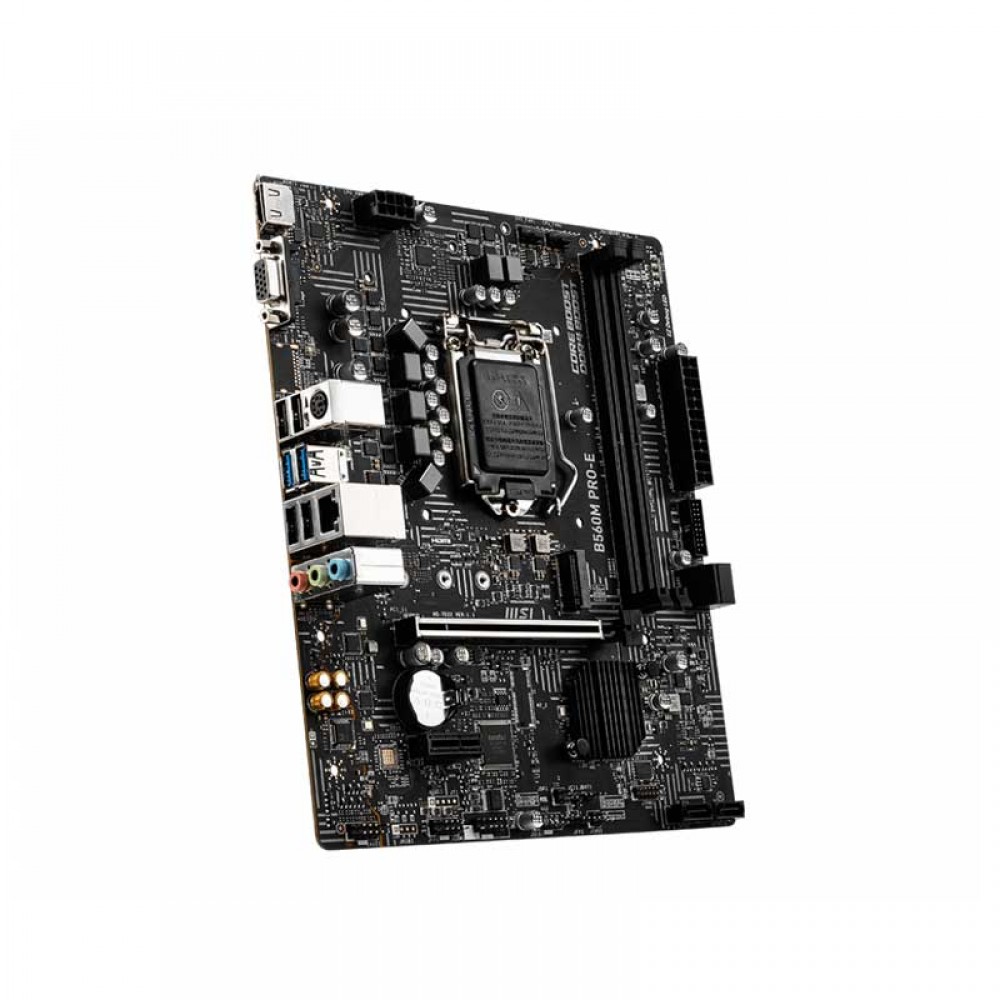

MSI B560M PRO-E LGA1200 MATX MOTHERBOARD
Home>Brand>MSI>Msi B560M Pro-E Lga1200 Matx Motherboard

Msi B560M Pro-E Lga1200 Matx Motherboard

Original price was: ₹10,950.Current price is: ₹6,700.

(39% OFF)

(Inclusive of all taxes)

Model No : B560M PRO-E

Out of stock

all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

MSI B560M PRO-E LGA1200 MATX MOTHERBOARD

  • Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium® Gold and Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Core Boost :  With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost :  Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience :  PCIe 4.0
  • Turbo M.2 :  Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost :  Reward your ears with studio grade sound quality
  • Steel Armor :  Protecting VGA cards against bending and EMI for better performance, stability and strength.
Specification
CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Processor socket LGA1200

Please go to intel.com for compatibility information.
Chipset Intel B560 chipset
Memory 2x DDR4 memory slots, support up to 64GB

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 4800 MHz

1DPC 2R Max speed up to 4600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Please refer to www.msi.com for more information on compatible memory
Expansion Slot 1x PCIe x16 slot (From CPU)

Support up to PCIe 4.0 for 11th Gen Intel CPU

Support up to PCIe 3.0 for 10th Gen Intel CPU

1x PCIe 3.0 x1 slot (From PCH)
Onboard Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz1

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.
Storage Intel B560 Chipset

4x SATA 6Gb/s ports (From B560 Chipset)

1x M.2 slot (Key M)

M2_1 slot (From B560 Chipset)

Supports up to PCIe 3.0 x4

Supports SATA 6Gb/s1

Supports 2242/ 2260/ 2280 storage devices

SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB Intel B560 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)

6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)
Audio Realtek ALC897 Codec

7.1-Channel High Definition Audio
LAN 1x Intel I219V 1Gbps LAN controller
BIOS 1x 256 Mb flash

UEFI AMI BIOS

ACPI 6.2, SMBIOS 3.0

Multi-language
Internal Connectors 1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

1x USB 2.0 connector (supports additional 2 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x System panel connectors

1x Serial port connector

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

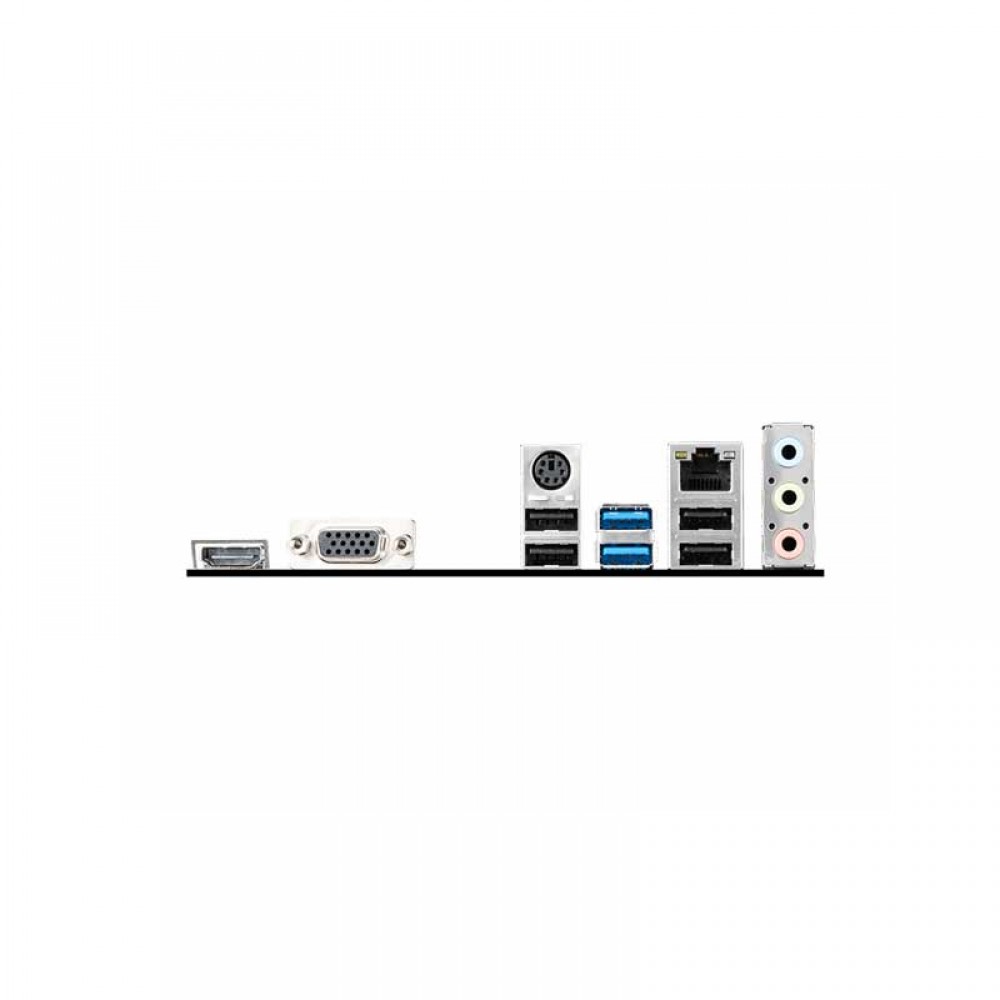

Back Panel Ports HDMI

VGA

Mouse / Keyboard

LAN port

Audio connector

USB 2.0

USB 3.2 Gen 1 5Gbps Type-A

USB 2.0
Form Factor mATX Form Factor

9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)
Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
