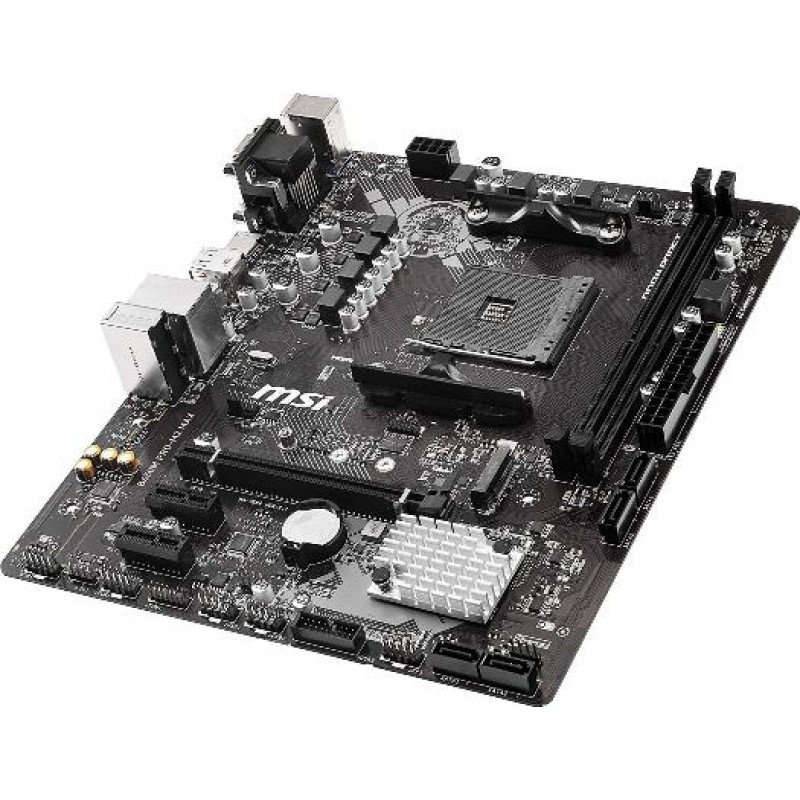

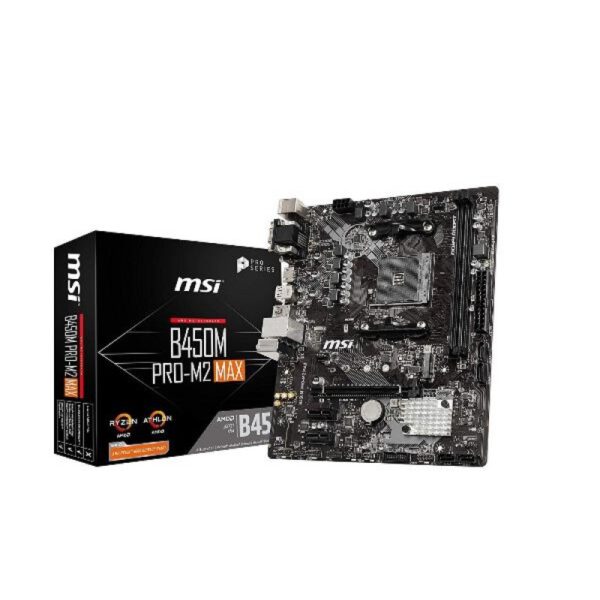

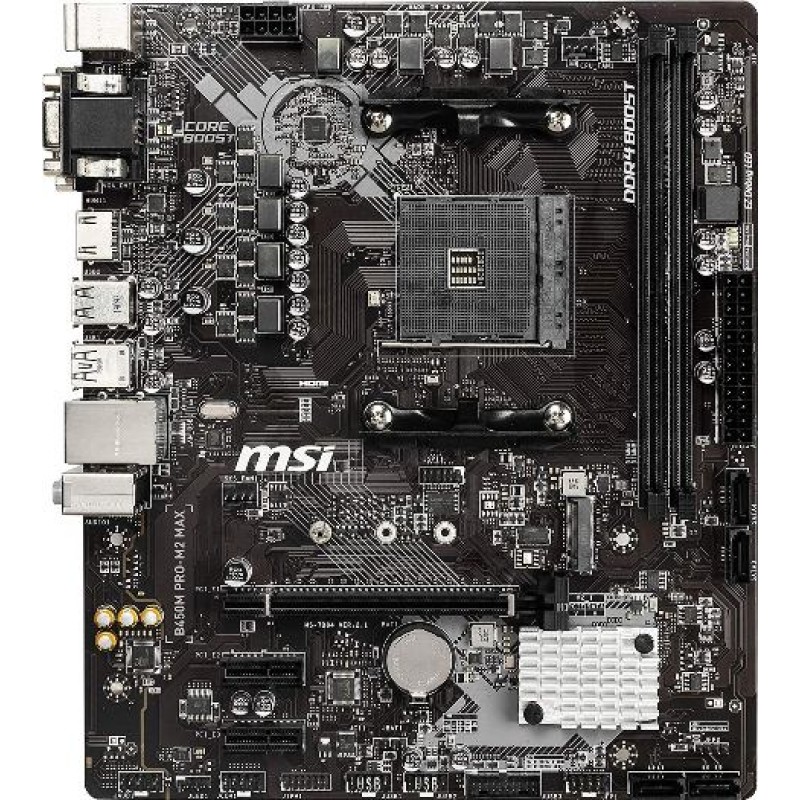

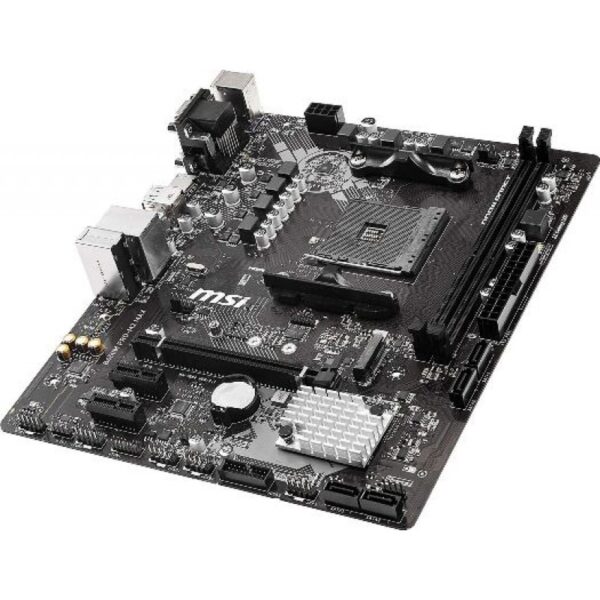

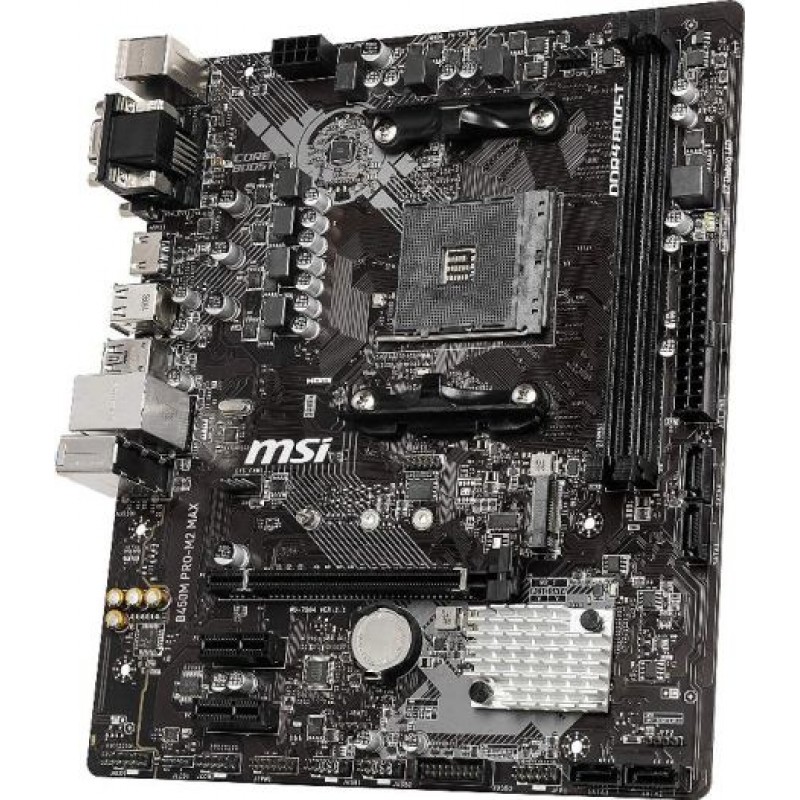

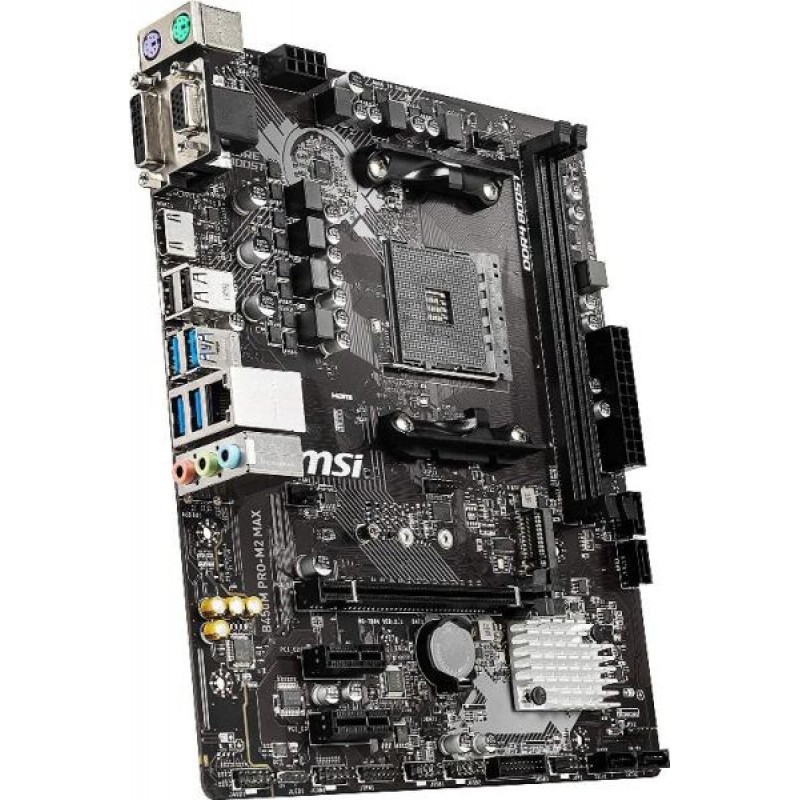

B450M PRO-M2 MAX
AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 3466+(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: Easiest way to troubleshoot
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- PCI-E Steel Slot: Protecting VGA cards against bending.
|CPU||Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4|

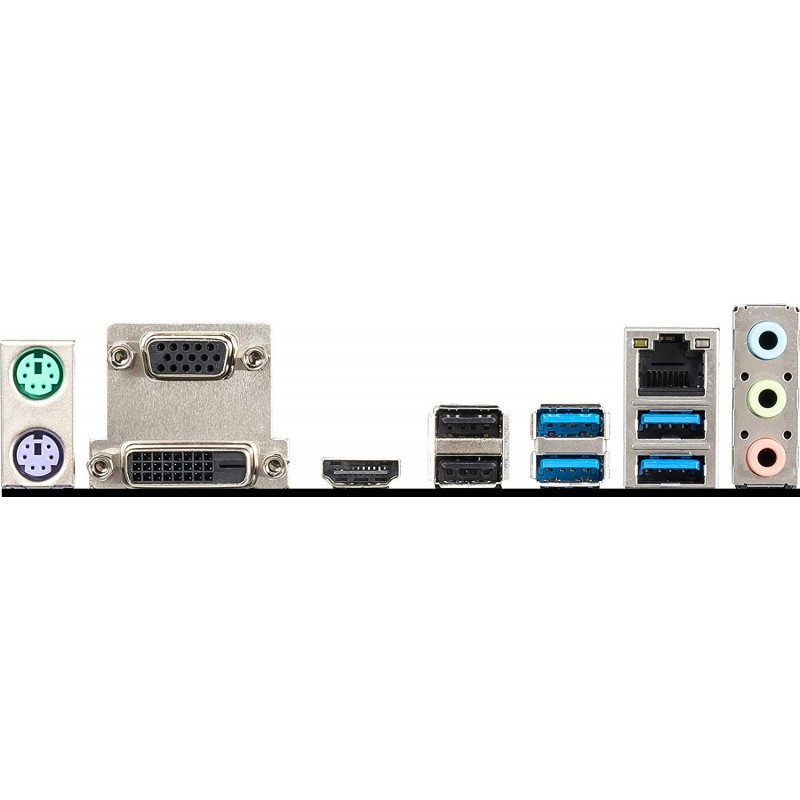

|Back Panel I/O Ports||Mouse VGA Port USB 2.0 LAN Port HD Audio Connectors Keyboard DVI-D Port HDMI Port USB 3.2 Gen1|
|Chipset||AMD® B450 Chipset|
|Internal I/O Connectors||1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x LED strip connector 1 x Clear CMOS jumper|
|Memory||2 x DDR4 memory slots, support up to 32GB Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC For AMD Ryzen Gen3 (R5/R7/R9) Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz by A-XMP OC mode1 For AMD Other CPU Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory Please refer www.msi.com for more information on compatible memory.|
|Onboard Graphics||1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz1,2 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160@30Hz1,2 Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorssMaximum shared memory of 2048 MB|
|Slots||1 x PCIe 3.0 x16 slot (PCI_E1) Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors 2 x PCIe 2.0 x1 slots|
|Storage||AMD® B450 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices|
|USB||AMD® B450 Chipset 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) AMD® processor 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel|
|LAN||1 x Realtek® 8111H Gigabit LAN controller|
|Audio||Realtek® ALC887 Codec 7.1-Channel High Definition Audio|

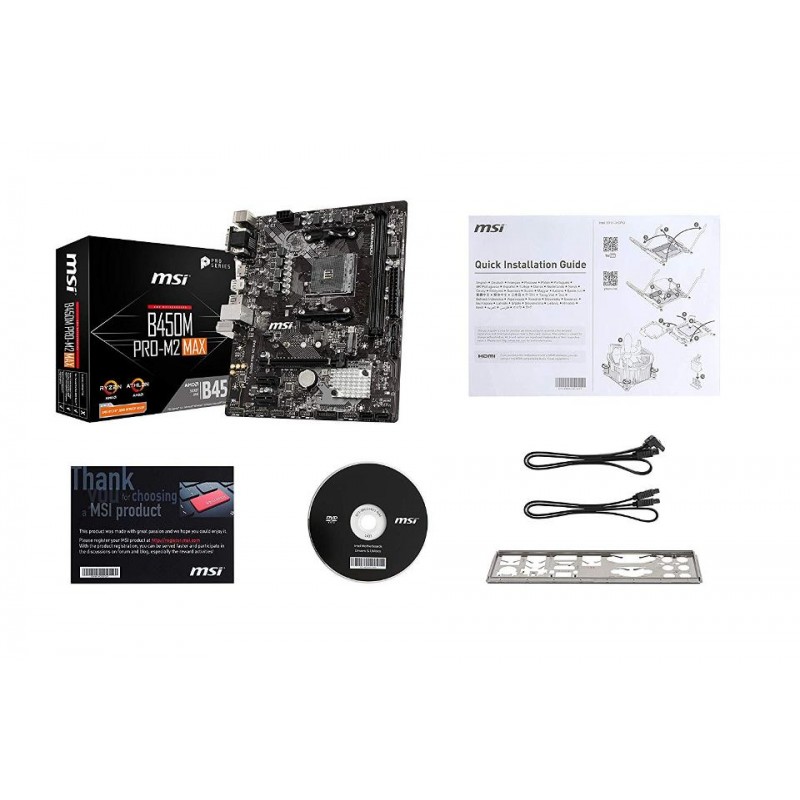

|Operating System||Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. BOX CONTENT|
|Mounting||9 mounting holes|
|DIMENSION**||9.6 in. x 8.1 in. (24.4 cm x 20.6 cm) m-ATX Form Factor|
|**Note||Price, feature and specifications are subject to change without notice.|
