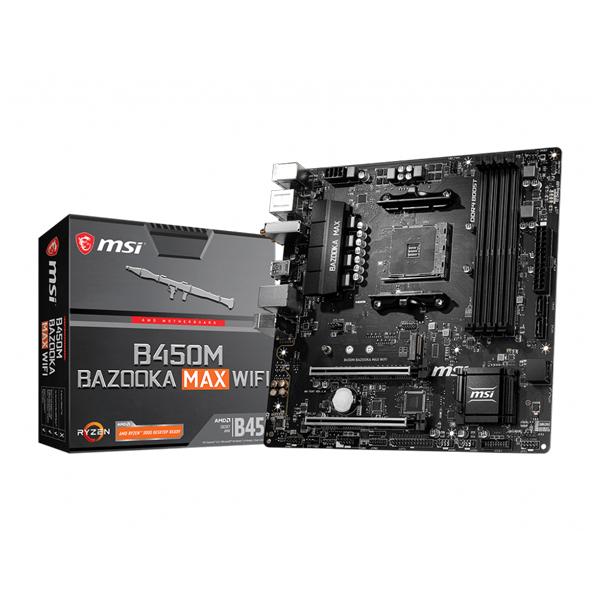

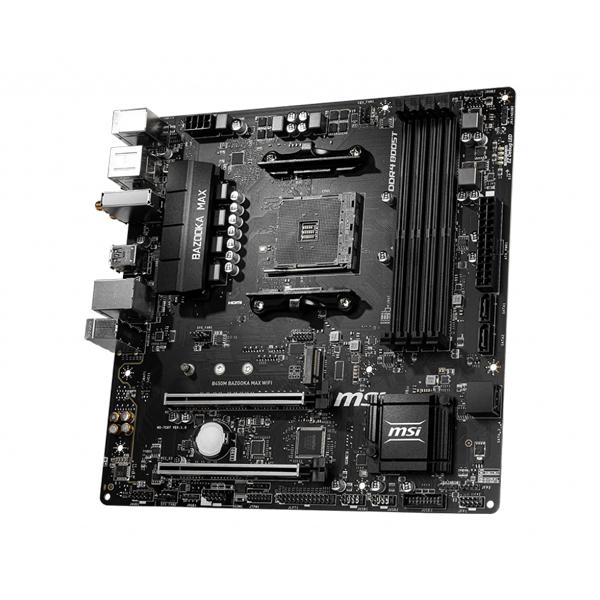

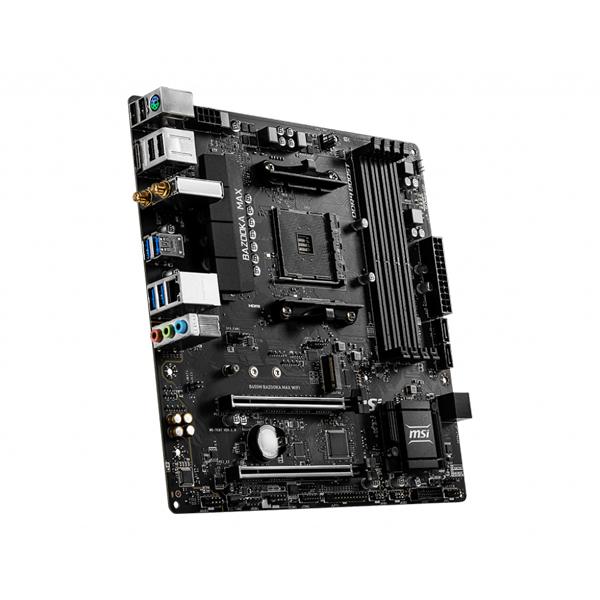

Msi B450M Bazooka Max Wi-Fi Motherboard

Model No : B450M-BAZOOKA-MAX-WIFI

10,500.00

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Out of stock

Description

MSI B450M Bazooka Max Wi-Fi Motherboard (B450M-BAZOOKA-MAX-WIFI)

Features

Military style with armor design for a strong gaming foundation, Core Boost, DDR4 Boost, Audio Boost, PCI-E Steel Armor, Turbo M.2 and USB 3.2 Gen1 connector

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133(OC) MHz
  • Lightning Fast Game experience: 1x TURBO M.2, Store MI technology
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
  • MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire™

Specifications

CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Chipset AMD® B450 Chipset
Memory
  • 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
    • For AMD Other CPU
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
Expansion Slot
  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors
    • Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors
    • Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
  • 1 x PCIe 2.0 x16 slot (PCI_E2, supports x4 mode)
Storage
  • 4 x SATA 6Gb/s ports
  • 1 x M.2 slots (Key M)1
    • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics)
    • Supports 2242/ 2260/ 2280 storage devices
RAID AMD B450 Chipset

  • Supports RAID 0, RAID 1 and RAID 10 for B450 Chipset SATA storage devices
USB AMD B450 Chipset

  • 2 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 ports available through the internal USB connector)
  • 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

AMD PROCESSOR

  • 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel)
Audio Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
WIFI and Bluetooth
  • Wi-Fi/Bluetooth expansion module with Intel Single Band Wireless-AC 3168 chip
  • Supports Wi-Fi 802.11 a/b/g/n/ac, single band (2.4GHz, 5GHz) up to 433 Mbps speed.
  • Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
  • 1x M.2_2 Socket with E key (Wi-Fi mode)
LAN 1x Realtek® 8111H Gigabit LAN controller
Internal connectors
  • 1 x 24-pin ATX power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x M.2 slot (Key M)
  • 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU Fan connector
  • 2 x 4-pin system Fan connectors
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Parallel port connector
  • 1 x Serial port connector
  • 2 x RGB LED connectors
  • 2 x ARGB LED connectors
  • 1 x Clear CMOS jumper

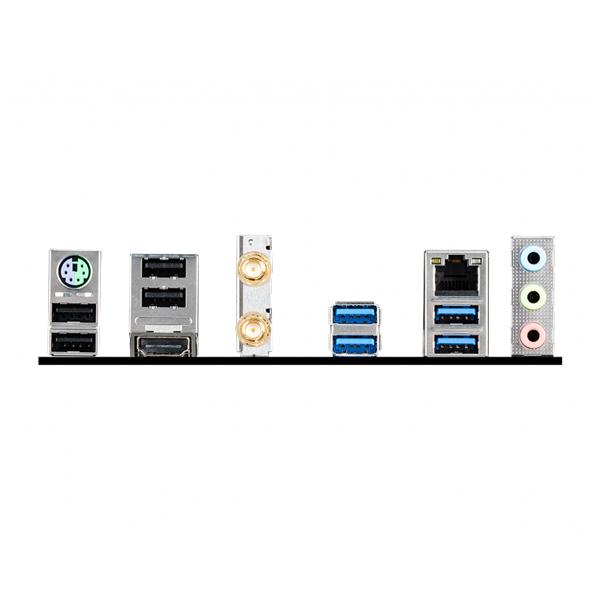

Back panel ports
  1. PS/2 Combo Port
  2. USB 2.0 Ports
  3. LAN Port
  4. HD Audio Connectors
  5. USB 2.0 Ports
  6. HDMI Port
  7. Intel Wi-Fi
  8. USB 3.2 Gen 1 Type A
  9. USB 3.2 Gen 1 Type A
Form Factor
  • mATX Form Factor
  • 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
Mounting Holes 8 mounting holes
BIOS Features
  • 1x 128 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Operating System

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
