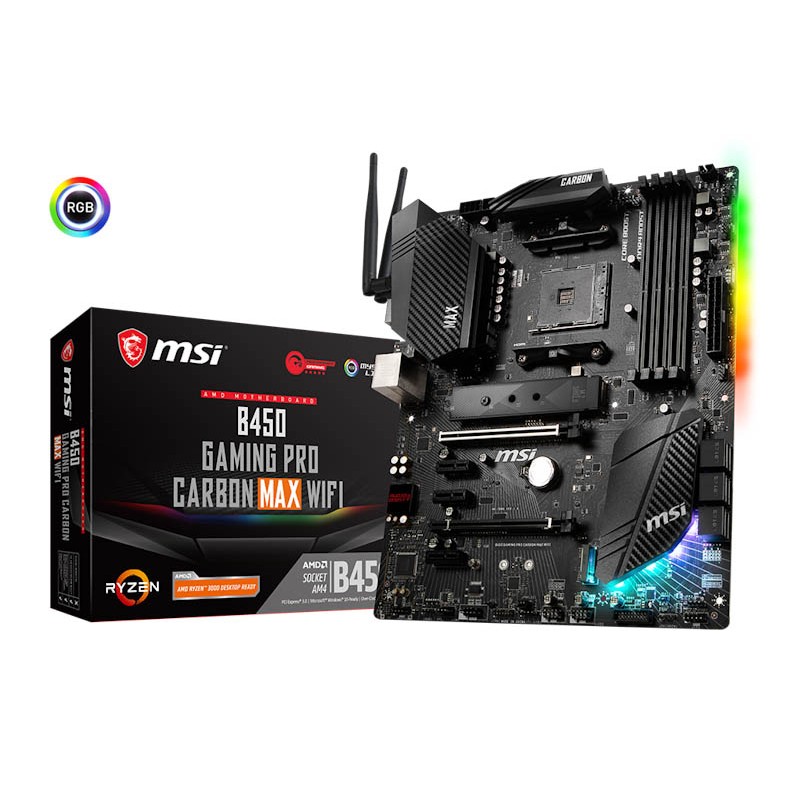

B450 GAMING PRO CARBON MAX
Inspired by the curve and shape of supercars, offers colorful customization with MSI Mystic Light RGB, tuned for better performance by Core boost, DDR4 Boost, M.2 Shield, Wi-Fi AC Solution, AMD Turbo USB 3.2 Gen2.
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4.
- Supports DDR4 Memory, up to 4133(OC) MHz.
- Mystic Light and Mystic Light Sync: 16.8 million colors / 17 effects in one click. Synchronize RGB/RAINBOW strips and other RGB solutions for customization.
- Lightning Fast Game experience: TURBO M.2 with M.2 Shield, StoreMI, AMD Turbo USB 3.2 GEN2.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
- DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP.
- GAMING LAN and Wireless support, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
|CPU||Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4|
|Chipset||AMD® B450 Chipset|
|Internal I/O Connectors||1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 1 x 2pin LED Power connector 2 x 5050 RGB LED strip 12V connectors (JRGB1~2) 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1) 1 x CORSAIR connector (JCORSAIR1)|
|Memory||4 x DDR4 memory slots, support up to 128GB Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/3600/ 3733/ 3866/ 4000/ 4133 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode)|
|Onboard Graphics||1 x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz, 1920×1200 @60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz|
|Slots||1x PCIe 3.0 x 16 slot (PCI_E1) Supports x 16 speed with 1st, 2nd and 3rd Gen AMD® Ryzen™ processors Supports x 8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™ with Radeon™ Graphics processors Supports x 4 speed with Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 2.0 x 16 slot (PCI_E4, supports x4 mode) 3 x PCIe 2.0 x 1 slots|
|Multi-GPU Support||Supports 2-Way AMD® CrossFire™ Technology|
|Storage||4 x SATA 6Gb/s ports 1 x M.2 slot (M2_2, Key M) Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices|
|RAID||Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe RAID|
|USB||1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)|
|LAN||1 x Intel® I211AT Gigabit LAN controller|
|Audio||Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output|
|Mounting||9 mounting holes|
|WIFI & Bluetooth||Intel® Dual Band Wireless-AC 9260 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz,5GHz) up to 1.73 Gbps speed. Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0,BLE,4.2, 5.0 1 x M2_3 slot with E key (Wi-Fi mode)|
|DIMENSION**||ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)|
|**Note||Price, feature and specifications are subject to change without notice.|
