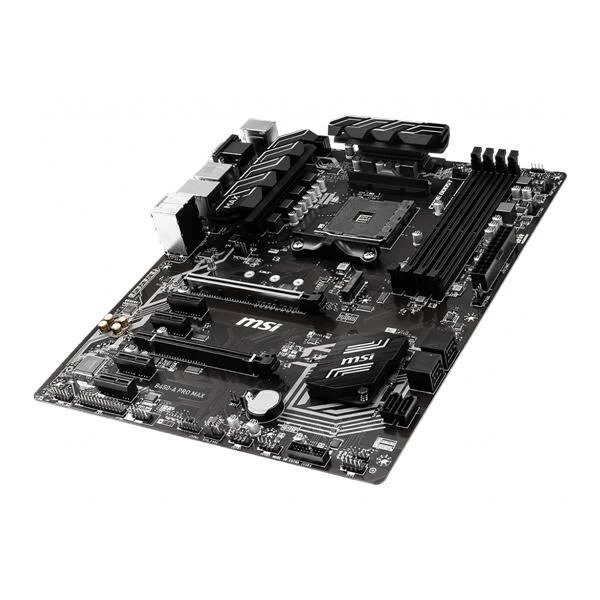

MSI B450-A PRO MAX AMD AM4 MOTHERBOARD

Inclusive of all taxes

Model :

B450-A-PRO-MAX

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

MSI B450-A PRO MAX AMD AM4 MOTHERBOARD

Features

Inspired from architectural design, B450-A PRO MAX motherboard is equipped with Core Boost, DDR4 Boost, Turbo M.2 and USB 3.2 Gen2 connector

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
  • AMD Turbo USB 3.2 Gen2: Powered by AMD USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

Specifications

Processor Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Chipset AMD® B450 Chipset
Memory
  • 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.1
    • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    • For AMD Ryzen Gen3 (R5/R7/R9)
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE)
    • For AMD Other CPU
      • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  1. Please refer to Compatibility for more information on compatible memory
Slots
  • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
    • Athlon™ with Radeon™ Vega Graphics support x4 mode
  • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
  • 4 x PCIe 2.0 x1 slots1
  1. PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.
Onboard Graphics
  • 1 x VGA port, support a maximum resolution of 2048×1280 @60Hz,1920×1200 @60Hz1,2
  • 1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hz1,2
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz1,2
  1. Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors
  2. Maximum shared memory of 2048 MB
Multi-GPU Supports 2-Way AMD® CrossFire™ Technology
Storage AMD® CPU

  • 2 x SATA 6Gb/s ports1
  • 1 x M.2 slot (Key M)1
    • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device

AMD® B450 Chipset

  • 4 x SATA 6Gb/s ports
  1. SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
RAID AMD® B450 Chipset

  • Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
USB AMD® B450 Chipset

  • 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
  • 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

  • 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Audio Realtek® ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN 1 x Realtek® 8111H Gigabit LAN controller
Internal connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x 5050 RGB LED strip 12V connector
Back panel ports
  1. Flash BIOS Button
  2. PS/2 Combo Port
  3. VGA Port
  4. USB 3.2 Gen1
  5. LAN Port
  6. HD Audio Connectors
  7. USB 2.0 ports
  8. DVI-D Port
  9. HDMI Port
  10. USB 3.2 Gen2
Dimensions
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
Mounting 9 mounting holes
Operating System Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
