Lian Li UNI FAN TL 3x 120mm Wireless Fan Kit Black (12TL1W3B)
Home>Brand>Lian Li>Lian Li UNI FAN TL 3x 120mm Wireless Fan Kit Black (12TL1W3B)

Lian Li UNI FAN TL 3x 120mm Wireless Fan Kit Black (12TL1W3B)

No Customer Rating

Original price was: ₹19,900.Current price is: ₹10,400.

(48% OFF)

(Inclusive of all taxes)

Model No : G99-12TL1W3B-IN
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

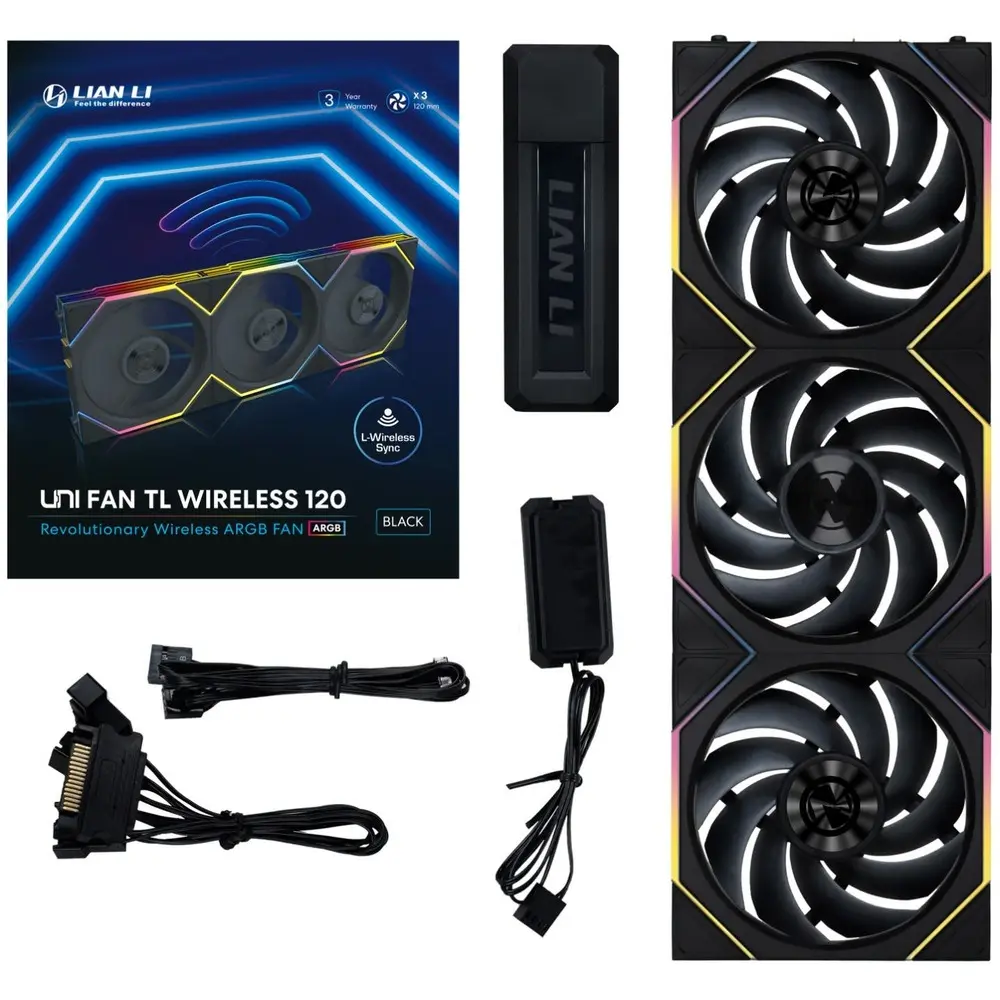

Lian Li UNI FAN TL 3x 120mm Wireless Fan Kit Black

The Lian Li Uni Fan TL Wireless and TL LCD Wireless feature LIAN LI’s innovative wireless sync technology, utilizing a 2.4GHz wireless signal to control lighting effects and fan speed to further improve the PC building experience while delivering efficient cooling, dazzling lighting, and quiet operation.

  • L-Wireless Sync supported (required for use)

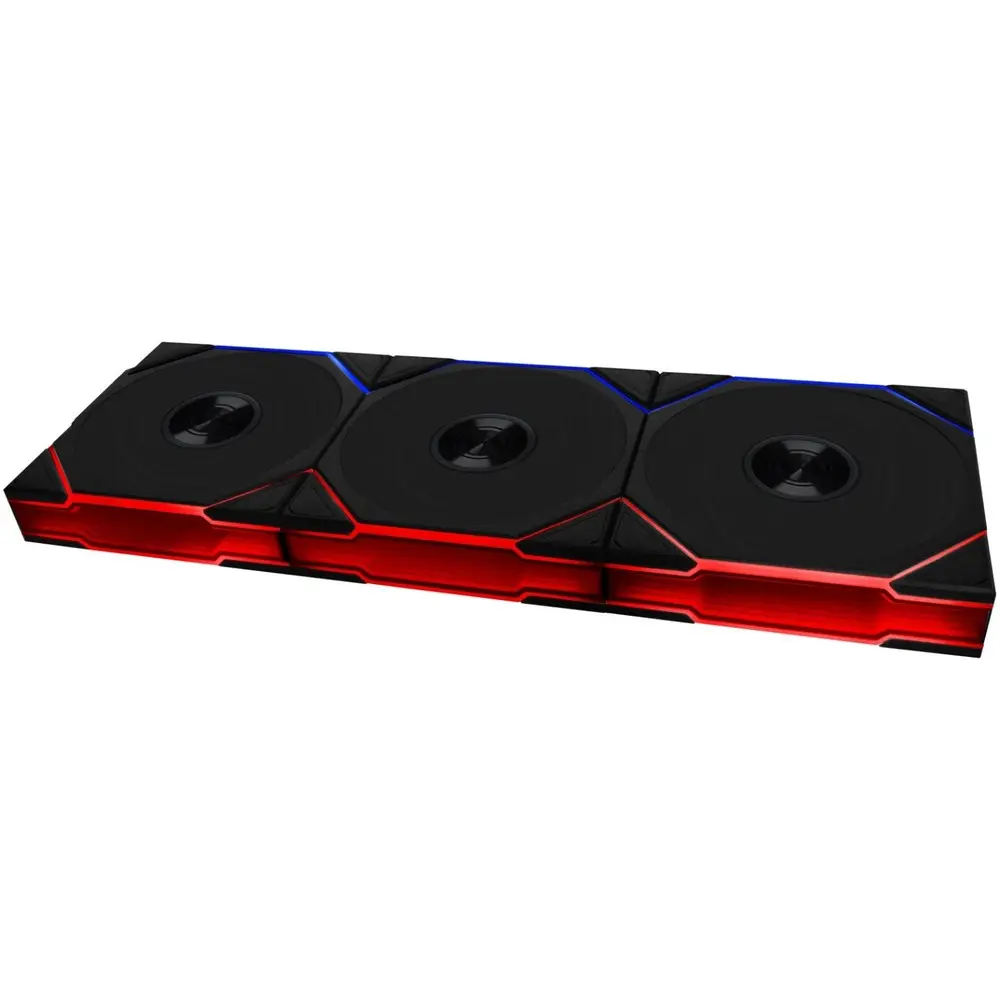

  • UNIFAN interlocking system for streamlined cable management

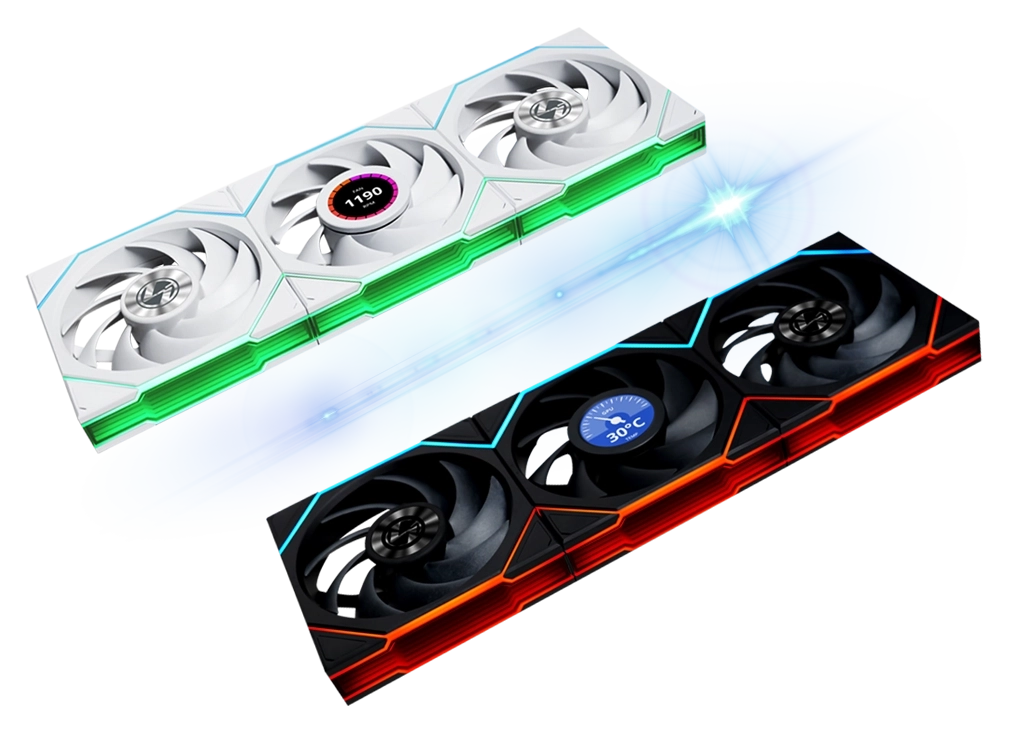

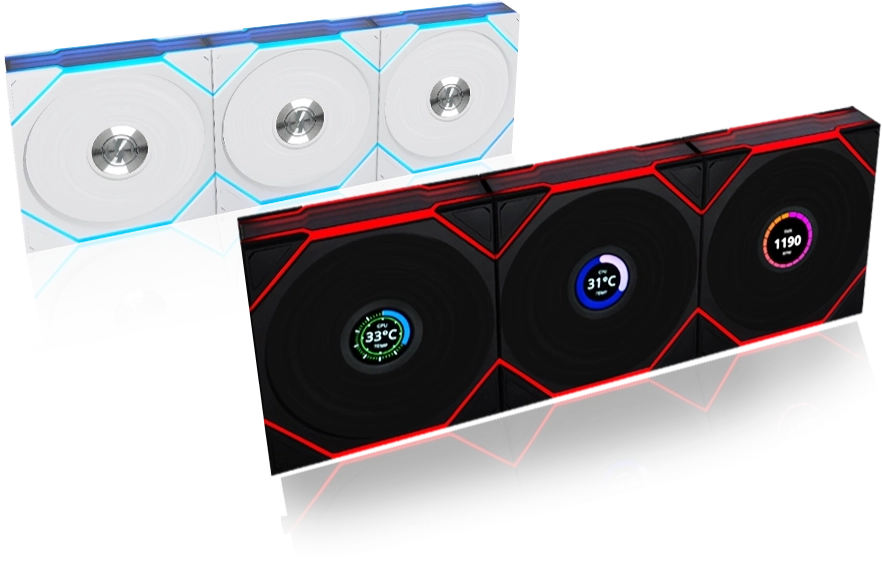

  • Available in two versions: LED and LCD (mixable in a single cluster)

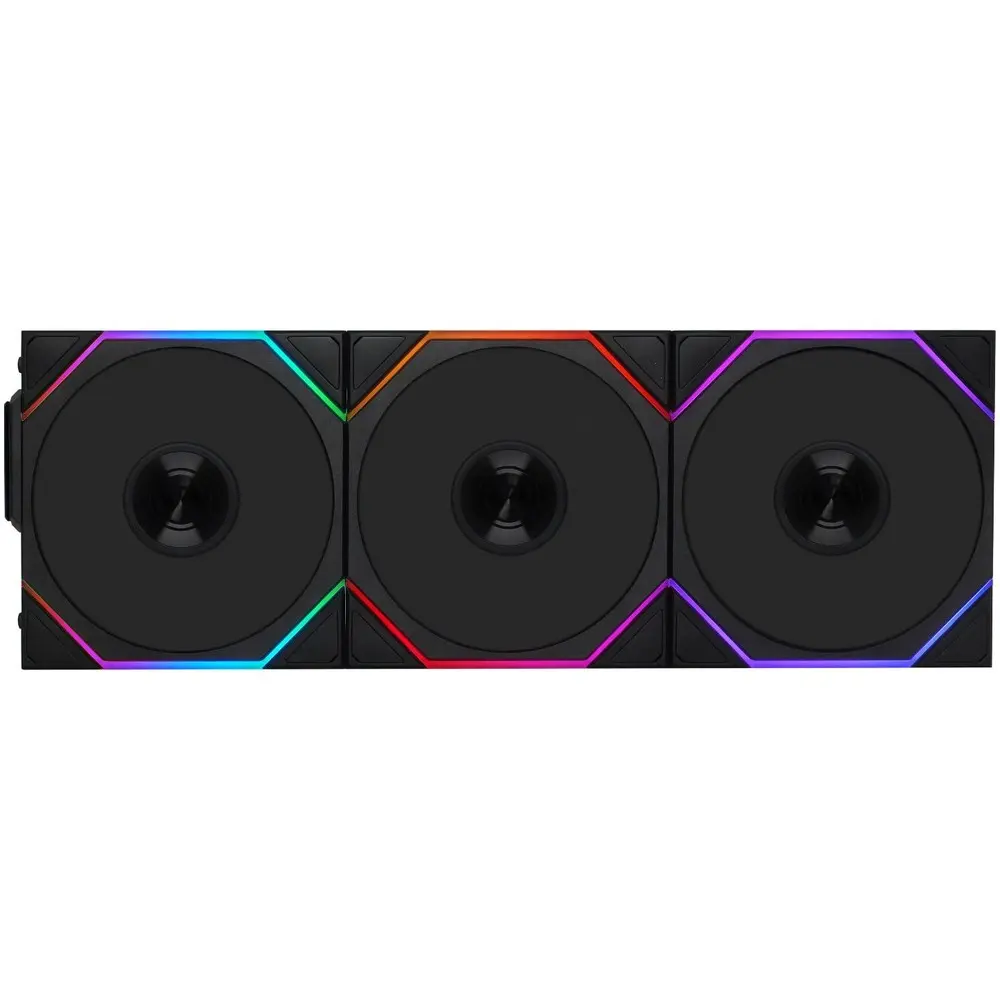

  • Two light zones for an enhanced visual experience
  • Full software control for fan speed, lighting effects, and LCD screen display via L-Connect 3
  • Noise-optimized and performance-oriented fan.
  • LCP (liquid crystal polymer) fan blades are used for tight tolerance.

WIRELESS TRANSMITION, EASY INSTALLATION

By adopting 2.4GHz wireless technology, the UNI FAN TL Wireless Series eliminates the need for traditional hub connections, significantly simplifying the installation process and enhancing user experience.

INNOVATIVE L-WIRELESS CONTROLLER

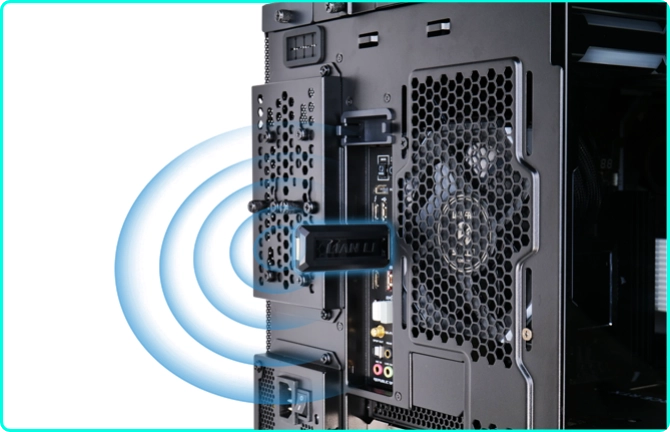

Instead of using the traditional connection method, the L-Wireless Sync Controller controls both lighting and fan speeds without connecting the cable to the controller.
The fans can be powered via a 4-PIN fan header on the motherboard or a SATA power cable.

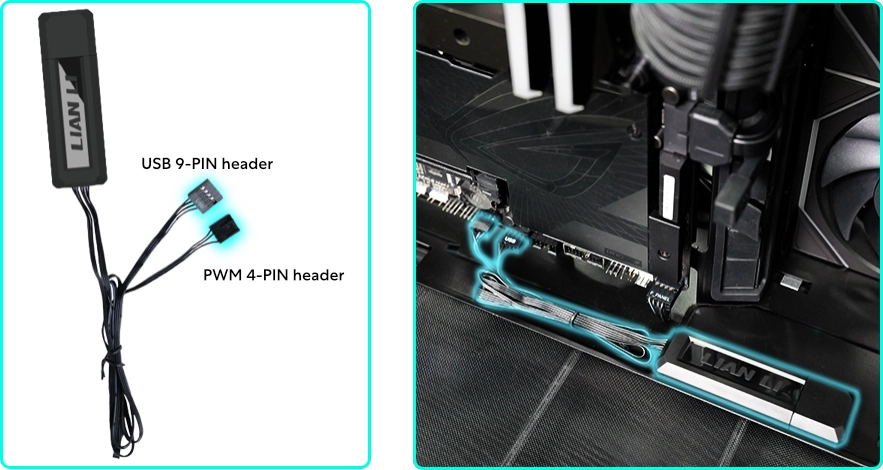

For the LCD versions, a USB 2.0 9-PIN cable connection to the motherboard is required to set the LCD screen.

Connect to motherboard USB Type A Port.

Connect to the 9-PIN port on motherboard.

Note: To synchronize the fan speed with the motherboard, please use the second connection method and ensure that the PWM cable from the controller is connected to the motherboard for proper functionality.

The LCD and non-LCD versions use different receivers. For mixed clusters, use the LCD version receiver.

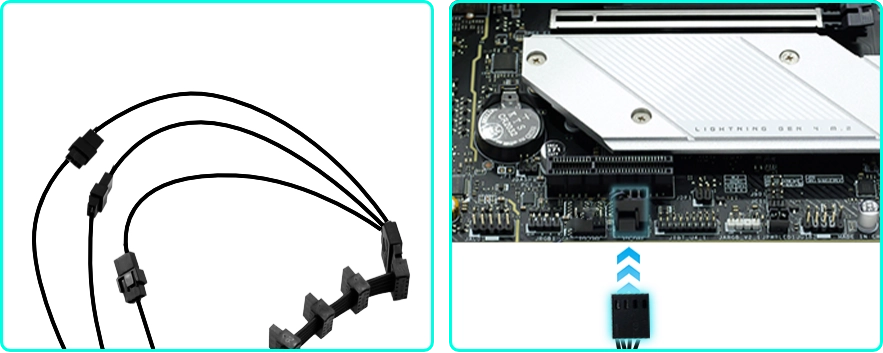

 Each fan group requires connection to either a 12V PWM header or a 1-to-3 SATA splitter cable.

UNI FAN TL Wireless: PWM cable powers the LED and motor.
UNI FAN TL LCD Wireless: PWM cable powers the LED and motor; USB cable transmits LCD signals and provides LCD power.

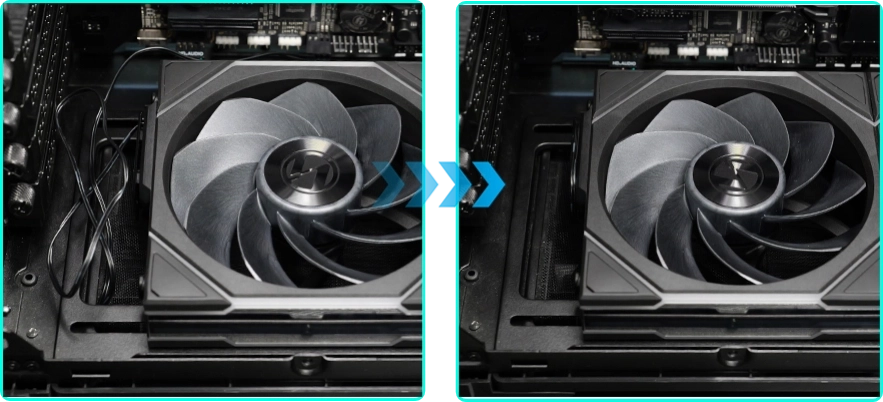

The cable length can be shortened with the organizer on the receiver.

The transmission logic between the USB port and the LCD has been optimized, enabling the use of an additional USB splitter cable to the USB 2.0 or 3.0 port on the motherboard:

USB splitter cable without SATA for additional power (e.g., LIAN LI USB 2.0 1-to-3 HUB): Supports up to 6 TL LCD wireless fans.
USB splitter cable with SATA for additional power (e.g., LIAN LI Edge hub): Supports up to 9 TL LCD wireless fans.
Furthermore, a single motherboard can support up to 20 UNI FAN TL LCD wireless fans.

SPECIFICATIONS
PRODUCT NAME UNI FAN TL 120 Wireless
MODEL 12TL1W3B
COLOR BLACK
NUMBER OF FANS 3
CONTROLLER Yes
CONNECTOR TYPE 4-PIN PWM ,
3-12V PWM to SATA x1
FAN DIMENSION 120x124x28mm
FAN SPEED 0,200~2600 RPM
MAX. AIR PRESSURE 3.97 mmH2O (Maximum)
MAX. AIRFLOW 90.1 CFM (Maximum)
ACOUSTIC NOISE 33 dBA (Maximum)
INPUT POWER 5.8W
MATERIAL PBT&PA66
BEARING TYPE Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE DC12V & 5V
WARRANTY 3 years
