Description

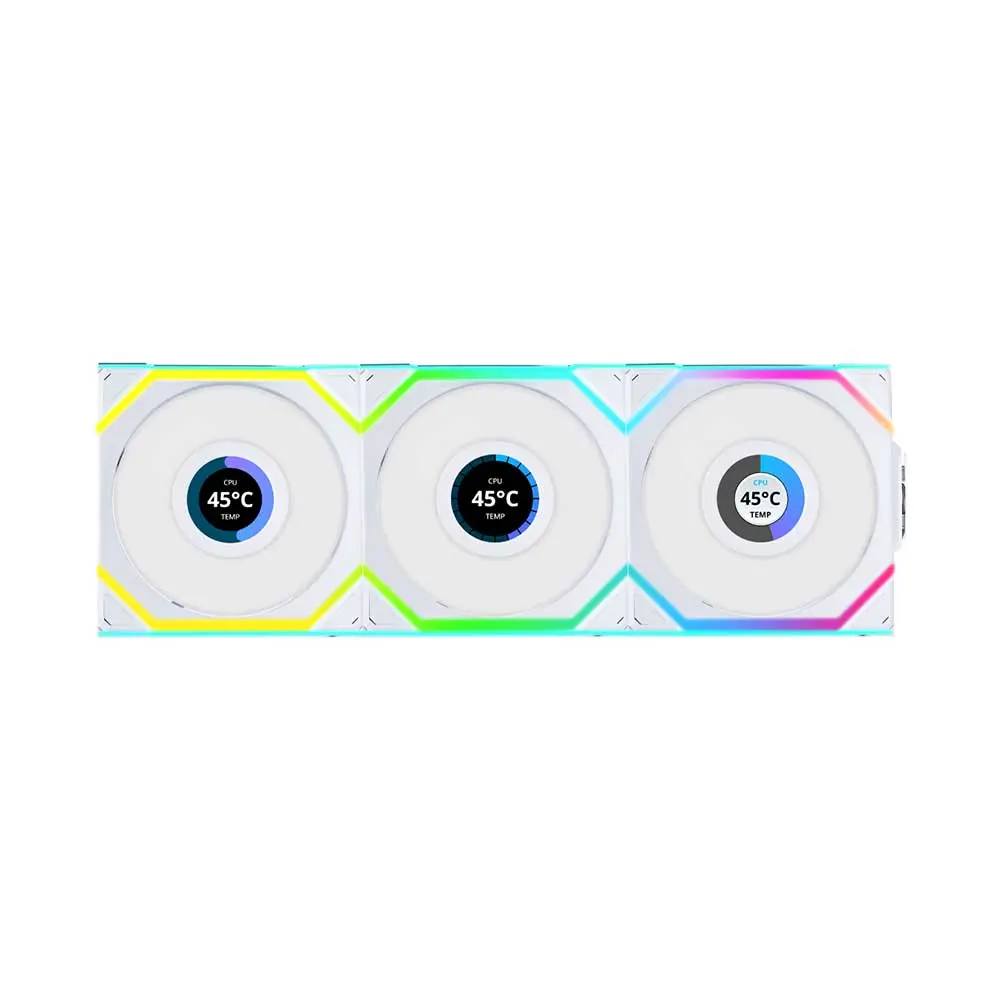

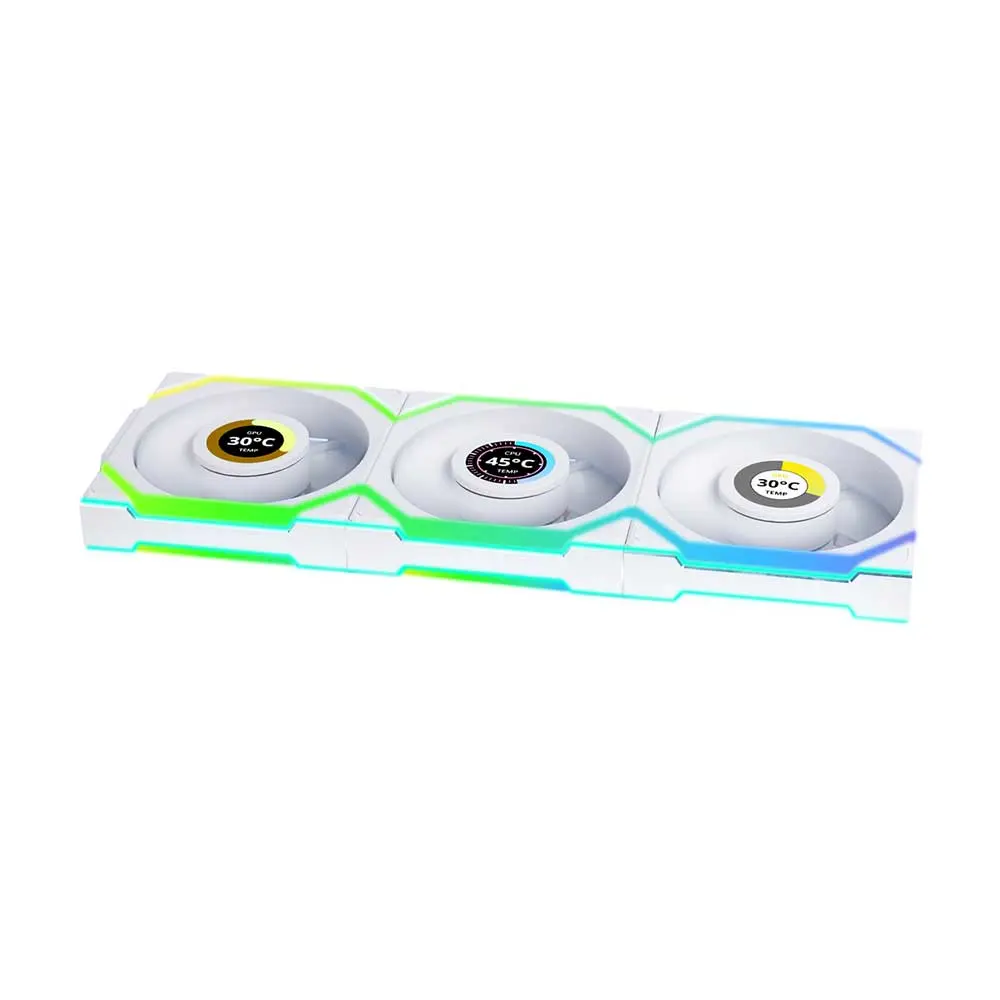

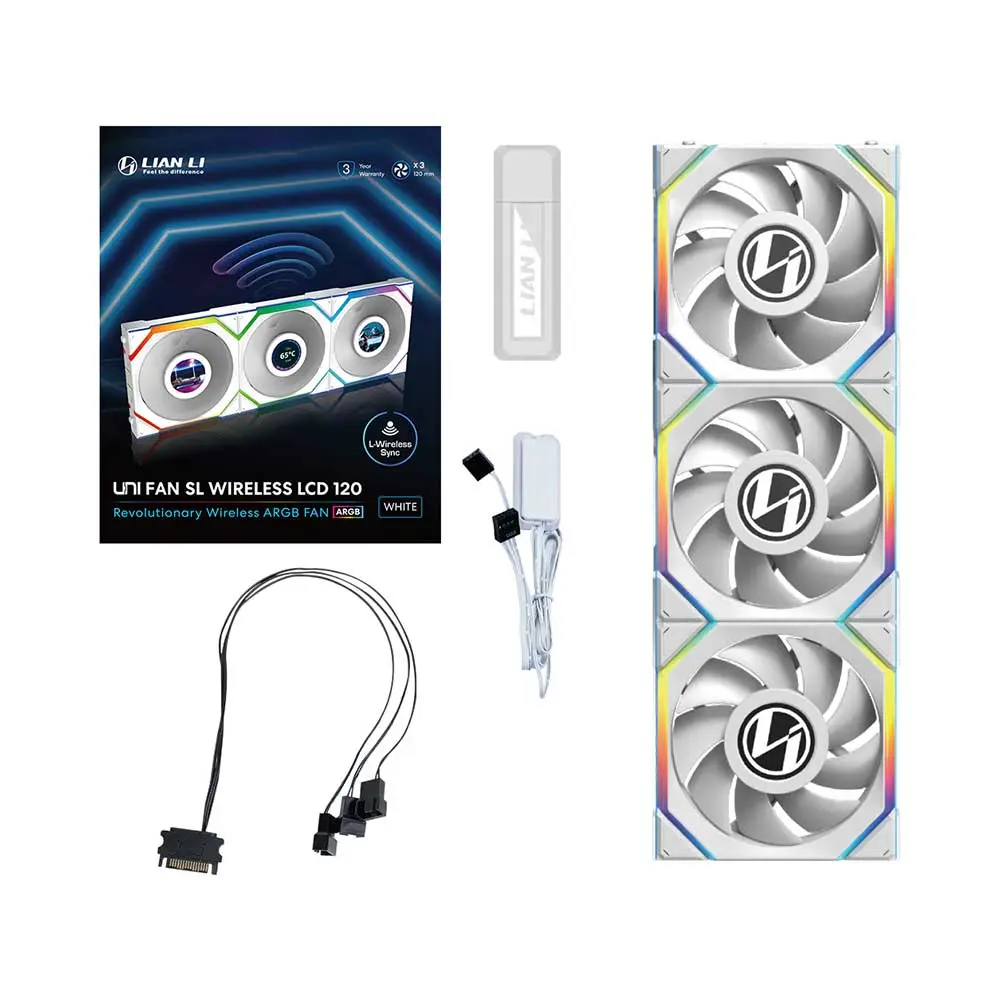

Lian Li UNI FAN SL Wireless LCD 3x 120mm Fan Kit White
The Lian Li UNI FAN SL Wireless LCD 3X series has made another revolutionary breakthrough in making cable management easier and unifying controllers across different devices. The UNI FAN SL Wireless utilizes a 2.4 GHz wireless signal to control its lighting effects and fan speed to further improve your PC building experience.
- L-Wireless Sync supported (required for use)
- UNIFAN interlocking system for streamlined cable management
- Available in two versions: LED and LCD (mixable in a single cluster)
- Two light zones for an enhanced visual experience
- Full software control for fan speed, lighting effects, and LCD screen display via L-Connect 3
- Optimized for airflow and noise, making it ideal for PC case fans



WIRELESS CONTROL, EASY INSTALLATION
The revolutionary 2.4GHz L-wireless controller greatly simplifies the installation experience of UNI FAN SL Wireless Series.
L-WIRELESS CONTROLLER

12SLLCD1W3B, 12SLLCD1W3W, 12RSLLCD1W3B, 12RSLLCD1W3W, 12SL1W3B, 12SL1W3W, 12RSL1W3B, 12RSL1W3W, PW24-1W-T, RF-T-B, RF-T-W

Based on user experience and continuous research, we newly designed a L-Wireless controller. The L-Wireless controller connects to the motherboard, and transmits a 2.4GHz signal to the fan, enabling the wireless control of the LED lighting effects and fan speed for the UNI FAN SL Wireless Series.
*Note: LCD still needs to transmit through a USB 9-pin cable.
Connect to USB Type A port

Connect to 9-pin port on motherboard

Note: To synchronize the fan speed with the motherboard, please use the second connection method and ensure that the PWM cable from the controller is connected to the motherboard for proper functionality.
Switch to PWM fan and full speed mode in the Bios.

SPECIFICATIONS | |
MODEL NAME | UNI FAN SL Wireless LCD 120 |
MODEL NO. | 12SLLCD1W3W |
COLOR | WHITE |
NUMBER OF FANS | 3 |
CONTROLLER | Yes |
CONNECTOR TYPE | 4-PIN PWM + 9-PIN USB x1, 3-12V PWM to SATA x1 |
FAN DIMENSION | 120×124.5x28mm |
FAN SPEED | 0,350~1900 RPM |
MAX. AIR PRESSURE | 2.4 mmH2O (Maximum) |
MAX. AIRFLOW | 50.08 CFM (Maximum) |
ACOUSTIC NOISE | 29.5 dBA (Maximum) |
INPUT POWER | 2.64W |
MATERIAL | PBT |
RATED VOLTAGE | 40 |
BEARING TYPE | Fluid Dynamic Bearing (FDB) |
OPERATE VOLTAGE | DC12V & 5V |
WARRANTY | 3 years |
