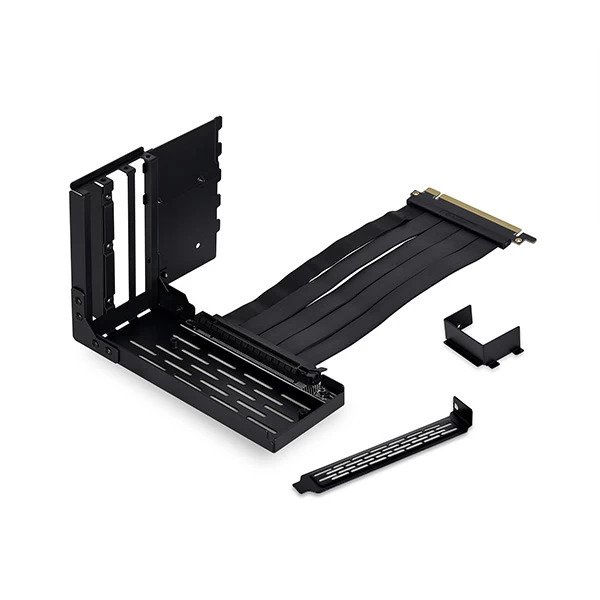

LIAN LI O11D-EVO (PCI-E 4.0 X16) VERTICAL GPU KIT FOR O11 DYNAMIC EVO (BLACK) (G89-O11DE-1X-IN)
O11D EVO Vertical GPU Kit
- Vertical graphics card accessories for O11D EVO
- Ability to mount higher or lower for bottom clearance flexibility
Show off your graphics card in the O11D EVO with the exclusive vertical bracket that’s equipped with a PCIe 4.0 riser cable for seamless connectivity.
Two Installation Modes
The O11D EVO’s vertical GPU kit provides flexible room at the bottom of the case for fans and radiators, increasing the cooling capability and efficiency of the O11D EVO. Users can either mount the GPU vertically at the lower position which provides 50mm of clearance at the bottom of the chassis, or the upper position for 90.5mm of clearance.
Gen 4.0 Pcie Riser Cable
The PCIe 4.0 riser cable supports bit rate speeds of 16GT/s. While providing double the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backward compatible with a maximum transfer speed, offering great performances.
The riser cable can be moved forward to the second slot to increase the space between the back of the GPU and the motherboard. Please note that only 2 slot thick GPUs can be installed in the second slot.
|Product Name||Vertical GPU Kit for O11D EVO|
|Bracket Dimension||118mm (L) x 141mm (D) x 141 mm (H)|
|PCIe Riser Cable||Gen 4.0|
|Cable Interface||PCIe X 16|
|Expansion Slot||3 Slots|
|Note||*** Features, Price, Specifications are subject to change without notice.|
