Description

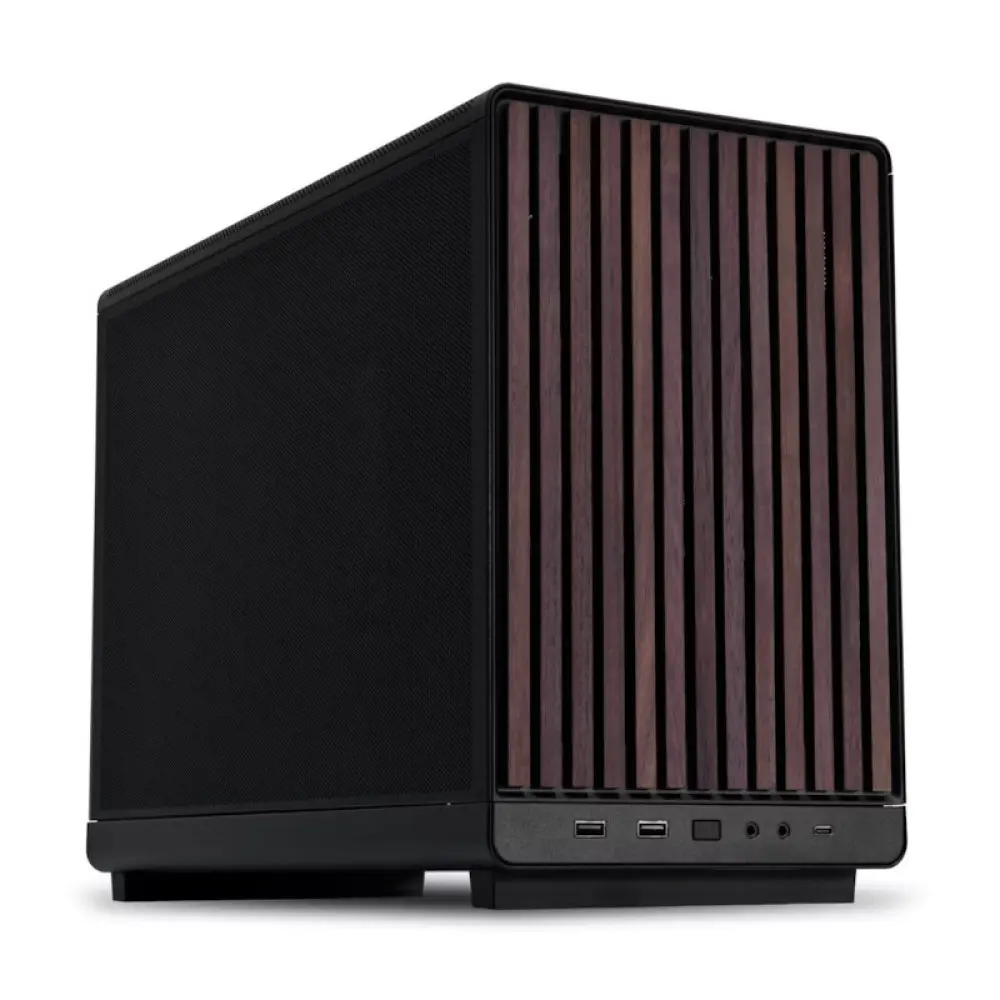

Lian Li A3 M-ATX Cabinet Black (Wood Edition)
- Minimalistic sleek design 26.3L micro form factor chassis
- Side and top panels are designed with steel mesh
- Accommodates M-ATX and ITX motherboard with 4 slots 415mm large GPU
- Supports up to 360 radiator and 10 x 120mm fans
- Supports ATX/SFX/SFX-L and LIAN LI Edge PSU that can be mounted sideways or frontways
- In collaboration with DAN Cases for the case design whereas manufactured and sold by LIAN LI.
Specification | |
MODEL NAME | A3-mATX-WD BLACK |
MODEL NO. | G99-A3X-WD-IN |
COLOR | Black (Wood Edition) |
CASE TYPE | MFF (Micro Form Factor) |
DIMENSION | (D) 443mm x (W) 194mm x (H) 321.5mm
(D) 443mm x (W) 194mm x (H) 306mm(w/o feet) |
CAPACITY | 26.3L |
MATERIAL | Steel |
MOTHERBOARD SUPPORT | M-ATX/ITX |
PSU SUPPORT | ATX/SFX/SFX-L (Max 220mm) |
FAN SUPPORT | Top: 3 x 120mm
Side: 3 x 120mm or 2 x 140mm Bottom: 3 x 120mm Rear: 1 x 120mm |
RADIATOR SUPPORT | Top: 1 x 360/240mm
Side: 1 x 360/280/240mm Bottom: 1 x 240mm (360mm with fan at the bottom) |
DRIVE SUPPORT | Tray: 2 × 2.5” SSD
Bottom: 1 × 2.5” SSD or 1 × 3.5” HDD |
GPU LENGTH CLEARANCE | Max 415mm |
CPU HEIGHT CLEARANCE | Max 165mm |
EXPANSION SLOTS | 4 |
I/O PORTS | 1 x Power Button
2 x USB 3.0 TYPE-A 1 x USB 3.1 TYPE-C 1 x Mic 1 x HD Audio |
DUST FILTER | 1 x Bottom
1 x Front |
Warranty | 1 Year |
Note* | Price, feature and specifications are subject to change without notice. |
