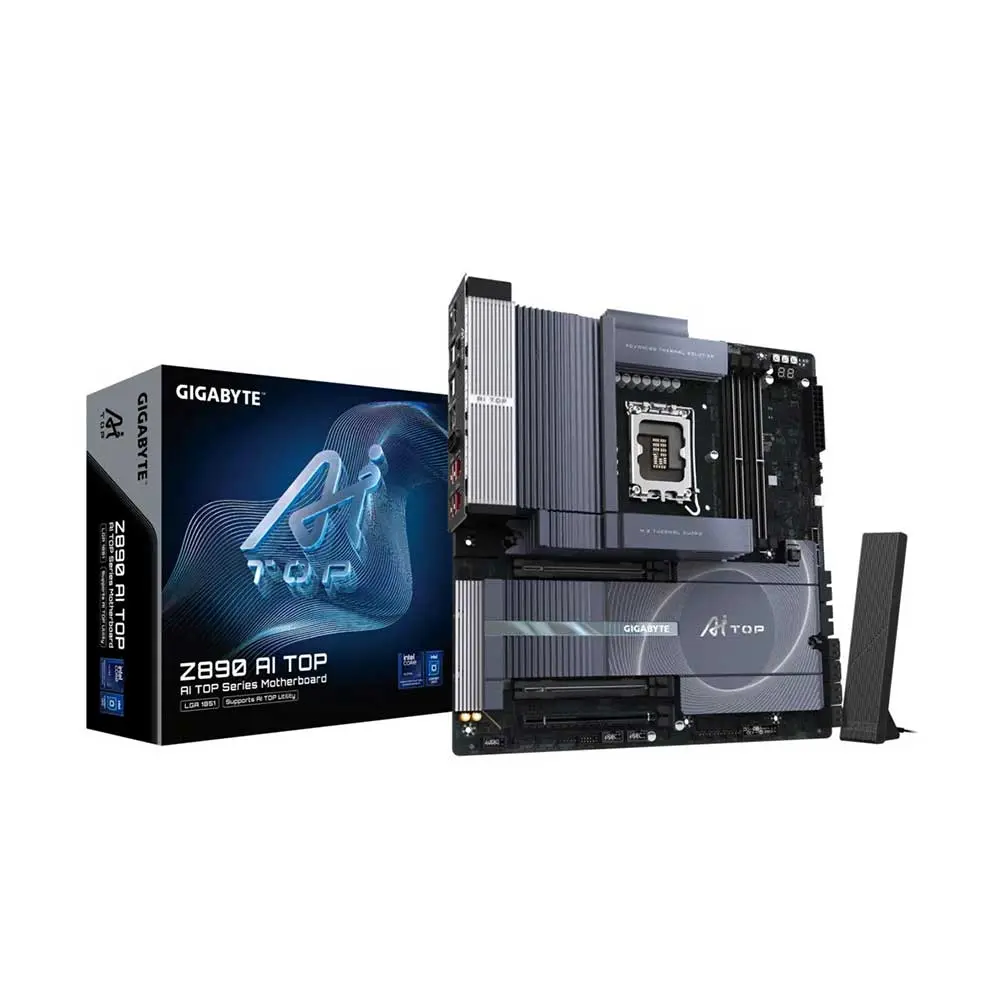

Gigabyte Z890 AI Top LGA1851 E-ATX Motherboard

( No Customer Rating )

Original price was: ₹96,000.Current price is: ₹60,500.

(37% OFF)

(Inclusive of all taxes)

Model No : Z890 AI TOP
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Gigabyte Z890 AI Top LGA1851 E-ATX Motherboard

  • Training your own AI on your desk
  • Supports Intel® Core™ Ultra processors (Series 2)
  • Twin Digital 16+1+2 phases VRM solution
  • Ultimate Scalibility : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
  • Next-gen Connectivity : Dual Thunderbolt™ 5 Type-C with DP-Alt, HDMI

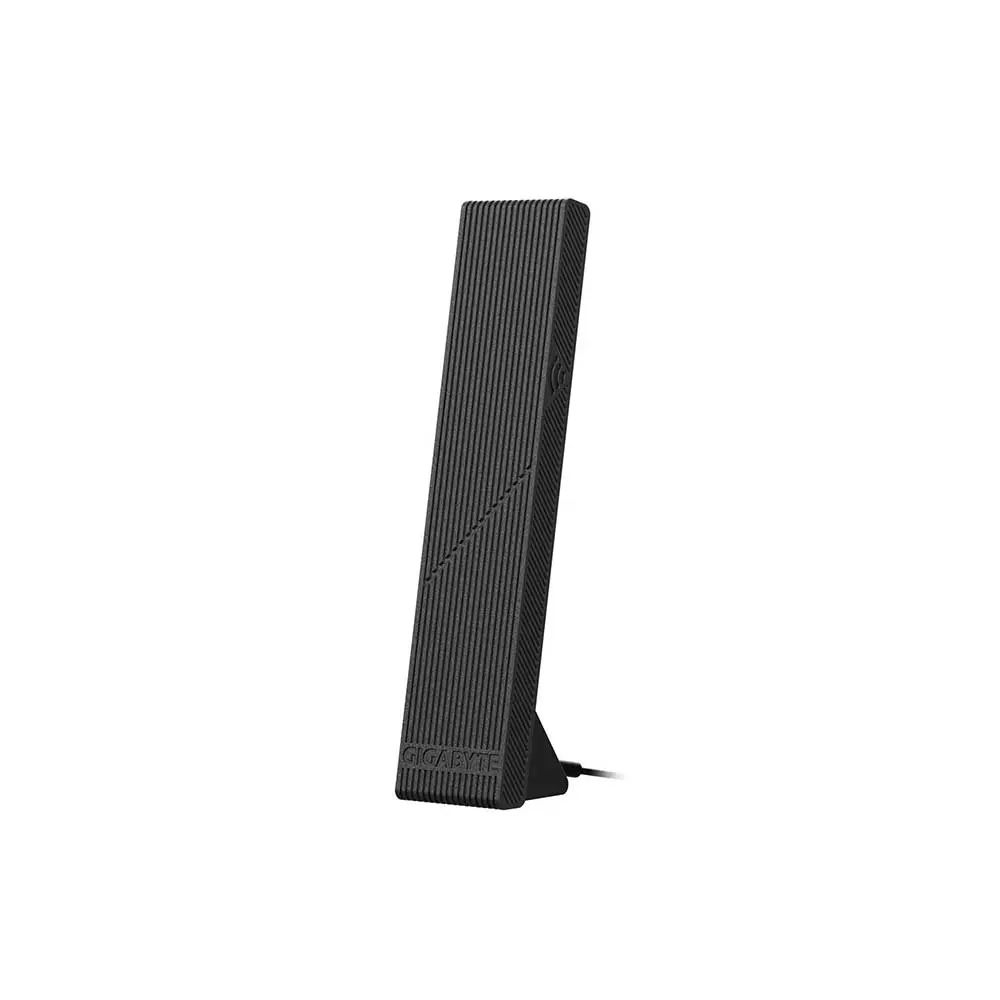

  • Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
  • D5 Bionic Corsa for Infinite Memory Performance
  • AORUS AI SNATCH : Auto-Overclocking Software by AI models
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • Premium Compatibility : 4*DDR5 with XMP Memory Module Support
  • Reinforced Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL
  • ESSential High-Fidelity Audio : ESS9260 DAC
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in  HWinfo for real-time monitoring on CPU power phases
  • PCIe UD Slot X :  PCIe 5.0 x16 slot with 10X strength for graphics card
  • Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
Chipset Intel® Z890 Express Chipset
Memory Support for DDR5 9500(O.C)/ 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
Onboard Graphics Integrated Graphics Processor+Intel® Thunderbolt™ 5 Controller:
– 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680×4320@60 Hz (single display output)
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3

Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output).
* Support for DisplayPort 2.1 version and HDCP 2.3

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU or graphics card support.)
Support for up to triple-display at the same time
Audio ESS ES9260 CODEC (rear panel audio)
– High Definition Audio
– 2-channel
Realtek® ALC897 CODEC (front panel audio)
LAN 2 x Marvell® AQtion AQC113C 10GbE LAN chips
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module Intel® Wi-Fi 7 BE200
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.
Expansion Slots CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD.
If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2L_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector.
Storage Interface CPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
– 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB)
– 4 x SATA 6Gb/s connectors (SATA3 4~7)
Chipset+ASMedia® ASM1164 chip:
– 4 x SATA 6Gb/s connectors (SATA3 0~3)
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset+Intel® Thunderbolt™ 5 Controller:
– 2 x Intel® Thunderbolt™ 5 (USB Type-C®) ports on the back panel
*Support up to 80Gbps with Thunderbolt devices
*Support up to 40Gbps with USB4 devices
*Support up to 20Gbps with USB 3.2 devices

CPU:
– 1 x USB4® USB Type-C® port onboard
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header

Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 2 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 3.2 Gen 2 Hub:
– 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port)
2 x USB Type-C® headers, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x noise detection header

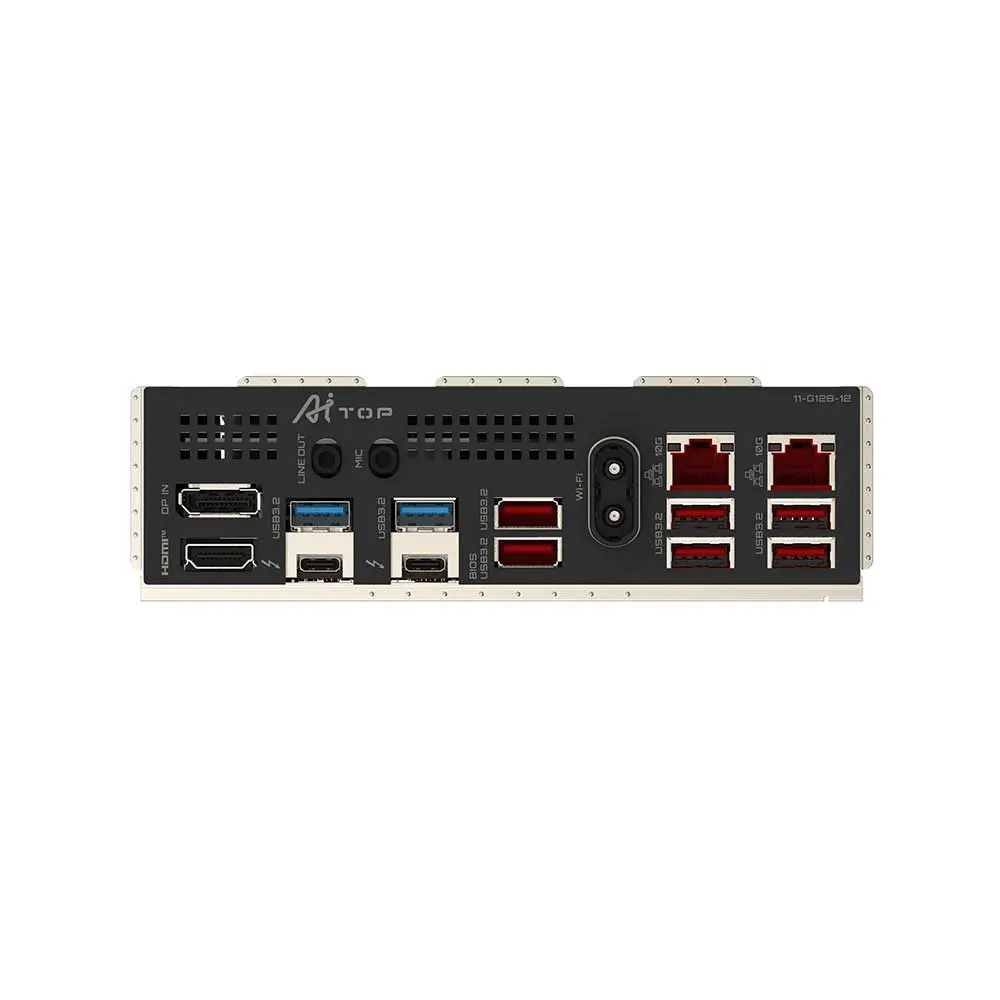

Back Panel Connectors 1 x DisplayPort In port
1 x HDMI port (Note)
2 x audio jacks
2 x Intel® Thunderbolt™ 5 connectors (USB Type-C® ports)
2 x USB 3.2 Gen 1 ports
6 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x RJ-45 ports
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
(Go to GIGABYTE’s website for operating system support information.)
Form Factor E-ATX Form Factor; 30.5cm x 28.5cm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
