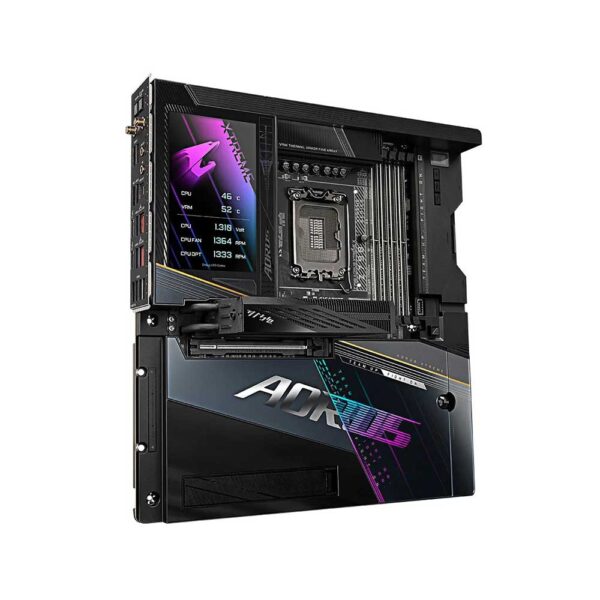

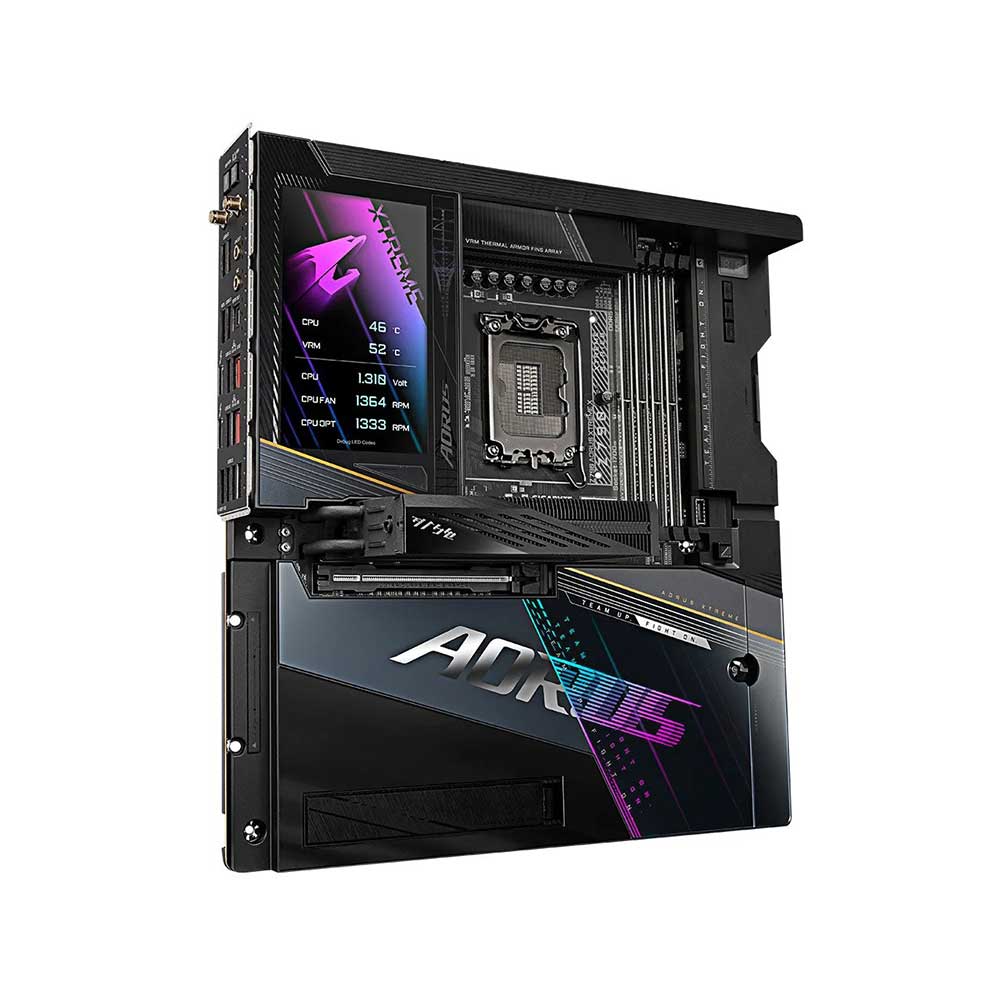

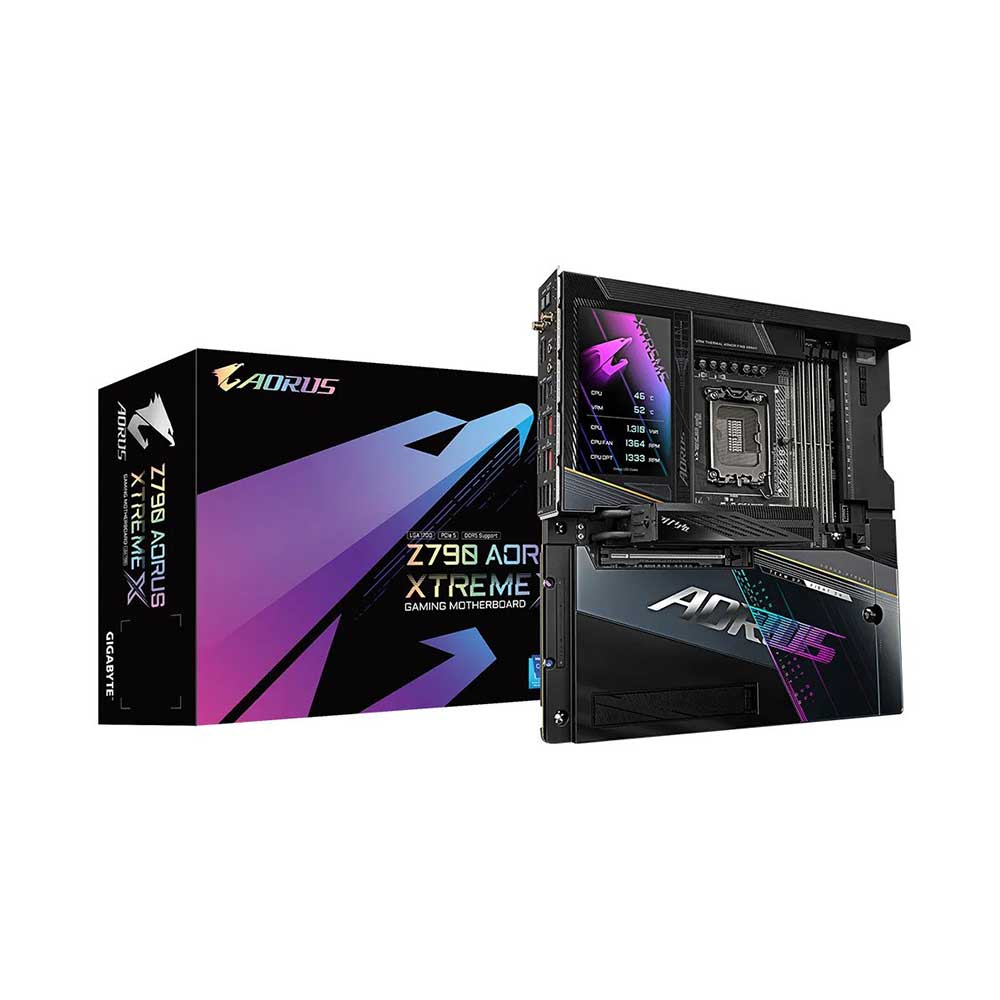

Gigabyte Z790 Aorus Xtreme X Lga1700 E-Atx Motherboard

MRP 0.00

(Inclusive of all taxes)

all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Gigabyte Z790 Aorus Xtreme X Lga1700 E-Atx Motherboard

Gigabyte Z790 Aorus Xtreme X Lga1700 E-Atx Motherboard Supports Intel® Core™ 14th and 13th processors

Key Features

  • Supports Intel® Core™ 14th and 13th processors
  • Digital twin 24+1+2 phases VRM solution
  • Dual Channel DDR5:4*DIMMs with XMP 3.0 memory module support
  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click:M.2 heatsinks with screwless design
  • EZ-Latch Plus:PCIe 5.0 x16 slot & M.2 slots with quick release design
  • UC BIOS:User-Centred intuitive UX with Quick Access function
  • Ultra-Fast Storage:5*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Overall Thermal:VRM Thermal Armor Fins-Array & M.2 Thermal Guard XTREME
  • Fast Networking:10GbE + 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
  • Extended Connectivity:Dual Thunderbolt 4™, Dual Front USB-C® 20Gb/s
  • DTS:X® Ultra Audio:ESS ES9280A DAC and ESS ES9080A with Front ESSential USB DAC Bundled
CPU
  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  2. L3 cache varies with CPU
Chipset
  1. Intel® Z790 Express Chipset
Memory
  1. Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller:

  1. 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output)

    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt ™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.)
    * Support for DisplayPort 1.4 version and HDCP 2.3

Audio
  1. 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips
  2. DTS® Sound Unbound™
  3. High Definition Audio
  4. 2-channel
  5. Support for S/PDIF Out
LAN
  1. Marvell® AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
  2. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Wireless Communication Module Qualcomm® Wi-Fi 7 QCNCM865

  1. 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11be 320MHz wireless standard
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  3. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB Chipset+Intel® Thunderbolt™ 4 Controller:

  1. 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

  1. 2 x USB Type-C® ports with USB 3.2 Gen 2×2 support, available through the internal USB header
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 2 Hubs:

  1. 8 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x CPU fan/water cooling pump header
  5. 1 x system fan header
  6. 1 x system fan extension cable header (can extend three system fan headers through one cable)
  7. 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)
  8. 1 x noise detection header
  9. 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend three addressable RGB Gen2 LED strip headers and three RGB LED strip headers through one cable)
  10. 4 x SATA 6Gb/s connectors
  11. 5 x M.2 Socket 3 connectors
  12. 1 x front panel header
  13. 2 x USB Type-C® headers, with USB 3.2 Gen 2×2 support
  14. 2 x USB 3.2 Gen 1 headers
  15. 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)
  16. 2 x temperature sensor headers
  17. 1 x power button
  18. 1 x reset button
  19. 1 x Clear CMOS button

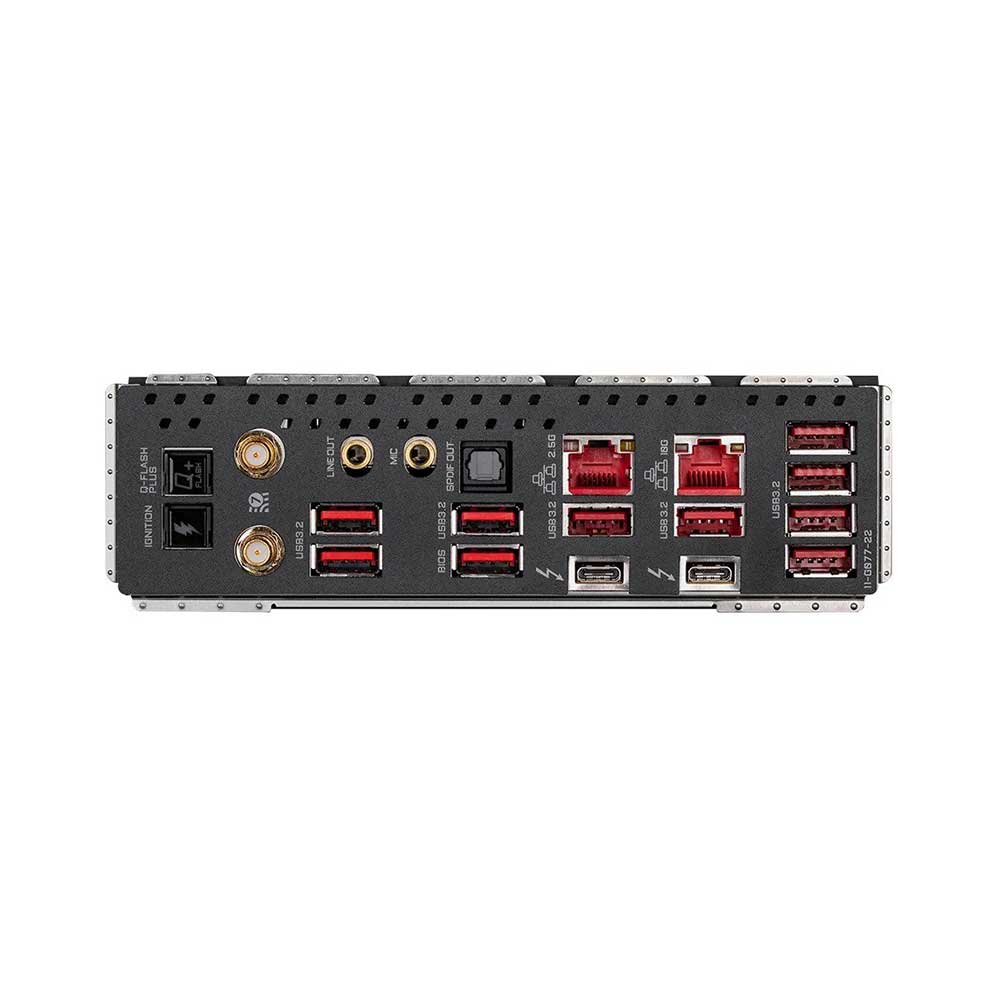

Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 1 x OC Ignition button
  3. 2 x SMA antenna connectors (2T2R)
  4. 2 x Thunderbolt™ 4 connectors (USB Type-C® ports, with USB 3.2 Gen 2 support)
  5. 10 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x RJ-45 ports
  7. 1 x optical S/PDIF Out connector
  8. 2 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  7. Noise detection
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
  4. Support for Smart Backup
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
Form Factor
  1. E-ATX Form Factor; 30.5cm x 28.5cm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
