29,500.00

Out of stock

SKU: Z590 AORUS PRO AX Categories: ,

Description

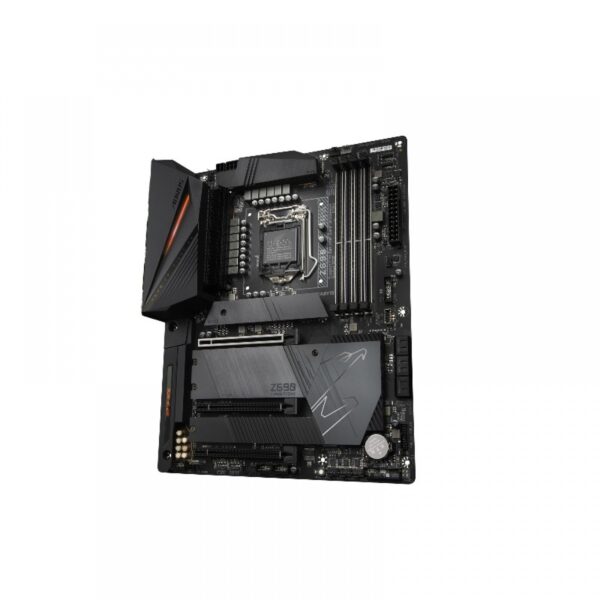

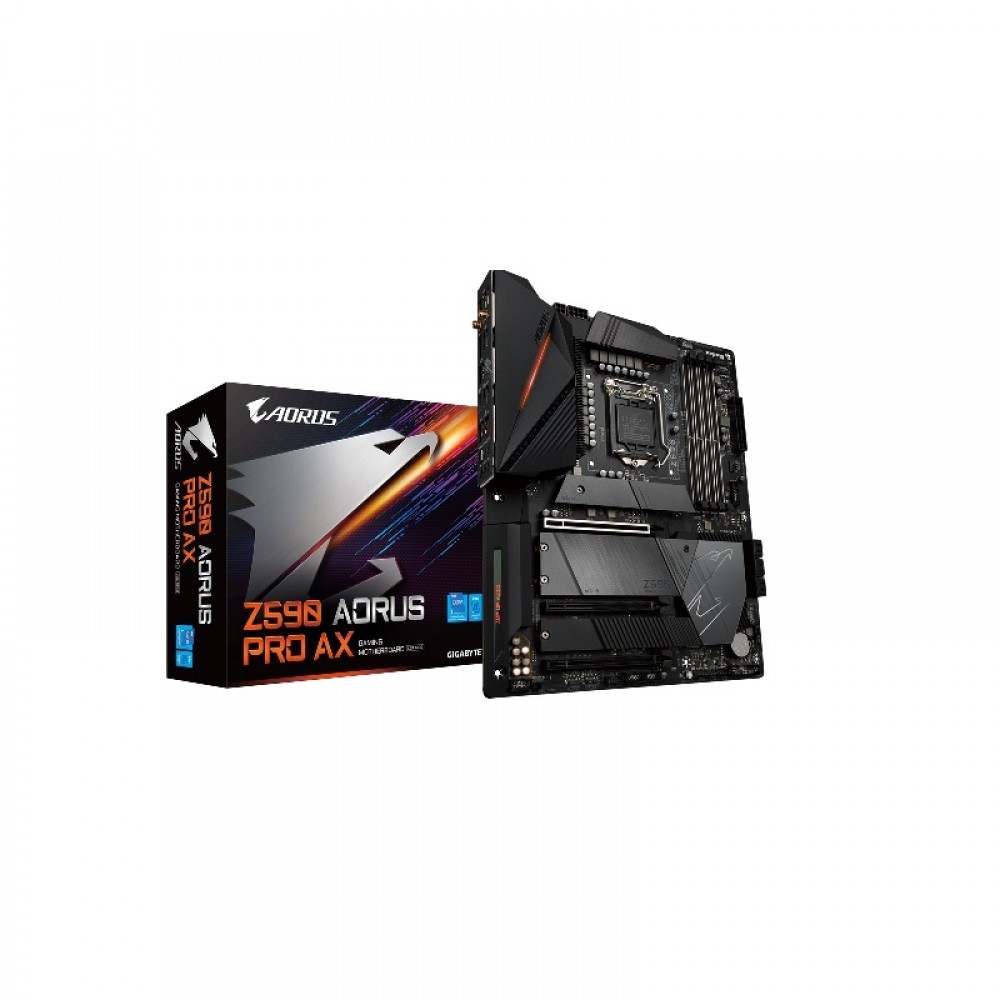

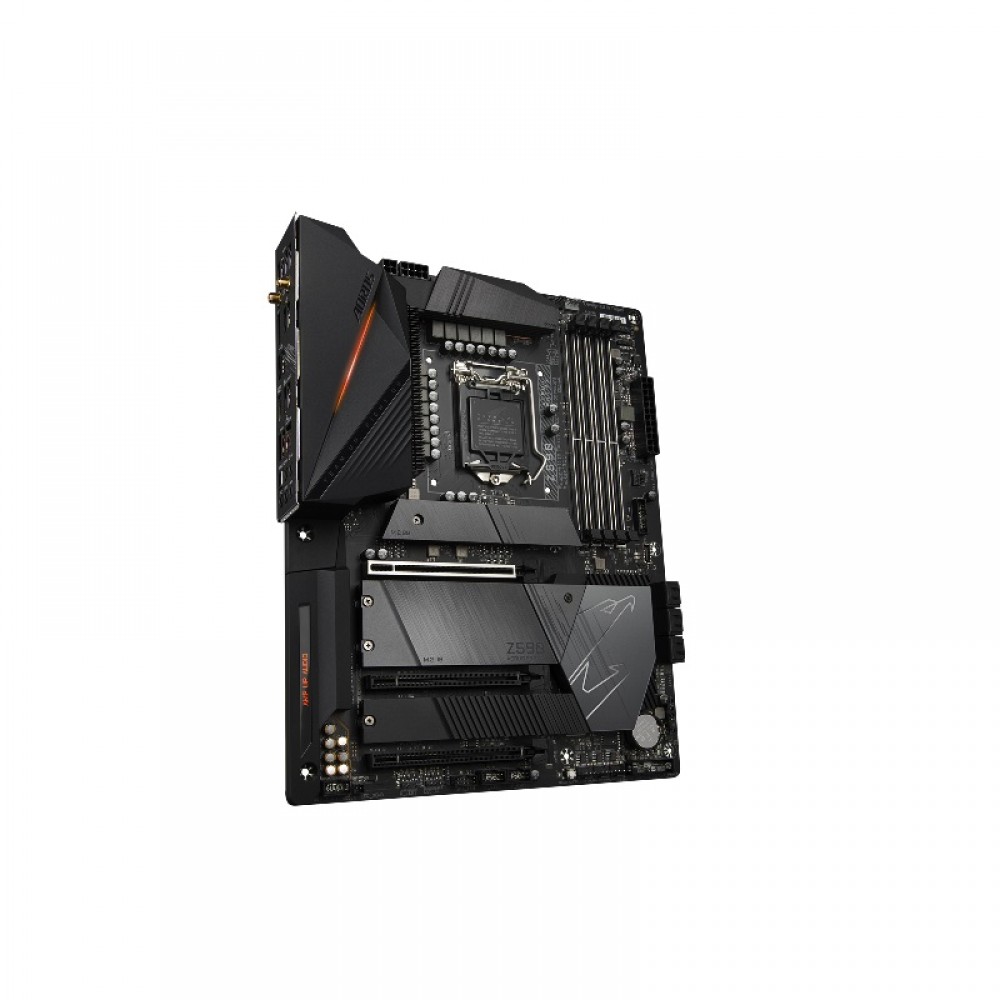

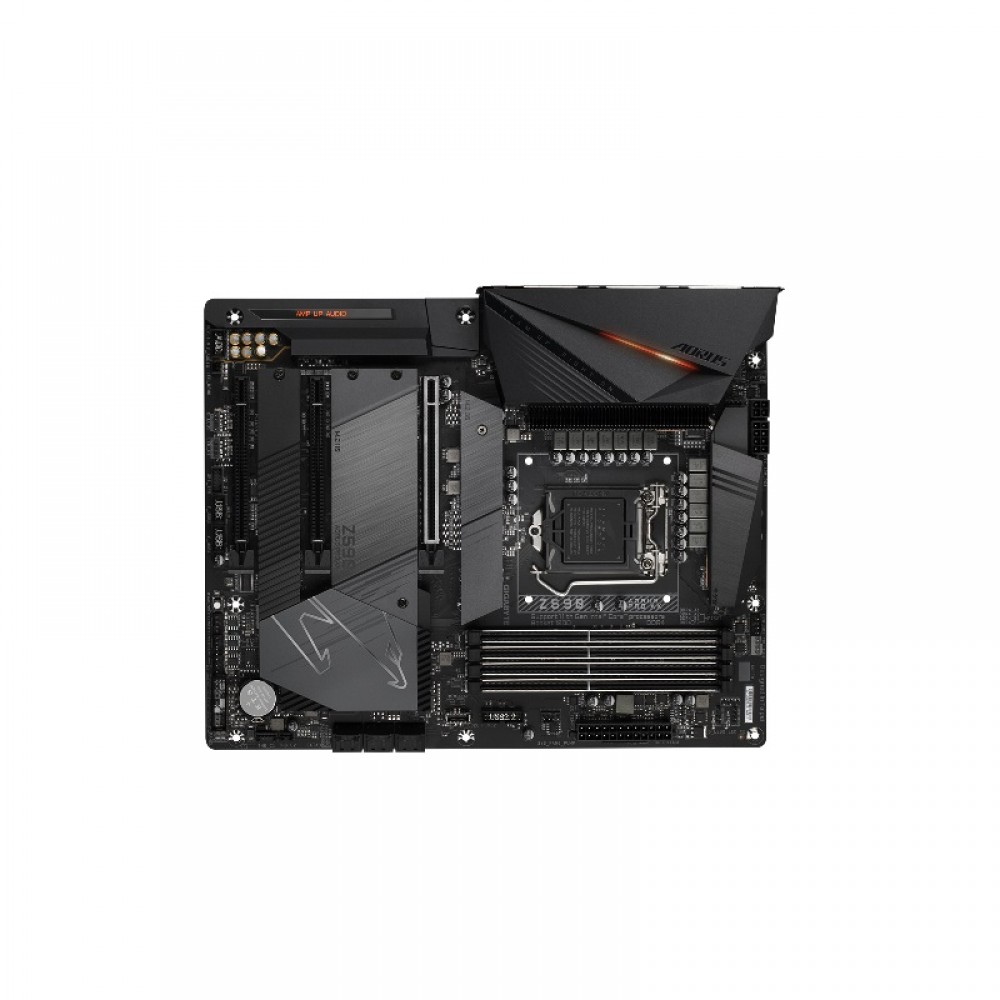

GIGABYTE Z590 AORUS PRO AX INTEL LGA1200 ATX MOTHERBOARD

  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • Direct 12+1 Phases Digital VRM Solution with 90A Smart Power Stage
  • Shielded Memory Routing to avoid Interference
  • Advanced Thermal Solution with Fins-Array II Heatsink, Direct Touch Heatpipe II and Thermal Guard II
  • Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNR
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards II for extreme RAID Performance
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • * Actual support may vary by CPU.
Specification
CPU LGA1200 package:

11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors

10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.

L3 cache varies with CPU

(Please refer to “CPU Support List” for more information.)

Chipset Intel® Z590 Express Chipset
Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

4 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen2 support

1 x USB 3.2 Gen1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x Clear CMOS jumper

2 x temperature sensor headers

1 x Q-Flash Plus button

Memory 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
* The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.

2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
(PCIEX4_1 and PCIEX4_2 slots conform to PCI Express 3.0 standard.)

Wireless Communication module Intel® Wi-Fi 6 AX200

WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.1

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
LAN Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Storage Interface CPU:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) *

2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)

*Supported by 11th Generation processors only.

Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready

Audio Realtek® ALC4080 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

USB Chipset:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header)

Chipset+USB 3.2 Gen1 Hubs:

4 x USB 3.2 Gen1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

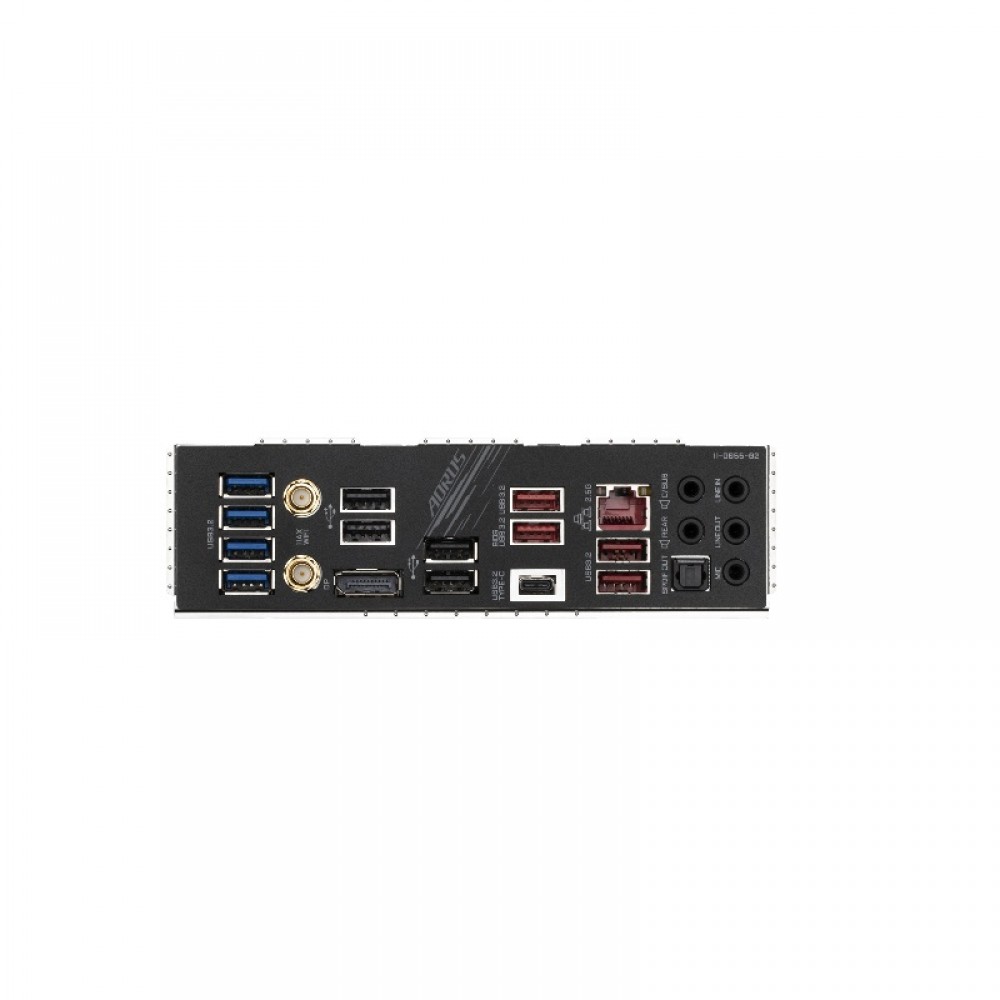

Back Panel Connectors 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support

4 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x SMA antenna connectors (2T2R)

1 x DisplayPort

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information ViewerSupport for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor ATX Form Factor; 30.5cm x 24.4cm
Operating System Support for Windows 10 64-bit
Bundle Software Norton® Internet Security (OEM version)

cFosSpeed

Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
