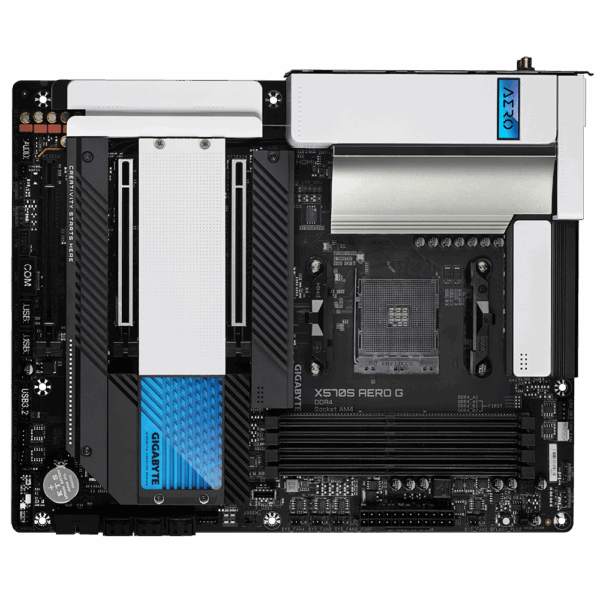

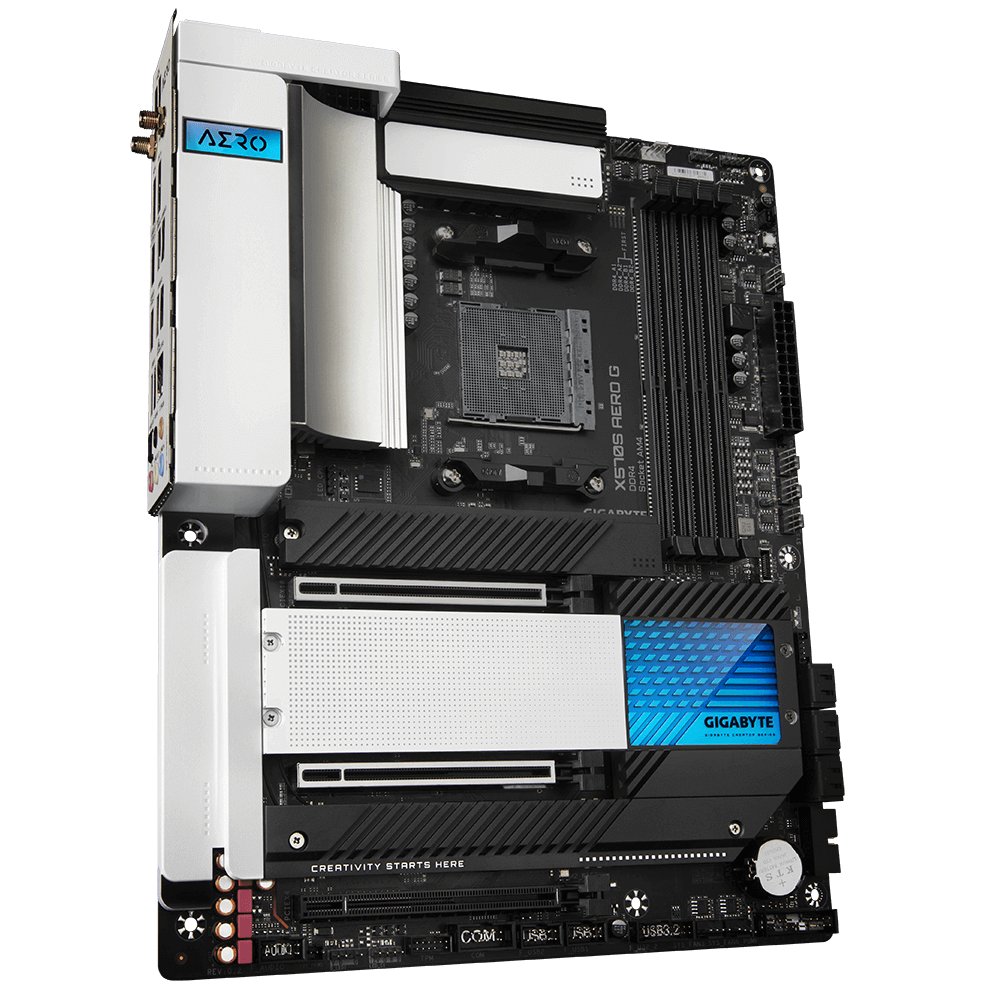

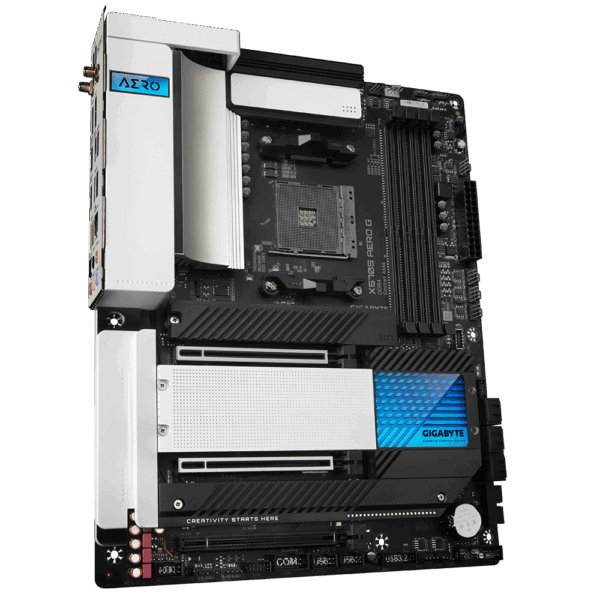

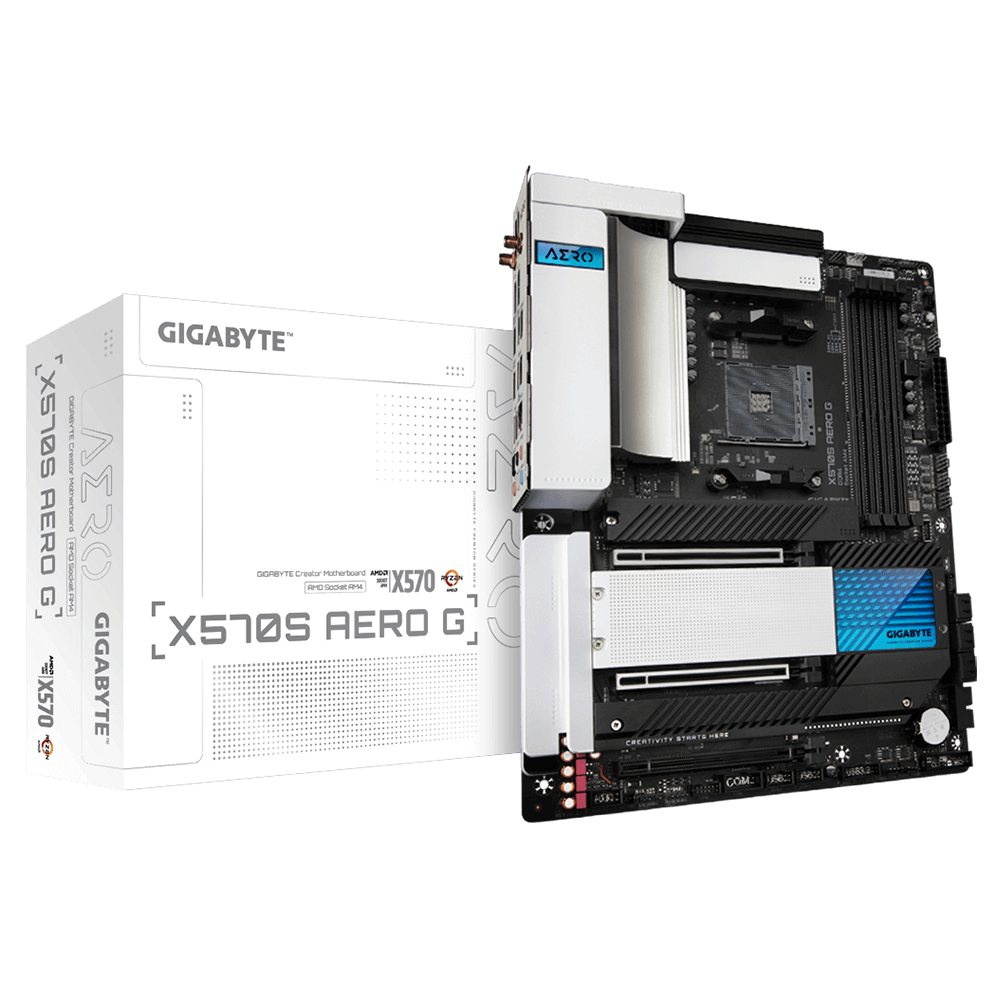

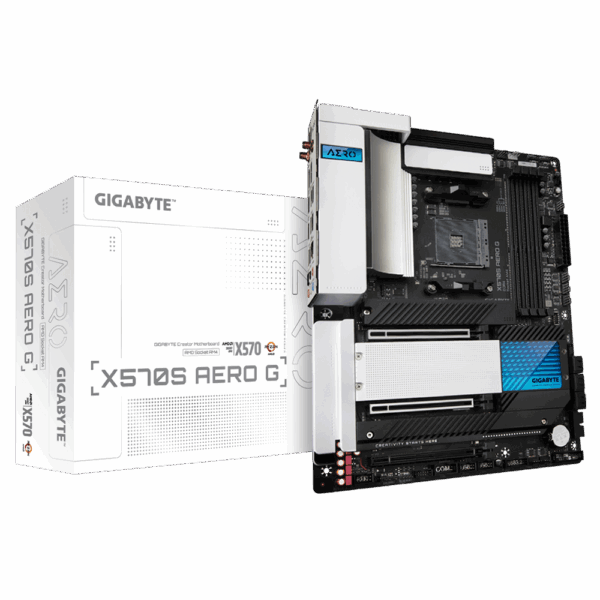

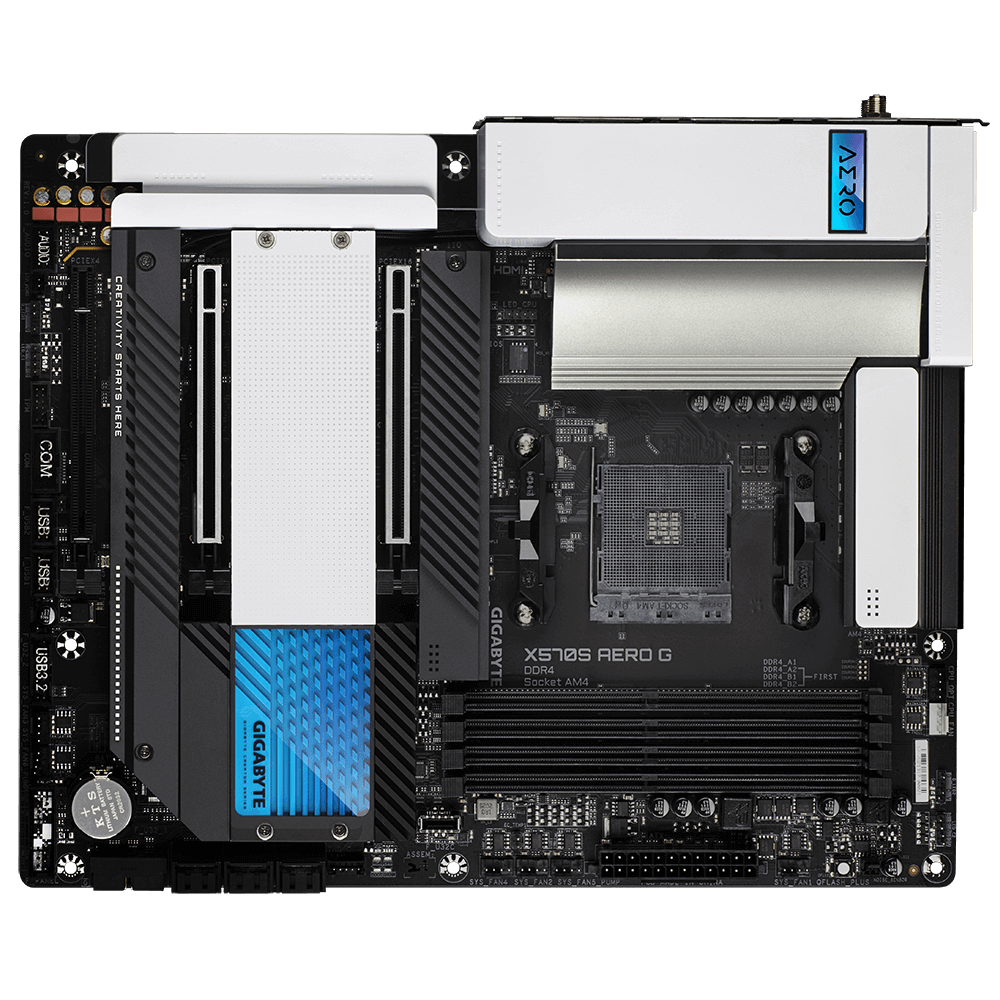

GIGABYTE X570S AERO G AMD AM4 ATX MOTHERBOARD

31,400.00

Inclusive of all taxes

Model :

X570S AERO G

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

GIGABYTE X570S AERO G AMD AM4 ATX MOTHERBOARD

  • Support AMD Ryzen™ 5000 series / Ryzen™ 4000 G series / Ryzen™ 3000 series / Ryzen™ 3000 G series / RYZEN 2000 series / Ryzen™ 2000 G series processors
  • Dual Channel ECC / Non-ECC Unbuffered DDR4 memory, 4 DIMMs
  • Go further without more cables by VisionLINK I/O design
  • High-bandwidth and low-latency network support by Intel® 2.5GbE LAN
  • Wi-Fi 6 2×2 802.11ax with all new antenna support for better signal
  • Comprehensive connectivity by front and rear USB 3.2 Type-C® connectors
  • 4 Ultra-Fast NVMe PCIe® x4 M.2 connectors with unique thermal guards
  • Effective cooling solution design for the better thermal dissipation
  • Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors
Chipset AMD X570
Memory AMD Ryzen™ 5000 Series processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
AMD Ryzen™ 4000 G-Series processors:
Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
AMD Ryzen™ 3000 Series processors:
Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors:
Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor:
1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096×[email protected] Hz
* Support for drawing tablets and [email protected] of power delivery.
* Support for DisplayPort 1.4 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
* For AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors only.
Audio Realtek® ALC1220-VB Audio CODEC
* The back panel line out jack supports DSD audio.
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module Intel® Wi-Fi 6 AX200
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 mode
AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x8 mode
AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 4.0* /3.0 x4 mode
* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Multi Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs:
Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
USB CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.2 Gen 2×2 Controller:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt™ add-in card connector
1 x serial port header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button

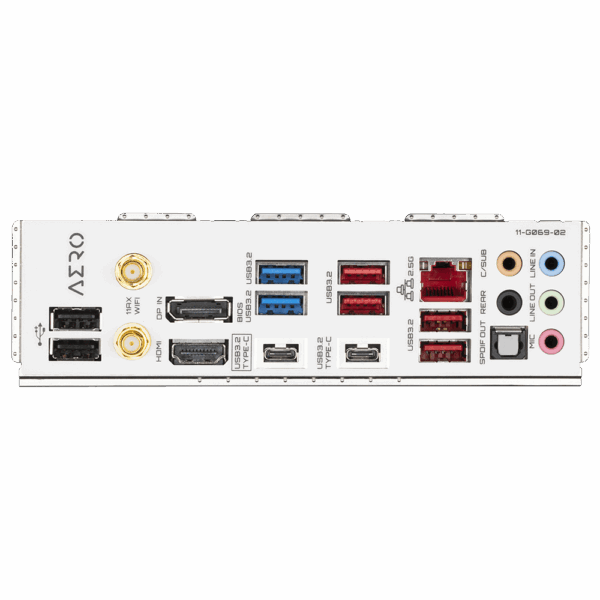

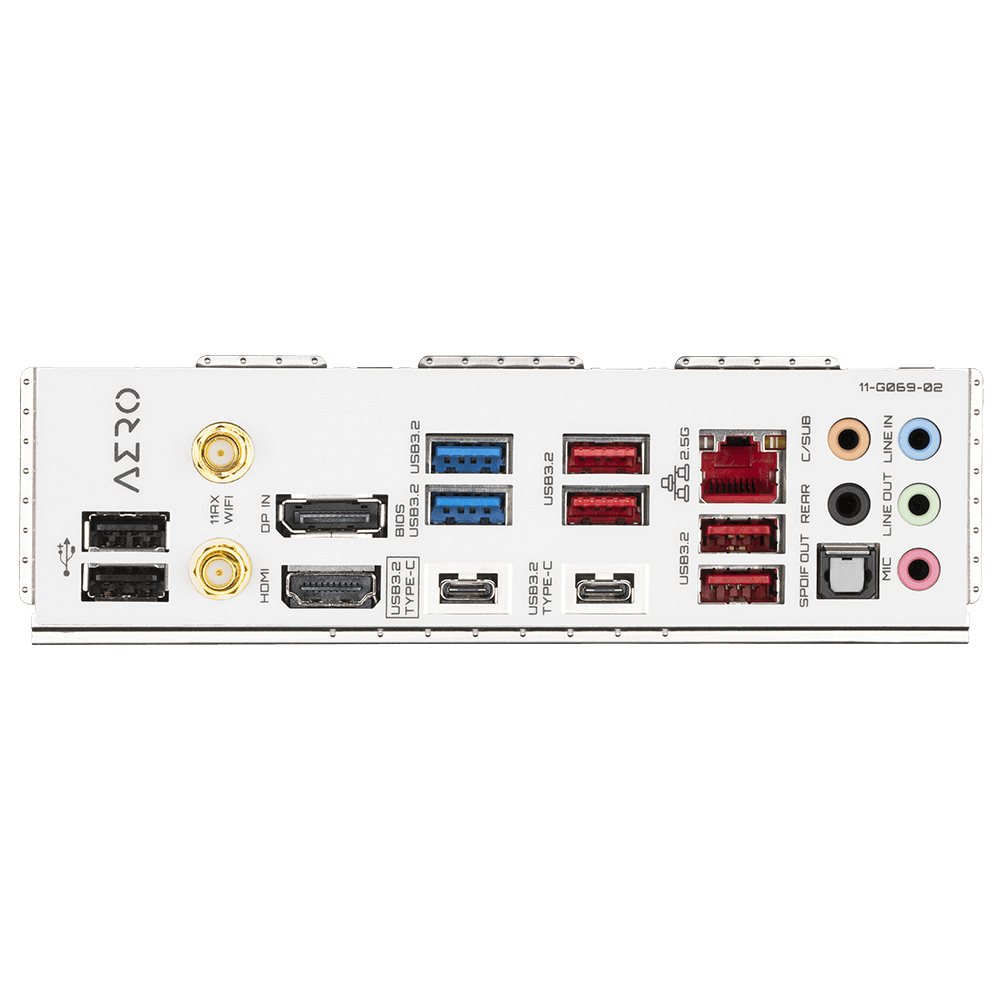

Back Panel Connectors 2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)Š Š 1 x HDMI port
1 x DisplayPort In port
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
1 x USB Type-C® port, with USB 3.2 Gen 1 support
4 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton® Internet Security (OEM version)
cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
