Description

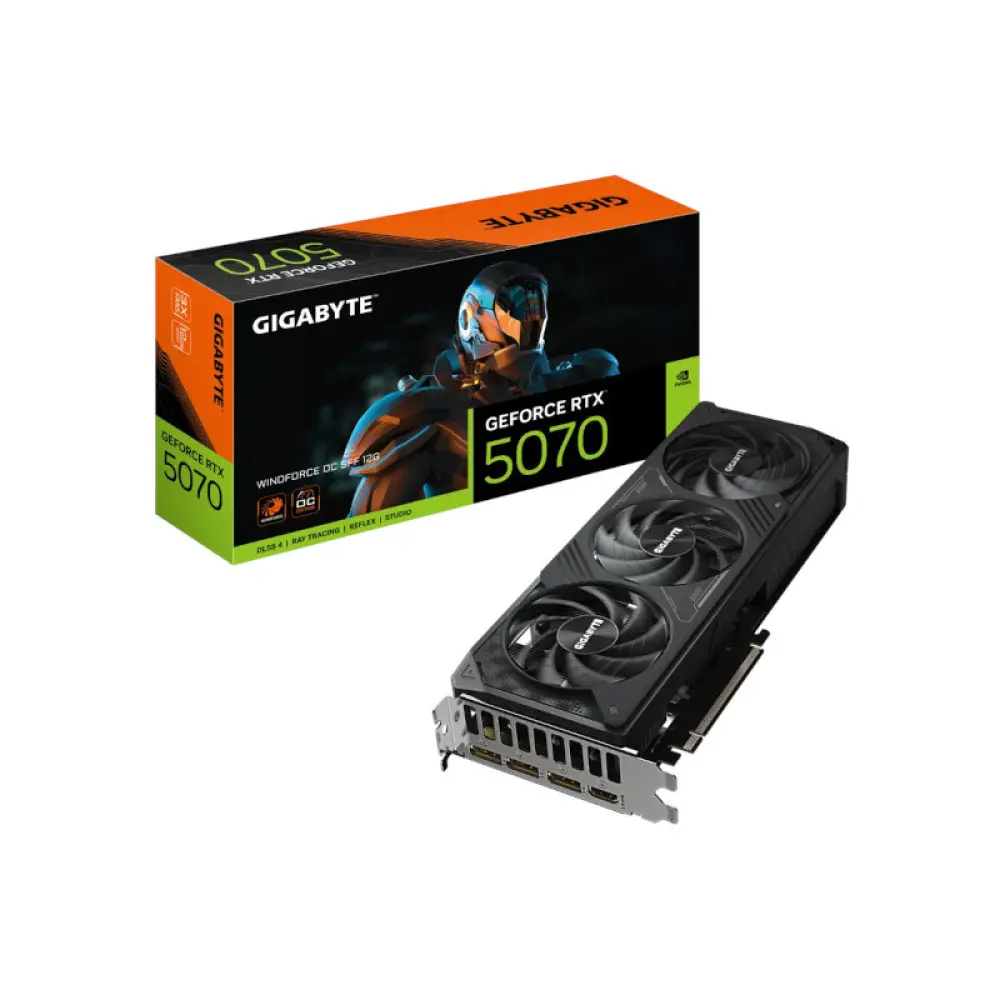

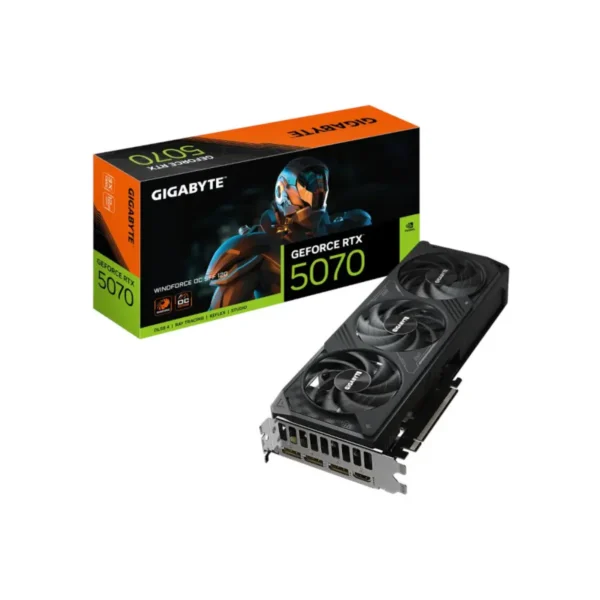

Gigabyte RTX 5070 Windforce OC SFF 12GB GDDR7 Graphics Card
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5070
- Integrated with 12GB GDDR7 192bit memory interface

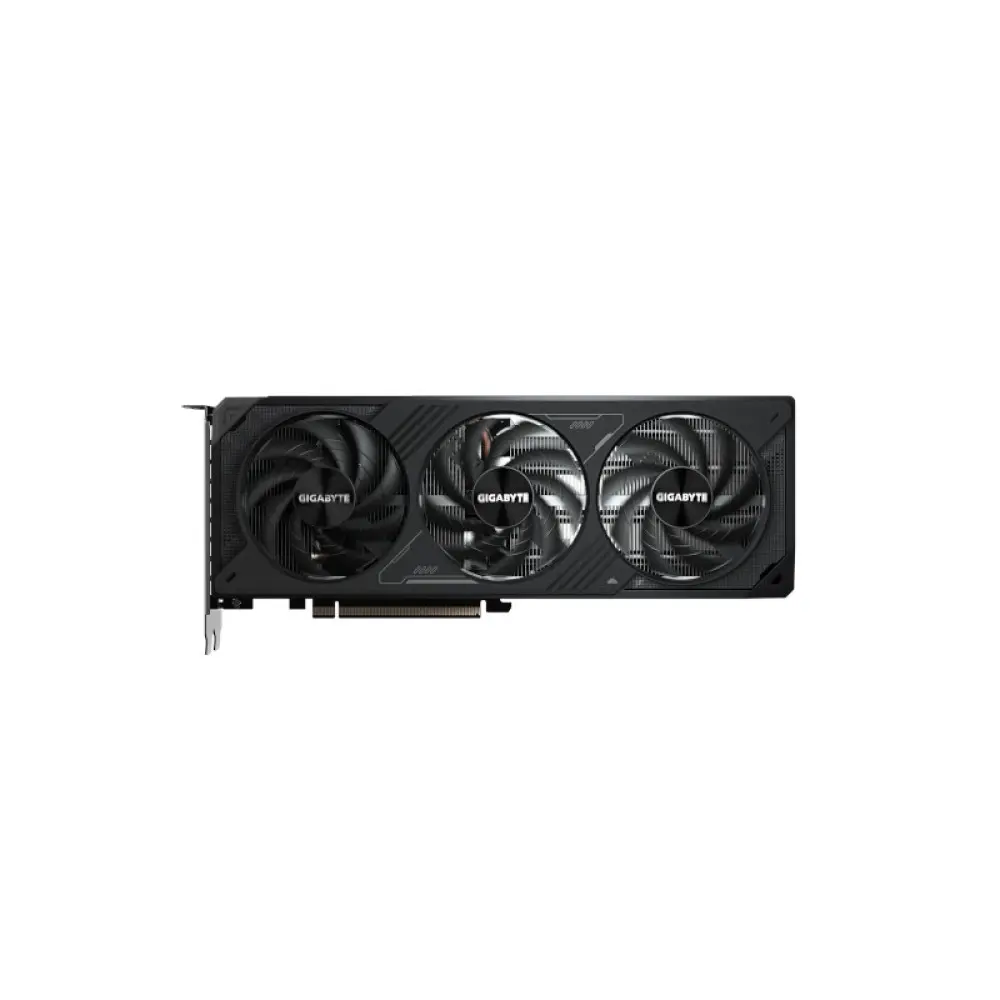

- WINDFORCE cooling system
- NVIDIA SFF-ready
- Reinforced structure
Specification | |
Graphics Processing | GeForce RTX 5070 |
Core Clock | 2542 MHz (Reference card : 2512 MHz) |
CUDA® Cores | 6144 |
Memory Clock | 28 Gbps |
Memory Size | 12GB |
Memory Bus | 192 bit |
Memory Type | GDDR7 |
Card Bus | PCI-E 5.0 |
Digital Max Resolution | 7680 x 4320 |
Multi-view | 4 |
Dimension | L=282 W=110 H=50 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | OpenGL 4.6 |
Recommended PSU | 750W |
Power Connectors | 16 pin*1 |

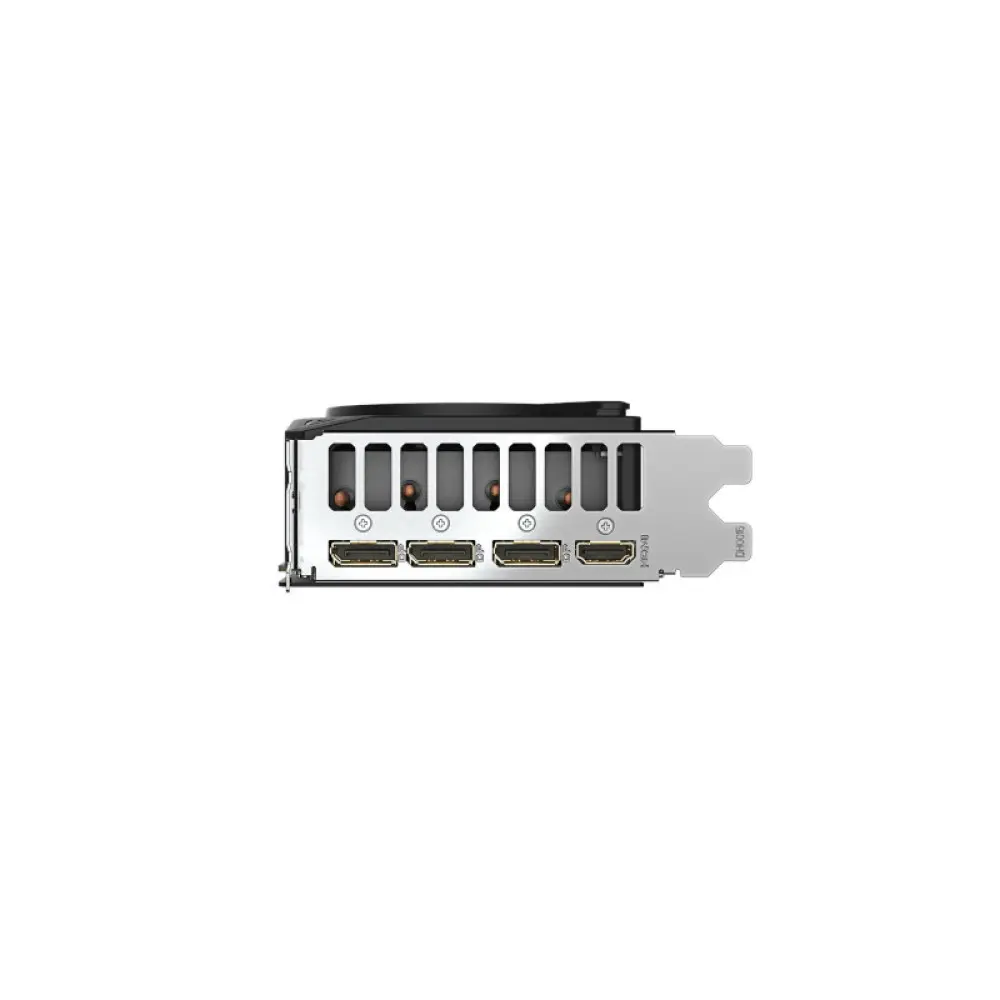

Output | DisplayPort 2.1b x3
HDMI 2.1b x1 |
Accessories | 1. Quick guide
2. 1x 12V-2×6 to 2x PCIe 8pin adapter |
Warranty | 3 Years |
Note* | Price, feature and specifications are subject to change without notice. |
