Gigabyte B760M H Ddr4 Lga1700 Micro Atx Motherboard (B760M H DDR4)

(Inclusive of all taxes)

Model No : B760M H DDR4
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

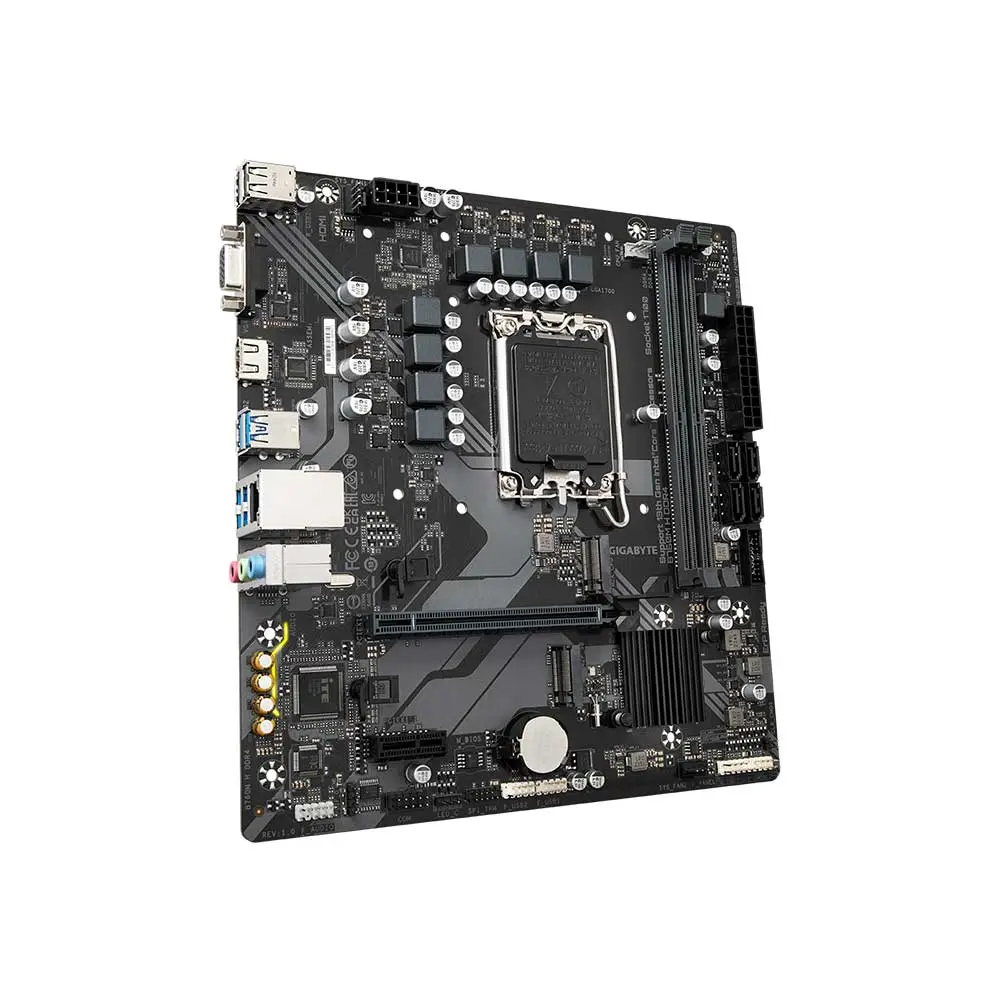

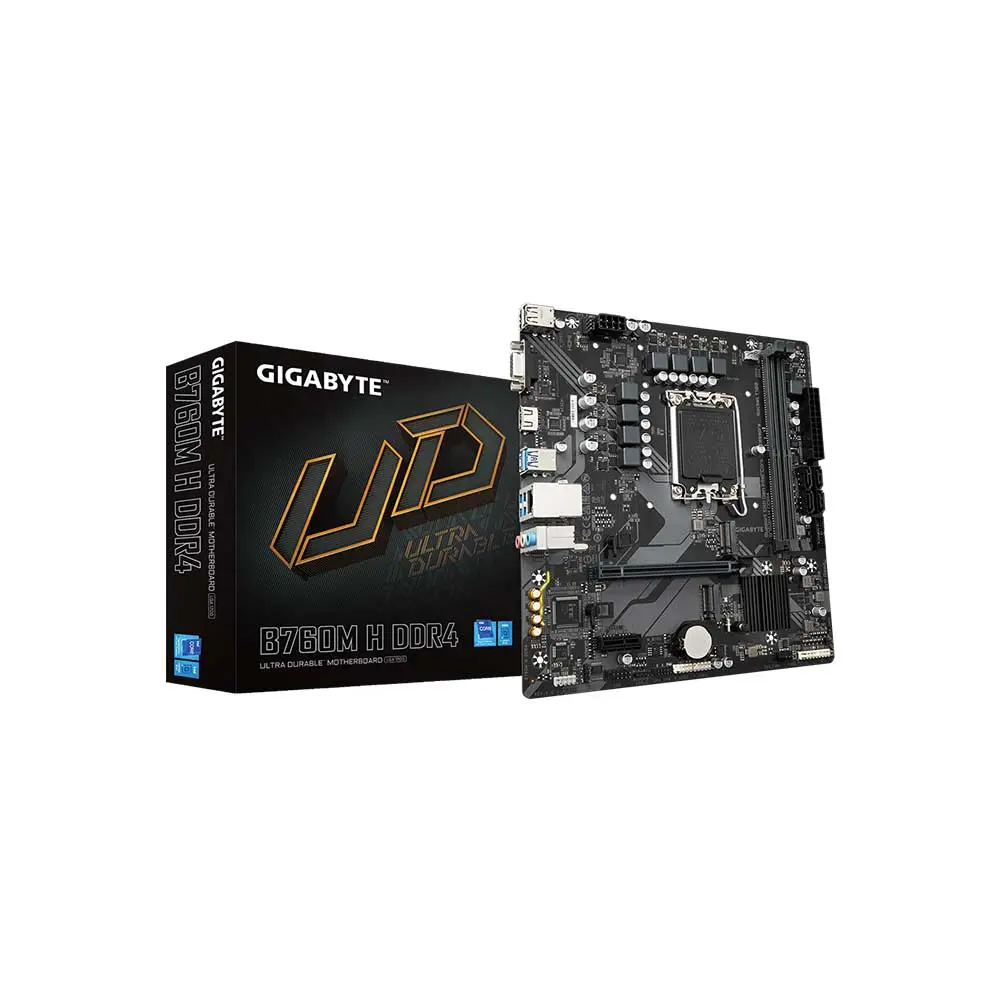

Gigabyte B760M H Ddr4 Lga1700 Micro Atx Motherboard

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance:Hybrid 6+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4:2*DIMMs XMP Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch:PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks:GbE LAN
  • Extended Connectivity:HDMI, D-Sub
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer to “CPU Support List” for more information.)
Chipset Intel ® B760 Express Chipset
Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slot CPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface CPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:
– 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

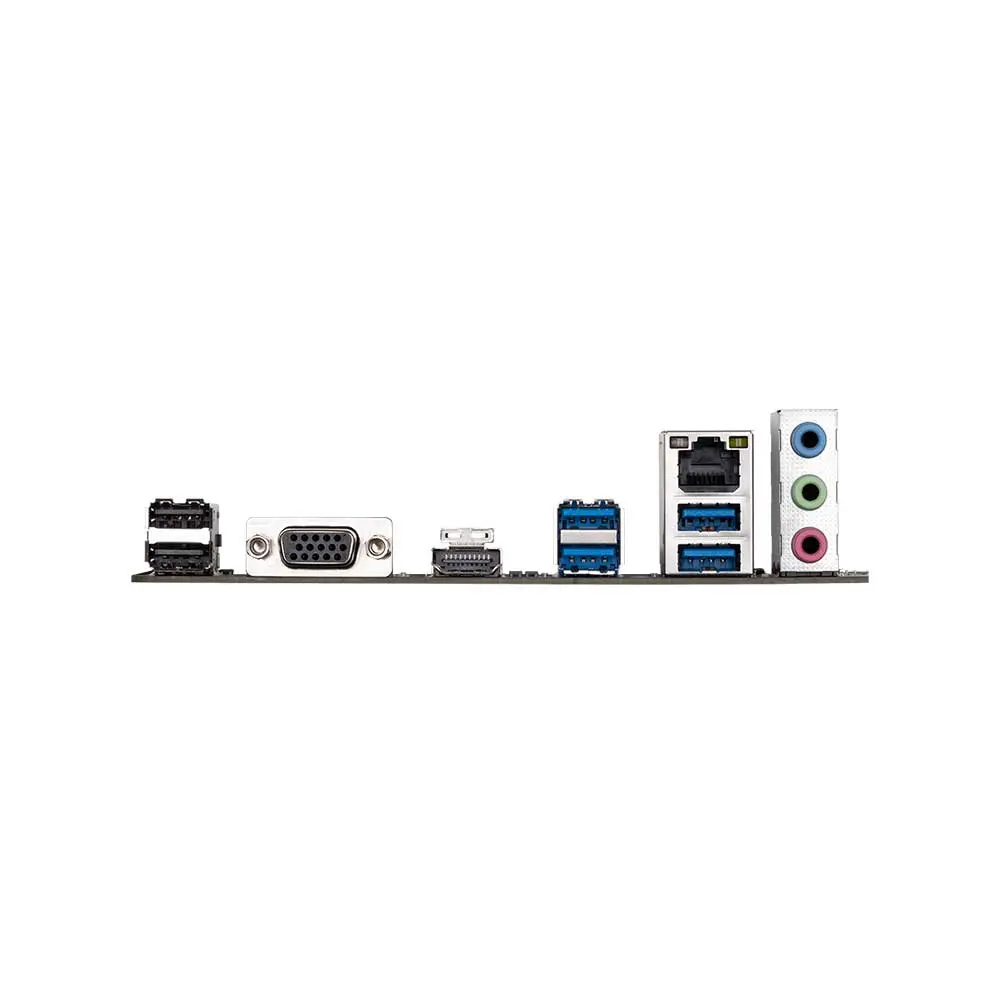

Back Panel Connectors 2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice
