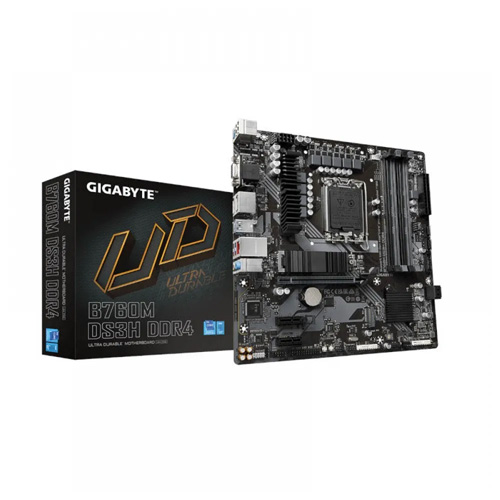

Gigabyte B760M Ds3h Ddr4 Lga1700 Micro Atx Motherboard (B760M-DS3H-DDR4)

Model No : B760M DS3H DDR4

Original price was: ₹21,000.00.Current price is: ₹12,700.00.

Inclusive of all taxes

Tags :

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing
BUY NOW

Description

Gigabyte B760M Ds3h Ddr4 Lga1700 Micro Atx Motherboard (B760M-DS3H-DDR4)

Overview :

  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4:4*DIMMs XMP Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • M.2 Thermal Guard:To Ensure M.2 SSD Performance
  • EZ-Latch:PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks:2.5GbE LAN
  • Extended Connectivity:Rear USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification
CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

Chipset Intel® B760 Express Chipset
Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

* Support for DisplayPort 1.2 version.

(Graphics specifications may vary depending on CPU support.)

Support for up to quad-display at the same time

Audio Realtek® Audio CODECHigh Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x parallel port header

1 x S/PDIF Out header

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

2 x DisplayPorts

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detectionTemperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1 x 128 Mbit flashUse of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled Software Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System Support for Windows 11 64-bitSupport for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note** **Prices, Specifications & Features are subject to change without notice.
