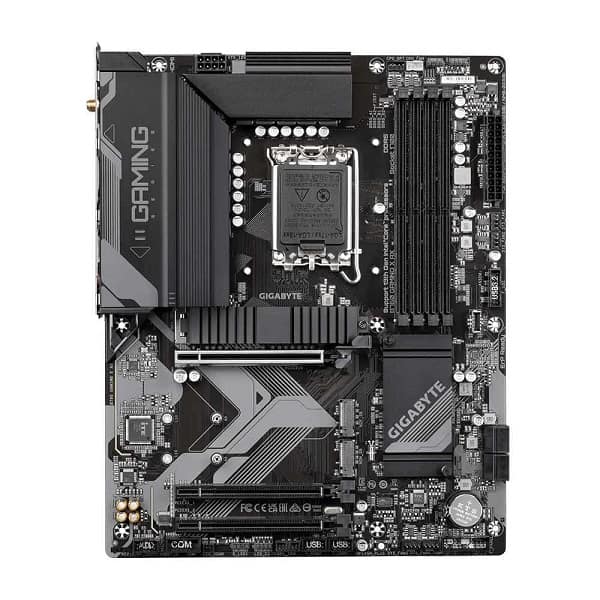

Brand |
Gigabyte |
Model |
B760 GAMING X AX |
CPU |
1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
2. L3 cache varies with CPU |
(Please refer “CPU Support List” for more information.) |
Chipset |
Intel® B760 Express Chipset |
Memory |
1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
3. Dual channel memory architecture |
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
6. Support for Extreme Memory Profile (XMP) memory modules |
(Please refer “Memory Support List” for more information.) |
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
* Support for DisplayPort 1.2 version and HDCP 2.3 |
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
* Support for HDMI 2.0 version and HDCP 2.3. |
(Graphics specifications may vary depending on CPU support.) |
Audio |
1. Realtek® Audio CODEC |
2. High Definition Audio |
3. 2/4/5.1/7.1-channel |
4. Support for S/PDIF Out |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module |
AMD Wi-Fi 6E RZ608 (MT7921K) |
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
2. BLUETOOTH 5.2 |
3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate |
(Actual data rate may vary depending on environment and equipment.) |
Expansion Slots |
CPU: |
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
Chipset: |
1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
Storage Interface |
CPU: |
1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
Chipset: |
1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) |
2. 4 x SATA 6Gb/s connectors |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
USB |
Chipset: |
1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
3. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support |
4. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) |
5. 1 x USB 2.0/1.1 port on the back panel |
Chipset+2 USB 2.0 Hubs: |
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
2. 1 x 8-pin ATX 12V power connector |
3. 1 x CPU fan header |
4. 1 x CPU fan/water cooling pump header |
5. 3 x system fan headers |
6. 1 x system fan/water cooling pump header |
7. 2 x addressable LED strip headers |
8. 2 x RGB LED strip headers |
9. 3 x M.2 Socket 3 connectors |
10. 4 x SATA 6Gb/s connectors |
11. 1 x front panel header |
12. 1 x front panel audio header |
13. 1 x S/PDIF Out header |
14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support |
15. 1 x USB 3.2 Gen 1 header |
16. 2 x USB 2.0/1.1 headers |
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
18. 1 x serial port header |
19. 1 x Q-Flash Plus button |
20. 1 x reset jumper |
21. 1 x Clear CMOS jumper |

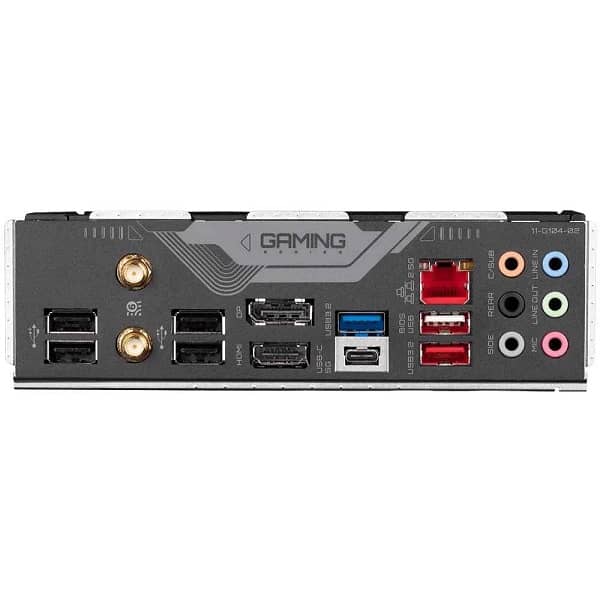

Back Panel Connectors |
1. 1 x USB 3.2 Gen 2 Type-A port (red) |
2. 1 x USB Type-C® port, with USB 3.2 Gen 1 support |
3. 1 x USB 3.2 Gen 1 port |
4. 5 x USB 2.0/1.1 ports |
5. 2 x SMA antenna connectors (2T2R) |
6. 1 x DisplayPort |
7. 1 x HDMI port |
8. 1 x RJ-45 port |
9. 6 x audio jacks |
I/O Controller |
iTE I/O Controller Chip |
H/W Monitoring |
1. Voltage detection |
2. Temperature detection |
3. Fan speed detection |
4. Water cooling flow rate detection |
5. Fan fail warning |
6. Fan speed control |
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
BIOS |
1. 1 x 256 Mbit flash |
2. Use of licensed AMI UEFI BIOS |
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
1. Support for GIGABYTE Control Center (GCC) |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
2. Support for Q-Flash |
3. Support for Q-Flash Plus |
Bundled Software |
1. Norton® Internet Security (OEM version) |
2. LAN bandwidth management software |
Operating System |
1. Support for Windows 11 64-bit |
2. Support for Windows 10 64-bit |
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
Warranty |
3 Years Manufacturer’s Warranty |
