Gigabyte B650I Ax Am5 Mini Itx Motherboard (B650I AX)

19,500.00
(32% OFF)
MRP 28,800.00

(Inclusive of all taxes)

Model No : B650I AX
BUY NOW
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

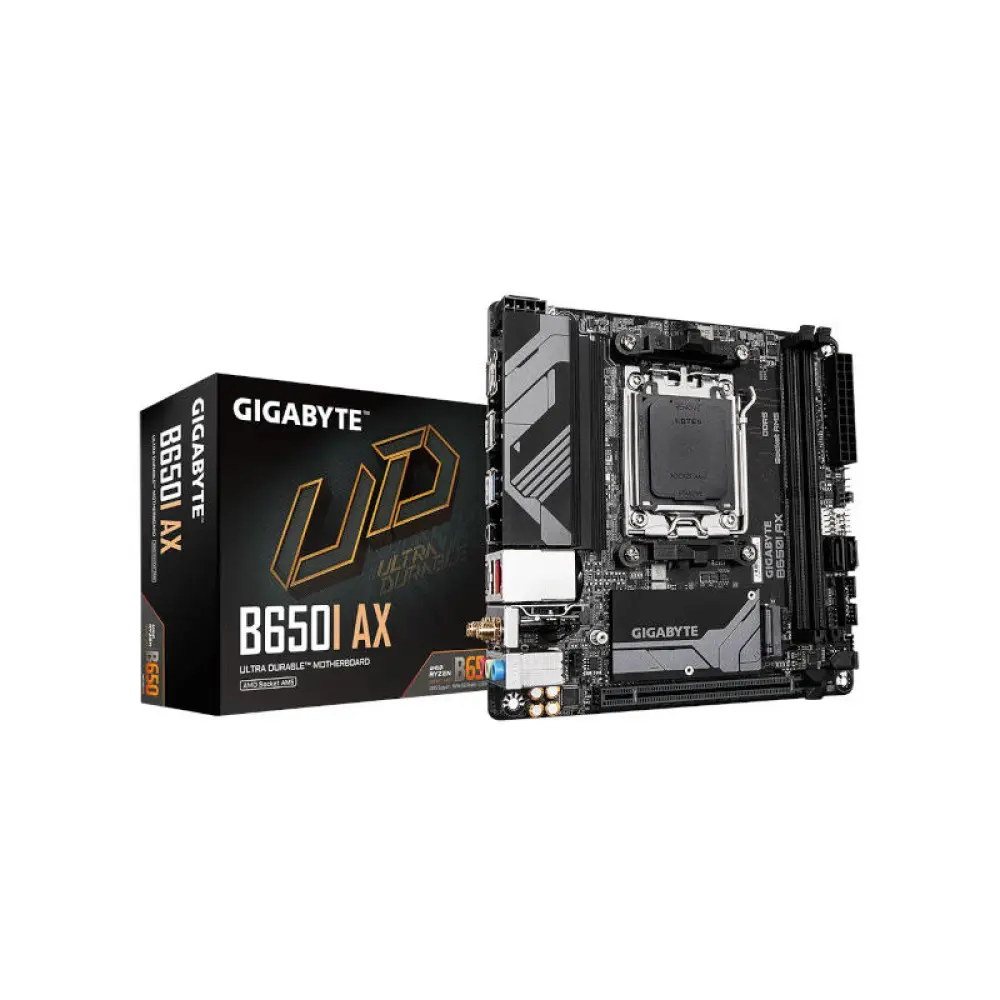

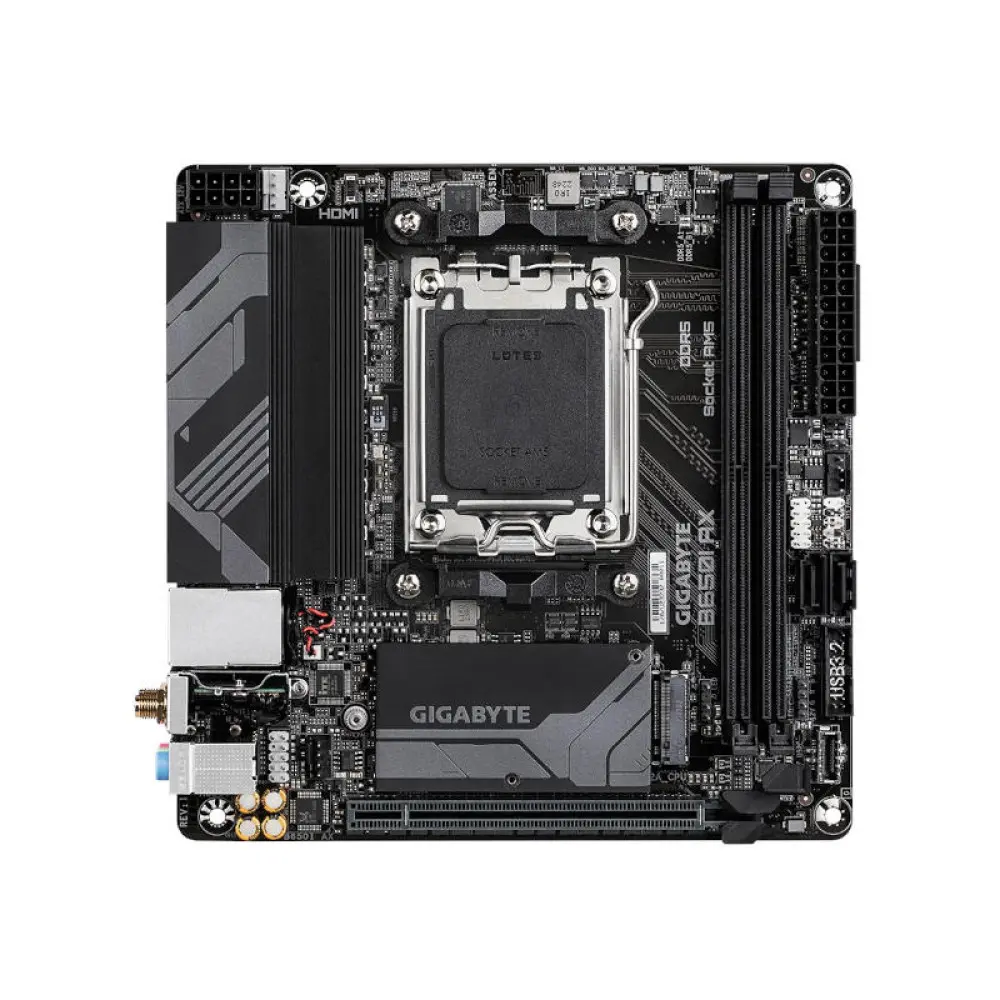

Gigabyte B650I Ax Am5 Mini Itx Motherboard

  • AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
  • Unparalleled Performance:5+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
  • EZ-Latch:PCIe x16 Slot with Quick Release Design
  • Fast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LAN
  • Extended Connectivity:DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification
CPU AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors

(Please refer “CPU Support List” for more information.)

Chipset AMD B650
Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor:

1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

* Support for DisplayPort 1.4 version.

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek® Wi-Fi 6E RTL8852CE

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots 1 x PCI Express x16 slot, integrated in the CPU:

AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Storage Interface 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x SATA 6Gb/s connectors

RAID 0 and RAID 1 support for NVMe SSD storage devices

RAID 0 and RAID 1 support for SATA storage devices

USB CPU:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

1 x USB 2.0/1.1 port on the back panel

Chipset:

1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

2 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Clear CMOS jumper

1 x chassis intrusion header

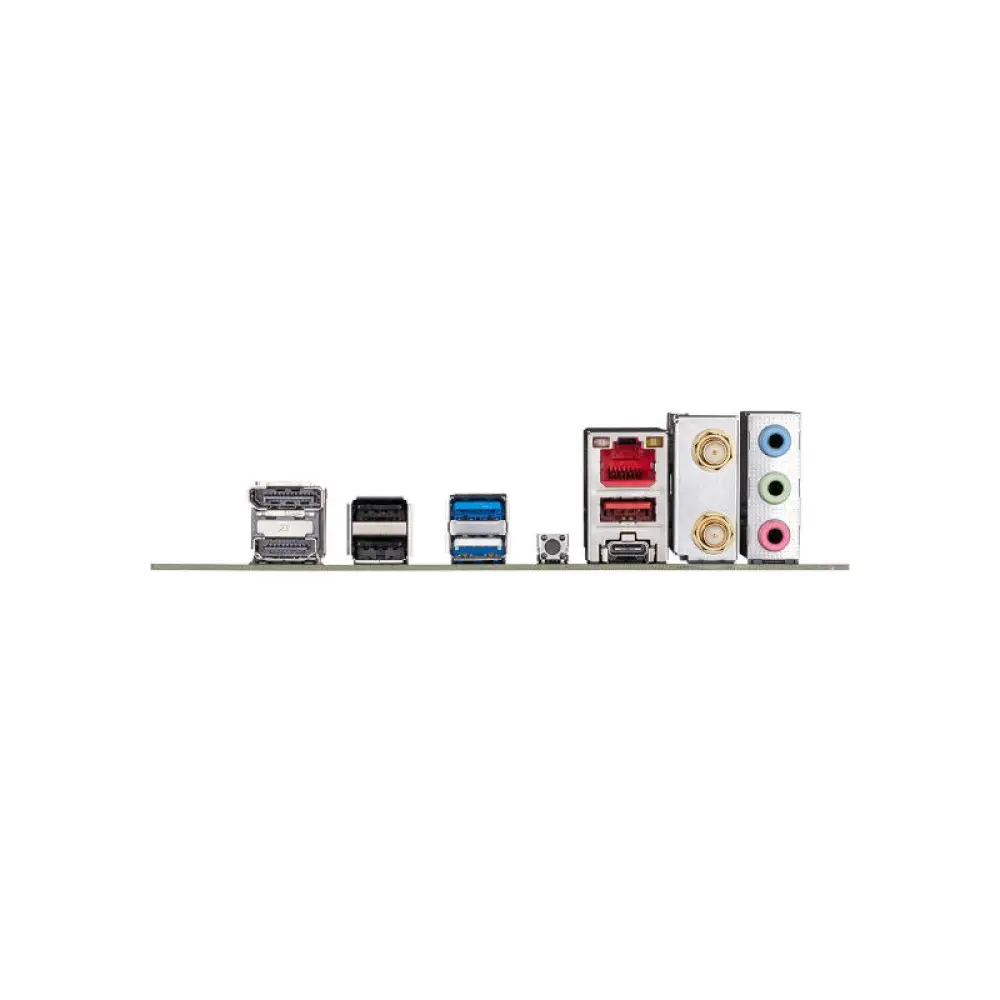

Back Panel Connectors 1 x DisplayPort

1 x HDMI port

1 x USB Type-C® port, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB 3.2 Gen 1 port

3 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

2 x SMA antenna connectors (2T2R)

3 x audio jacks

I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

BUNDLE SOFTWARE Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
Warranty 3 Years
Note Price, feature and specifications are subject to change without notice.
