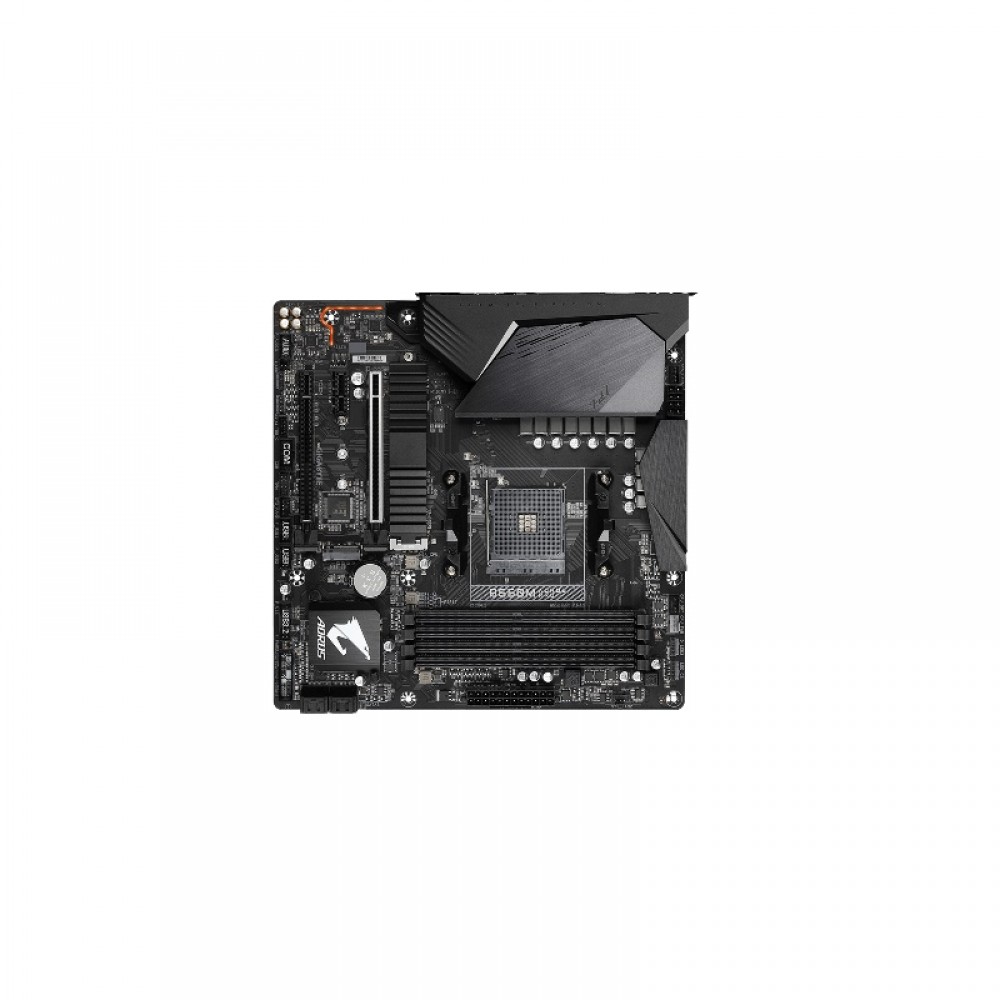

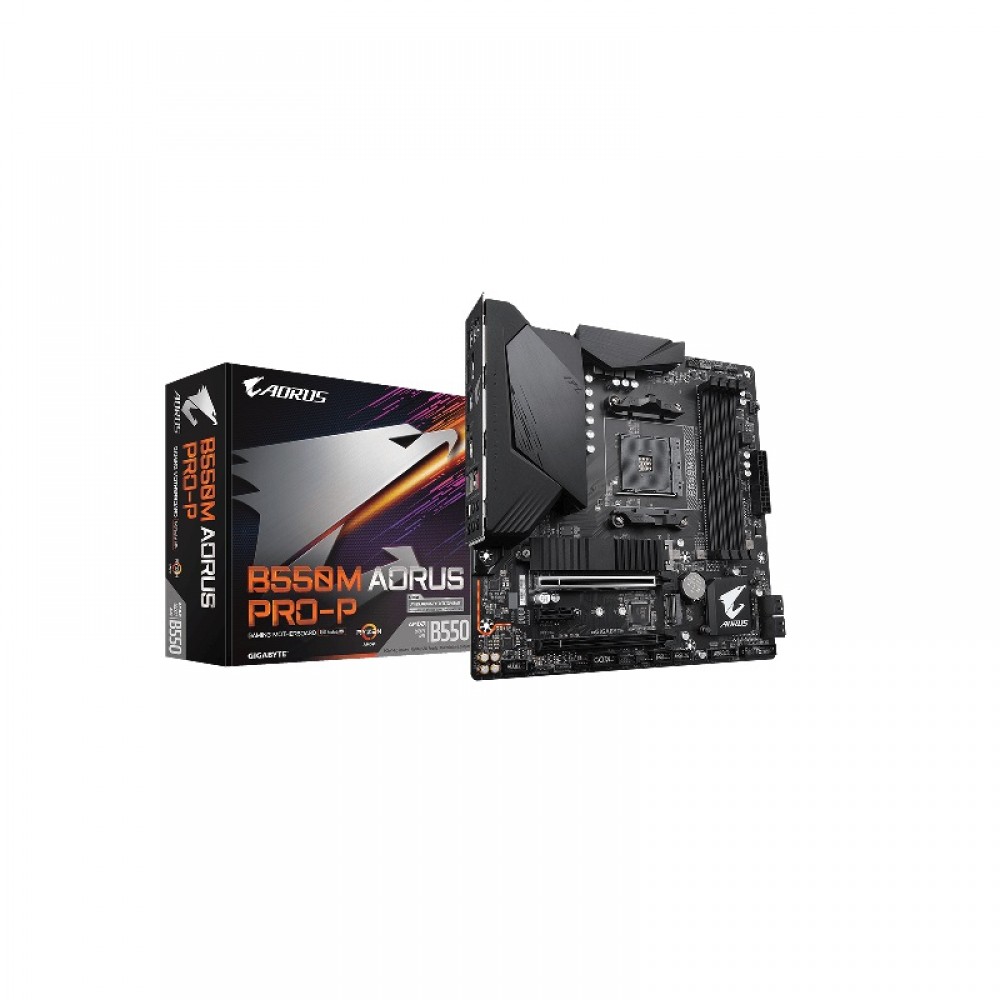

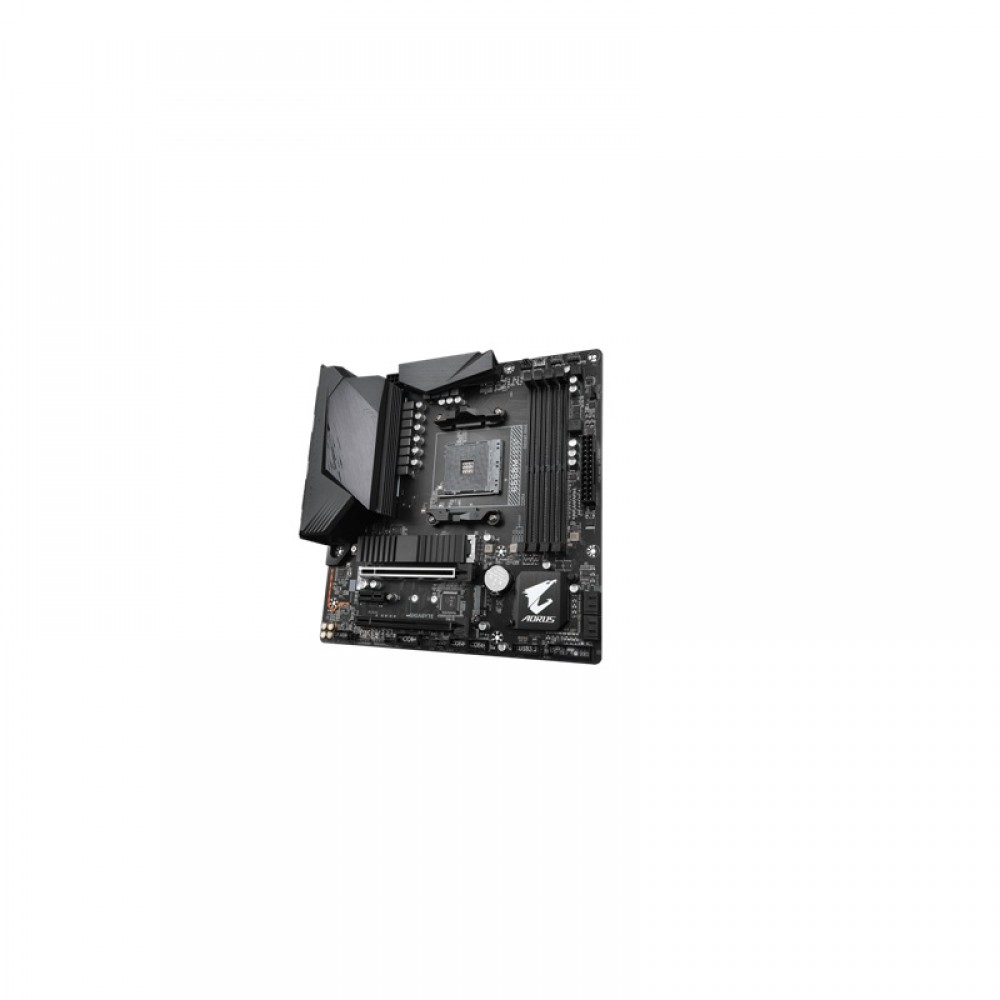

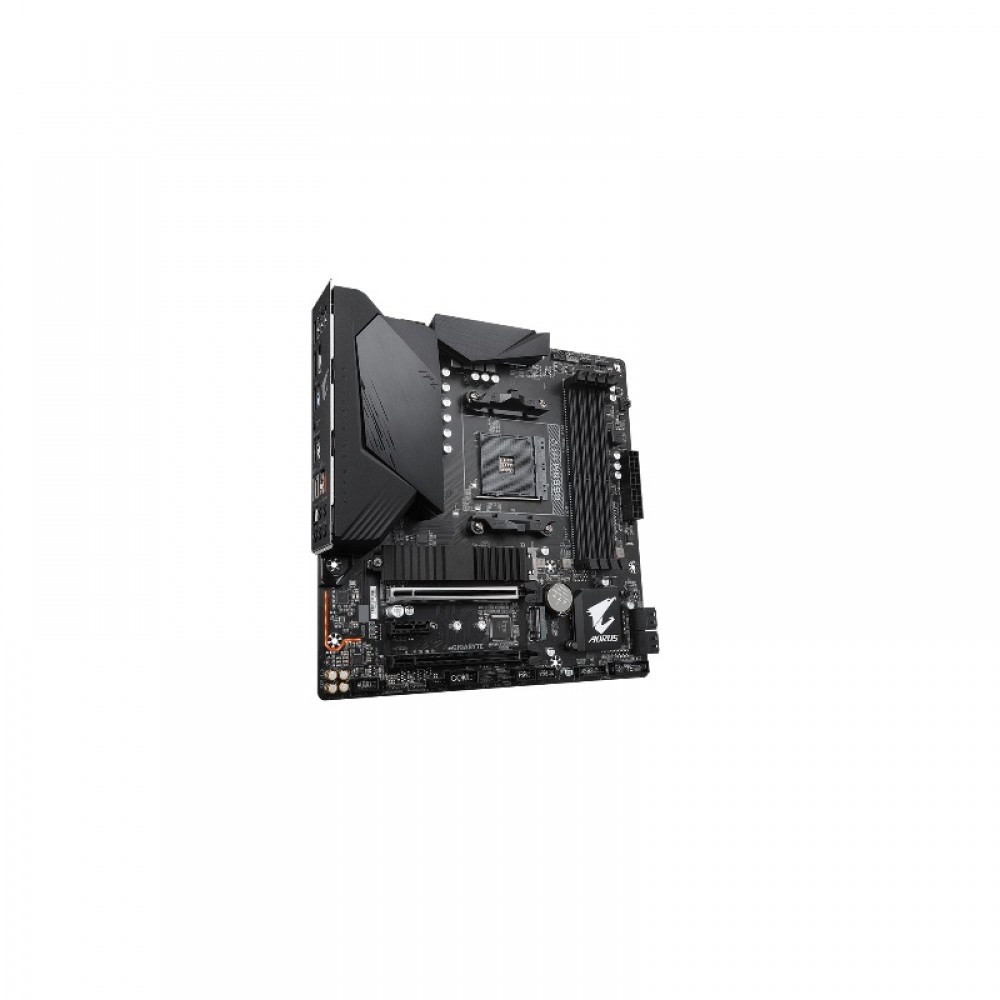

GIGABYTE B550M AORUS PRO-P MOTHERBOARD

12,600.00

Inclusive of all taxes

Out of stock

Model :

B550M AORUS PRO-P

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

GIGABYTE B550M AORUS PRO-P MOTHERBOARD

Features

  • AMD Ryzen? 5000 Series/ 3rd Gen Ryzen? and 3rd Gen Ryzen? with Radeon? Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+2 Phases Digital Twin Power Design with 50A DrMOS
  • Advanced Thermal Design with Enlarged VRM Heatsinks
  • Ultra Durable? PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast?NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
  • AMP-UP Audio with ALC1200 and premium capacitor
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • DisplayPort & HDMI for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation



Specification
Cpu AMD Socket AM4, support for: AMD Ryzen? 5000 Series/ 3rd Gen Ryzen? and 3rd Gen Ryzen? with Radeon? Graphics Processors

(Please refer “CPU Support List” for more information.)

Chipset AMD B550
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

AMD Ryzen? 5000 series processors:
Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

3rd Gen AMD Ryzen? Processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

3rd Gen AMD Ryzen? with Radeon? Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered?DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics Integrated in the 3rd Generation AMD Ryzen? with Radeon? Graphics processors:

1 x HDMI port, supporting a maximum resolution of?4096×[email protected]?Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

1 x DisplayPort, supporting a maximum resolution of?5120×[email protected]?Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Audio Realtek??ALC1200 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN Realtek??2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Expansion Slots 1? x PCI Express x16 slot (PCIEX16), integrated in the CPU:

3rd Generation AMD Ryzen? processors support PCIe 4.0 x16 mode

3rd Generation AMD Ryzen? with Radeon? Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

Supporting PCIe 3.0 x4 mode

1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

Supporting PCIe 3.0 x1 mode

Storage Interface 1? x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:3rd Generation AMD Ryzen? processors support SATA and PCIe 4.0 x4/x2 SSDs

3rd Generation AMD Ryzen? with Radeon? Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10

USB CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1 x USB Type-C? port on the back panel, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+1 USB 2.0 Hub:

4 x USB 2.0/1.1 ports on the back panel

Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

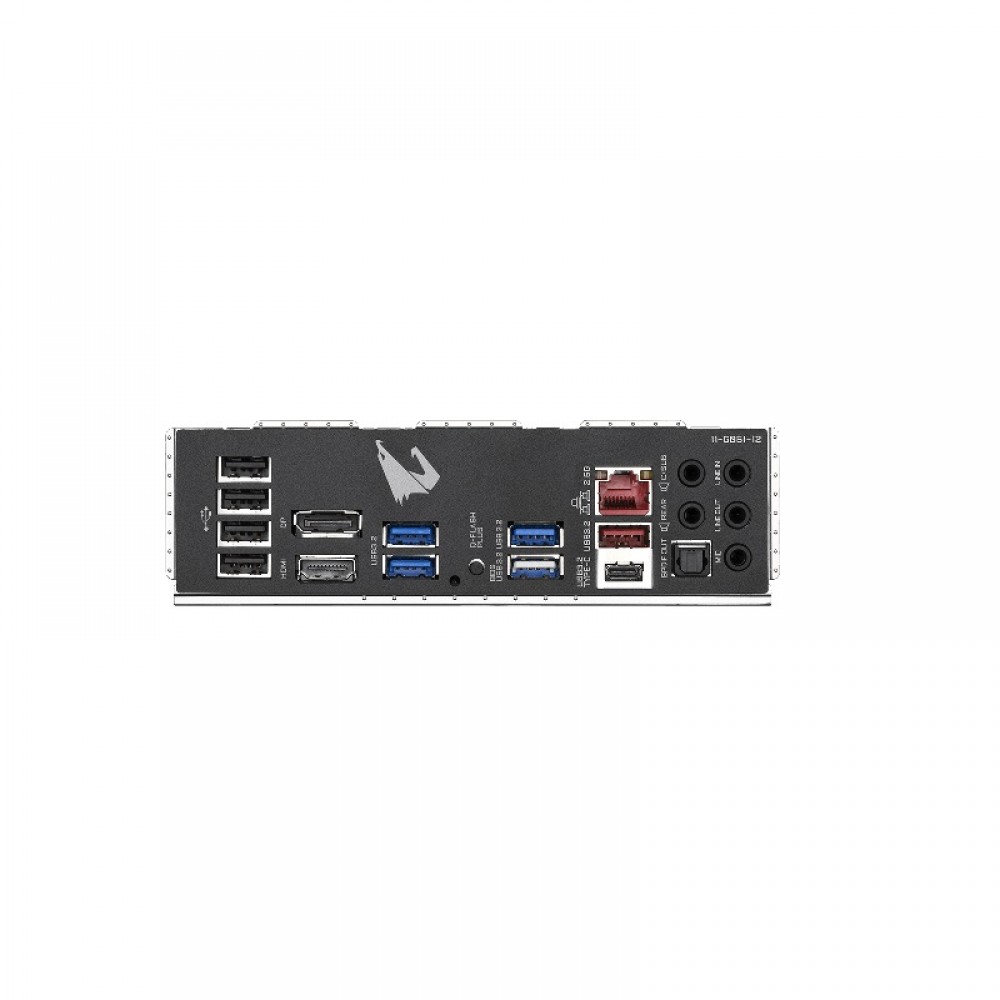

Back Panel Connectors 4 x USB 2.0/1.1 ports

1 x DisplayPort

1 x HDMI port

4 x USB 3.2 Gen 1 ports

1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB Type-C? port, with USB 3.2 Gen 2 support

1 x Q-Flash Plus button

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

I/O Controller iTE??I/O Controller Chip
H/W Monitoring Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Overheating warning

Fan fail warning

Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information ViewerSupport for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled Software Norton??Internet Security (OEM version)

Realtek??8125 Gaming LAN Bandwidth Control Utility

Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
