Gigabyte B450M Aorus Elite

No Customer Rating

₹8,050

(Inclusive of all taxes)

Model No : B450M-AORUS-ELITE

Out of stock

all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

Features

  • Supports AMD 3rd Gen Ryzen/2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • HDMI, DVI-D Ports for Multiple Display
  • Ultra-Fast Dual NVMe PCIe Gen3 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTune  and Cloud Station Utilities
  • Anti-Sulfur Resistors Design
  • Ultra Durable 25KV ESD and 15KV Surge LAN Protection
  • CEC 2019 Ready, Save Power with a Simple Click

Specifications

CPU
 AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors
Chipset
 AMD B450
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
 Integrated Graphics Processor:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB
Audio
  1. Realtek ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
 Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (Note) Actual support may vary by CPU.
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot
    (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology
 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage Interface
 Integrated in the CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
  2. 2 x SATA 6Gb/s connectors (ASATA3 1/2)

Integrated in the Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSD support) (M2B_SOCKET)
  2. 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)

Support for RAID 0, RAID 1, and RAID 10
USB Integrated in the CPU:

  1. 4 x USB 3.1 Gen 1 ports on the back panel

Integrated in the Chipset:

  1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
  2. 2 x USB 3.1 Gen 1 ports available through the internal USB headers
  3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 2 x M.2 Socket 3 connectors
  6. 6 x SATA 6Gb/s connectors
  7. 2 x addressable LED strip headers
  8. 2 x addressable LED strip power select jumpers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 1 x RGB (RGBW) LED strip header
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x S/PDIF Out header
  14. 1 x USB 3.1 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  17. 1 x serial port header
  18. 1 x speaker header
  19. 1 x Clear CMOS jumper
  20. 1 x chassis intrusion header

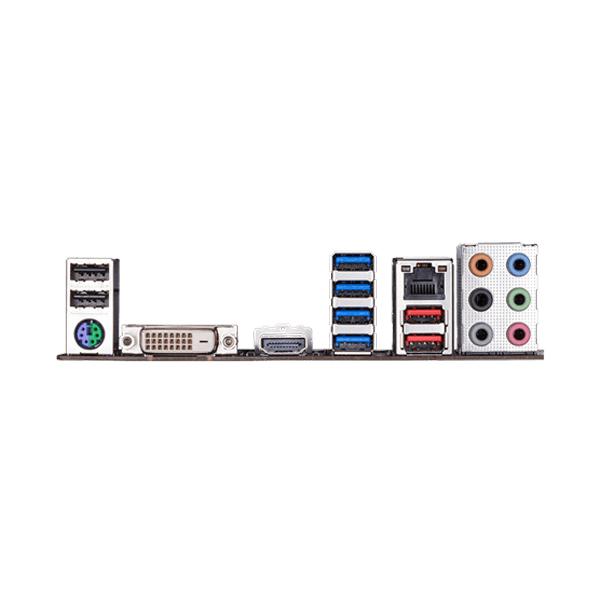

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x USB 2.0/1.1 ports
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 4 x USB 3.1 Gen 1 ports
  6. 1 x RJ-45 port
  7. 2 x USB 3.1 Gen 2 Type-A ports (red)
  8. 6 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart Survey
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System
  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
    * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty
3 Years
Note ***Features, Price and Specifications are subject to change without notice.
