12,700.00

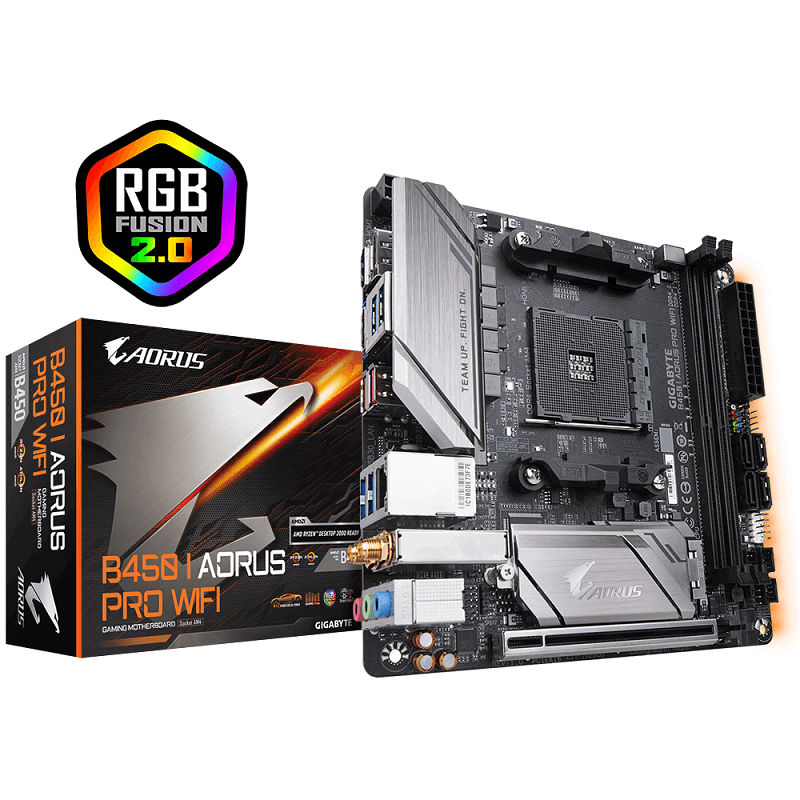

SKU: B450-I-AORUS-PRO-WIFI Categories: , Tags: , , ,

Description

Features

  • Supports AMD 3rd Gen Ryzen?/ 2nd Gen Ryzen?/ 1st Gen Ryzen?/ 2nd Gen Ryzen? with Radeon? Vega Graphics/ 1st Gen Ryzen? with Radeon? Vega Graphics/ Athlon? with Radeon? Vega Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel??Dual Band 802.11ac Wave2 WIFI & BT 5
  • DisplayPort, HDMI*2 Ports for Multiple Display
  • Ultra-Fast?NVMe PCIe Gen3 x4 M.2 with?Thermal Guard
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with High-end Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • Intel? GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTune? and Cloud Station? Utilities
  • CEC 2019 Ready, Save Power with a Simple Click
CPU AM4 Socket: Supports AMD 3rd Gen Ryzen?/ 2nd Gen Ryzen?/ 1st Gen Ryzen?/ 2nd Gen Ryzen? with Radeon? Vega Graphics/ 1st Gen Ryzen? with Radeon? Vega Graphics/ Athlon? with Radeon? Vega Graphics Processors(Please refer “CPU Support List” for more information.)
Chipset AMD B450
Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
* ECC is only supported with AMD Ryzen? and Athlon? of PRO-series CPU.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor:

1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version.
2 x HDMI ports, supporting a maximum resolution of 4096×2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2.(Note)
* One of HDMI function is limited if using an AMD Athlon? 200-series APU.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

(Note) Actual support may vary by CPU.

Audio Realtek? ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN Intel? GbE LAN chip (10/100/1000 Mbit)
Wireless Communication Module Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
** Intel WIFI driver only support for Win10-64bit
Expansion Slots 1 x PCI Express x16 slot, running at x16(Note)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)(Note) Actual support may vary by CPU.
Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x digital LED strip header
1 x CPU cooler LED strip/RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x speaker header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel Connectors 1 x DisplayPort
2 x HDMI ports
2 x USB 3.1 Gen 2 Type-A ports (red)
4 x USB 3.1 Gen 1 ports
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Operating System Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
* Intel WIFI driver only support for Win10-64bit
* Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
