Evga Supernova 1000 Gt 1000Watt 80+ Gold Fully Modular Power Supply (220-Gt-1000-Xn)

14,470.00

Inclusive of all taxes

Model No : 220-GT-1000-XN
Buy Now

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

EVGA SUPERNOVA 1000 GT 1000WATT 80+ GOLD FULLY MODULAR POWER SUPPLY (220-GT-1000-XN)

Features:

  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

Introducing the EVGA SuperNOVA GT Series of power supplies – the newest addition to the outstanding line of EVGA Power Supplies. Featuring 80 Plus Gold certification, 100% Japanese capacitors, a fluid dynamic bearing fan, and a fully modular design, this power supply is built for long-term usage and durability. Building upon EVGA’s line of 80 Plus Gold rated power supplies, the EVGA GT Series combines all these features at a great price.

Refinement In performance and design

Upgrade both aesthetics and electronic components with a unique radial design fan grill, compact 150mm length and width, and 100% Japanese capacitors.

80 PLUS GOLD Efficiency

82 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.

Fluid dynamic Bearing

The EVGA SuperNOVA GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.

Single +12V output

Provides a stable output for compatibility with the latest hardware.

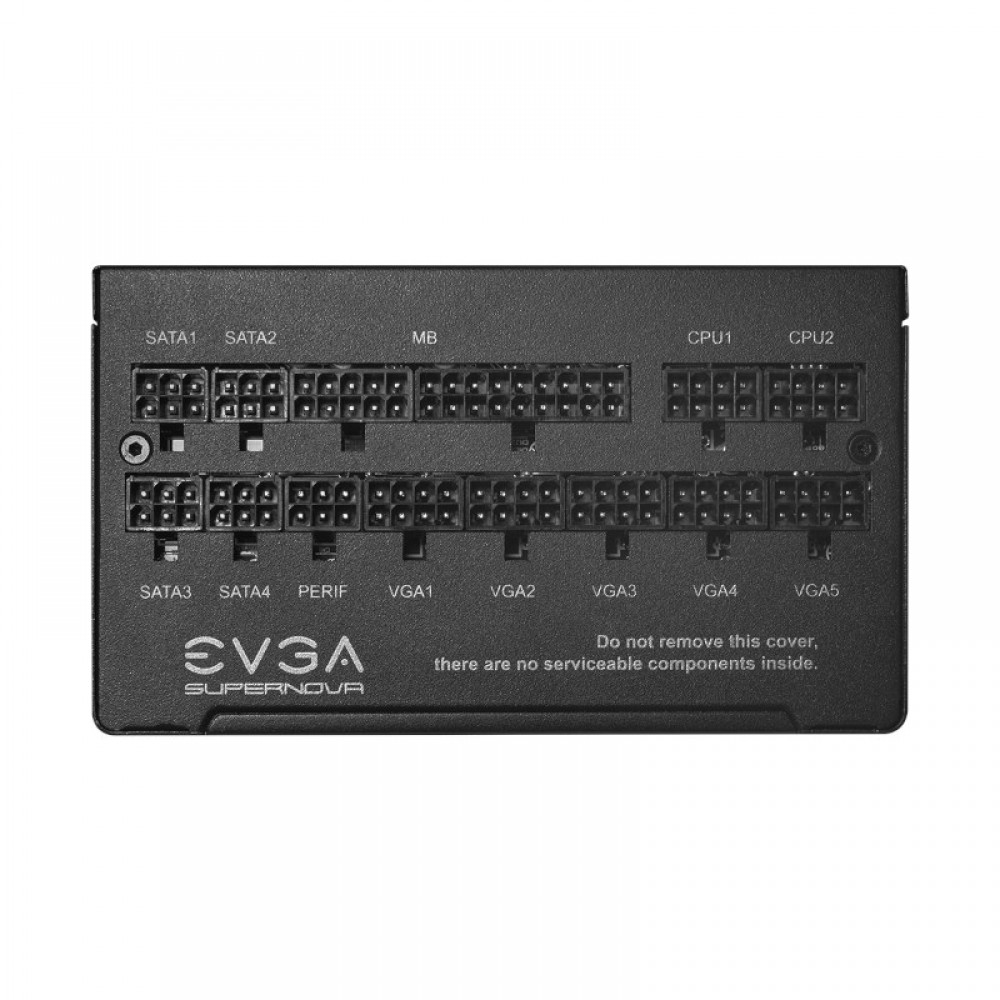

Fully modular design

Choose the cables you need to make cable management simple and clean.

Auto eco mode

Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment, resulting in reduced noise.

Full Protection

  • OVP Over Voltage Protection
  • OCP Over Current Protection
  • OPP Over Power Protection
  • SCP Short Circuit Protection
  • UVP Under Voltage Protection
  • Dual OTP Over Temperature Protection on the Primary and Secondary PCB

Specifications:

Cable Length
ATX Cable 1x 600mm (m)
EPS Cable 2x 700mm (m)
PCIe Cable 2x 700mm (m), 3x 700mm, 850mm (m)
SATA Cable 4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter 1x Molex to FDD Adapter
AC Power 1x 1500mm (m)
Modular Cable Type Full
Connector Quantity
24 Pin ATX 1x
EPS (CPU) 2x 8pin(4+4)
PCIe 8x 8pin(6+2)
SATA 12x
Four-Pin Peripheral 4x
Floppy 1x
Input
Input Voltage 100-240V~
AC Input 12-6A
Input Frequency Range 60/50Hz
Efficiency 90% or Higher Typical
Output
Total 1000W
 Max Output 130W

  • Max Output:- 25A
  • Rail:- +3.3V / +5V

1000W

  • Max Output:- 83.3A
  • Rail:- +12V

15W

  • Max Output:- 3A
  • Rail:- +5Vsb

3.6W

  • Max Output:- 0.5A
  • Rail:- -12V
Additional Details
Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Gross Weight 8.80 lbs
Size 86mm (H) x 150mm (W) x 150mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 135mm Fluid Dynamic Bearing
Warranty 10 Years
Note *** Features, Price, Specifications are subject to change without notice.
