Description
Deepcool CC560 Limited V2 ATX Mid Tower Cabinet Black

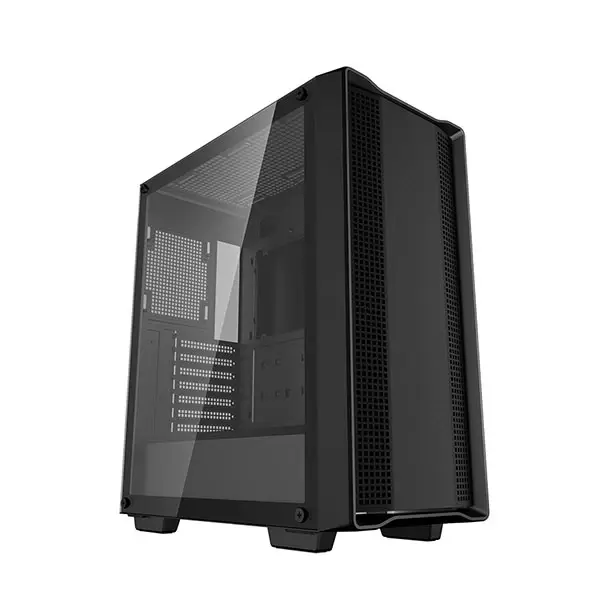

The DeepCool CC560 Limited V2 Mid-Tower Case offers outstanding value with spacious component compatibility and a full-sized tempered glass window. This fanless model serves as an ideal for building a high-performance system.
Features:
The DeepCool CC560 Limited V2 mid-tower case offers great value with spacious component compatibility and a full-sized tempered glass window. This fanless model is an excellent starting point for any system build. The V2 models build upon the success of the previous generation and raise the bar.
ABUNDANT AIRFLOW PERFORMANCE

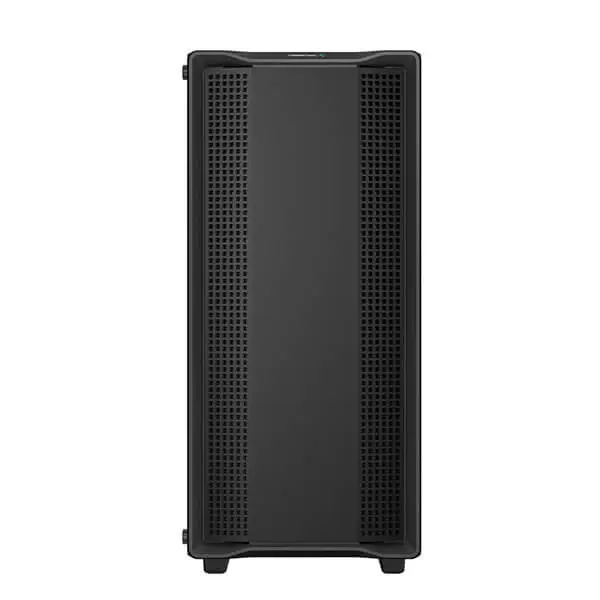

Well ventilated throughout the entire chassis, the CC560 Limited V2 sports an airflow front panel, support for fans on the PSU shroud, and a large mesh top panel to ensure fresh air is circulating.
PRIMED AND READY
This fanless model is a great option for enthusiasts who want to use their favorite fans and is an excellent starting point for any system build.
WIDE COOLING SUPPORT
There is enough space to support high-performance AIO liquid coolers, with room for a 360mm radiator in front or 240mm on top. Cooling fan support for up to 8x120mm or 5x140mm fans. The PSU shroud can now support two 120mm fans, providing an extra breath of fresh air to your power-hungry GPU!
COMPATIBILITY

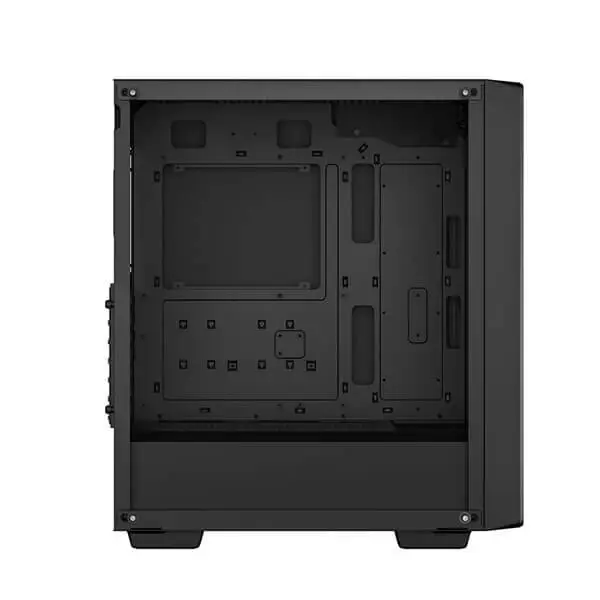

With the ability to support up to E-ATX motherboards, 165mm tall CPU coolers, 370mm GPUs, and 170mm PSUs; the CC560 Limited V2 can be configured with a wide range of high end components.
STORAGE SOLUTIONS
Support for 2x 2.5” SSDs and 2x 3.5” HDDs. One of the HDD bays can be utilized for a third 2.5″” drive if the need arises.
REINFORCED AND CONVENIENT

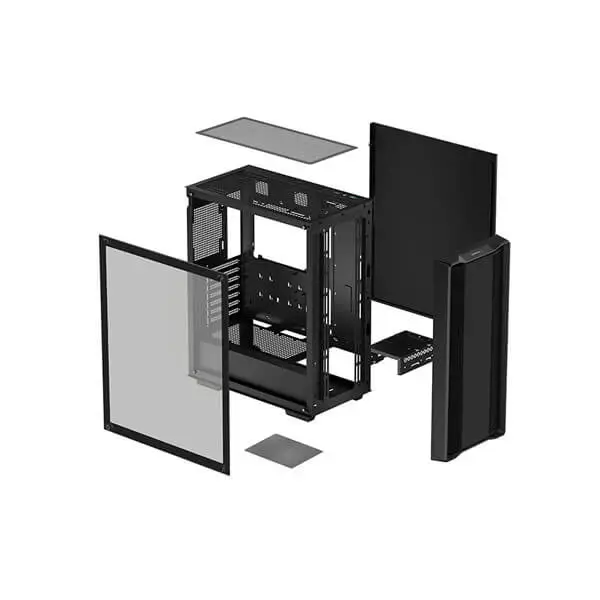

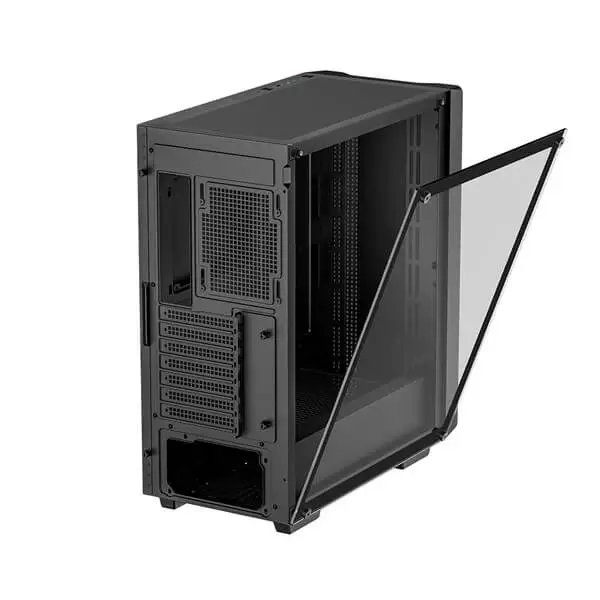

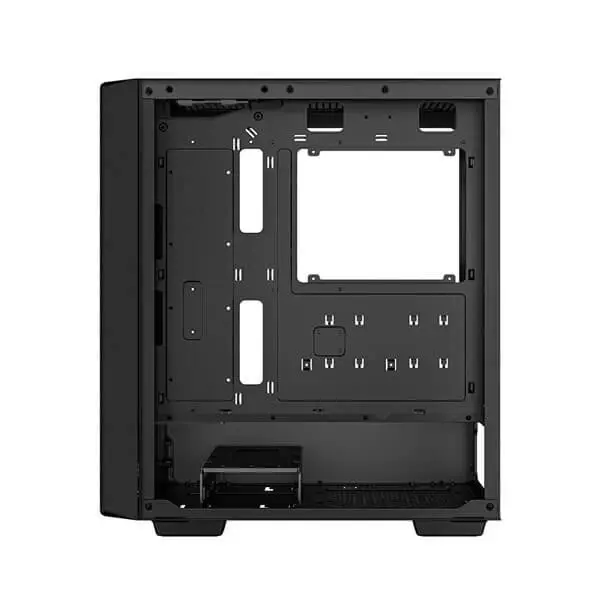

The chassis and side glass panel have been upgraded and reinforced for extra durability, and the magnetic top dust filter makes cleaning a breeze. The 20mm of cable management space behind the motherboard tray provides adequate space to arrange all your wires.

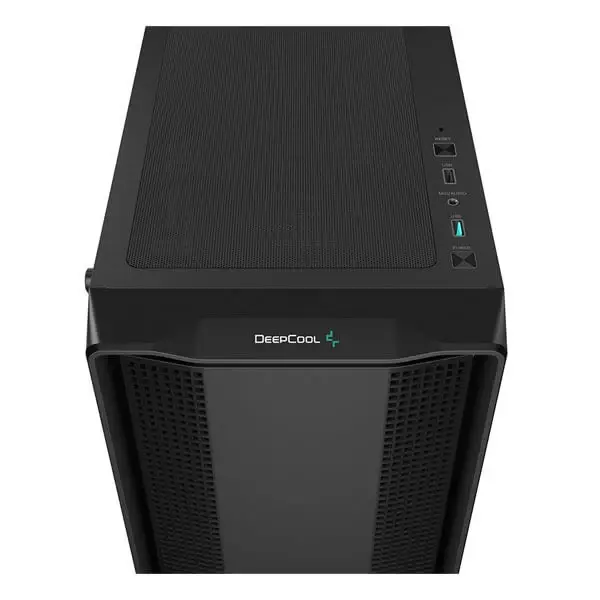

TOP I/O PANEL
Features an easily accessible USB 3.0 port, a USB 2.0 port, and a combo audio jack.
Specifications:
Model | CC560 Limited V2 |
P/N | R-CC560-BKNAA0-G-2 |
Product Dimensions | 432×215×483mm(L×W×H) |
Net Weight | 7Kg |
Materials | ABS+SPCC+Tempered Glass |
Motherboard Support | Mini-ITX / Micro-ATX / ATX |
Front I/O Ports | USB3.0×1 / USB2.0×1 / Audio×1 |
3.5″ Drive Bays | 2 |
2.5″ Drive Bays | 2+1 |

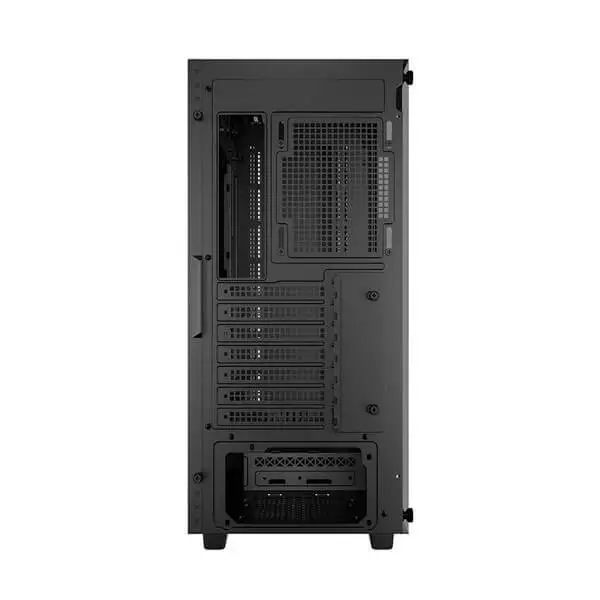

Expansion Slots | 7 Slots |
Pre-Installed Fans | None |
Fan Support |
|
Radiator Support |
|
CPU Cooler Height Limit | 165mm |
GPU Length Limit | 370mm |
Power Supply Type | ATX PS2 (maximum length: 170mm) |
Warranty | 1 Year |
Note | *** Image use for reference only
*** Features, Price, Specifications are subject to change without notice |
