Cooler Master Mwe Gold 1050 V2 Atx 3.0 Power Supply With PCIE 5.0 12VHPWR Connector (CM-GOLD-1050-V2)
Highly Efficient Performance : The 80 PLUS Gold certification
guarantees a minimum efficiency of 90%.

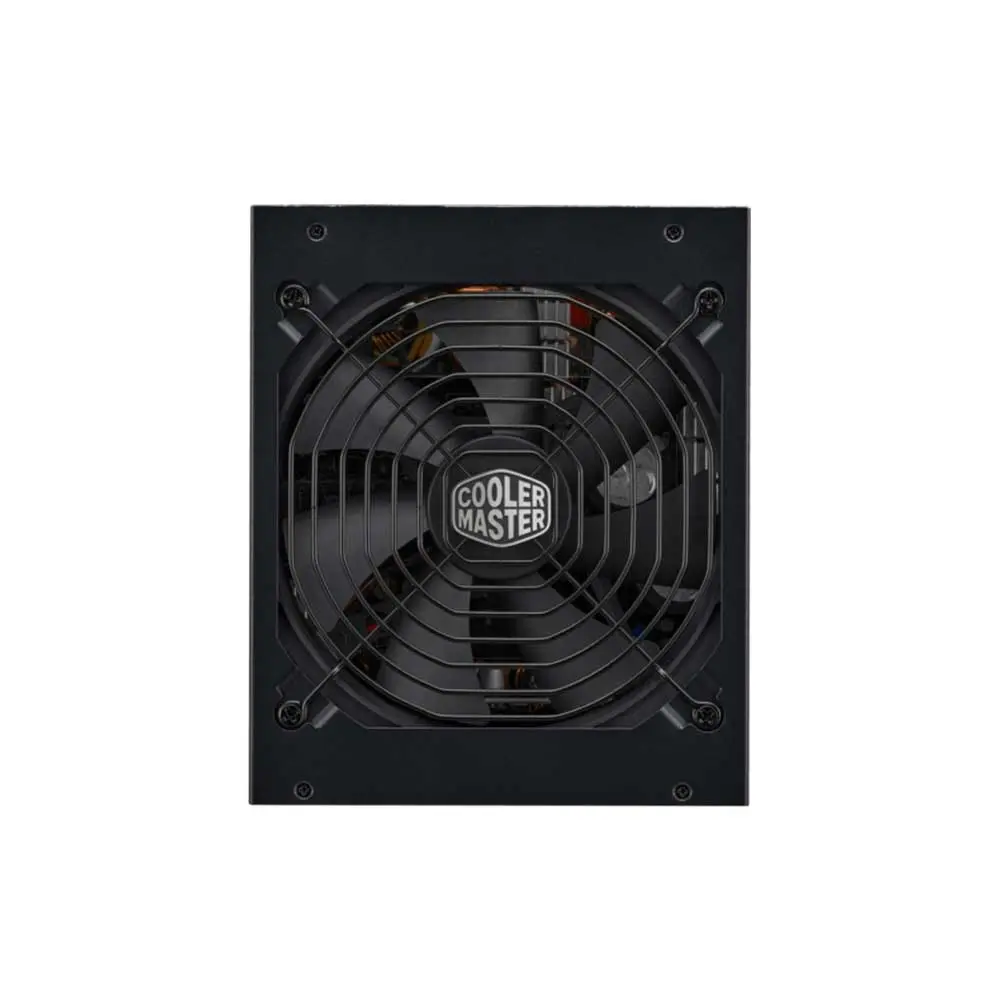

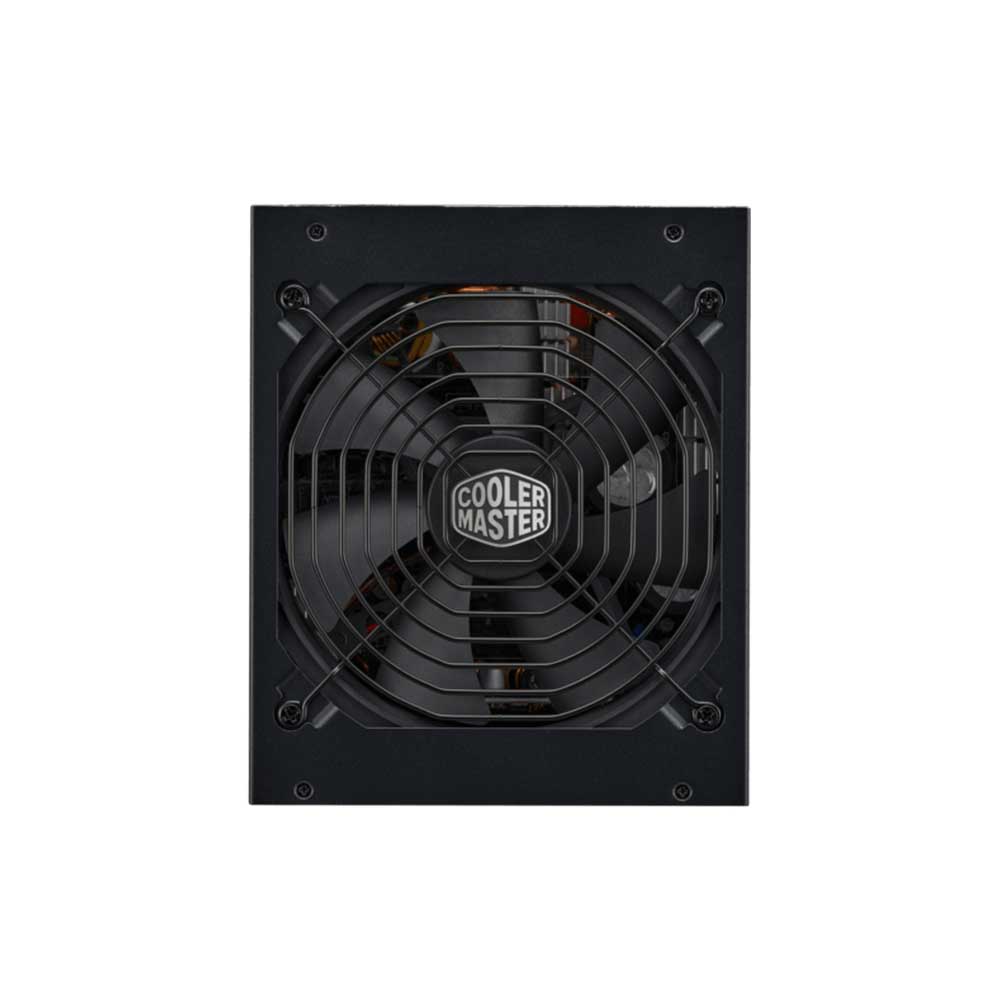

140mm FDB Fan : MWE Gold 1050 – V2 has delivered to a premium
high air flow and long life bearing fan, offering more effective cooling
Fully support ATX3.0 : Fully ATX 3.0 and PCIe Gen 5.0 compatible.
The compacted 12+4 pin 12VHPWR connector supports up to 600W of
power to a GPU through a single cable.
100% Japanese Capacitors : Implementing the highest quality of
Japanese capacitors to increase efficiency and reduce ripple noise.

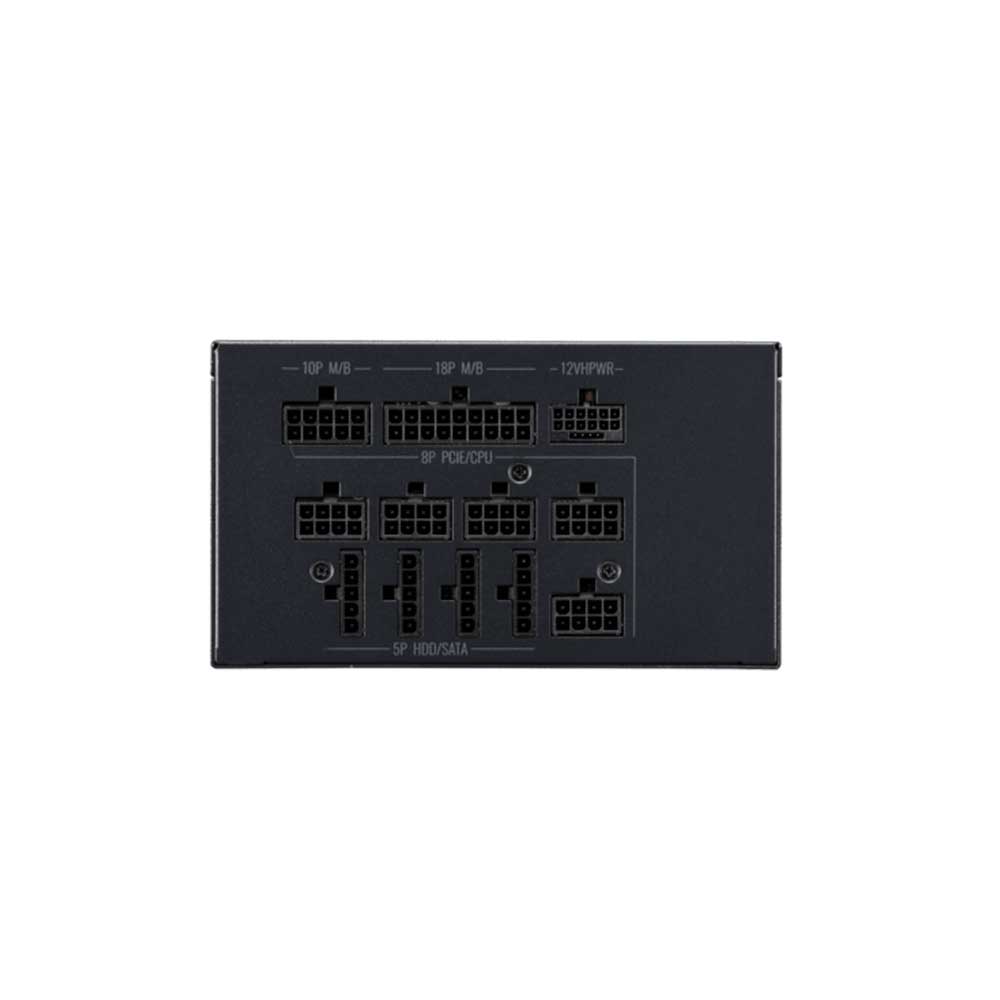

Fully Modular Cabling : MWE Gold – V2 comes with fully modular flat,
black cables for increased airflow.
10 Year Warranty : MWE Gold 1050 – V2 model comes with a 10 year
factory warranty from purchase date.
|Product Name||MWE Gold 1050 – V2 (Fully Modular) ATX3.0|
|ATX Version||ATX Rev. 3.0|
|Input Voltage||100 – 240V|
|Input Current||13 – 6A|
|Input Frequency||50 – 60Hz|
|Dimensions (L x W x H)||180 x 150 x 86mm|
|Efficiency||≥ 90% @ Typical Load|
|80 PLUS Rating||80 PLUS Gold|
|ErP 2014 Lot 3||Yes|
|Operating Temperature||0 – 50°C|
|Power Good Signal||100 – 150 ms|
|Hold Up Time||≥ 16ms at 100% Load|
|Protections||OVP / OPP / SCP / OCP / UVP / OTP /
|Connectors: ATX 24 Pin||x1 = 1x (650mm)|
|EPS 4+4 Pin||x1 = 1x (650mm)|
|EPS 8 Pin||x1 = 1x (650mm)|
|SATA||x12 = 3x (500+120+120+120mm)|
|Peripheral 4 Pin||x4 = 1x (500+120+120+120mm)|
|PCI-e 6+2 Pin||x3 = 3x (550mm)|
|12VHPWR||x1 = 1x (650mm)|
|Note**||**Prices, Specifications & Features are subject to change without notice.|
