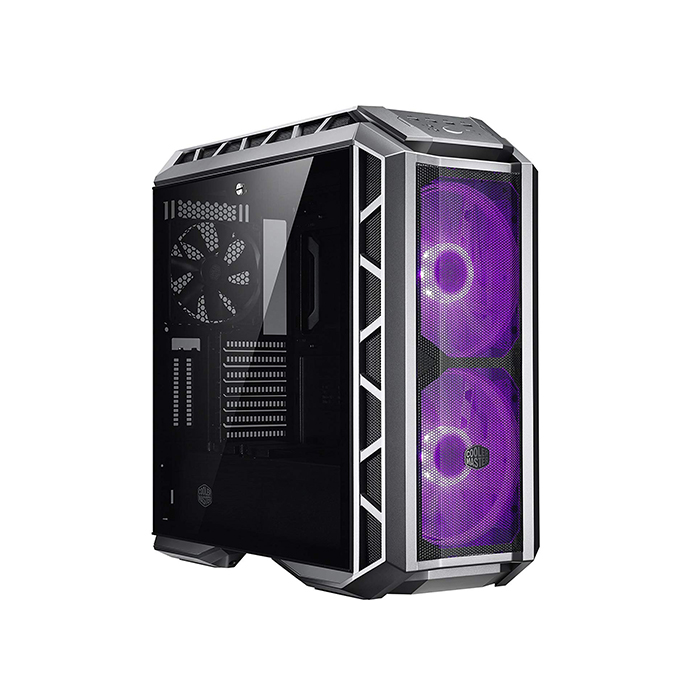

Cooler Master Mastercase H500P Mesh Cabinet

Model No : MCM-H500P-MGNN-S10

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

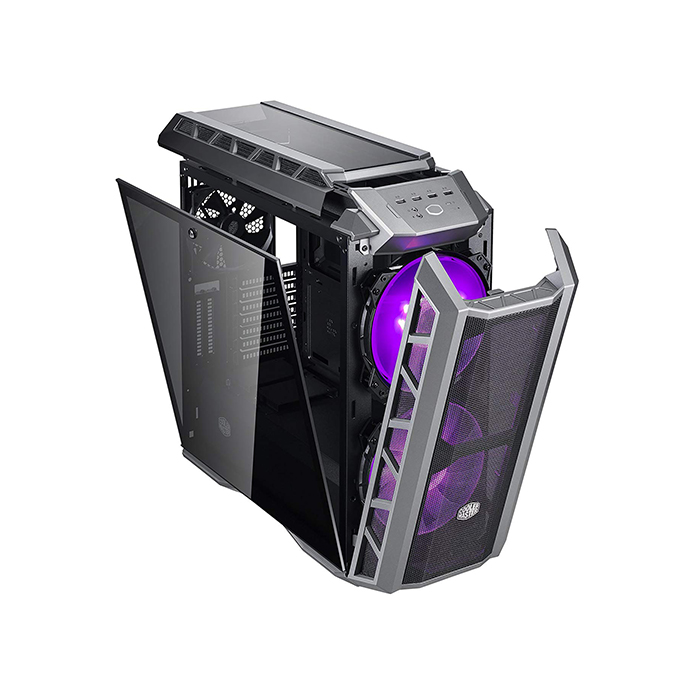

  • BUILDER FOCUSED: The H500P’s design allows for easy disassembly. All of the panels can be easily taken off, ideal for CaseModders looking to paint their PC.

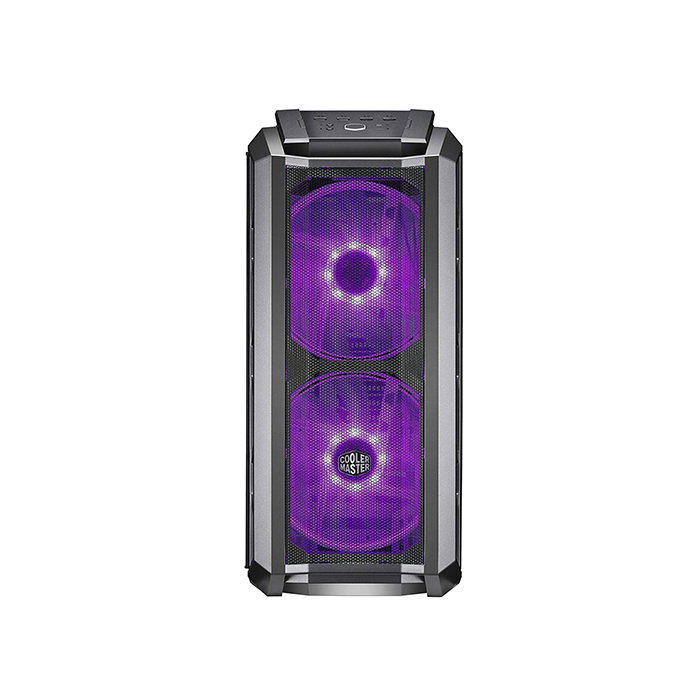

  • TWO 200MM RGB FANS BEHIND A MESH FRONT PANEL: Optimized airflow is guaranteed with a complete mesh front panel, providing plenty of air intake for the two pre-installed 200mm RGB fans. Use the RGB lighting to create a captivating build in your preferred color theme.
  • COVERS FOR CLEAN BUILDING: A PSU shroud, the CPU cut out cover and additional cable covers take clean cable management to the next level. Assemble clean builds like a pro. Cable Management, Cover, CPU Cut Out Cover, PSU Shroud, Clean Cable Routing

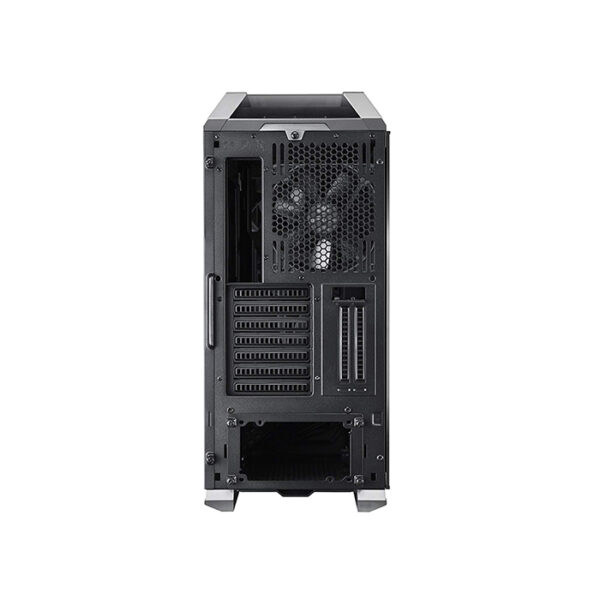

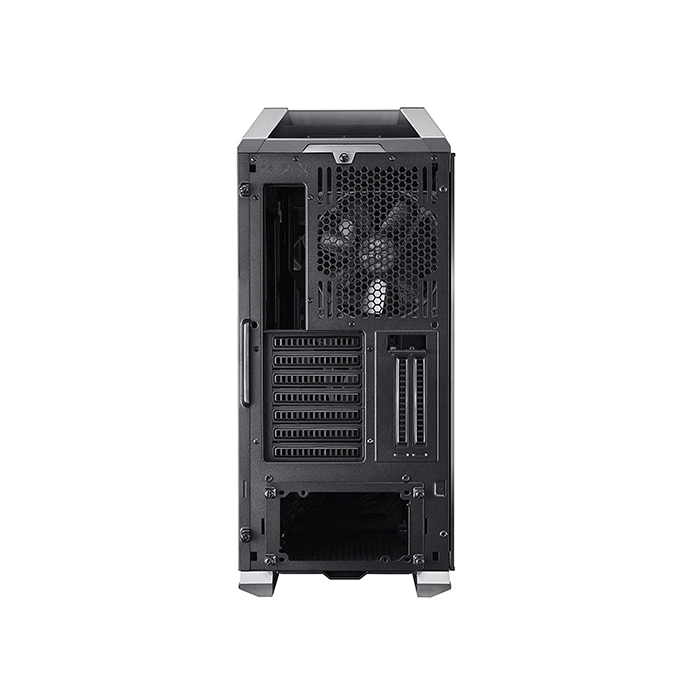

  • SHOW OFF YOUR GRAPHICS CARD: Two additional PCI slots at the rear enable you to show off one graphics card in the vertical position. * Additional Riser Cable needed to use your graphic card vertically.

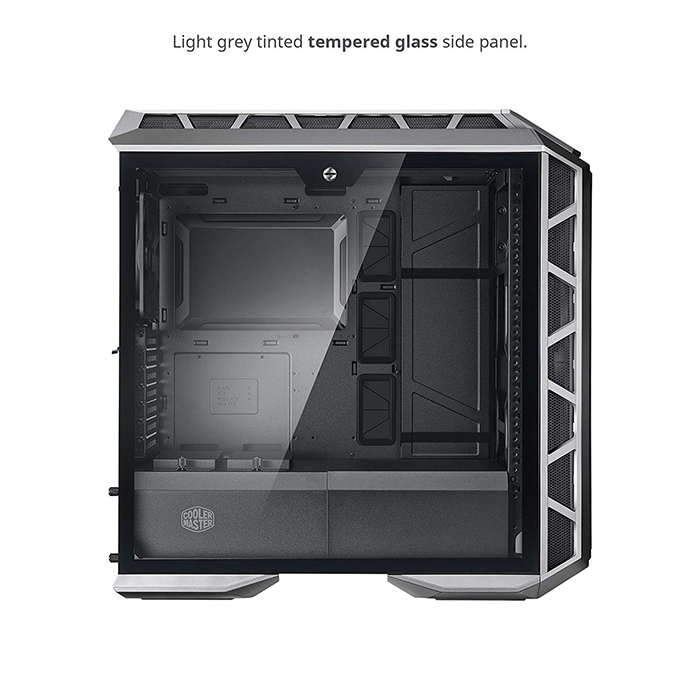

  • CLEAR VIEW INSIDE: The MasterCase H500P Mesh has a light grey tinted tempered glass side panel and plastic top cover, making it ideal for showcasing your build with (RGB) lighting.
  • LIQUID COOLING READY: The MasterCase H500P Mesh accommodates up to a 360mm radiator on the top and front.
  • Product Name: MasterCase H500P Mesh
  • Model Number: MCM-H500P-MGNN-S10
  • Available Color: Gun Metal
  • Materials: Outlook: Plastic, Steel Mesh
  • Body: Steel
  • Side panel: Tempered Glass, Steel
  • Dimensions (LxWxH): 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch
  • Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (support upto 12″ x 10.7″)
  • Expansion Slots: 7 2 (Support vertical graphics card installation)
  • Drive Bays: 5.25″: 0, 2.5″ / 3.5″: 2, 2.5″ SSD: 2 (Drive Bay support up to 5)
  • I/O Port: USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports HD Audio)
  • Pre-installed Fan(s): Front: 200 x 25mm RGB fan x 2, 800RPM, Rear: 140 x 25mm fan x 1, 1200RPM
  • Fan Support: Top: 120/140mm fan x 3 or 200mm fan x 2, Front: 120/140mm fan x 3 or 200mm fan x 2, Rear: 120/140mm fan x 1
  • Liquid Cooling Support: Top: 120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 55mm), Front: 120mm, 140mm, 240mm, 280mm, 360mm, Rear: 120mm, 140mm
  • Clearance: CPU Cooler: 190mm / 7.5 inch, GPU: 412mm / 16.2 inch
  • Power Supply Support: Bottom mount, ATX PS2
