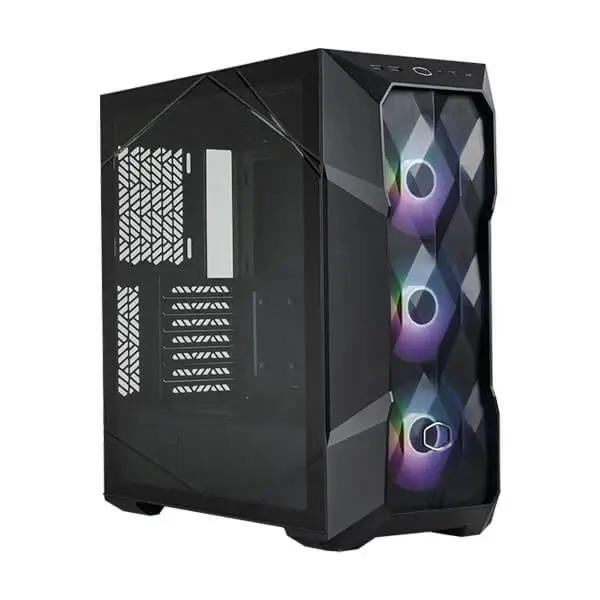

Cooler Master Masterbox TD500 MESH V2 Mid Tower Atx Cabinet (Black) (TD500V2-KGNN-S00)
MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.

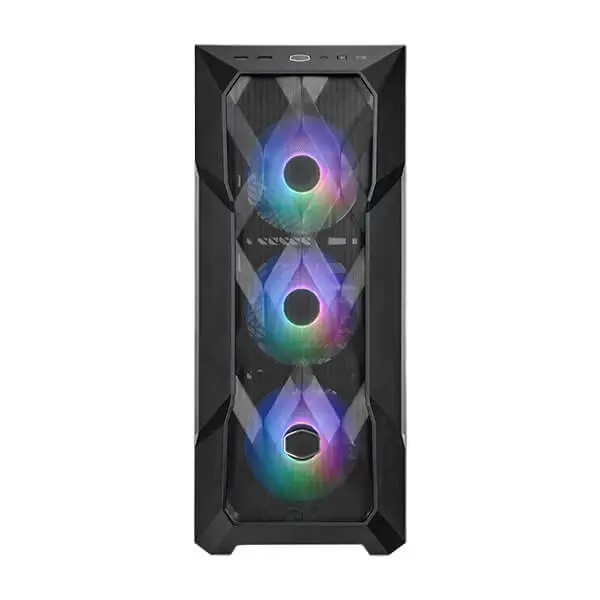

Polygonal Mesh – Crafted from Cooler Master’s Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and is also capable of simultaneously providing high airflow and dust filtration.
Triple ARGB Fans – Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system.
USB 3.2 Gen 2 Type C Support – USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
Versatile Cooling Options – Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
Tool-Free Crystalline TG Side Panel – A crystalline design spans the edges of the tempered glass side panel, completely toolless for quick access to the internals. An optional screw can be installed to further secure the tempered glass side panel.

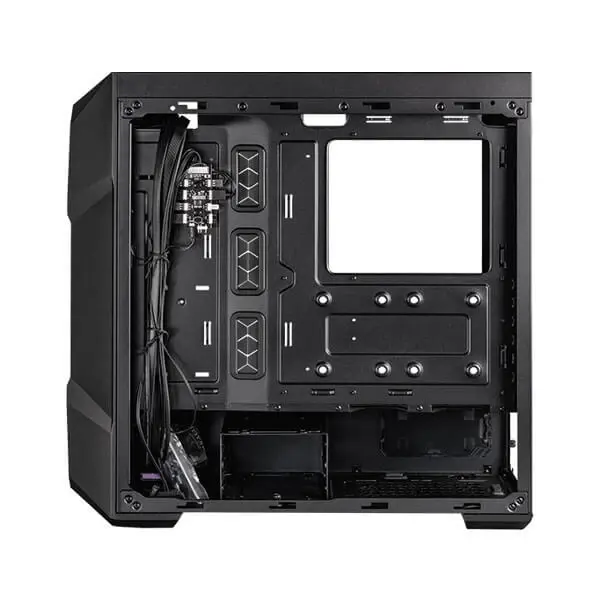

PSU Shroud With Removable Cover – TD500 Mesh V2’s removable PSU cover allows users to freely showcase unique PSU designs or keep PSUs hidden for a stealthier aesthetic. When not in use, the PSU cover can be stored on the motherboard tray for easy safekeeping.
Removable Top Panel – The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
|Materials – Exterior||Steel, Mesh, Plastic|
|Materials – Left Side Panel||Tempered Glass|
|Dimensions (L x W x H)||499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)|
|Volume||50L (excl. Protrusions)|
|Motherboard Support||Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12″ x 10.7″ motherboards, may impact cable management feature)|
|3.5″ Drive Bays||2|
|2.5″ Drive Bays||3|
|I/O Panel – USB Ports||2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C|
|I/O Panel – Audio In / Out||1x Audio Jack|
|I/O Panel – Other||1x ARGB Fan Hub|
|Pre-installed Fans – Front||3x 120mm CF120 ARGB|
|Fan Support – Top||3x 120mm, 2x 140mm|
|Fan Support – Front||3x 120mm, 2x 140mm|
|Fan Support – Rear||1x 120mm|
|Radiator Support – Top||120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)|
|Radiator Support – Front||120mm, 140mm, 240mm, 280mm, 360mm|
|Radiator Support – Rear||120mm|
|Clearance – CPU Cooler||165mm / 6.49″|
|Clearance – PSU||200mm, (Recommended up to 170mm)|
|Clearance – GFX||410mm / 16.14″|
|Cable Routing – Behind Motherboard Tray||19mm / 0.74″|
|Dust Filters||Front, Top, Bottom|
|Power Supply Support||Bottom Mount, ATX|
|Note**||**Prices, Specifications & Features are subject to change without notice.|
