ASUS TUF GAMING GT501 CABINET
ASUS TUF Gaming GT501 case supports up to EATX with metal front panel, tempered-glass side panel, 120 mm RGB fan, 140 mm PWM fan, radiator space reserved, and USB 3.1 Gen 1

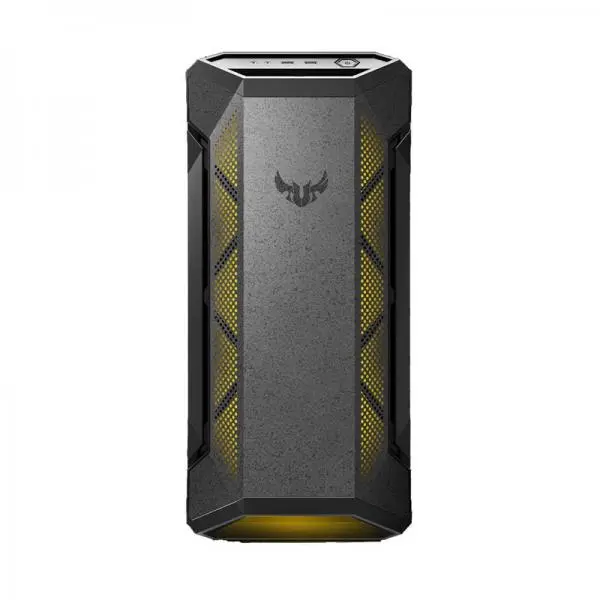

- Designed to be noticed: Metal front panel with custom TUF Gaming spatter pattern, and 4mm-thick, smoked, tempered-glass side panel to showcase your build’s internals.

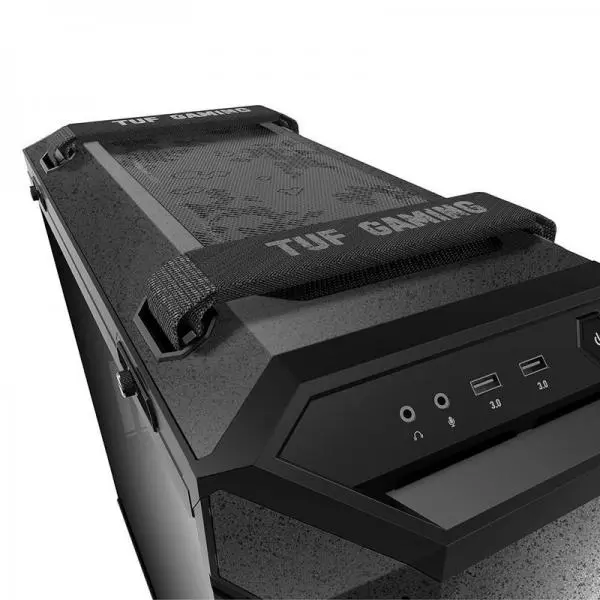

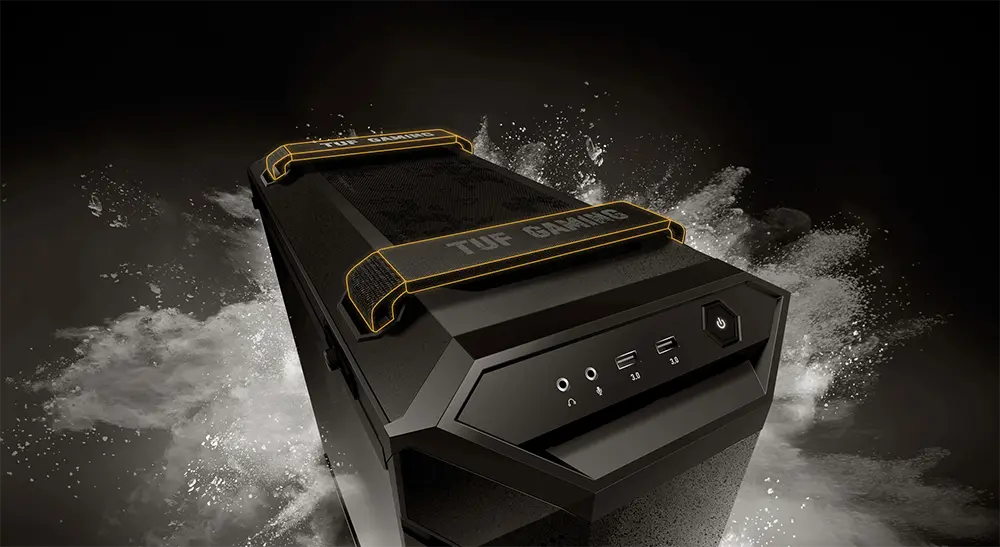

- Mobile battle station: Ergonomic, woven-cotton carry handles enable easy and safe transport up to 30Kg.
- Efficient cooling: Equipped with three 120mm Aura Sync RGB-illuminated fans and one 140mm rear PWM fan, plus up to seven fan-mounting points for targeted airflow.
- Space reserved for both front- and top-mounted 360mm water-cooling radiators plus a 140mm radiator at the rear.
- Perfect for TUF Gaming motherboards: Fan and cable placement optimized for TUF Gaming gear, and ready for perfect cooling control via our Fan Xpert 4 software.
Dimension | 251 x 545 x 552 mm (WxDxH) |
Case Size | ATX Mid Tower |
Form Factor | ATX/micro ATX/Mini ITX/EATX (12”x10.9”) |
Drive Bays | 4 x Int x 2.5”/3.5” Combo Bay 3 x Int x 2.5” Bay |
System Fan Support | Pre-installed Fans Front: 3x 120mm AURA RGB (1200RPM) Rear: 1 x 140 PWM |
Expansion Slots | 7+2 (additional vertical) |
Weight | N.W 10.5 Kg |
Color | Black |
Front I/O Ports | 2 x USB 3.1 Gen1 1 x Headphone 1 x Microphone |
Note | Cooling Support Front: 2 x 140mm/ 3 x 120mm Top: 2 x 140mm/ 3 x 120mm Rear: 1 x 140mm/120mm Radiator Support Front: 120, 140, 240, 280, 360 mm Top 120, 140, 240, 280, 360 mm Rear: 120, 140mm Maximum GPU Length: 420mm Maximum CPU Cooler Height: 180mm Maximum PSU Length: 240 mm |
Series | TUF Gaming |
Type | Mid Tower |
5.25″ Bays | NA |
3.5″ Bays | 4 |
2.5″ Bays | 7 |
Expansion Slots | 7+2 |
Max Radiator Support | 360 |
Max Fan Support | 7 |
Color | Black |
Side Panel | Transparent |
