Description

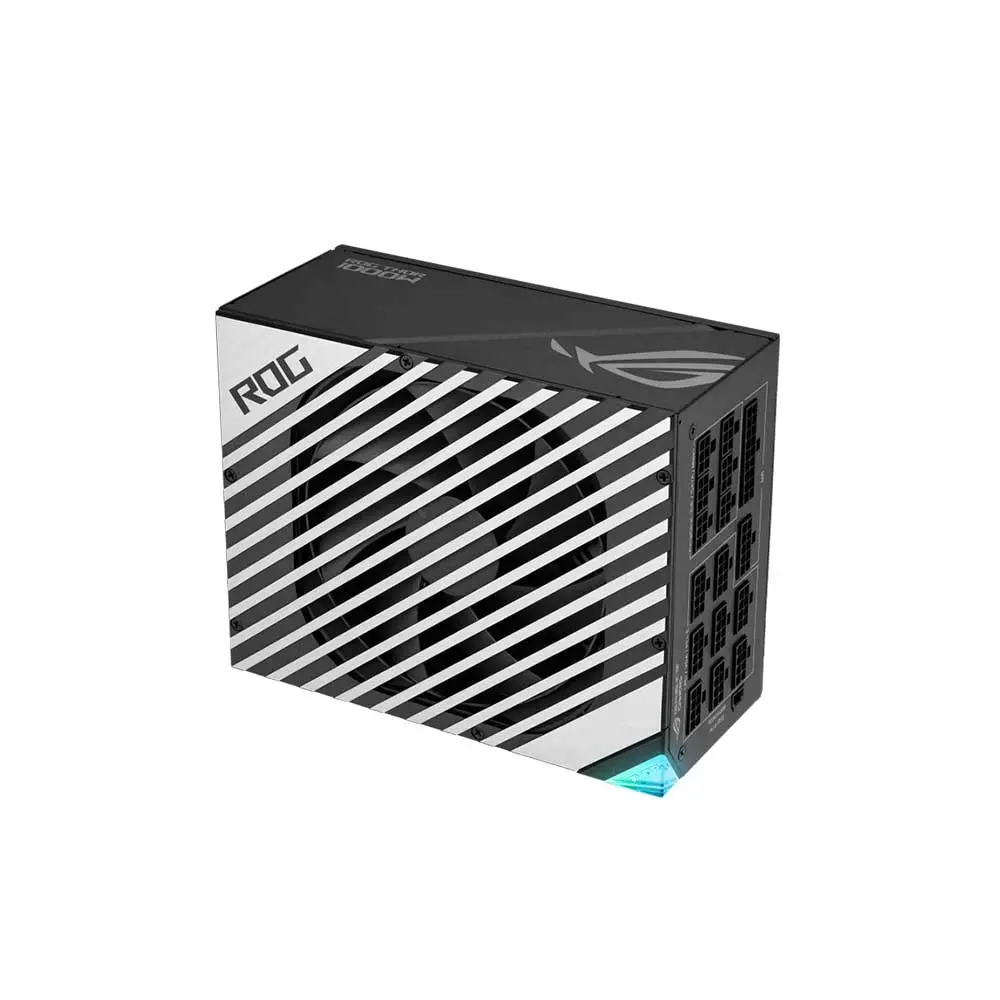

Asus Rog Thor 1000P2 1000 Watt Platinum II Gaming Power Supply (ROG-THOR-1000P2-GAMING)
Features:
- Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth.
- ROG heatsinks cover critical components, delivering lower temperatures and reduced noise.
- A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
- Built with low-ESR capacitors and other premium components to achieve 80 Plus Platinum Certification.
- OLED display monitors power draw in real time.
- Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.
The Quietest 1000W Power Supply
Back with a vengeance, the second iteration of the ROG Thor 1000W Platinum wields cooling and component upgrades that make it the quietest PSU in its class. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we’ve added a mirrored side panel that neatly frames the OLED display.
ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design
A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
Dual Ball Fan Bearings
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
OLED Power Display
The built-in OLED panel makes it easy to tune your system for best performance and efficiency.
Aura Sync
Customize the Aura ROG logo and/or add RGB lighting strips to accent your showcase build.
Sleeved Cables
A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.
PCIe Gen 5.0 Ready
Each ROG Thor 1000W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
10-year Warranty
The ROG Thor 1000W Platinum II is backed with a 10-year warranty.
Specification:
Model name | ROG-THOR-1000P2-GAMING | |
Intel Specification | ATX 12V | |
Efficiency | 80 Plus Platinum | |
Protection Features | OPP/OVP/UVP/SCP/OCP/OTP | |
Hazardous Materials | ROHS | |
AC Input Range | 100-240Vac | |
Thermal Features | ROG Thermal Solution | |
DC Output Voltage | +3.3V | +5V | +12V | -12V | +5Vsb | |
Maximum Load | 25A | 25A | 83A | 0.3A | 3A | |
Combined Load | 125W | 996W | 3.6W | 15W | |
Total Output | 1000W | |

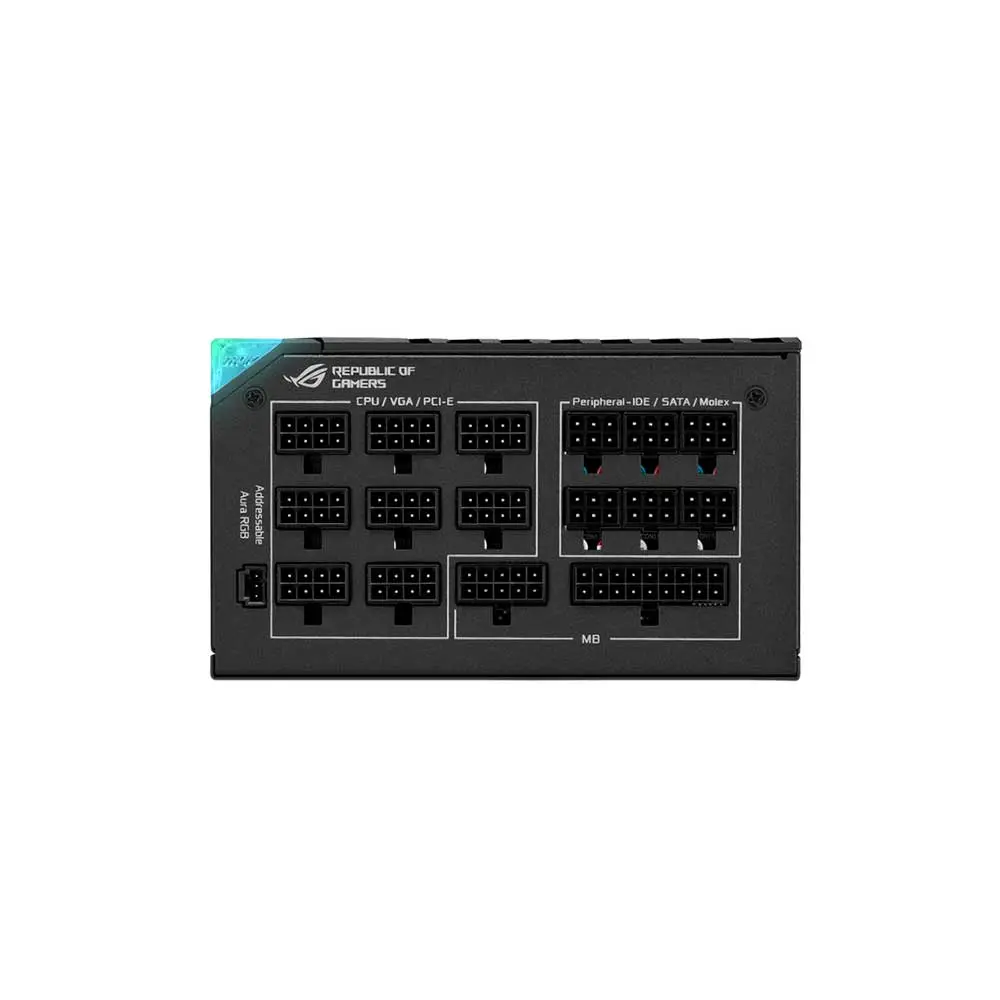

Connectors | MB 24/20-pin x 1 | |
CPU 4+4-pin x 2 | ||
PCI-E 6+2-pin x 8 | ||
SATA x 12 | ||
Peripheral x 6 | ||

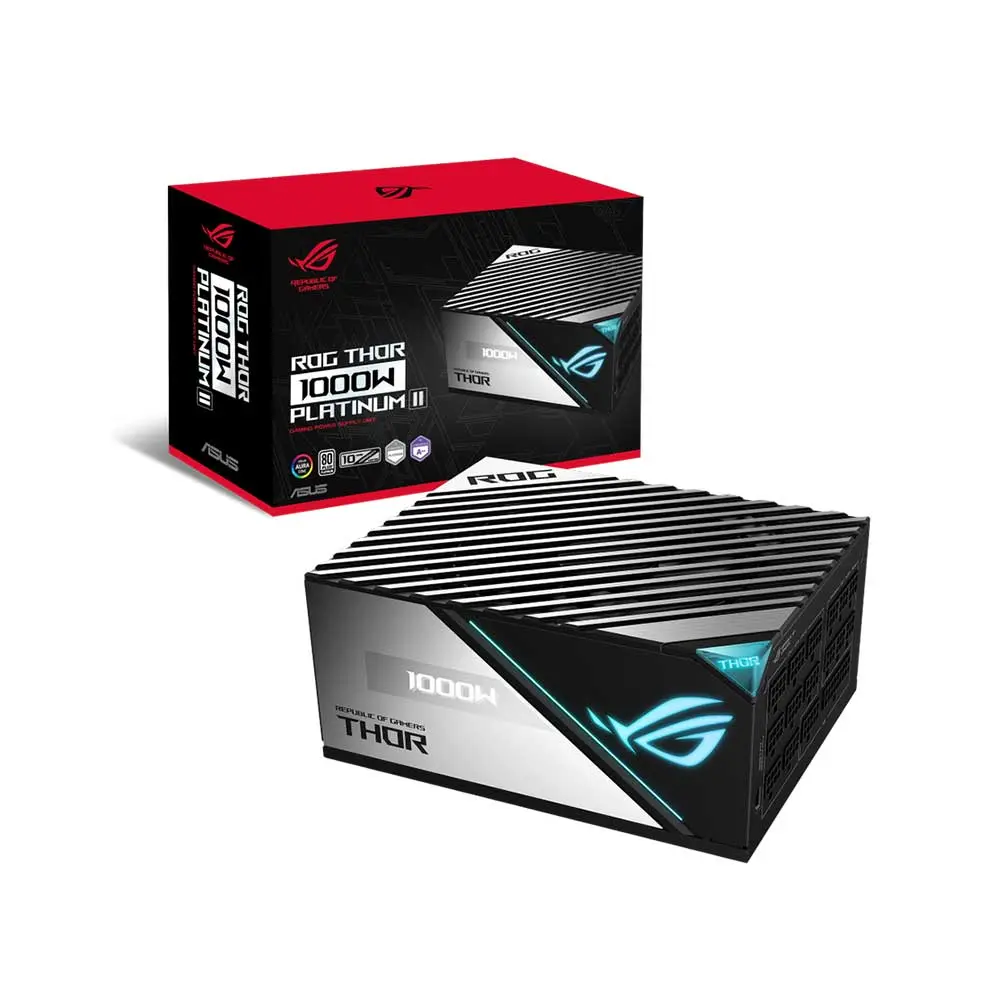

Package Contents | Power Cord x 1 | ROG Sticker x 1 |
(Cable + Accessory) | Motherboard Power Cable x 1 | ROG Cable Tie x 6 |
CPU Cable x 2 | Cable Combs (6-pin) x 4 | |
PCI-E Cable 1-to-1 x 4 | Cable Combs (8-pin) x 10 | |
PCI-E Cable 1-to-2 x 2 | Cable Combs (24-pin) x 2 | |
SATA Cable 1-to-4 x 3 | Chassis Screws Package x 1 | |
Peripheral 1-to-3 x 2 | Cable Tie x 12 | |
Addressable RGB Cable x 1 | User Manual x 1 | |
Dimension | ||
PSU Size (mm) | 190 x 150x 86 mm | |
Color Box (mm) | 378 x 240 x 130 mm | |
Weight | ||
Single PSU (KG) | 2.37KG | |
Product Weight (KG) | 4.78KG | |
Warranty | 10 Years | |
Note** | **Prices, Specifications & Features are subject to change without notice |
