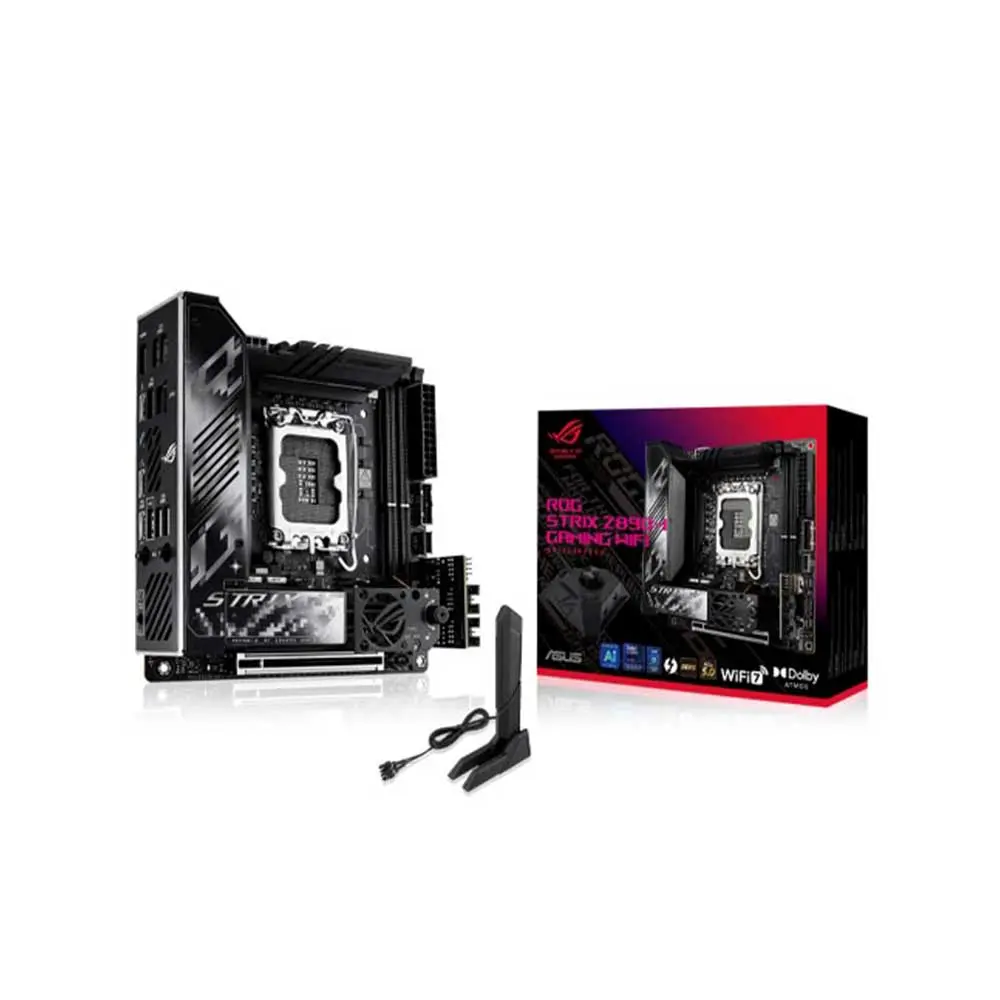

Asus Rog Strix Z890-I Gaming WiFi LGA1851 Mini-ITX Motherboard
The Asus ROG Strix Z890-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. With the addition of the HIVE II and FPS card, this motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
Specification :
Model | ROG STRIX Z890-I GAMING WIFI |
CPU | Support Intel® Core™ Ultra Processors |
(Series 2)* | |
Supports Intel® Turbo Boost Technology 2.0 | |
and Intel® Turbo Boost Max Technology 3.0** | |
* Refer to | |
https://www.asus.com/support/download-center/ for CPU support list. | |
** Intel® Turbo Boost Max Technology 3.0 | |
support depends on the CPU types. | |
Chipset | Intel® Z890 Chipset |
Memory | 2 x DIMM slots, max. 96GB, DDR5 |
Support up to 8800+MT/s (OC), Non-ECC, | |
Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* | |
Dual channel memory architecture | |
DIMM Fit | |
Supports Intel® Extreme Memory Profile | |
(XMP) memory module | |
Supports DIMM Flex | |
ASUS Enhanced Memory Profile III (AEMP III) | |
* Supported memory types, data rate | |
(speed), and number of DRAM modules vary depending on the CPU and memory | |
configuration, for more information please refer to CPU/Memory Support list | |
under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
* Non-ECC, un-buffered DDR5 memory supports | |
On-Die ECC function. | |
Graphics | 1 x HDMI™ port** |
2 x Intel® Thunderbolt™ 4 ports (USB | |
Type-C®) support DisplayPort and Thunderbolt™ video outputs*** | |
* Graphics specifications may vary between | |
CPU types. Please refer to www.intel.com for any updates. | |
** Supports 4K@60Hz as specified in HDMI | |
2.1. | |
*** In Thunderbolt™ 4 mode, supports up to | |
8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or | |
16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP | |
alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. | |
**** VGA resolution support depends on | |
processors’ or graphic cards’ resolution. | |
***** While installing the operating | |
system, please ensure that your monitor is connected to the HDMI port on the | |
back I/O panel or to a discrete graphics card. | |
Expansion Slots | Intel® Core™ Ultra Processors(Series 2)* |
1 x PCIe 5.0 x16 slot (supports x16 mode) | |
* Please check the PCIe bifurcation table | |
on the support site (https://www.asus.com/support/FAQ/1037507/). | |
To ensure compatibility of the device | |
installed, please refer to https://www.asus.com/support/download-center/ for | |
the list of supported peripherals. | |
Storage | |
Total Supports 2 x M.2 slots and 2 x SATA | |
6Gb/s ports* | |
Intel® Core™ Ultra Processors(Series 2)** | |
M.2_1 slot (Key M), type | |
2230/2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
M.2_2 slot (Key M), type | |
2230/2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
2 x SATA 6Gb/s ports*** | |
* Intel® Rapid Storage Technology supports | |
PCIe RAID 0/1, SATA RAID 0/1. | |
** M.2_2 slot shares bandwidth with | |
PCIEX16(G5). When M.2_2 slot is occupied with SSD device, PCIEX16(G5) will run | |
x8 only. | |
*** Install ROG FPS Card to support 2 x | |
SATA 6Gb/s ports. | |
Ethernet | 1 x Intel® 2.5Gb Ethernet |
ASUS LANGuard | |
Wireless & Bluetooth | Wi-Fi 7* |
2×2 Wi-Fi 7 (802.11be) | |
Supports 2.4/5/6GHz frequency band** | |
Supports Wi-Fi 7 320MHz bandwidth, up to | |
5.8Gbps transfer rate. | |
Bluetooth® v5.4*** | |
*Wi-Fi features may vary depending on the | |
operating system | |
For | |
Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, | |
Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. | |
For | |
Windows 10, only Wi-Fi 6 is supported. | |
** Wi-Fi 6GHz frequency band and bandwidth | |
regulatory may vary between countries. | |
*** The Bluetooth® version may vary, please | |
refer to the Wi-Fi module manufacturer’s website for the latest specifications. | |
USB | Rear USB (Total 9 ports) |
2 x Thunderbolt™ 4 (2 x USB Type-C®) | |
1 x USB 20Gbps port (1 x USB Type-C®) | |
3 x USB 10Gbps ports (3 x Type-A) | |
1 x USB 5Gbps port (1 x Type-A) | |
2 x USB 2.0 ports (2 x Type-A) | |
Front USB (Total 3 ports) | |
1 x USB 20Gbps connector (supports USB | |
Type-C®) | |
1 x USB 5Gbps header supports 2 additional | |
USB 5Gbps ports | |
ROG STRIX HIVE II (Total 2 ports) | |
2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x | |
Type-A) | |
ROG FPS Card (Total 3 ports) | |
2 x USB 2.0 headers support additional 3 | |
USB 2.0 ports | |
* USB Type-C® power delivery output: max. | |
5V/3A | |
Audio | ROG Strix Hive II Audio Features |
ROG Hyper-Grounding Technology | |
ESS® SABRE9260Q DAC | |
Silver-plated audio jacks | |
Dedicated audio PCB layers | |
* All audio functions on ROG STRIX Z890-I | |
GAMING WIFI are supported through the ROG STRIX HIVE II. | |
Back Panel I/O Ports | 2 x Thunderbolt™ 4 (2 x USB Type-C®) |
1 x USB 20Gbps port (1 x USB Type-C®) | |
3 x USB 10Gbps ports (3 x Type-A) | |
1 x USB 5Gbps port (1 x Type-A) | |
2 x USB 2.0 ports (2 x Type-A) | |
1 x HDMI™ port | |
1 x Wi-Fi module | |
1 x Intel® 2.5Gb Ethernet port | |
1 x BIOS FlashBack™ button | |
Internal I/O Connectors | Fan and Cooling Related |
1 x 4-pin CPU Fan header | |
1 x 4-pin AIO Pump header | |
1 x 4-pin Chassis Fan header | |
1 x Extra Flow Fan header | |
Power Related | |
1 x 24-pin Main Power connector | |
1 x 8-pin +12V CPU Power connector | |
Storage Related | |
2 x M.2 slots (Key M) | |
USB | |
1 x USB 20Gbps connector (supports USB | |
Type-C®) | |
1 x USB 5Gbps header supports 2 additional | |
USB 5Gbps ports | |
Miscellaneous | |
2 x Addressable Gen 2 headers | |
1 x 2-pin Power Button header | |
1 x Thermal Sensor header | |
2 x USB Type-C® connectors to install ROG | |
FPS card | |
ROG FPS card | |
2 x SATA 6Gb/s ports | |
1 x CPU Over Voltage jumper | |
1 x Clear CMOS header | |
1 x Front Panel header | |
1 x Alteration PCIe Mode switch | |
2 x USB 2.0 headers support 3 additional | |
USB 2.0 ports | |
Special Features | Extreme Engine Digi+ |
5K Black metallic capacitors | |
ASUS Q-Design | |
M.2 Q-Release Duo | |
PCIe Slot Q-Release Slim (with PCIe | |
SafeSlot) | |
Q-Antenna | |
Q-Dashboard | |
Q-DIMM | |
Q-Slot | |
ASUS Thermal Solution | |
M.2 heatsink backplate | |
M.2 heatsink | |
VRM heatsink design | |
Fan bracket | |
ASUS EZ DIY | |
BIOS FlashBack™ button | |
BIOS FlashBack™ LED | |
CPU Socket lever protector | |
ProCool II | |
Pre-mounted I/O shield | |
SafeDIMM | |
Backplate | |
Aura Sync | |
Addressable Gen 2 headers | |
ROG STRIX HIVE II | |
1 x USB Type-C® connects to motherboard | |
2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x | |
Type-A) | |
1 x Headphone jack with mic in | |
1 x FlexKey button | |
1 x Power button | |
1 x Volume control knob with mute button | |
Q-LED (CPU [red], DRAM [yellow], VGA | |
[white], Boot Device [yellow green]) | |
Software Features | ROG Exclusive Software |
ROG CPU-Z | |
Dolby Atmos | |
ASUS Exclusive Software | |
Armoury Crate | |
Aura Creator | |
Aura Sync | |
Fan Xpert 4 (with AI Cooling II) | |
GameFirst | |
Power Saving | |
HWiNFO | |
AIDA64 Extreme (60 days free trial) | |
ASUS AI Advisor | |
ASUS Driver Hub | |
ASUS GlideX | |
Adobe Creative Cloud (Free Trial) | |
Norton 360 for Gamers (60 Days Free Trial) | |
WinRAR (40 Days Free Trial) | |
UEFI BIOS | |
AI Overclocking Guide | |
ASUS EZ DIY | |
ASUS CrashFree BIOS 3 | |
ASUS EZ Flash | |
ASUS UEFI BIOS EZ Mode | |
ASUS MyHotkey | |
NPU Boost | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | |
Cables | |
1 x ROG USB2.0 splitter cable | |
2 x SATA 6Gb/s cables | |
1 x Panel Cable | |
ROG FPS Card | |
1 x ROG FPS Card | |
ROG STRIX HIVE II | |
1 x ROG STRIX HIVE II | |
1 x USB Type-C® power connection cable | |
Miscellaneous | |
1 x ASUS WiFi Q-Antenna | |
1 x Cable ties package | |
1 x ROG key chain | |
1 x ROG Strix stickers | |
Documentation | |
1 x Quick start guide | |
Operating System | Windows 11 (22H2 later) |
Form Factor | Mini-ITX Form Factor |
6.7 inch x 6.7 inch (17 cm x 17 cm) | |
Warranty | 3 Years |
Note** | **Prices, Specifications & Features are subject to change without notice. |
