28,700.00

SKU: ROG-STRIX-Z490-I-GAMING Categories: ,

Description

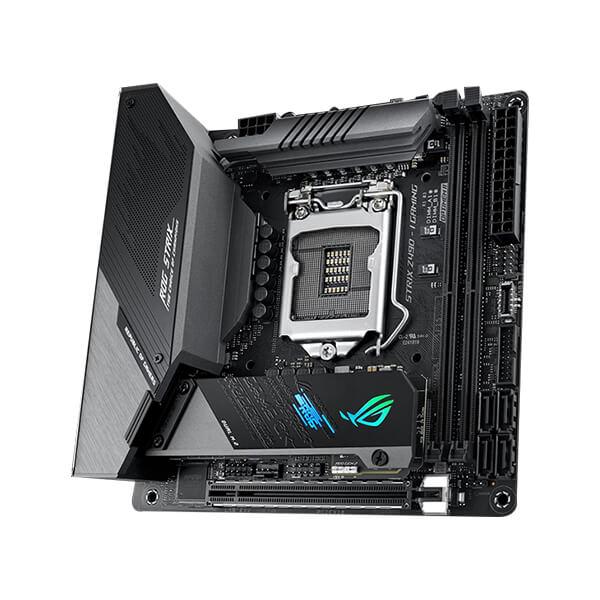

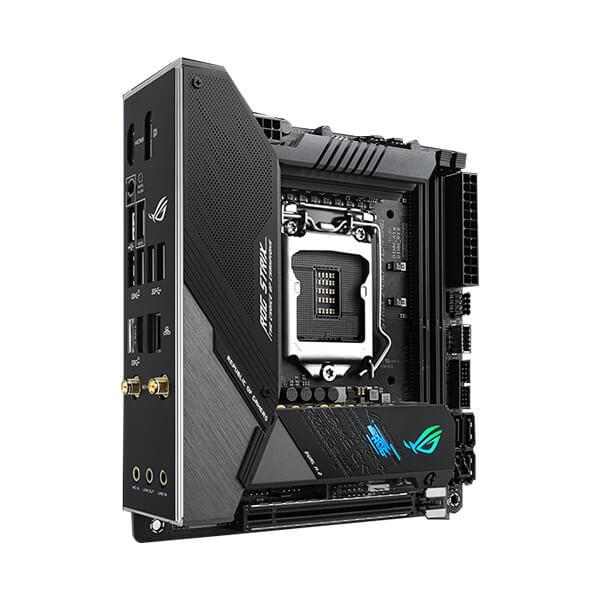

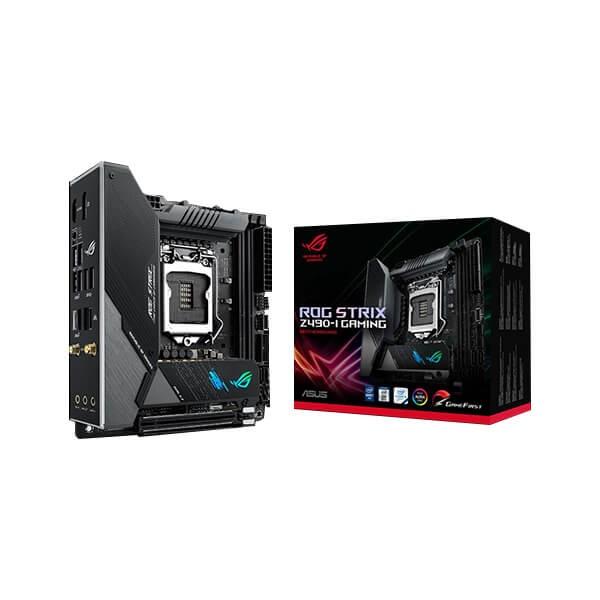

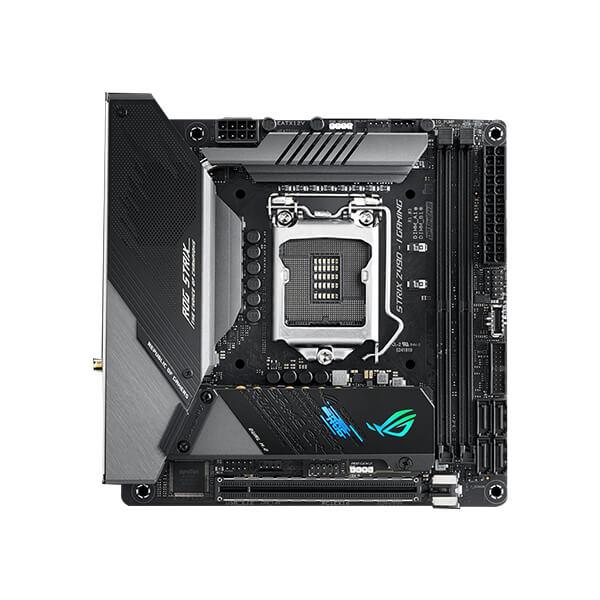

ASUS ROG STRIX Z490-I GAMING (Wi-Fi) MOTHERBOARD (ROG-STRIX-Z490-I-GAMING)

Features

Any mini-ITX build with ROG Strix Z490-I Gaming motherboard as its backbone is going to punch well above its weight. With boosted power delivery, innovative active cooling design, plus the all new Triple-decker Heatsink, ROG Strix Z490-I Gaming is the perfect compact platform for the latest Intel® Core™ processors.

All-round Performance

ROG Strix Z490-I Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls lets you manage overclocking, cooling and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance.

DDR4 OC4800MHz

ROG Strix Z490-I Gaming supports up to 64GB DDR4 memory across two slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk to enhance memory stability and compatibility, giving memory kits higher frequency margins.

Double-capacityDIMM support

ROG Strix Z490-I Gaming has a unique memory-trace design that supports up to 32 GB per DIMM slot to give you a total memory capacity of 64 GB. With double‑capacity DDR4 DIMM modules, the compact ROG Strix Z490-I matches the memory capacity of four-DIMM motherboard designs.

DualPCIe 3.0 M.2

Two M.2 slots are available, with both supporting SATA and PCIe 3.0 x4 modes. Together, they give you the fastest and most-flexible M.2 interface available.

Specifications

CPU Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z490
Memory 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000/2933/2800(O.C.)/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 2.0a
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Expansion Slots Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode) *1
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Wireless Data Network Intel® Wi-Fi 6 AX201
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports CNVI interface
Bluetooth Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/192kHz playback *
LED-illuminated audio jacks
Audio Feature :
– Audio Shielding
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports Rear USB Port ( Total 8 )
4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 5 )
1 x USB 3.2 Gen 2 front panel connector port(s)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Software Features ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– 5-Way Optimization with AI Overclocking
TPU
EPU
Digi+ VRM
Xpert 4
Turbo app
– EZ update
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
ASUS Special Features ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [green])
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Procool II
– Pre- mounted I/O shield
– SafeSlot
AURA Sync
– Standard RGB header
– Addressable Gen 2 RGB header
Back I/O Ports 1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack)
1 x USB BIOS FlashBack Button(s)
1 x ASUS Wi-Fi Module
3 x LED-illuminated audio jacks
Internal I/O Ports 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Aura RGB Strip Header
1 x Addressable Gen 2 header(s)
1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x Thermal sensor connector
1 x USB 3.2 Gen 2 front panel connector
1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Accessories User’s manual
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x CABLE TIE BLACK
1 x ROG Strix stickers
1 x Extension cable for Addressable LED
1 x Panel cable
1 x ROG Thank you card
1 x Wi-Fi moving antenna
1 ROG key chain
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows® 10 64-bit
Form Factor Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Warranty 3 Years
Note *1 Support PCIe bifurcation for RAID on CPU function.
*2 When the M.2_2 Socket is operating in SATA mode, SATA port 2 will be disabled.

***Features, Price and Specifications are subject to change without notice.
