Description

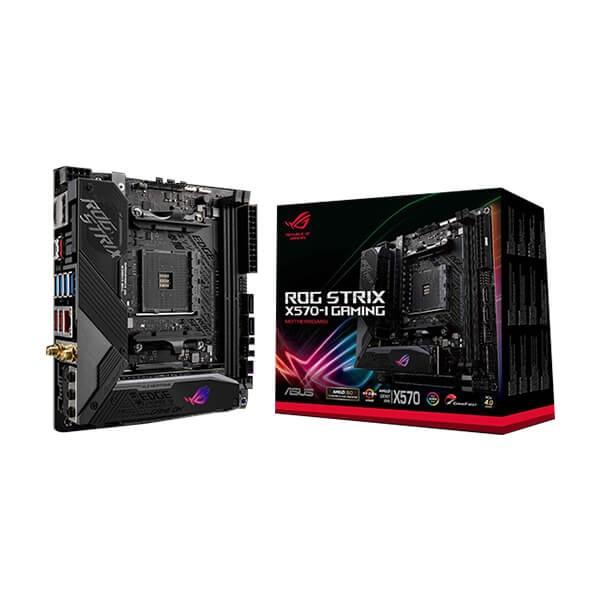

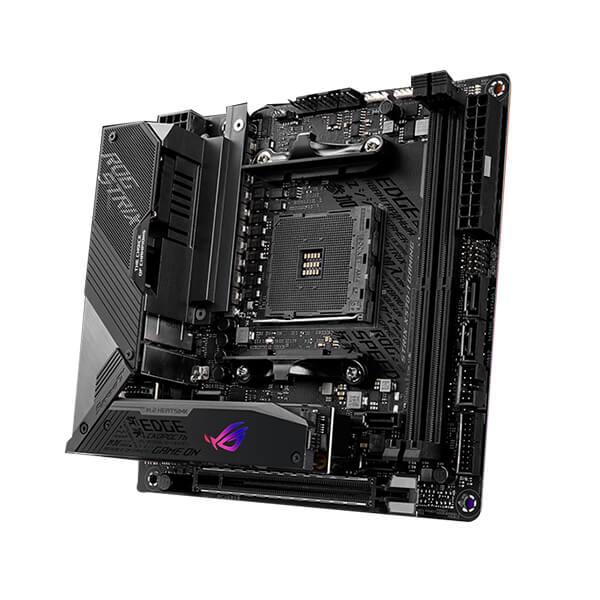

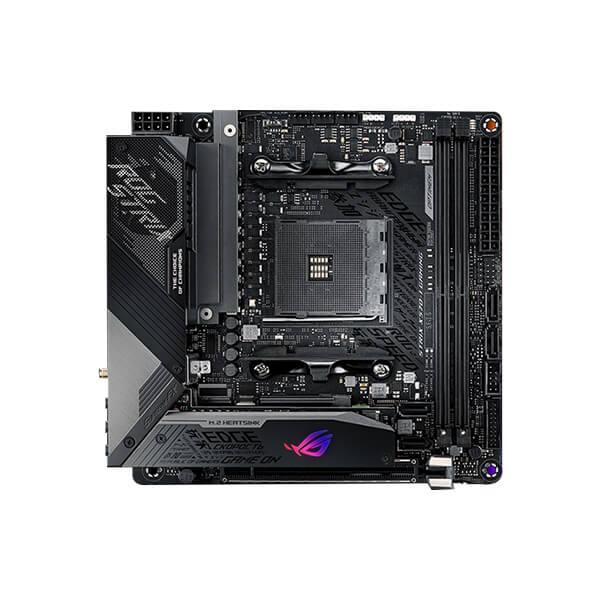

ASUS ROG STRIX X570-I GAMING (Wi-Fi) MOTHERBOARD

Features

AMD X570 mini-ITX Gaming motherboard with PCIe 4.0, Aura Sync RGB, Intel Gigabit Ethernet, Wi-Fi 6 (802.11ax), M.2 Audio Combo Card, HDMI 2.0, DisplayPort 1.4, SATA 6Gb/s, and USB 3.2 Gen2.

  • AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen 2 and AMD StoreMI
  • Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB header and addressable Gen 2 header
  • Optimal Power Solution: 8+2 power stages with a ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
  • Comprehensive cooling design: VRM and chipset heatsinks add mass to help absorb more heat and feature miniature fans, an embedded chipset heatpipe, an M.2 heatsink and an aluminum backplate with cyber-text pattern
  • Gaming connectivity: Supports PCIe 4.0, HDMI 2.0 and DisplayPort 1.4 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
  • Gaming networking: Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO support, and gateway teaming via GameFirst V
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles tailor made for your rig
  • Gaming audio: High-fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
  • Gamer’s Guardian: ASUS SafeSlot and premium components for maximum endurance

Specifications

CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
* Refer to www.asus.com for CPU support list
Chipset AMD X570
Memory 3rd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
2nd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
– Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
– Support DisplayPort 1.4 with max. resolution 8 K 7680 × 4320 @60 Hz
Expansion Slots 3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
Storage 3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN Intel® I211-AT
Anti-surge LANGuard
ROG GameFirst Technology
Wireless Data Network Supports channel bandwidth: HT20/HT40/HT80/HT160
Intel® Wi-Fi 6 AX200
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed
Bluetooth Bluetooth® 5.0
Audio SupremeFX 8-Channel High Definition Audio CODEC S1220A
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/192kHz playback *2
Audio Feature :
– DTS® Sound Unbound
– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
– Sonic Radar III
– Sonic Studio III + Sonic Studio Virtual Mixer
USB Ports 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s) (3 x Type-A+1 x Type-C)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
2 x USB 2.0 port(s)
ROG Exclusive Features ROG Exclusive Software
– RAMCache III
– CPU-Z
– GameFirst V
– Sonic Radar III
– Sonic Studio III + Sonic Studio Virtual Mixer
Special Features 5-Way Optimization by Dual Intelligent Processors 5
– Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
– Auto Tuning, TurboV, GPU Boost
ASUS EPU :
– EPU
AURA :
– Aura Lighting Control
– Addressable Gen 2 Header
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
ASUS Q-Design :
– ASUS Q-Shield
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Slot
– ASUS Q-DIMM
Back I/O Ports 1 x DisplayPort
1 x HDMI
1 x ASUS Wi-Fi Module
3 x LED-illuminated audio jacks
4 x USB 3.2 Gen 1 (blue)
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Anti-surge LAN (RJ45) port
Internal I/O Ports 1 x HS_FAN
1 x PCH_FAN
1 x AAFP connector
1 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x T_Sensor Connector
1 x Speaker connector
Accessories User’s manual
I/O Shield
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x M.2 bracket
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension cable for Addressable LED
1 x AAFP Extension Cable
1 x Panel cable
1 x ROG Thank you card
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
Manageability WOL, PXE
Operating System Windows® 10 64-bit
Form Factor Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Warranty 3 Years
Note *1 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.***Features, Price and Specifications are subject to change without notice.
