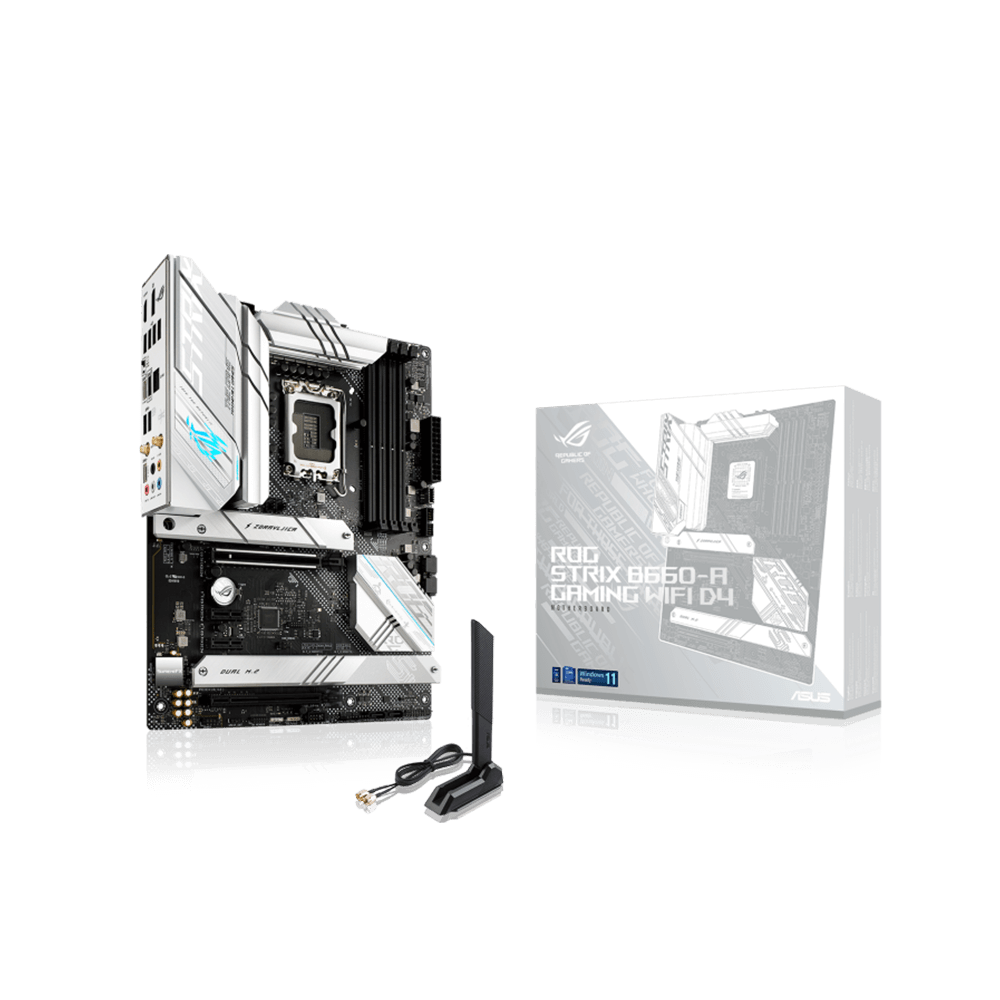

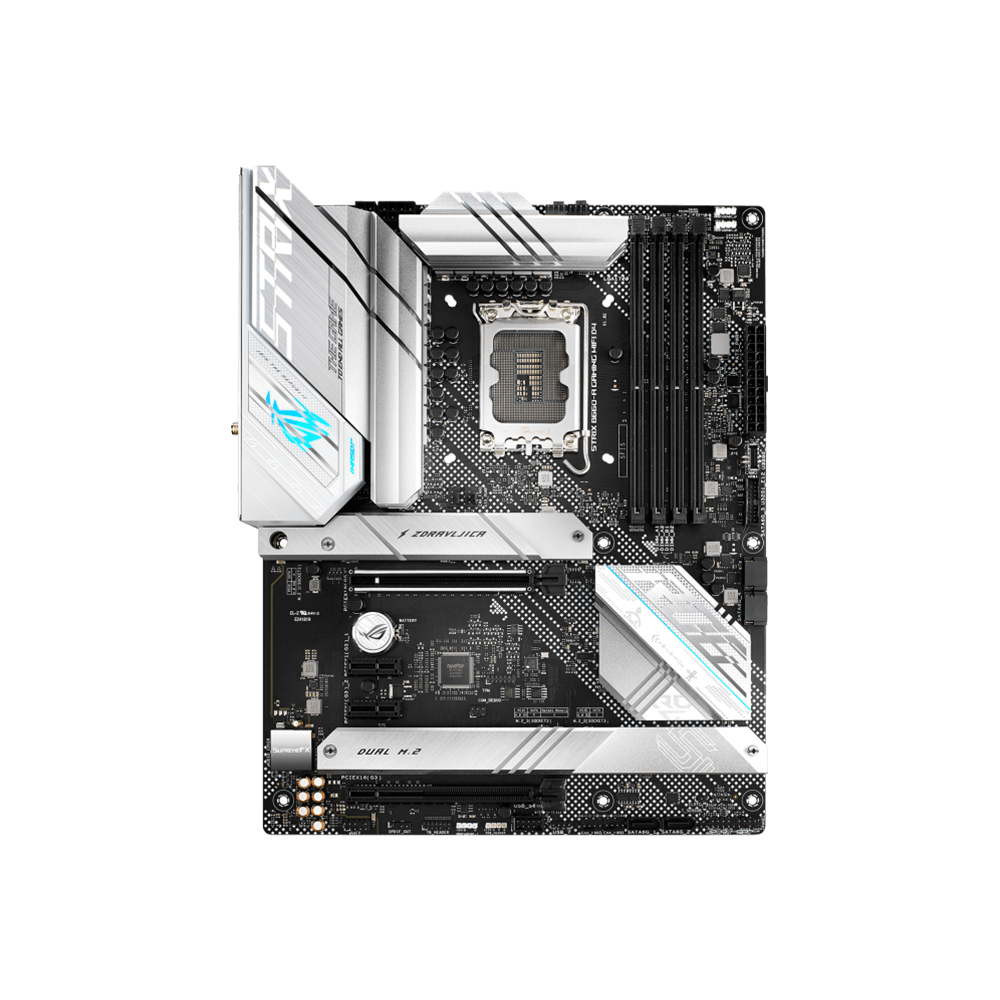

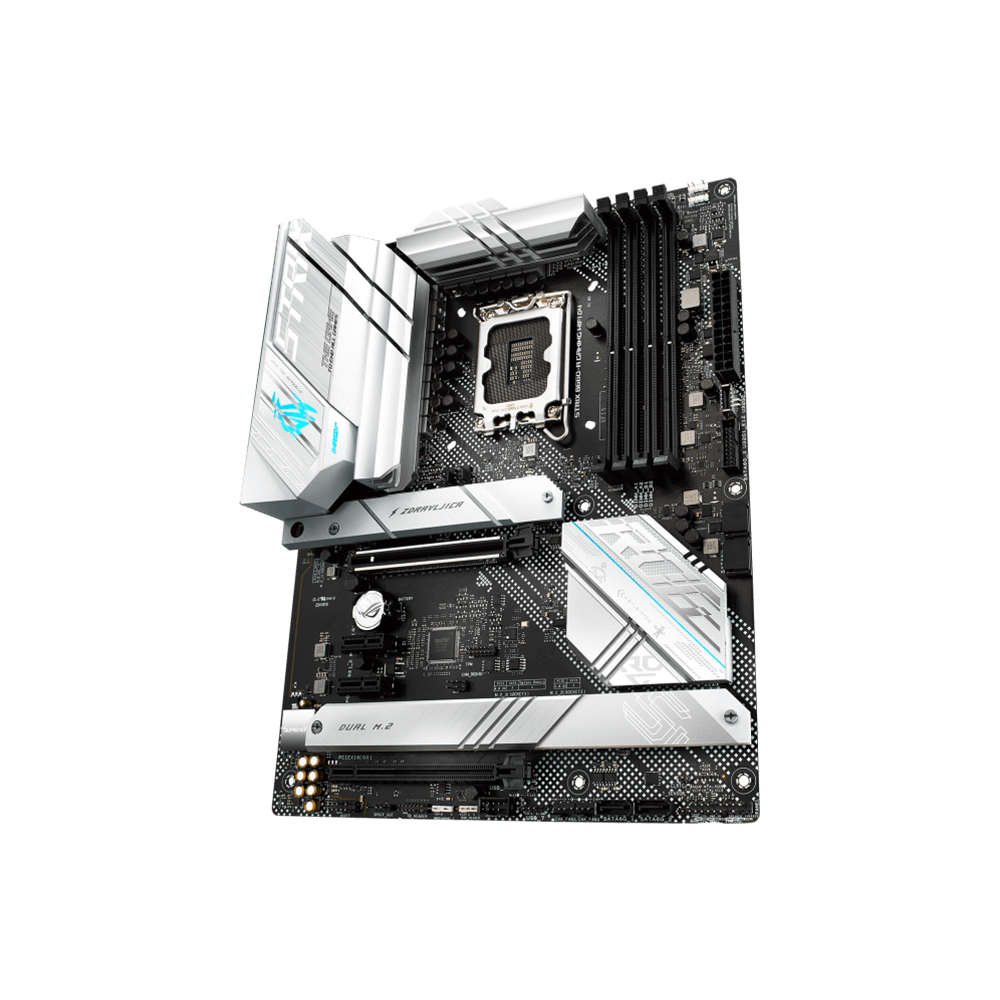

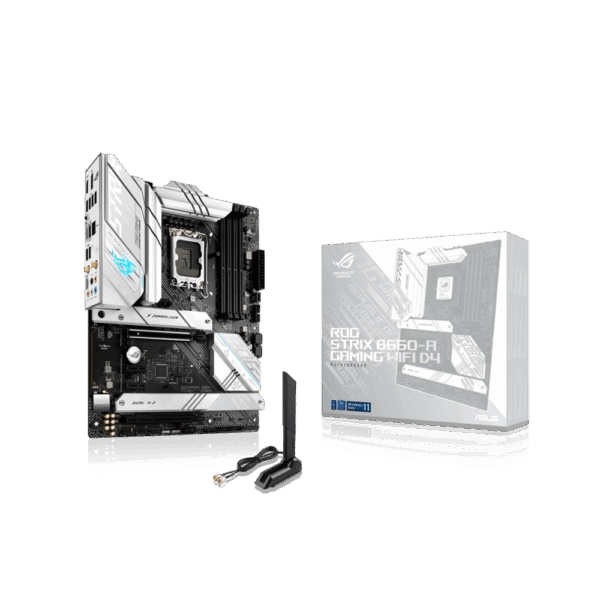

Asus Rog Strix B660-A Gaming Wifi D4 Lga1700 Atx Motherboard

Model No : ROG STRIX B660-A GAMING WIFI D4

22,800.00

Inclusive of all taxes

all india shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Out of stock

Description

ASUS ROG STRIX B660-A GAMING WIFI D4 LGA1700 ATX MOTHERBOARD

Intel® B660 LGA 1700 ATX motherboard with PCIe® 5.0, 12+1 power stages, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots with heatsinks, USB 3.2 Gen 2×2 Type-C®, SATA and Aura Sync RGB lighting

  • Intel® LGA 1700 Socket: Ready for 12th Gen Intel Core, Pentium® Gold and Celeron® processors
  • Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Optimized Thermal Design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
  • High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2×2 Type-C®
  • Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button and Q-LED
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
  • Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
  • Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard
CPU Intel® Socket LGA1700 for 12th Gen Intel®Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset Intel® B660 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture
OptiMem II
*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics 1 x DisplayPort**1 x HDMI® port***

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Support 4K@60Hz as specified in DisplayPort 1.4.

***Support 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors’ or graphic cards’ resolution.

Expansion Slots Intel® 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot(s)*

Intel® B660 Chipset**

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots

* Please check PCIe bifurcation table in User Guide Chapter 1 // support site.

** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

– Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® B660 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports***

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet 1 x Intel® 2.5Gb EthernetASUS LANGuard
Wireless & Bluetooth Wi-Fi 6

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

USB Rear USB (Total 9 ports)

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports

Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080- Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback

Audio Features

– SupremeFX Shielding Technology

– Savitech SV3H712 AMP

– Premium audio capacitors

– Audio cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

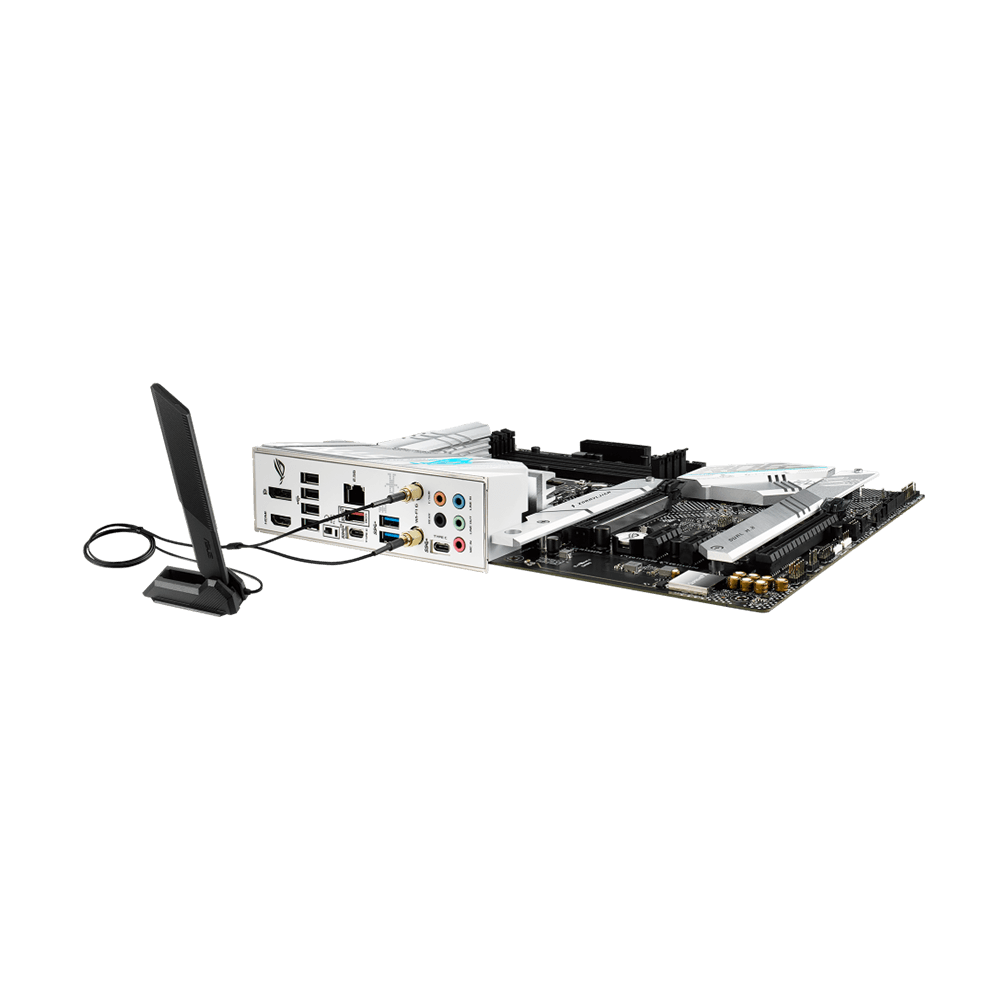

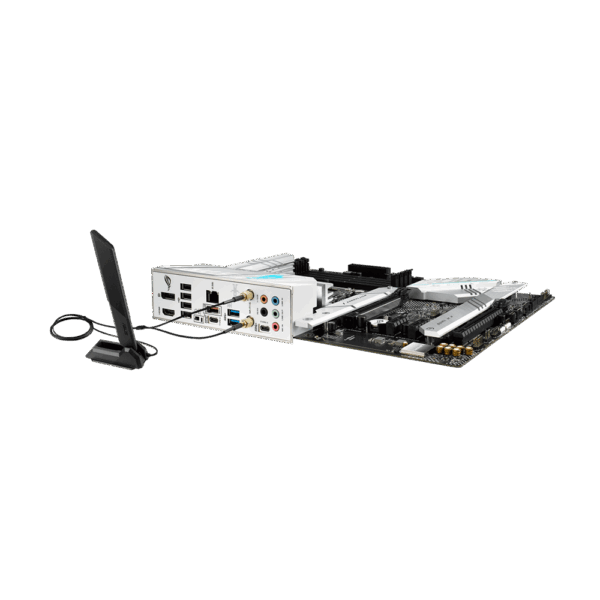

Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

Internal I/O Connectors Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

Special Features Extreme Engine Digi+

-5K Black Metallic Capacitors

ASUS Q-Design

– M.2 Q-Latch

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– CPU Socket lever protector

– Pre-mounted I/O shield

– SafeSlot

– SafeDIMM

AURA Sync

– AURA RGB header(s)

– Addressable Gen 2 header(s)

Software Features ROG Exclusive Software

– GameFirst VI

– ROG CPU-Z

– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

– Sonic Radar III

– DTS® Sound Unbound

– Anti-virus software

ASUS Exclusive Software

Armoury Crate

– AIDA64 Extreme (60 days free trial)

– AURA Creator

– AURA Sync

– Fan Xpert 4

– Two-Way AI Noise Cancelation

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Turbo app

MyAsus

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

BIOS 192 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

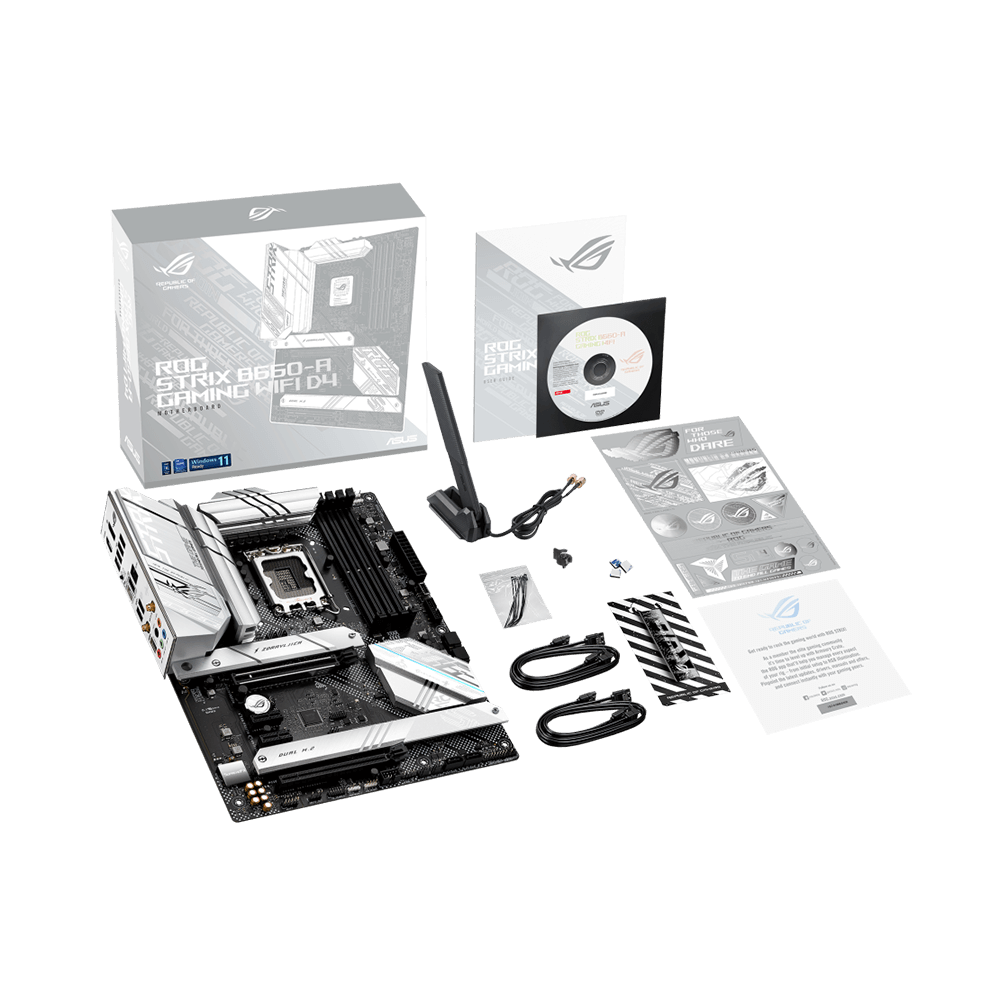

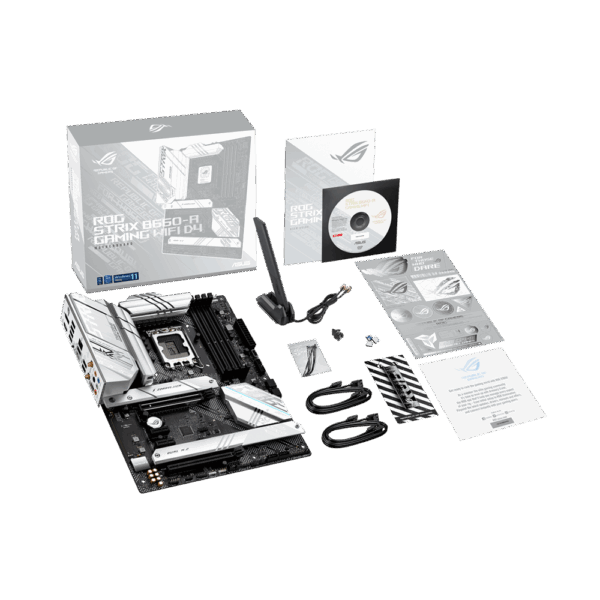

Accessories Cables

4 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Rubber Package(s)

1 x M.2 Q-Latch package(s)

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

Installation Media

1 x Support DVD

Documentation

1 x User guide

Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty 3 Years
Note** **Prices, Features & Specifications are subject to change without notice
