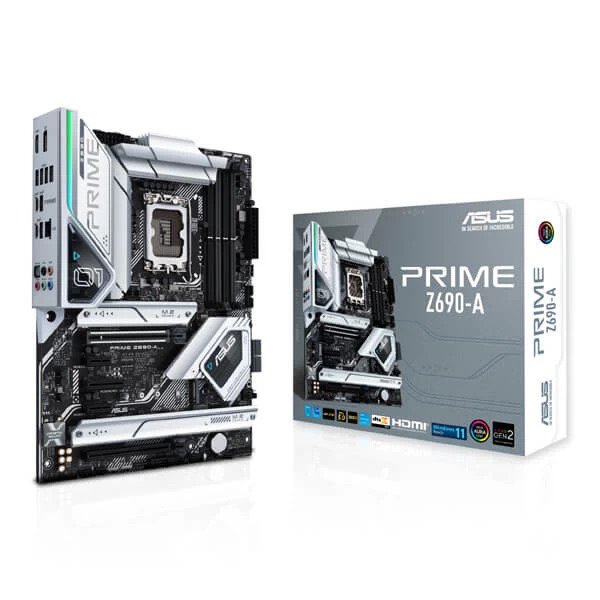

ASUS PRIME Z690-A INTEL LGA1700 ATX MOTHERBOARD (PRIME-Z690-A)

24,600.00

Inclusive of all taxes

Model :

PRIME Z690-A

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

ASUS PRIME Z690-A INTEL LGA1700 ATX MOTHERBOARD (PRIME-Z690-A)

Features:

  • Intel® LGA 1700 socket: Ready for 12th Gen Intel processors

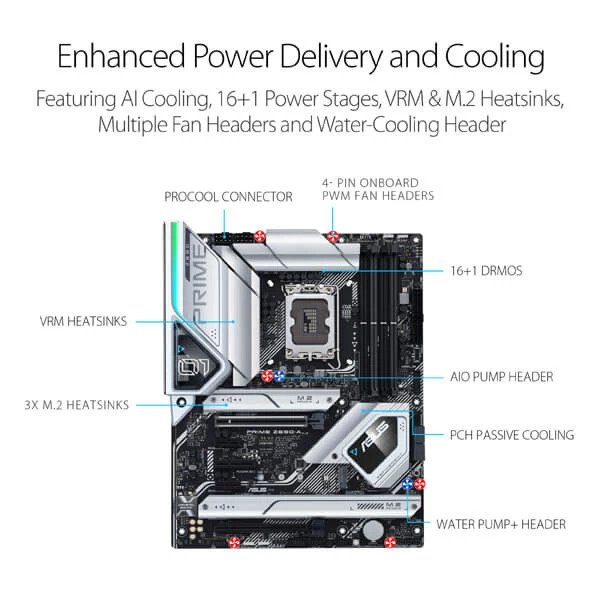

  • Enhanced power solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
  • AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
  • Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
  • Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 header support, 4 PCIe® 4.0 M.2

Specifications:

CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset Z690

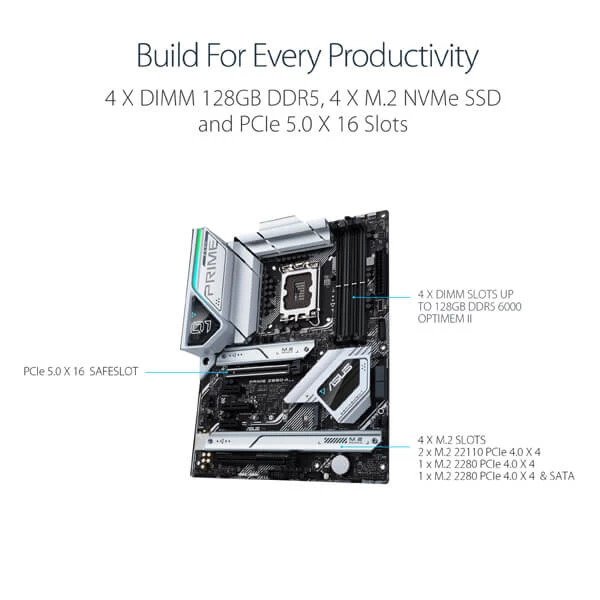

Memory 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics 1 x DisplayPort**

1 x HDMI® port***

* Graphics specifications may vary between CPU types.

** Supports max. [email protected] as specified in DisplayPort 1.4.

*** Supports [email protected] as specified in HDMI 2.1.

Expansion Slots Intel®12th Gen Processors*

1 x PCIe 5.0/4.0/3.0 x16 slot(s)

Intel® Z690 Chipset**

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x4 slot

2 x PCIe 3.0 x1 slots

* Please check PCIe bifurcation table in support site.

** Supports Intel® Optane Memory H Series on PCH-attached PCIE slot.

Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel®12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

– Intel®12th Gen processors support PCIe 4.0 x4 mode.

Intel® Z690 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Ethernet 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
USB Rear USB:Total 8 ports

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

Front USB:Total 7 ports

1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

– Impedance sense for front and rear headphone outputs

– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

– Supports up to 32-Bit/192 kHz playback*

Audio Features

– Audio Shielding

– Power pre-regulator reduces power input noise to ensure consistent performance

– Rear optical S/PDIF out port

– Premium audio capacitors

– Dedicated audio PCB layers

– Audio cover

– Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

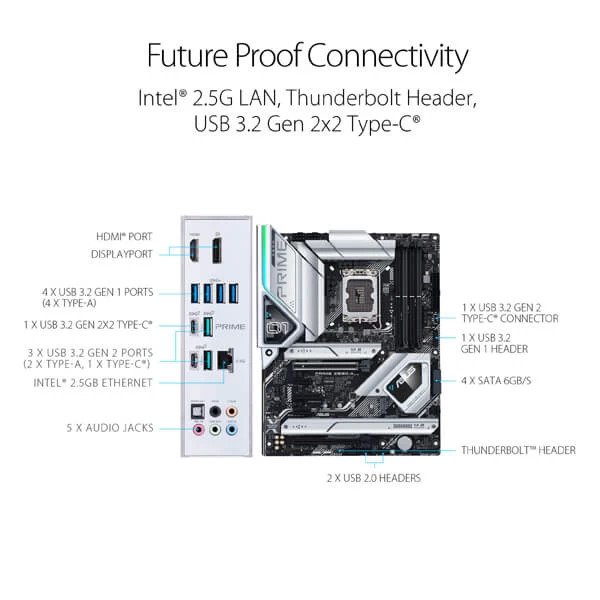

Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C® )

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

Intrernal I/O Connectors Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

1 x W_PUMP+ header(s)

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

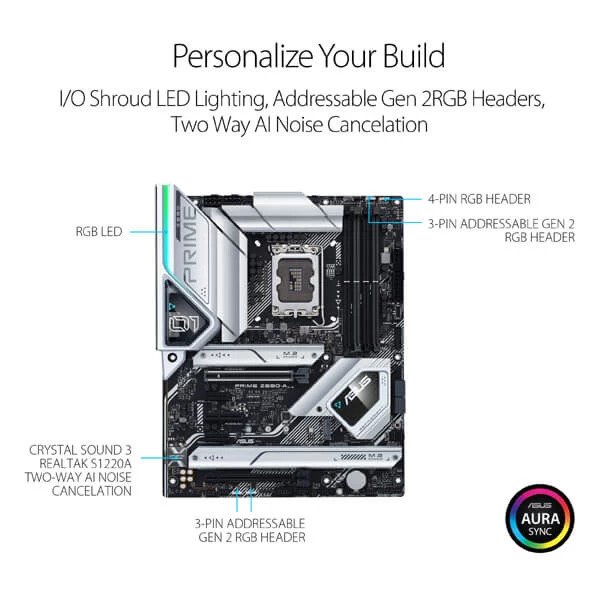

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS button

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Power button

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

Special Features ASUS 5X PROTECTION III

– DIGI+ VRM (- Digital power design with DrMOS)

– Enhanced DRAM Overcurrent Protection

– ESD Guards

– LANGuard

– Overvoltage Protection

– SafeSlot

– Stainless-Steel Back I/O

ASUS Q-Design

– M.2 Q-Latch

– Q-Connector

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink backplate

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– Box headers

– Clear CMOS button

– CPU socket lever protector

– ProCool

– Pre-mounted I/O shield

AURA Sync

– AURA RGB header(s)

– Addressable Gen 2 header(s)

Software Features ASUS Exclusive Software

Armoury Crate

– AURA Creator

– AURA Sync

– Fan Xpert 4

– Two-Way AI Noise Cancelation

AI Suite 3

-Easy Optimization with AI Overclocking

TPU

EPU

DIGI+ VRM

Turbo app

ASUS CPU-Z

DTS:X® Ultra

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

FlexKey

MemTest86

BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

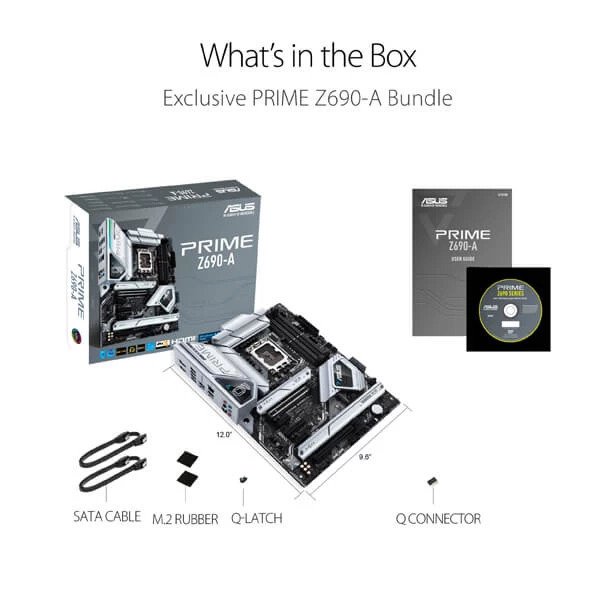

Accessories Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x M.2 Rubber Package(s)

1 x Q-connector

1 x M.2 Q-Latch package(s)

Installation Media

1 x Support DVD

Documentation

1 x User guide

Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor ATX
30.5cm x 24.4cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
