No Payment Gateway Charges

16,600.00

SKU: PRIME-Z490M-PLUS Categories: ,

Description

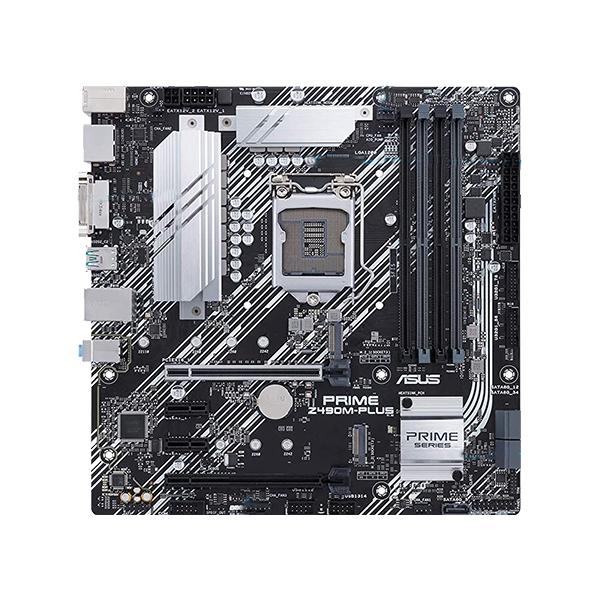

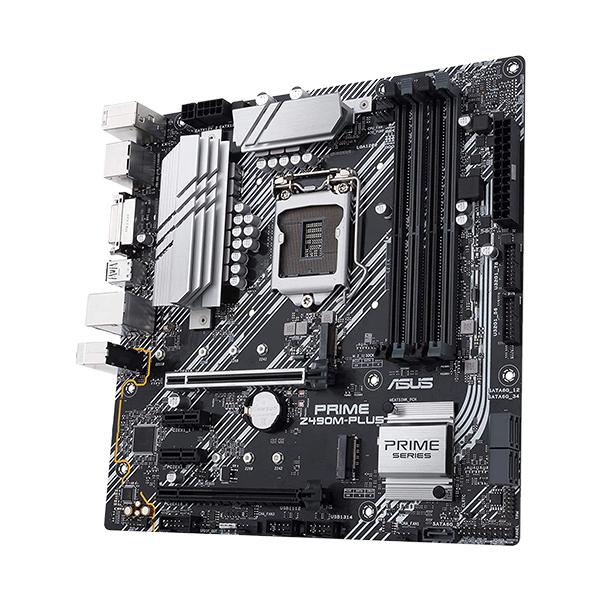

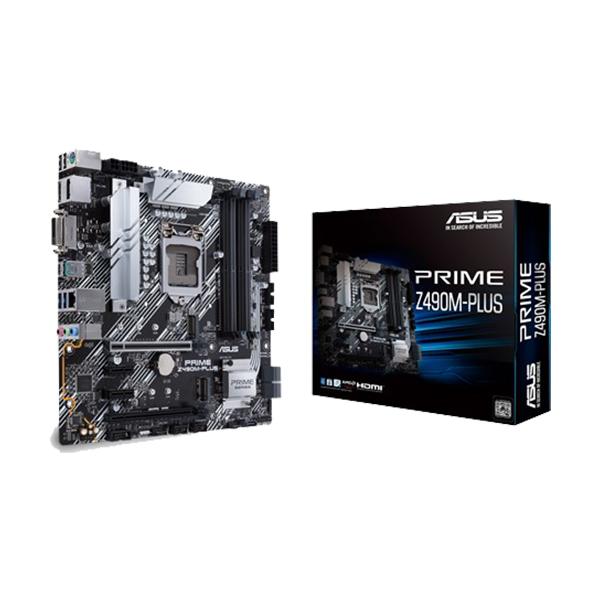

ASUS PRIME Z490M-PLUS Motherboard (PRIME-Z490M-PLUS)

  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • Enhanced power solution: 8+1 DrMOS power stages, 6-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: VRM heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A ® and Type-C® support

Features

Intel® Z490 (LGA 1200) micro ATX motherboard with dual M.2, 9 DrMos power stages, HDMI, DisplayPort, DVI, SATA 6 Gbps, Intel® 1 Gb Ethernet, USB 3.2 Gen 2 Type-A® and Type-C®

  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • Enhanced power solution: 8+1 DrMOS power stages, 6-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: VRM heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A ® and Type-C® support

Specifications

CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z490
Memory 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
1 x DVI-D
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
Multi-GPU Support Supports AMD 2-Way CrossFireX Technology
Expansion Slots Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode) *1
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1
Storage Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
5 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
LAN Intel® I219-V 1Gb Ethernet
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
USB Ports Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 8 )
4 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
EPU
Digi+ VRM
Fan Xpert 4
– EZ update
AI Charger
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III
– ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core+
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
ASUS EZ DIY
– Procool

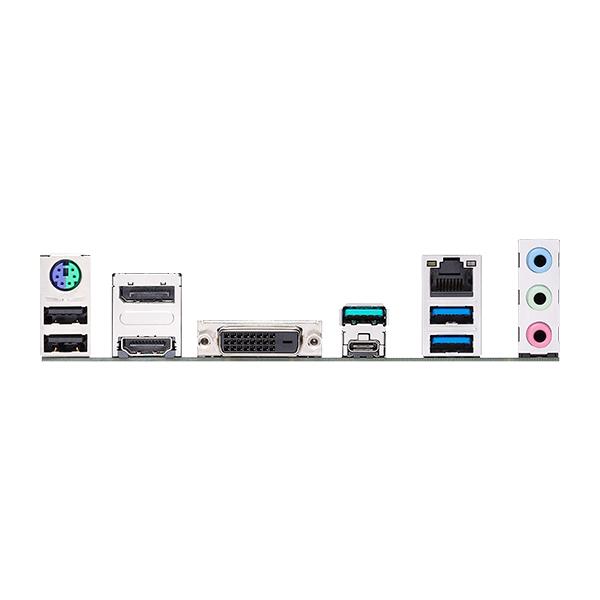

Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports 1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Lighting Control RGB Strip Header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
5 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows® 10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Warranty 3 Years
Note *1 Support PCIe bifurcation for RAID on CPU function.
*2 When a device in SATA mode is installed on the M.2_2 socket, SATA 6G_1 port cannot be used.***Features, Price and Specifications are subject to change without notice.
