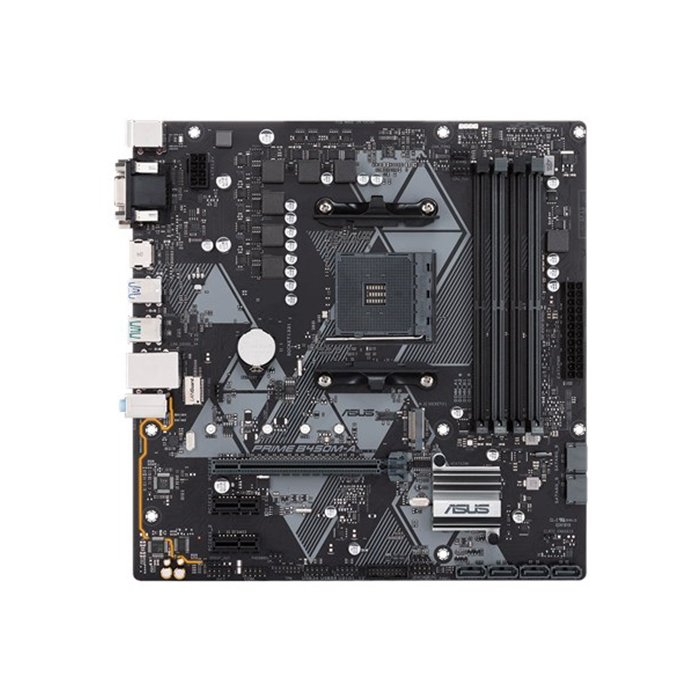

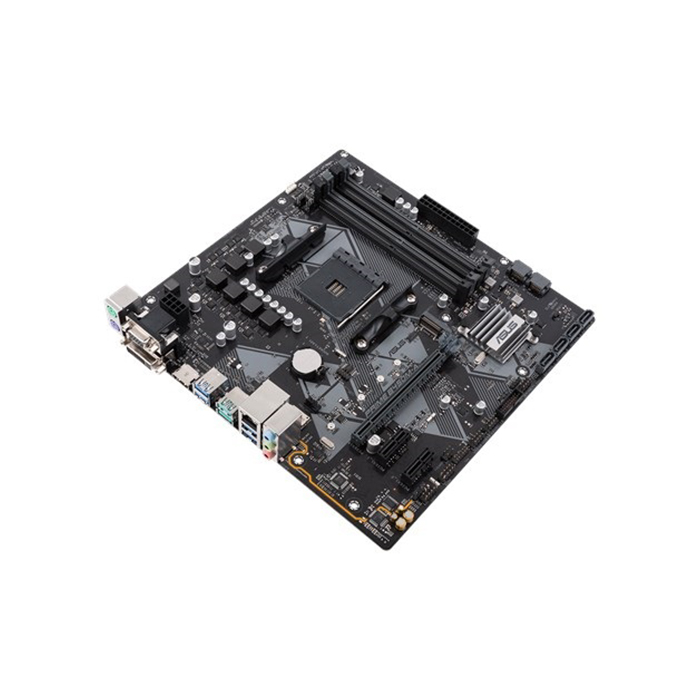

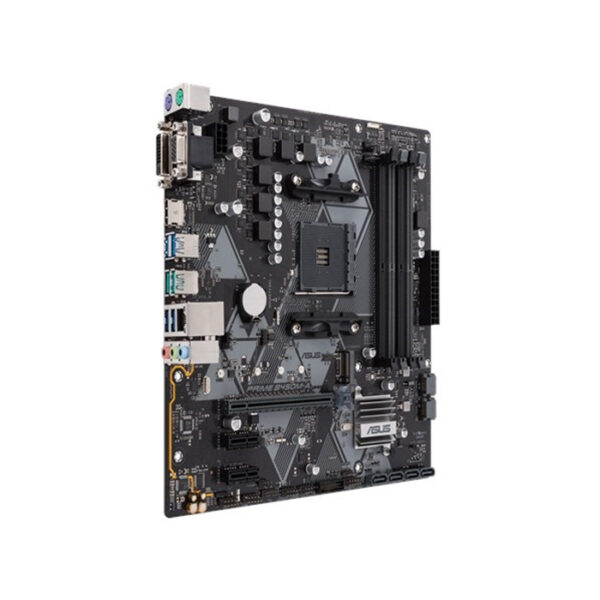

ASUS PRIME B450M-A AMD AM4 M-ATX Motherboard WITH AURA SYNC RGB HEADER

7,025.00

Inclusive of all taxes

Model :

PRIME B450M-A

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Loading...

Description

ASUS PRIME B450M-A AMD AM4 M-ATX Motherboard WITH AURA SYNC RGB HEADER

  • Fan Xpert 2+: Flexible controls for ultimate cooling and silence.
  • Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2 and native M.2
  • ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware
  • 5X Protection III: Multiple hardware safeguards for all-around system protection
Specification
CPU AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
* Due to CPU limitation, CPU cores supported varies by processors.
Chipset AMD B450
Memory 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D/D-Sub ports
– Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode) *1
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
AMD B450 chipset
2 x PCIe 2.0 x1
LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard
Storage AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
2 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
AMD Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
Audio Feature :
– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Operating system Windows® 10 64-bit
Windows® 7 64-bit *3
USB Ports 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD B450 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset :
4 x USB 2.0/1.1 port(s) (4 at mid-board)
Special Features ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert 2+
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– Multi-language BIOS
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM

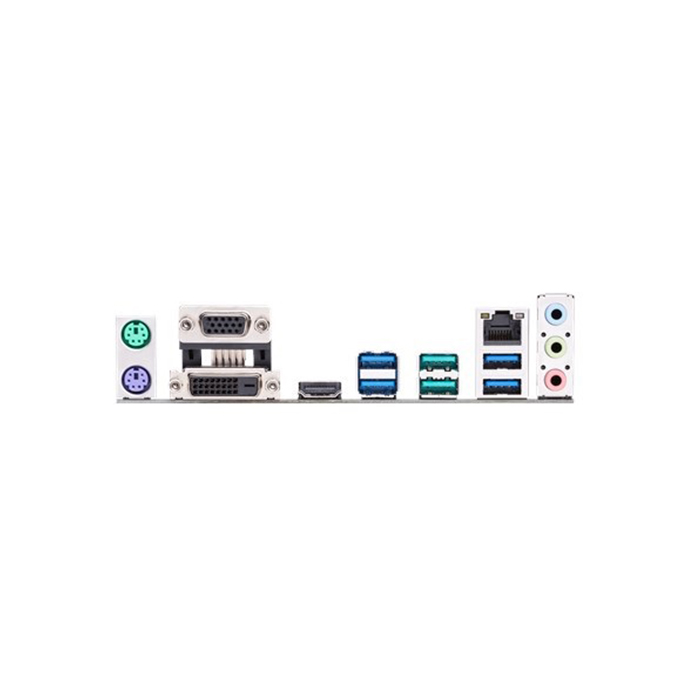

Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2
4 x USB 3.1 Gen 1
3 x Audio jack(s)
Internal I/O Ports 1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector

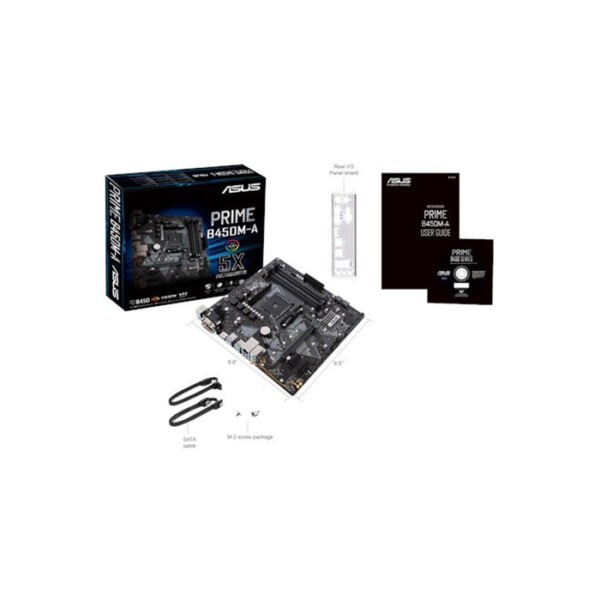

Accessories User’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Form factor mATX Form Factor
9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
Warranty 3 Years
Note* 1*Support NVMe PCIe RAID.
2*The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
3*Install an AMD Ryzen™ 2nd Generatione or Ryzen™ 1st Generation Processors to support Windows 7 64-bit operating system.Price, feature and specifications are subject to change without notice.
