Description

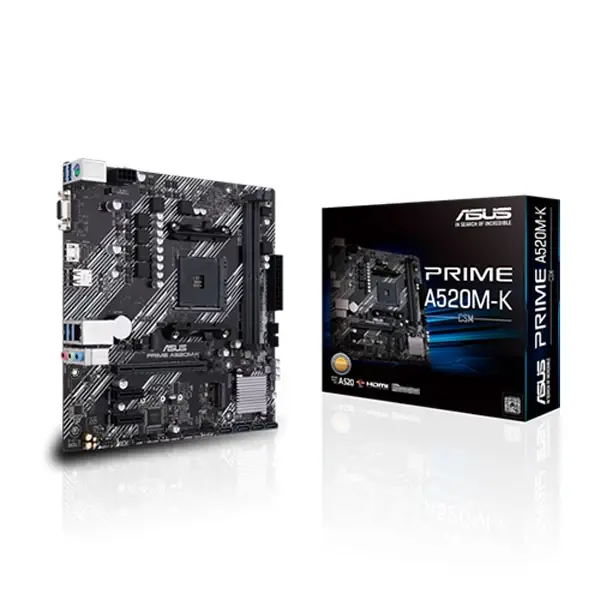

Asus Prime A520M-K/CSM Am4 Micro Atx Motherboard
Asus Prime A520M-K/CSM motherboard is expertly designed with comprehensive cooling solutions and intelligent tuning options. Corporate Stable Model (CSM) is a commercial feature mainly for organizational use that provides stability and reliability.
Features:
ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A
- AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
- 5X Protection III: Multiple hardware safeguards for all-around system protection
Specifications:
Model | PRIME A520M-K/CSM |
CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors |
Chipset | AMD A520 |
Memory | 2 x DIMM, Max. 64GB, DDR4
4866(O.C)/4600(O.C)/4466(O.C.)/ 4400(O.C)/4333(O.C.)/4266(O.C.) /4200(O.C.)/4133(O.C.)/4000(O.C.) /3866(O.C.)/3733(O.C.)/3600(O.C.)/ 3466(O.C.)/3400(O.C.)/3333(O.C.)/ 3200/3000/2933/2800/2666/2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture |
Graphic | 1 x D-Sub 1 x HDMI 2.1(4K@60HZ) |
Expansion Slots | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 |
Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), |
LAN | Realtek RTL8111H 1Gb Ethernet ASUS LANGuard |
Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
Audio Feature :
|
USB Ports | Rear USB Port ( Total 6 )
Front USB Port ( Total 6 )
|
Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert – EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
ASUS Special Features | ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design |
Back I/O Ports |
|
Internal I/O Ports |
|
Accessories | User´s manual 1 x ACC Express Activation Key Card I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s) |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | Windows 10 64-bit |
Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
