AsRock Z890 Taichi OCF LGA1851 ATX Motherboard
Home>Brand>ASRock>AsRock Z890 Taichi OCF LGA1851 ATX Motherboard

AsRock Z890 Taichi OCF LGA1851 ATX Motherboard

(Inclusive of all taxes)

Model No : Z890 Taichi OCF
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

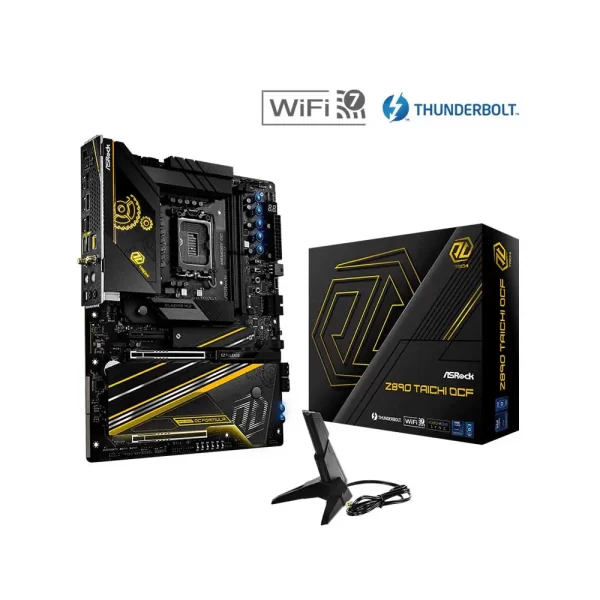

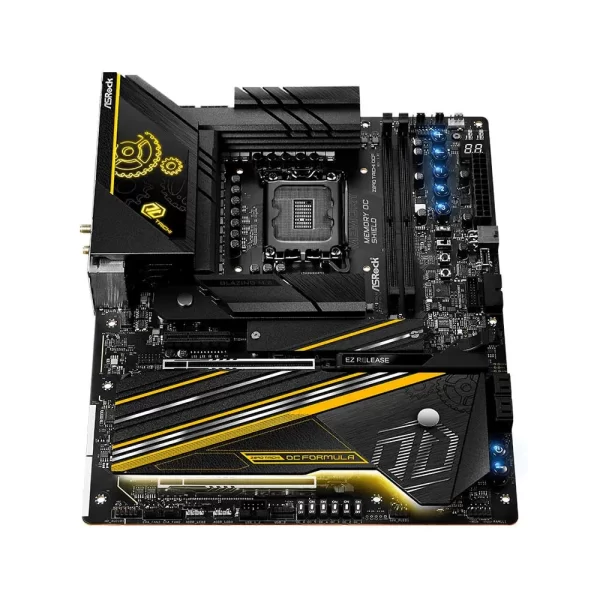

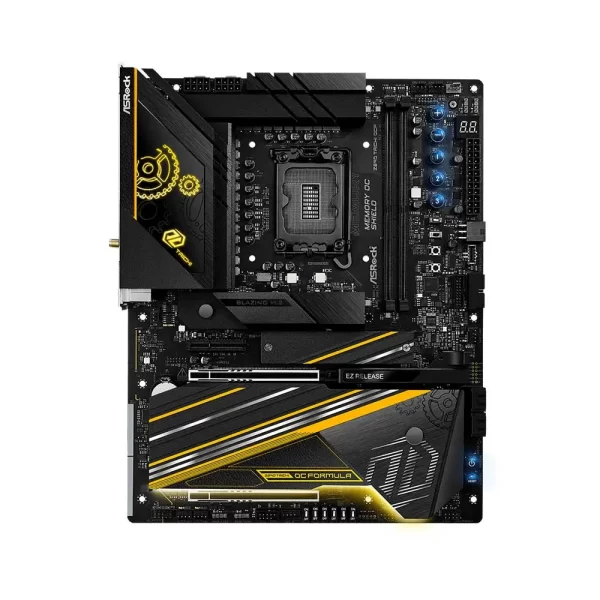

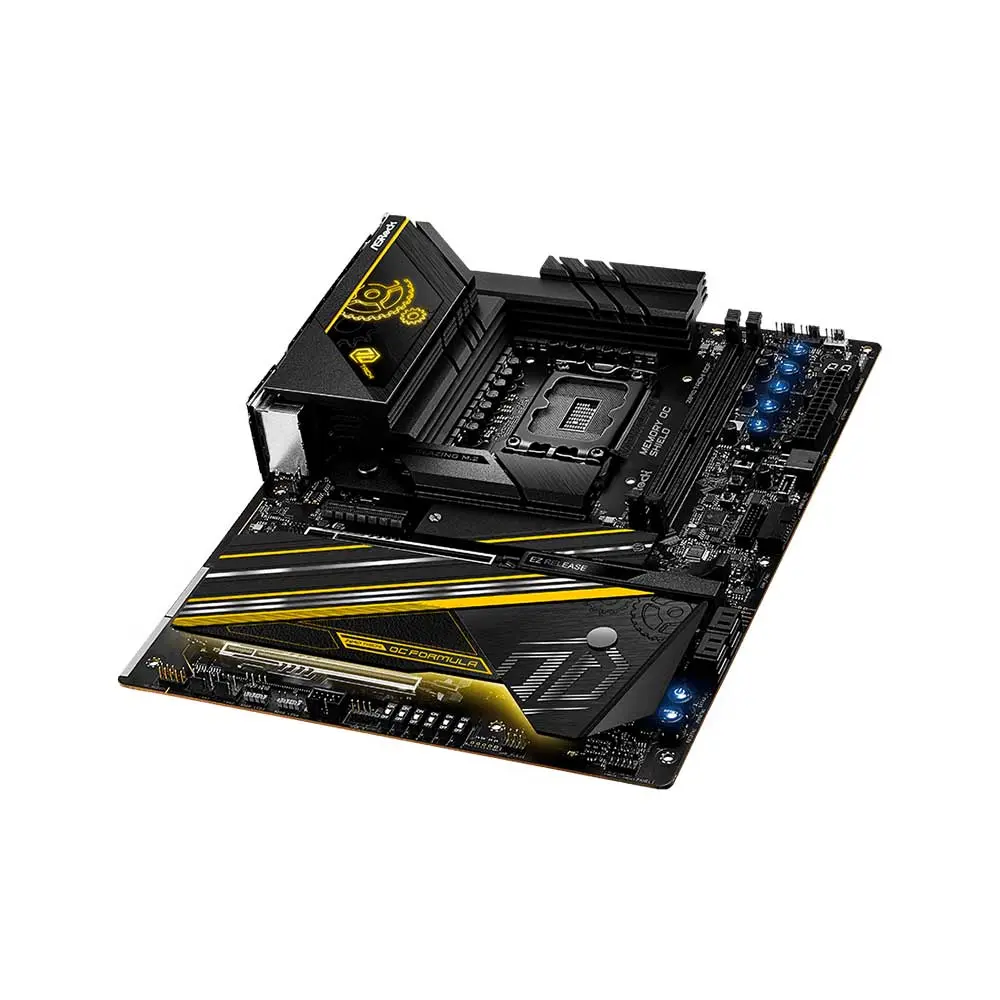

AsRock Z890 Taichi OCF LGA1851 ATX Motherboard

AsRock Z890 Taichi OCF is the pinnacle of ASRock’s commitment to extreme overclocking. Engineered to meet the demands of professional overclockers, this motherboard delivers unparalleled precision, overclocking capability, and performance. As part of the Taichi family, it sets a new standard for those who push their systems to the limit.

  • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
  • 22+1+2+1+1 Power Phase, 110A SPS for VCore
  • 2 x DDR5 DIMMs
    Supports Dual Channel, up to 12527+ (OC)*
  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x4
  • Graphics Output Options: 2 Thunderbolt™ 4 Type-C
  • Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3
    1 Blazing M.2 (PCIe Gen5 x4)
    3 Hyper M.2 (PCIe Gen4 x4)
    2 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 2 Thunderbolt™ 4 Type-C (Rear)
    2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
    4 USB 3.2 Gen2 Type-A (Rear)
    5 USB 3.2 Gen1 (1 Rear, 4 Front)
    3 USB 2.0 (Front)
  • 5G LAN
  • 802.11be Wi-Fi 7 + Bluetooth
  • Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance
  • Professional Overclocking Toolkit
Unique Feature Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– Thunderbolt™ 4 Type-C Ports (40 Gb/s)
– 6 x M.2 Sockets
Rock-Solid Durability
– Server-Grade Low-Loss PCB
– 22+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
– Memory OC Shield
– Flexible Integrated I/O Shield
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
– 5G LAN, 802.11be Wi-Fi 7 Module
Professional Overclocking
– ASRock Hyper BCLK Engine
– 6 x OC Profiles
– Heater
– ElmorLabs OC Panel
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
CPU  Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
– Integrated NPU for dedicated AI acceleration
– Supports ASRock Hyper BCLK Engine
Chipset Intel® Z890
Memory Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 12527MHz+(OC)*
– Supports Clocked Unbuffered DIMM (CUDIMM)
– Max. capacity of system memory: 128GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0x
BIOS 2 x 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Intel® Xe LPG Graphics Architecture
– 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
Audio 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
– Nahimic Audio
LAN 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
– Realtek RTL8126
Wireless LAN 802.11be 2×2 Wi-Fi 7 Module
– Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
– Supports 2.4GHz/5GHz/6GHz* frequency band
– Supports 320MHz channel bandwidth with 6GHz* frequency band
– 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.4
– Supports MU-MIMO
Slots CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*
– 1 x PCIe 5.0 x16 Slot (PCIE3), supports x8 mode*
Chipset:
– 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode*
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slots (PCIE2 and PCIE3)
Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB CPU:
– 2 x Thunderbolt™ 4 Type-C (Rear)
Chipset:
– 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
– 4 x USB 3.2 Gen2 Type-A (Rear)
– 5 x USB 3.2 Gen1 (1 Rear, 4 Front)
– 3 x USB 2.0 (Front)
Connector 2 x Thermistor Cable Headers
– 1 x Power LED and Speaker Header
– 4 x Addressable LED Headers*
– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
– 1 x Heater Header
– 1 x ElmorLabs OCP Header
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED
– 1 x Retry Button
– 1 x Safe Boot Button
– V-Probe™: 11-set of onboard voltage measurement points laid
– Rapid OC Buttons: +/- buttons to adjust OC frequency
– 6 x OC Switches
– 1 x Slow Mode Switch
– 1 x LN2 Mode Switch
– 1 x NickShih’s OC Profile 1 Button with LED
– 1 x NickShih’s OC Profile 2 Button with LED
– 1 x NickShih’s OC Profile 3 Button with LED

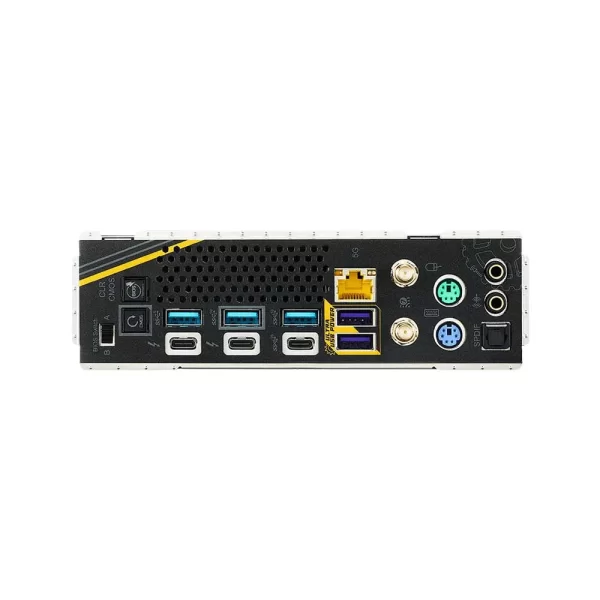

Rear Panel I/O 2 x Antenna Ports
– 1 x PS/2 Keyboard Port
– 1 x PS/2 Mouse Port
– 1 x Optical SPDIF Out Port
– 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
– 1 x USB 3.2 Gen1 Port
– 1 x RJ-45 LAN Port
– 1 x Clear CMOS Button
– 1 x BIOS Flashback Button
– 1 x BIOS Selection Switch
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)
Software & UEFI Software
– ASRock Formula Drive
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
Accessories 4 x SATA Data Cables
– 1 x ASRock WiFi 2.4/5/6 GHz Antenna
– 1 x ARGB Splitter Cable
– 2 x Thermistor Cables
– 1 x Screw for M.2 Socket
– 1 x Standoff for M.2 Socket
Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 10 Layer PCB
– 2oz Copper PCB
OS Microsoft Windows® 11 64-bit
Certifications FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note** **Price, Specifications & Features are subject to change without notice
