AsRock Z890 Taichi Aqua LGA1851 E-ATX Motherboard
Home>Brand>ASRock>AsRock Z890 Taichi Aqua LGA1851 E-ATX Motherboard

AsRock Z890 Taichi Aqua LGA1851 E-ATX Motherboard

(Inclusive of all taxes)

Model No : Z890 TAICHI AQUA
all india free shipping
3 day replacement
secured shopping
genuine products
no hidden charges
competitive pricing

Description

AsRock Z890 Taichi Aqua LGA1851 E-ATX Motherboard

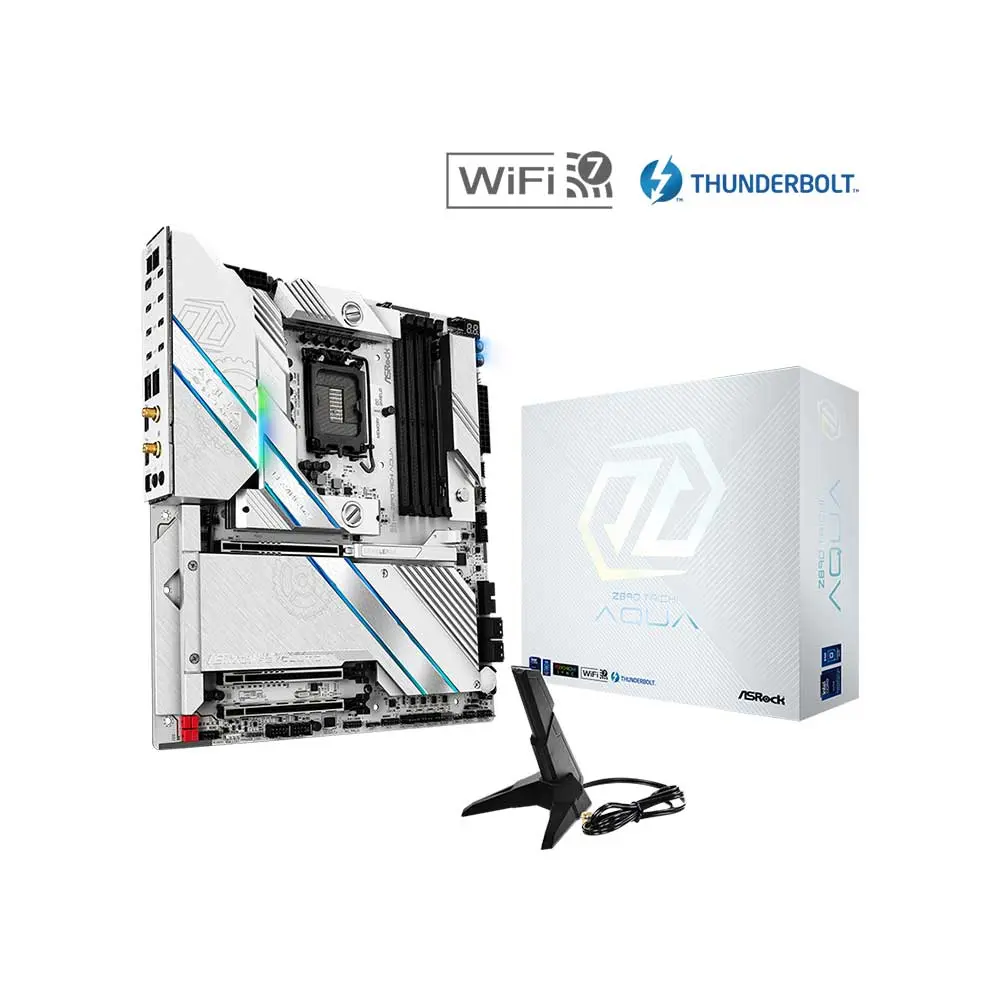

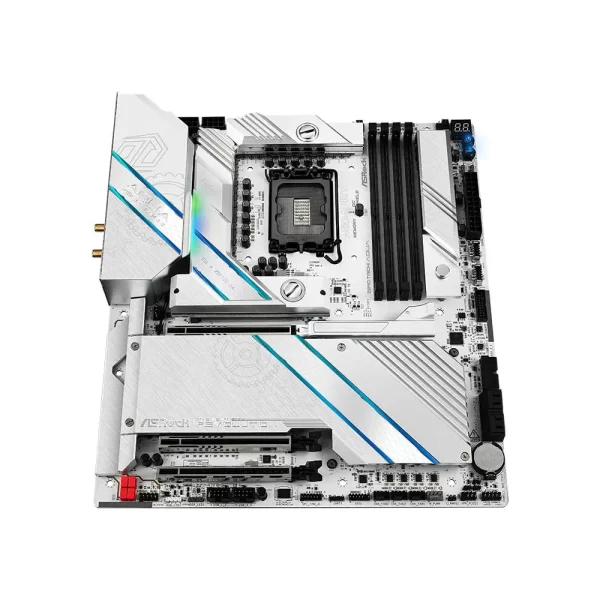

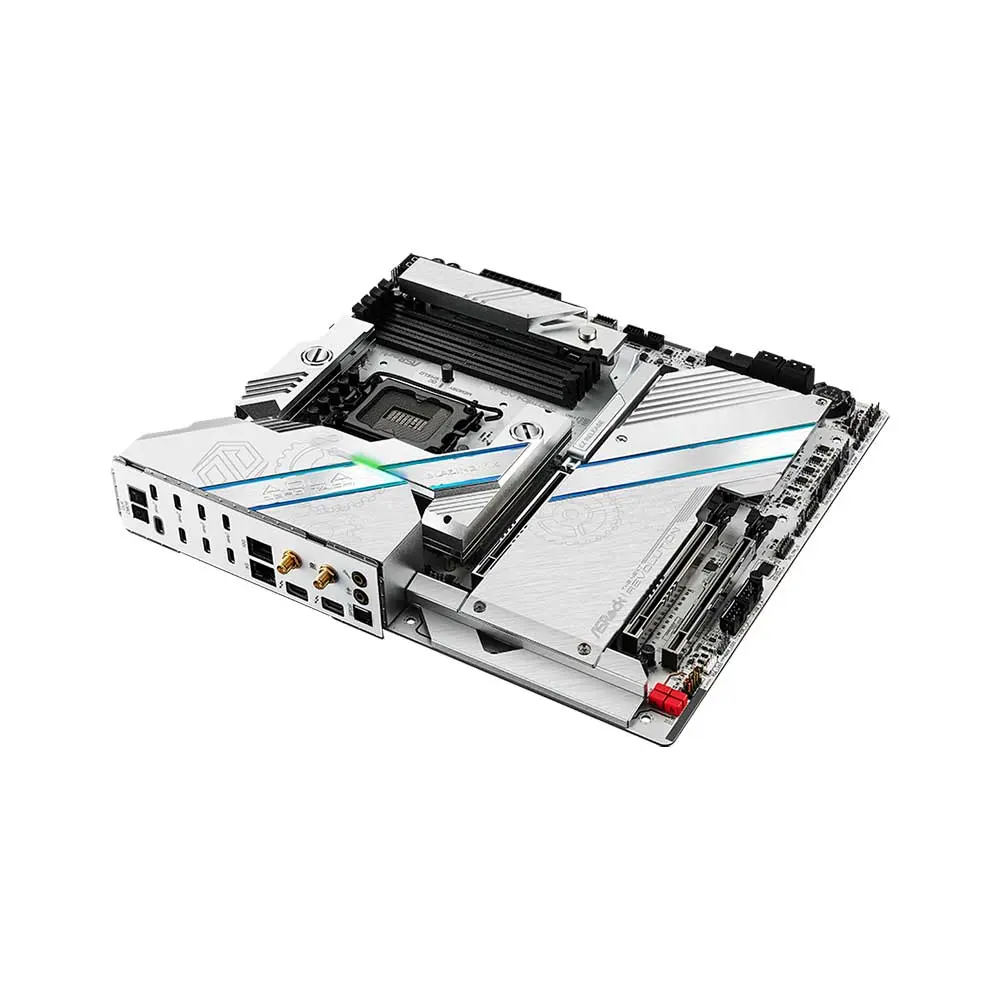

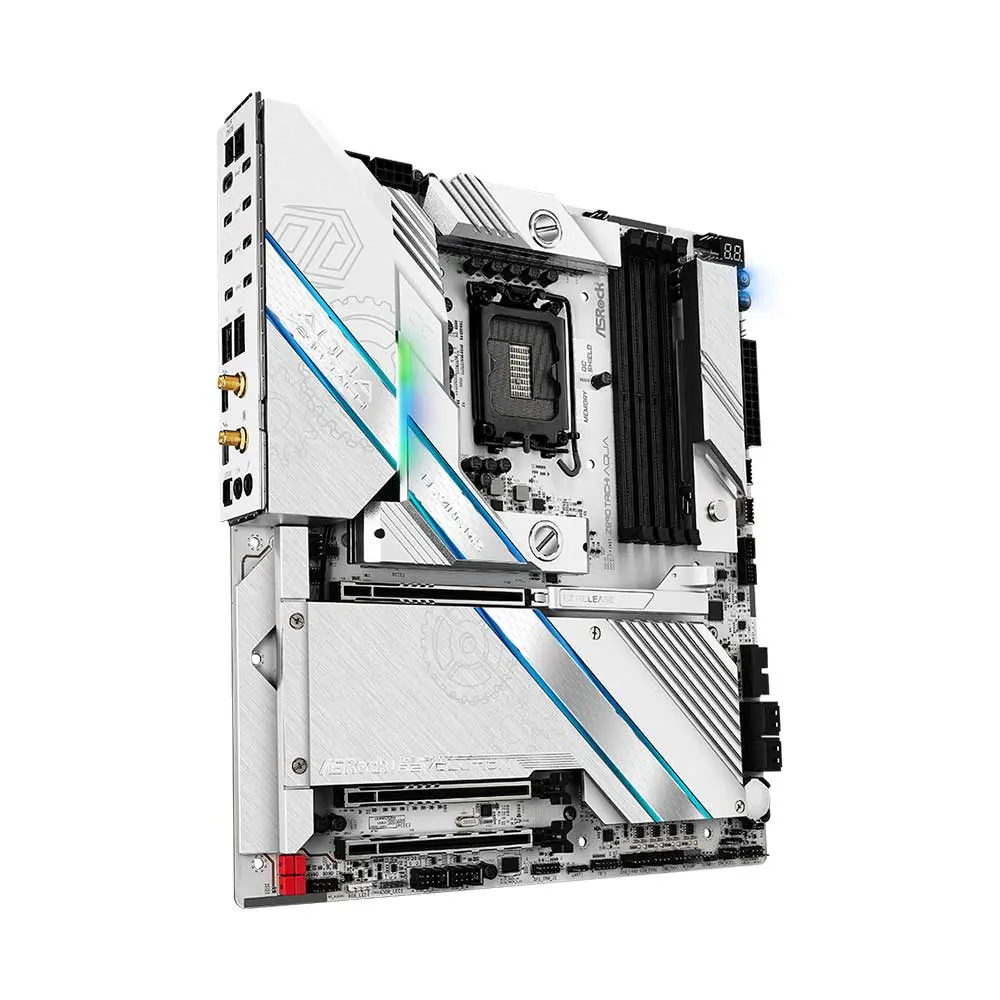

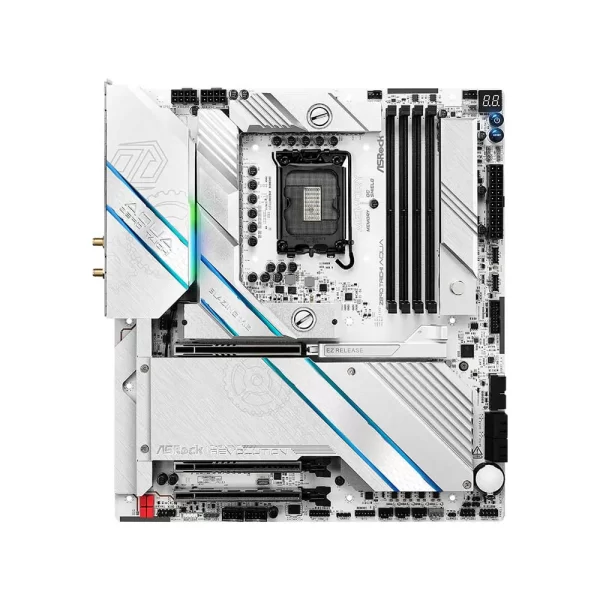

AsRock Z890 Taichi AQUA sets a new industry standard with its pioneering hybrid cooling design, featuring the first-ever detachable VRM and M.2 water block. Additionally, the innovative All USB Type-C On Rear IO configuration marks a leap forward in connectivity. Our mission is to lead the future and establish a new benchmark for top-tier motherboards.

  • Supports Intel Core™ Ultra Processors (Series 2) (LGA1851)
  • 28+1+2+1+1 Power Phase, 110A SPS for VCore
  • 4 x DDR5 DIMMs
    Supports Dual Channel, up to 9600+ (OC)
  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x16
  • Graphics Output Options: 2 Thunderbolt™ 4 Type-C
  • Realtek ALC4082 5.1 CH HD Audio Codec,
    ESS SABRE9219 DAC, WIMA Audio Cap, Nahimic Audio
  • 4 SATA3
    2 Blazing M.2 (PCIe Gen5 x4)
    3 Hyper M.2 (PCIe Gen4 x4)
    1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 2 Thunderbolt™ 4 Type-C (Rear)
    2 USB 3.2 Gen2x2 Type-C (Front)
    4 USB 3.2 Gen2 Type-C (Rear)
    4 USB 3.2 Gen1 Type-C (Rear)
    4 USB 3.2 Gen1 Type-A (Front)
    4 USB 2.0 (Front)
  • Marvell 10Gbps LAN, 5Gbps LAN
  • Killer 802.11be Wi-Fi 7 + Bluetooth
  • Supports Memory OC Shield, 20K Caps with 1000uF Capacitance, EZ Release Design

Unique Feature Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– Thunderbolt™ 4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
– Server-Grade Low-Loss PCB
– 28+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
– Memory OC Shield
– Flexible Integrated I/O Shield
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
– Marvell 10G LAN, Realtek 5G LAN
– 802.11be Wi-Fi 7 Module
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
CPU  – Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
– Integrated NPU for dedicated AI acceleration
– Supports ASRock Hyper BCLK Engine
Chipset Intel® Z890
Memory Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 9600MHz+(OC)*
– Supports Clocked Unbuffered DIMM (CUDIMM)
– Max. capacity of system memory: 256GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0x
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Intel® Xe LPG Graphics Architecture
– 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
Audio 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
– WIMA Audio Capacitors (For Front Outputs)
– ESS SABRE9219 DAC for Front Panel Audio (130dB SNR)
– Individual PCB Layers for R/L Audio Channel
– Impedance Sensing on Rear Out port
– Nahimic Audio
LAN 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113)
– Support Wake-On-LAN
– Support PXE 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)
Wireless LAN 802.11be 2×2 Wi-Fi 7 Module
– Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
– Supports 2.4GHz/5GHz/6GHz* frequency band
– Supports 320MHz channel bandwidth with 6GHz* frequency band
– 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.4
– Supports MU-MIMO
– Supports Killer LAN Software
Slots CPU:
– 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)
Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB CPU:
– 2 x Thunderbolt™ 4 Type-C (Rear)
Chipset:
– 2 x USB 3.2 Gen2x2 Type-C (Front)
– 4 x USB 3.2 Gen2 Type-C (Rear)
– 4 x USB 3.2 Gen1 Type-A (Front)
– 4 x USB 3.2 Gen1 Type-C (Rear)
– 4 x USB 2.0 (Front)
Connector 3 x Thermistor Cable Headers
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
– 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED

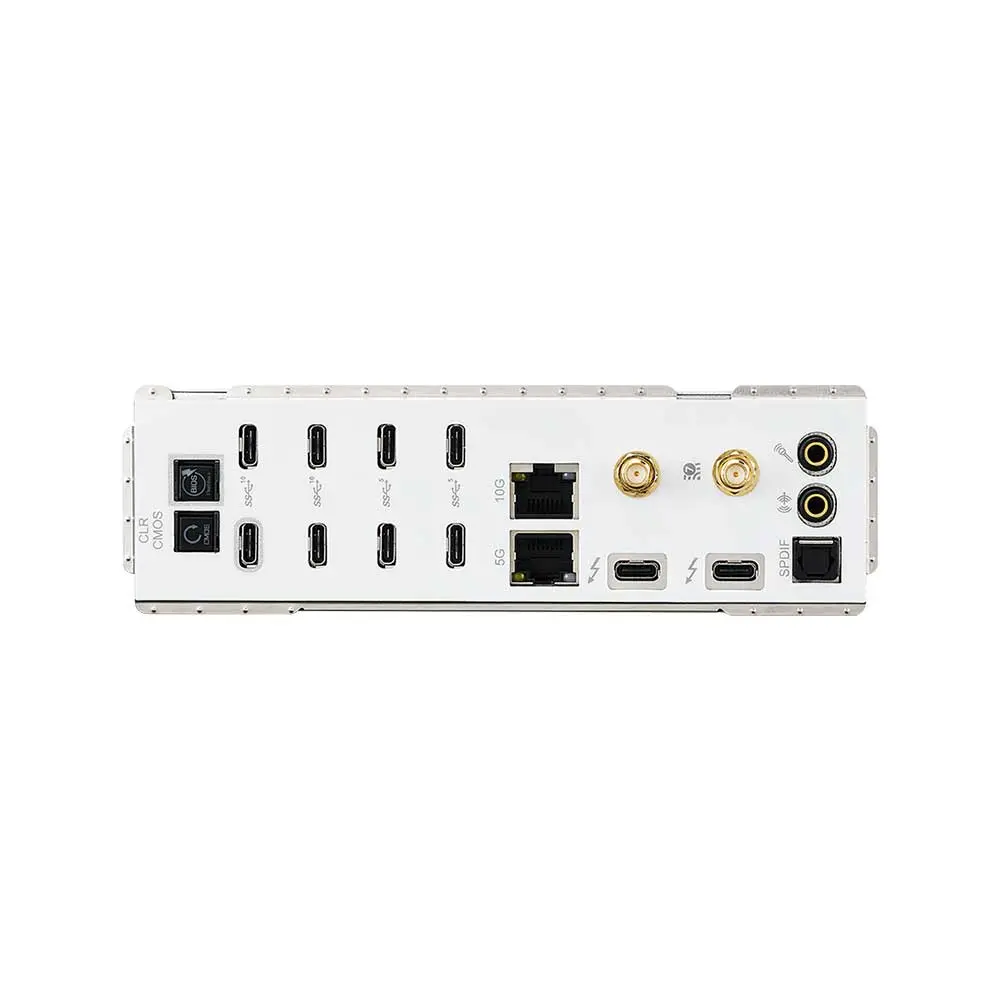

Rear Panel I/O 2 x Antenna Ports
– 1 x Optical SPDIF Out Port
– 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
– 4 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
– 4 x USB 3.2 Gen1 Type-C Ports (USB32_TC_56 support Ultra USB Power.)
– 2 x RJ-45 LAN Ports
– 1 x Clear CMOS Button
– 1 x BIOS Flashback Button
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)
Software & UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– Killer Control Center
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
Accessories 4 x SATA Data Cables
– 1 x USB 2.0 Bracket
– 1 x ASRock WiFi 2.4/5/6 GHz Antenna
– 1 x ARGB Splitter Cable
– 3 x Thermistor Cables
Form Factor EATX Form Factor: 12.0-in x 10.8-in, 30.5 cm x 27.4 cm
– 10 Layer PCB
– 2oz Copper PCB
OS Microsoft Windows® 11 64-bit
Certifications FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
– CEC Tier II ready’
Warranty 3 Years
Note** **Price, Specifications & Features are subject to change without notice
