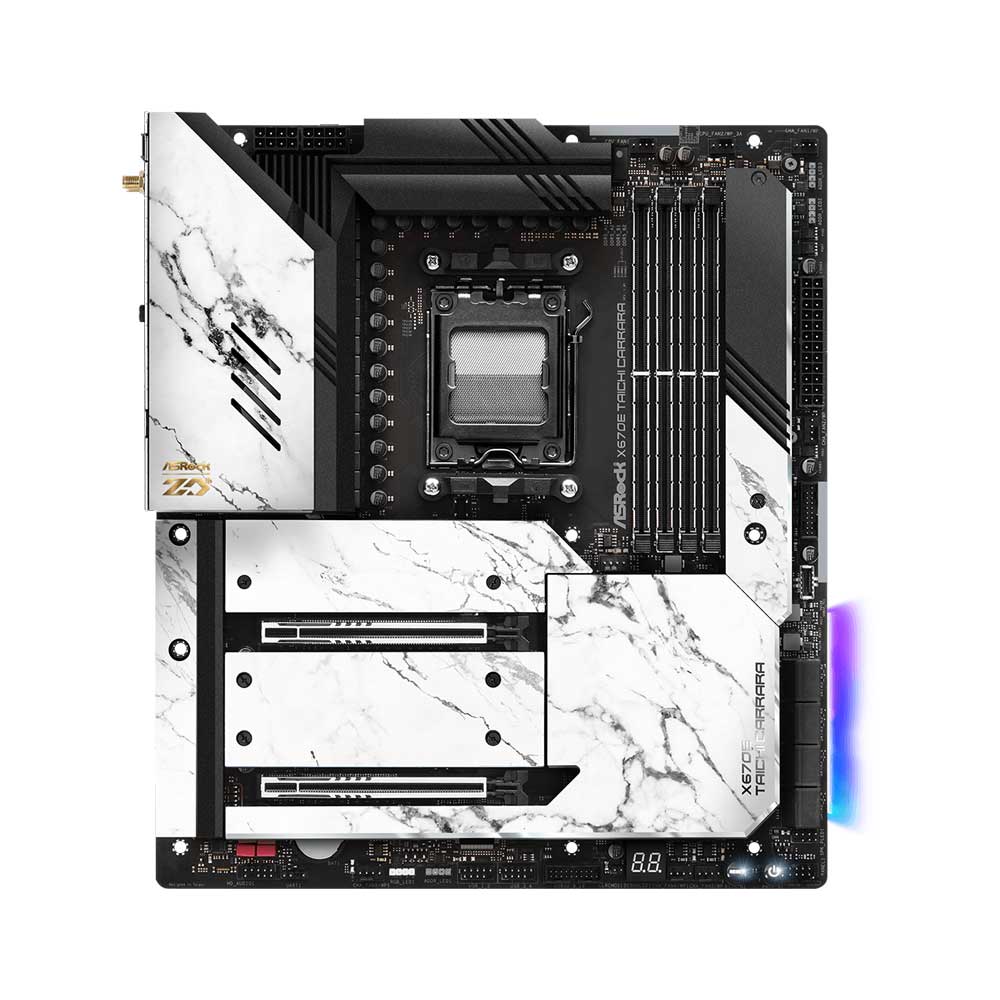

AsRock X670E Taichi Carrara AM5 EATX Motherboard (X670E-Taichi-Carrara)

Inclusive of all taxes

Model No : X670E-Taichi-Carrara

All over India Shipping

Competitive Pricing

Experts in pc building

product description

Description

AsRock X670E Taichi Carrara AM5 EATX Motherboard (X670E-Taichi-Carrara)

  • Supports AMD Ryzen™ 7000 Series Processors
  • 24+2+1 Phase Power Design, SPS for VCore+GT
  • 4 x DDR5 DIMMs, supports up to 6600+(OC)
  • 2 PCIe 5.0 x16
  • Graphics Output Options: 2 USB4 Type-C, 1 HDMI
  • Realtek ALC4082 5.1 CH HD Audio Codec,
    ESS SABRE9218 DAC, WIMA Audio Caps
  • 1 Blazing M.2 (PCIe Gen5x4),
    1 Hyper M.2 (PCIe Gen4x4 & SATA3),
    2 Hyper M.2 (PCIe Gen4x4),
    8 SATA3
  • 2 USB4 Type-C (Rear),
    1 USB 3.2 Gen2x2 Type-C (Front),
    5 USB 3.2 Gen2 Type-A (Rear),
    7 USB 3.2 Gen1 (3 Rear, 4 Front)
  • Killer 2.5G LAN
  • Killer 802.11ax Wi-Fi 6E + Bluetooth
Unique Features Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– 12CM Carrara Edition Cooling FAN
– Blazing M.2 Gen5 Fan Heatsink
– Dual Channel DDR5
– USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
– Ultra Low-Loss PCB
– 24+2+1 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Gaming
– Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module
– Killer DoubleShot™ Pro
– ASRock Lightning Gaming Ports
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
CPU  – Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
– Supports ASRock Hyper BCLK Engine
Chipset AMD X670
Memory  – Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600+(OC)*
– Max. capacity of system memory: 128GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz*
Audio  – 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
– WIMA Audio Capacitors (For Front Outputs)
– ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
– Individual PCB Layers for R/L Audio Channel
– Impedance Sensing on Rear Out port
– Nahimic Audio
LAN  – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Killer E3100G
– Supports Killer LAN Software
– Supports Killer DoubleShot™ Pro
Wireless LAN  – 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 160MHz with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth + High speed class II
– Supports MU-MIMO
– Supports Killer LAN Software
– Supports Killer DoubleShot™ Pro
Slots CPU:
– 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
Chipset:
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
– 4 x SATA3 6.0 Gb/s Connectors**
Raid  – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB  – 2 x USB4 Type-C (Rear)
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 5 x USB 3.2 Gen2 Type-A (Rear)
– 7 x USB 3.2 Gen1 (3 Rear, 4 Front)
– 4 x USB 2.0 (Front)
Connector  – 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED

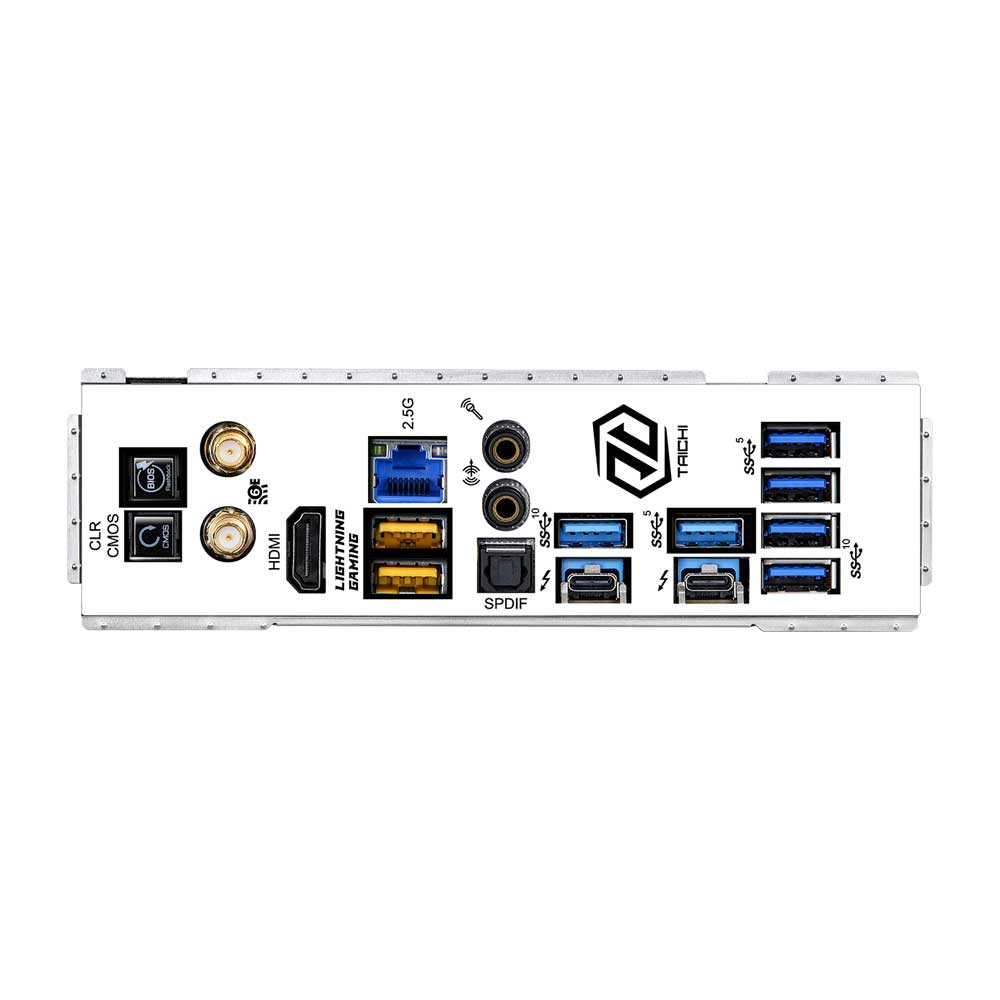

Rear Panel I/O  – 2 x Antenna Ports
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB4 Type-C Ports (40 Gb/s)*
– 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_3 supports Ultra USB Power.)
– 3 x USB 3.2 Gen1 Ports
– 1 x RJ-45 LAN Port
– 1 x Clear CMOS Button
– 1 x BIOS Flashback Button
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)
Software Software
– ASRock Motherboard Utility (A-Tuning)
– Killer Control Center
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

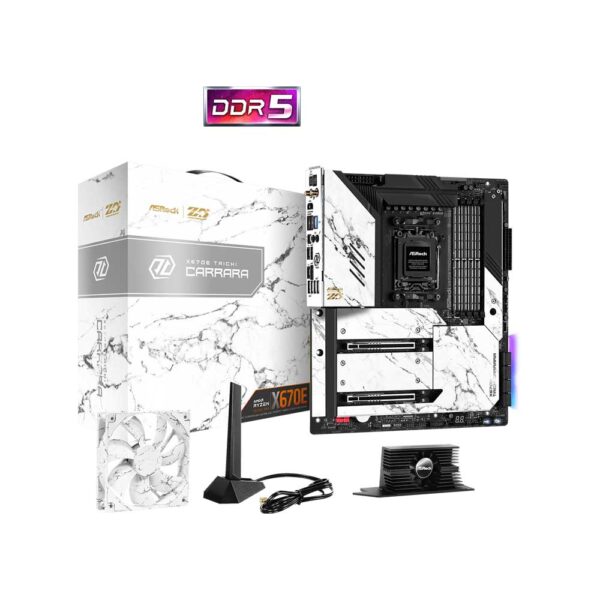

Accessories  – 1 x User Manual
– 4 x SATA Data Cables
– 1 x Wireless Dongle USB Bracket
– 1 x Blazing M.2 Gen5 Fan Heatsink
– 1 x 12CM Carrara Edition Cooling FAN
– 1 x ASRock WiFi 2.4/5/6 GHz Antenna
– 4 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
Form Factor  – EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
– 8 Layer PCB
OS Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications  – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
